Kilews brushless csavarozástechnika
Kilews szénkefementes, kis és közepes nyomatékú csavarozók
A Kilews szénkefementes, kis és közepes nyomatékú csavarozói kifejezetten nagy ciklusszámú, folyamatos ipari felhasználásra készültek. A brushless motortechnológia csökkenti a kopó alkatrészek számát, ezáltal jelentősen megnöveli a…
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

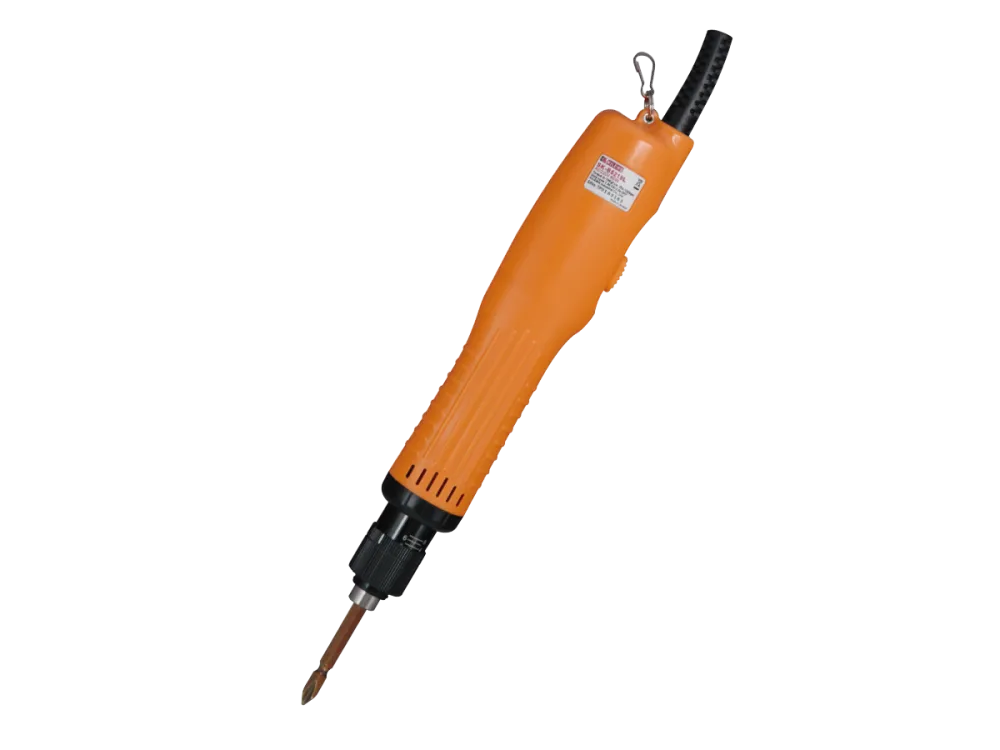

Kilews SK-B5P series Brushless medium torque ac-type automatic push start clutch type series
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 470 |
| Length (mm) | 245 |
Modellek összehasonlítása
| Model | Voltage | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|---|---|
| SK-B5112L | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112P | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112LF | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112PF | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5117LF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5117PF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5122L | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5122P | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5212L | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212P | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212LF | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212PF | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5217LF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5217PF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5222L | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5222P | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
Torque min. (Nm)
0.15
Torque max. (Nm)
2.16
Speed min. (rpm)
1200
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

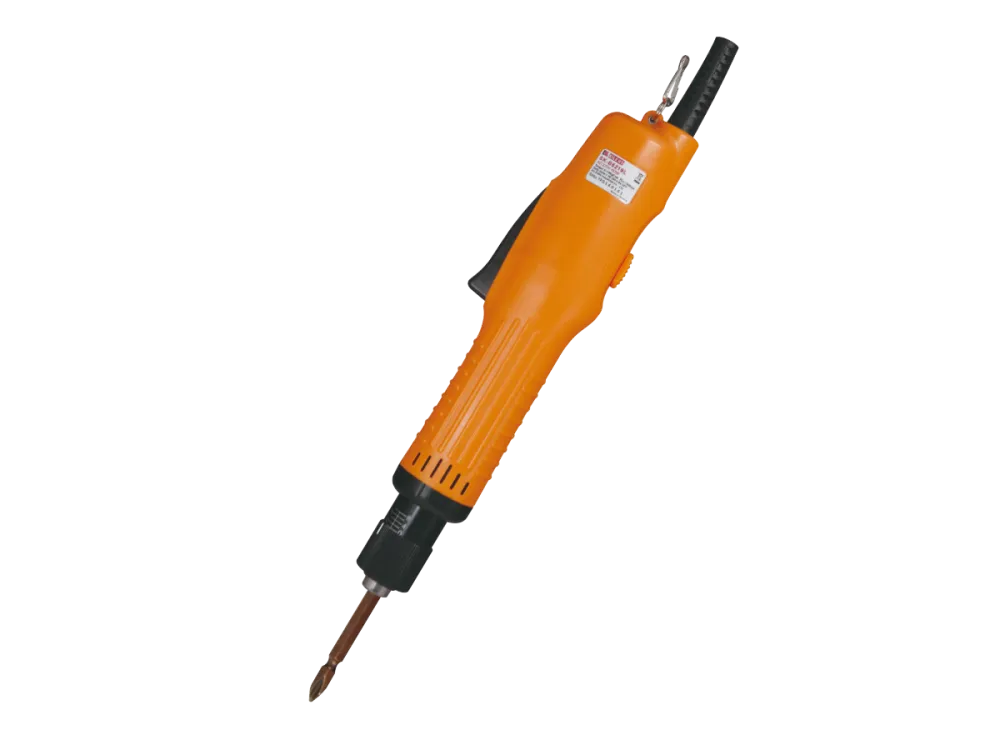

Kilews SK-B5L series Brushless medium torque ac-type automatic trigger start clutch type series
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 470 |
| Length (mm) | 245 |
Modellek összehasonlítása
| Model | Voltage | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|---|---|
| SK-B5112L | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112P | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112LF | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112PF | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5117LF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5117PF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5122L | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5122P | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5212L | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212P | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212LF | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212PF | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5217LF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5217PF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5222L | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5222P | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
Torque min. (Nm)
0.15
Torque max. (Nm)
2.16
Speed min. (rpm)
1200
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

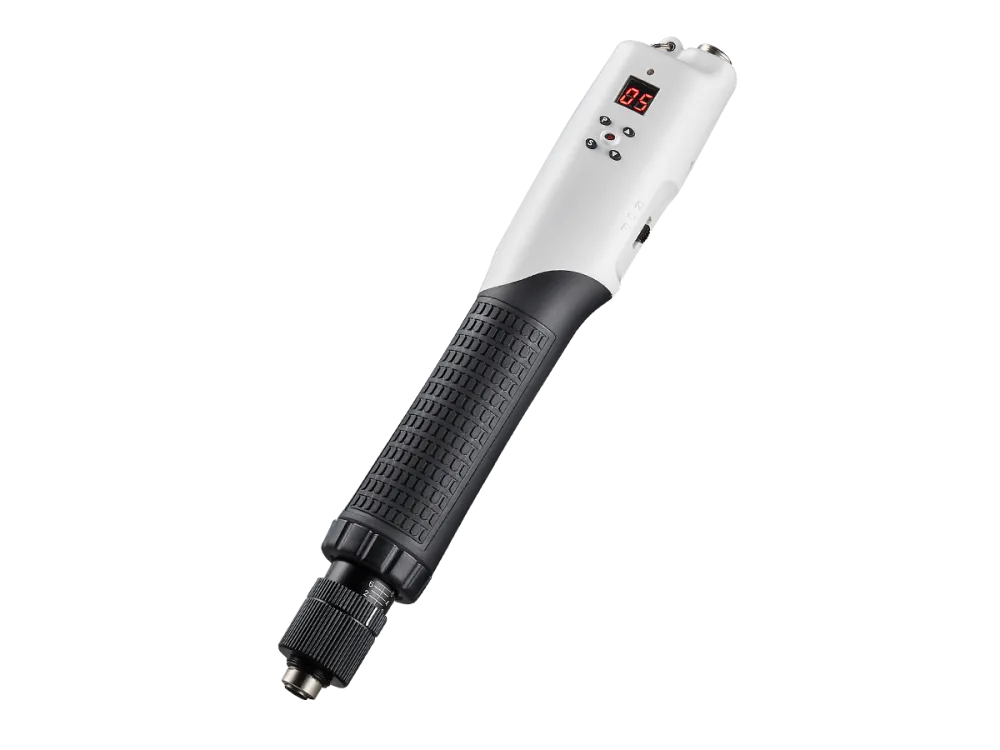

Kilews SKD-BE500P series Brushless medium torque dc-type automatic with counter push start clutch type series
Brushless motor, the perfect combination of screw counter and electric screwdriver, and most fit for operating in the clean room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 580 |
| Length (mm) | 270 |
| Bit Type | A、B、C、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BE512L | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BE512P | 2~12 | 1.76~10.56 | 0.19~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BE512LF | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE512PF | 2~12 | 1.76~10.56 | 0.19~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE517LF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE517PF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE519L | 3~19 | 2.64~16.72 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
| SKD-BE519P | 3~19 | 2.64~16.72 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Torque min. (Nm)
0.15
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

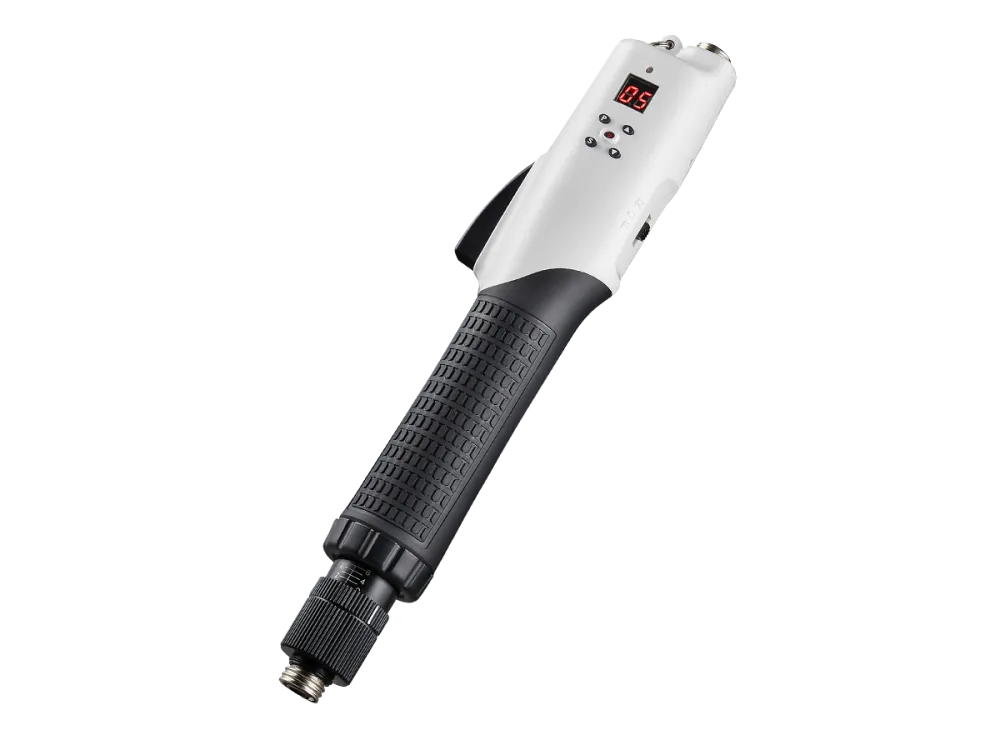

Kilews SKD-BE500L series Brushless medium torque dc-type automatic with counter Trigger start clutch type series
Brushless motor, the perfect combination of screw counter and electric screwdriver, and most fit for operating in the clean room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 580 |
| Length (mm) | 270 |
| Bit Type | A、B、C、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BE512L | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BE512P | 2~12 | 1.76~10.56 | 0.19~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BE512LF | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE512PF | 2~12 | 1.76~10.56 | 0.19~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE517LF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE517PF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BE519L | 3~19 | 2.64~16.72 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
| SKD-BE519P | 3~19 | 2.64~16.72 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Torque min. (Nm)
0.15
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése
Kilews SKD-BE200P series Brushless low torque dc-type automatic with counter push start clutch type series
Brushless motor, the perfect combination of screw counter and electric screwdriver, and most fit for operating in the clean room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Power Controller | SKP-32BC-60W |
| Bit Type | B9.5、C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SKD-BE203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | LC:226 LB:240 |
| SKD-BE210L | 1~10 | 0.88~8.8 | 0.10~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | LC:226 LB:240 |
| SKD-BE210P | 2~10 | 1.76~8.8 | 0.2~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 |
Torque min. (Nm)
0.02
Torque max. (Nm)
0.98
Speed min. (rpm)
160
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

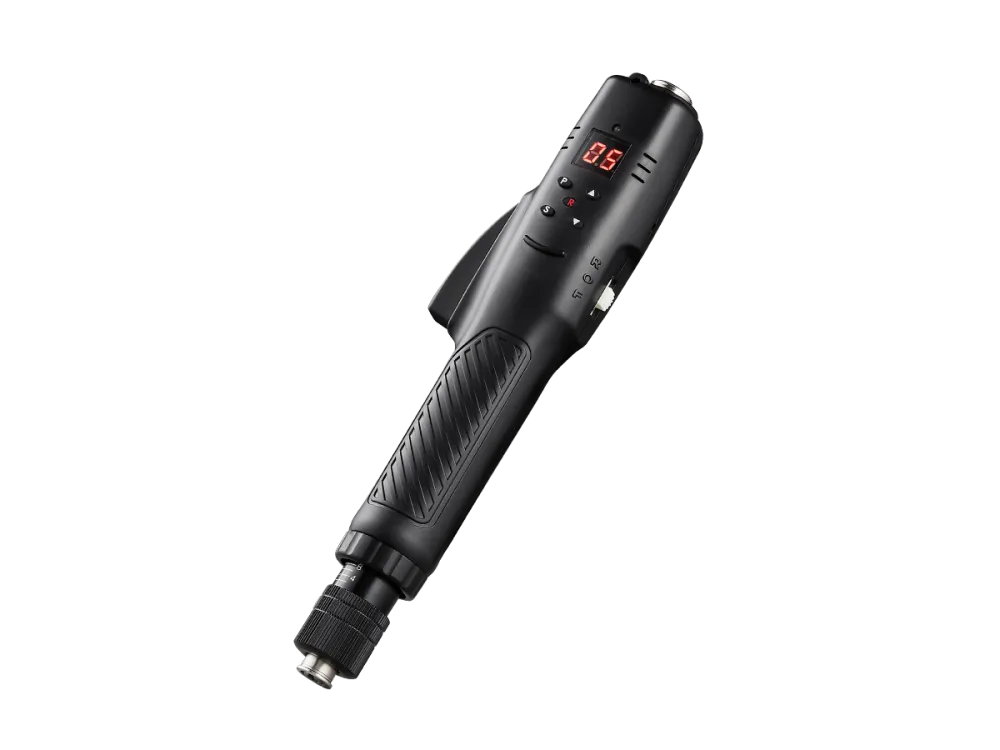

Kilews SKD-BE200L series Brushless low torque dc-type automatic with counter Trigger start clutch type series
Brushless motor, the perfect combination of screw counter and electric screwdriver, and most fit for operating in the clean room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Power Controller | SKP-32BC-60W |
| Bit Type | B9.5、C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SKD-BE203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | LC:226 LB:240 |
| SKD-BE210L | 1~10 | 0.88~8.8 | 0.10~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | LC:226 LB:240 |
| SKD-BE210P | 2~10 | 1.76~8.8 | 0.2~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 |
Torque min. (Nm)
0.02
Torque max. (Nm)
0.98
Speed min. (rpm)
160
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

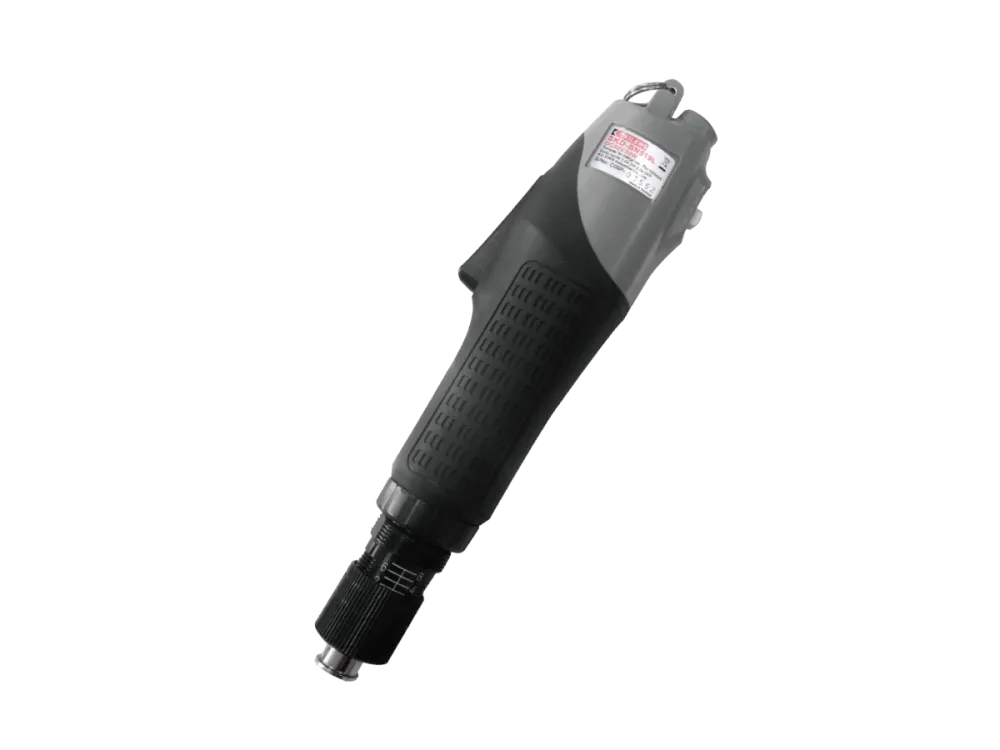

Kilews SKD-BN500LM series Brushless medium torque dc-type auto shut off Trigger start clutch typevacuum pick up series
Simply put a vacuum flange onto SKD-BN500L series for picking up non-magnetic type screws, such as plastic, aluminum, and stainless steel made screws.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 740 |
| Length (mm) | 323 |
| Bit Type | A、B、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512LM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BN512LFM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN517LFM | 5~17 | 4.34~14.96 | 0.49~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN519LM | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Torque min. (Nm)
0.25
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

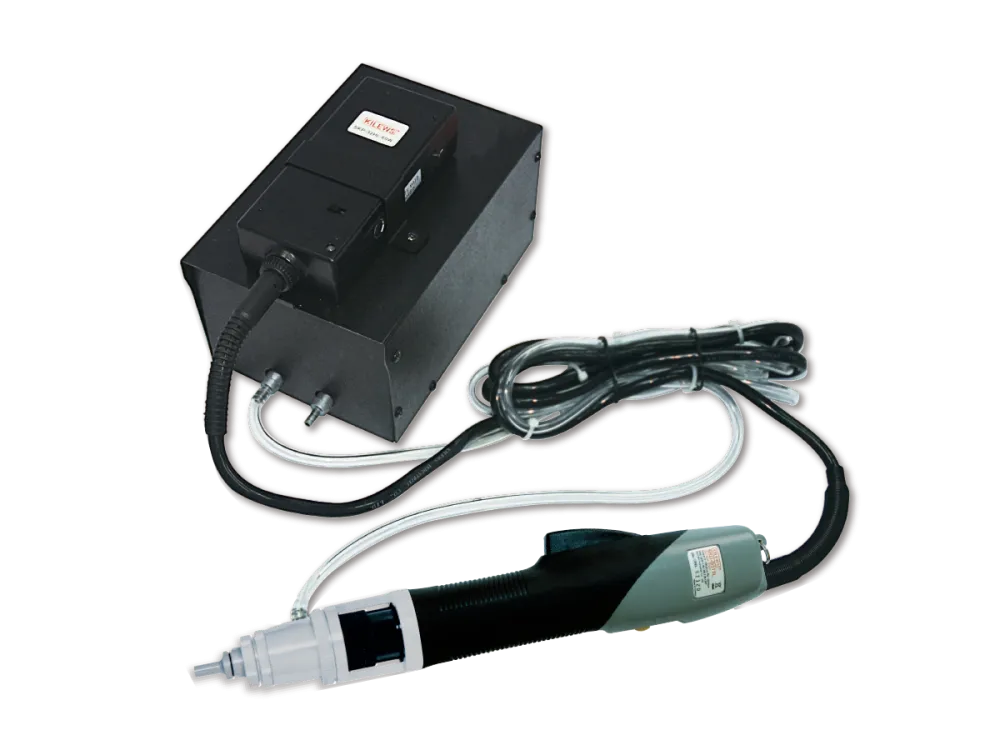

Kilews SKD-BN500L (VACUUM TYPE) series Brushless medium torque dc-type automatic Vacuum screwdrivers
Vacuum screwdriver was taking the series of SKD-BN500L/P as reference and being created by adding the vacuum head. The main purpose is sucking the non-magnetic screws, such as plastic screws / aluminum-made screws / stainless steel screws and any other screws that does not contain magnetic.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 603 |
| Length (mm) | 300 |
| Bit Type | A、B、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512L (VACUUM TYPE) | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W(N) |
| SKD-BN512LF (VACUUM TYPE) | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N) |
| SKD-BN517LF (VACUUM TYPE) | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N)) |
| SKD-BN519L (VACUUM TYPE) | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W(N) |
Torque min. (Nm)
0.15
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

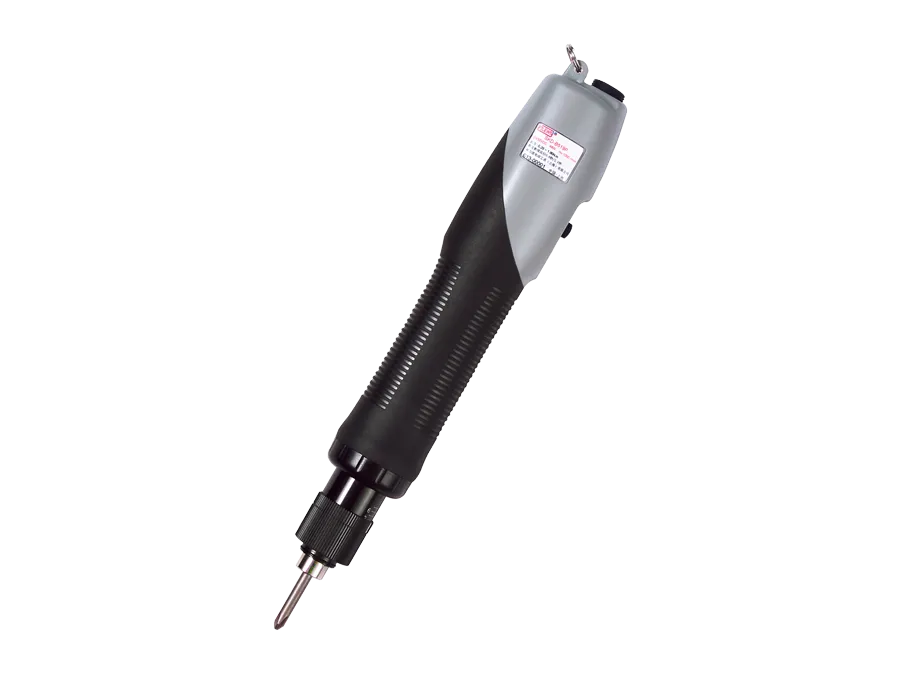

Kilews SKD-BN500Pseries Brushless medium torque dc-type automatic push start clutch type series
Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 520 |
| Length (mm) | 235 |
| Bit Type | A、B、C、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512L | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BN512P | 2~12 | 1.77~10.56 | 0.19~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BN512LF | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN512PF | 2~12 | 1.77~10.56 | 0.19~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN517LF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN517PF | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN519L | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
| SKD-BN519P | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Torque min. (Nm)
0.15
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

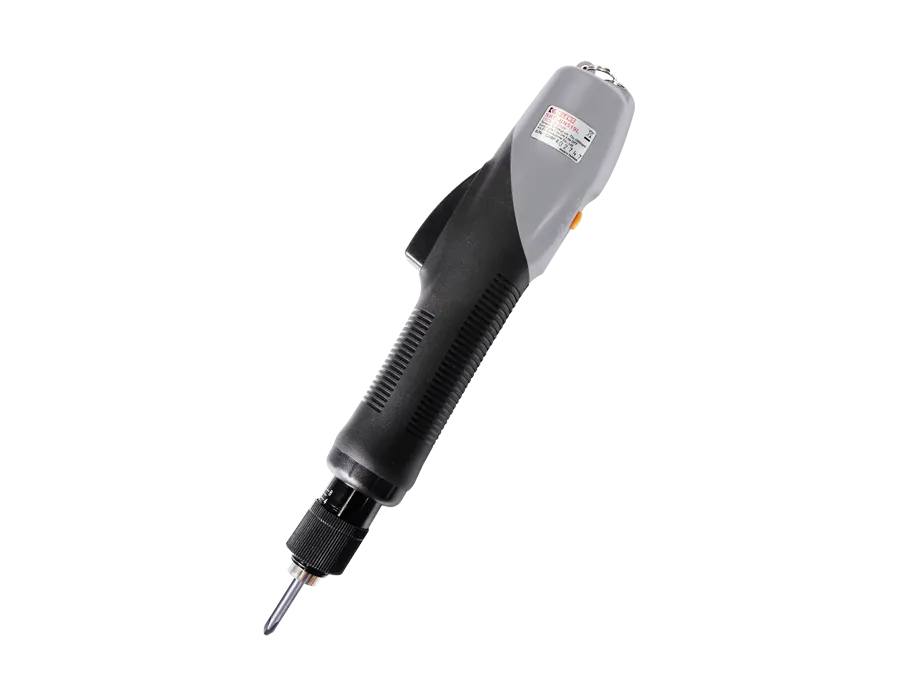

Kilews SKD-BN500L series Brushless medium torque dc-type automatic Trigger start clutch type series
Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Power Controller | SKP-32BC-60W |
| Bit Type | B9.5、C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SKD-BE203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | LC:226 LB:240 |
| SKD-BE207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | LC:226 LB:240 |
| SKD-BE210L | 1~10 | 0.88~8.8 | 0.10~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | LC:226 LB:240 |
| SKD-BE210P | 2~10 | 1.76~8.8 | 0.2~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 |
Torque min. (Nm)
0.15
Torque max. (Nm)
1.86
Speed min. (rpm)
700
Speed max. (rpm)
2000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

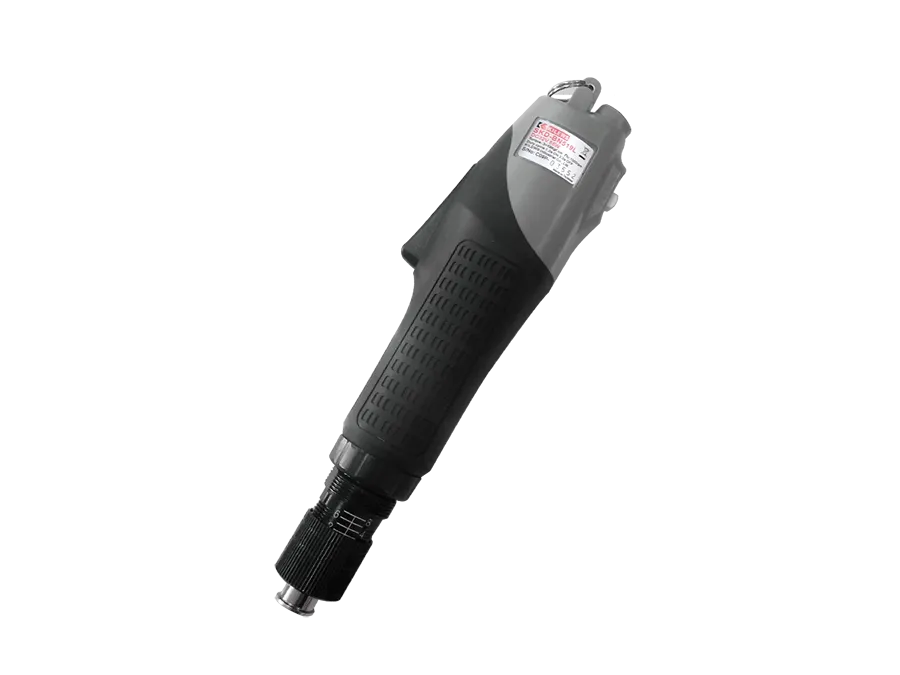

Kilews SKD-BN200LM series Brushless low torque dc-type auto shut off Trigger start clutch typevacuum pick up series
Simply put a vacuum flange onto SKD-BN200L series for picking up non-magnetic type screws, such as plastic, aluminum, and stainless steel made screws.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 740 |
| Length (mm) | 323 |
| Bit Type | A、B、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512LM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BN512LFM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN517LFM | 5~17 | 4.34~14.96 | 0.49~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN519LM | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Torque min. (Nm)
0.2
Torque max. (Nm)
0.98
Speed min. (rpm)
700
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

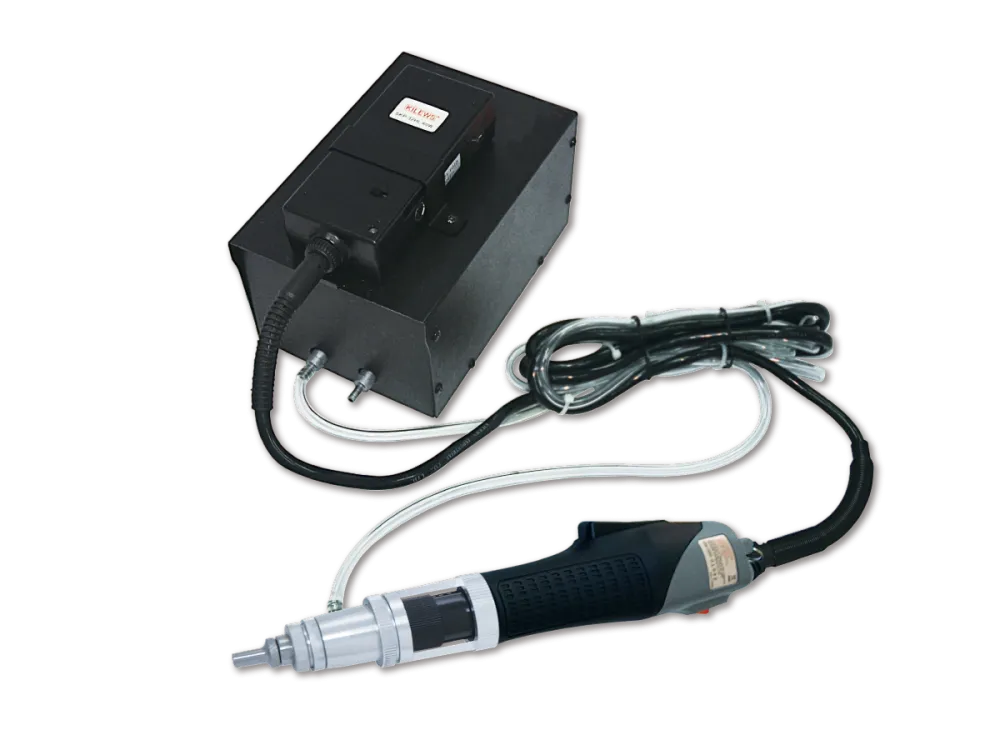

Kilews SKD-BN200L (VACUUM TYPE) series Brushless low torque dc-type automatic Vacuum screwdrivers
Only for “L” trigger start screwdrivers
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 603 |
| Length (mm) | 300 |
| Bit Type | A、B、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512L (VACUUM TYPE) | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W(N) |
| SKD-BN512LF (VACUUM TYPE) | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N) |
| SKD-BN517LF (VACUUM TYPE) | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N)) |
| SKD-BN519L (VACUUM TYPE) | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W(N) |
Torque min. (Nm)
0.2
Torque max. (Nm)
0.98
Speed min. (rpm)
160
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

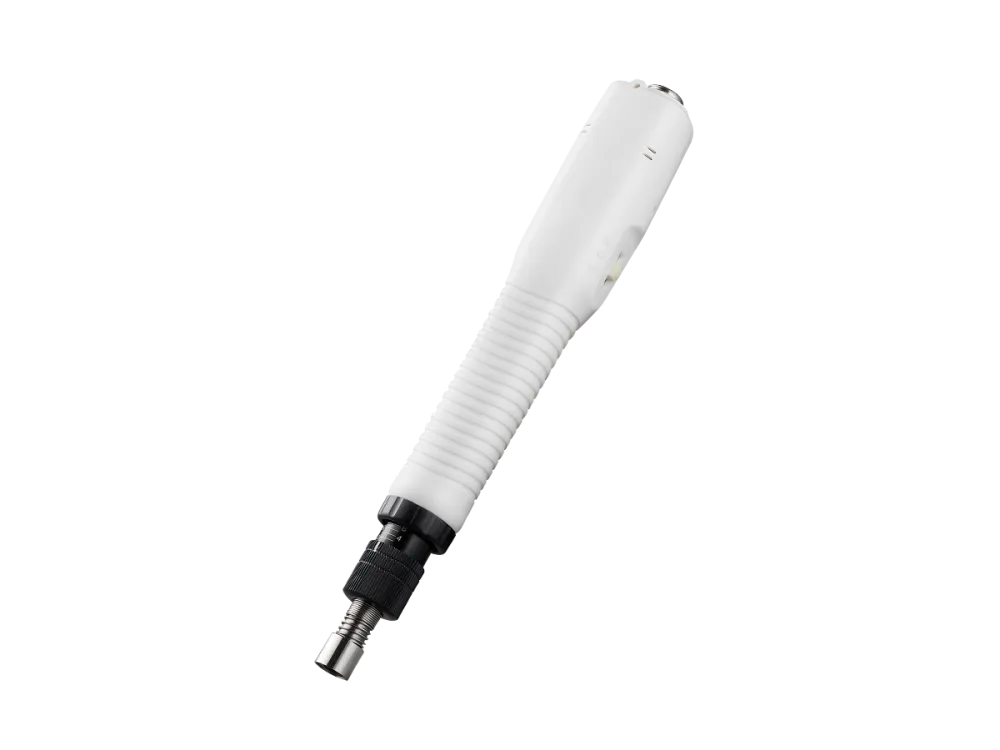

Kilews SKD-BN200P series Brushless low torque dc-type automatic push start clutch type series
Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Bit Type | B9.5、C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) | Power Controller |
|---|---|---|---|---|---|---|---|---|---|---|
| SKD-BN203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-32BC-60W(N) |
| SKD-BN203LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-32BC-60W |
| SKD-BN203LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-32BC-60W |
| SKD-BN203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | 185 | SKP-32BC-60W |
| SKD-BN207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | 185 | SKP-32BC-60W |
| SKD-BN210L | 1~10 | 0.88~8.8 | 0.10~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | 185 | SKP-32BC-60W |
| SKD-BN210P | 2~10 | 1.76~8.8 | 0.2~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 | SKP-32BC-60W |
Torque min. (Nm)
0.2
Torque max. (Nm)
0.98
Speed min. (rpm)
160
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

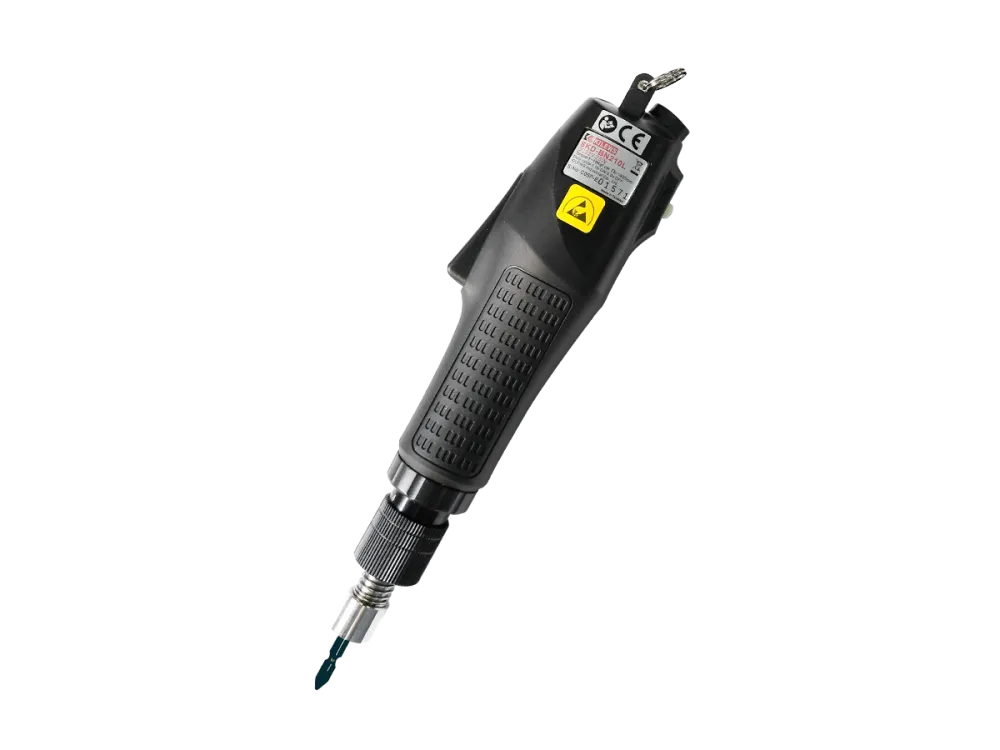

Kilews SKD-BN200L series Brushless low torque dc-type automatic Trigger start clutch type series
Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Power Controller | SKP-32BC-60W |
| Bit Type | B9.5、C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SKD-BN203L | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 | 330 | 185 |
| SKD-BN203LS5 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 500 | 350 | 1.0~2.3 | 1.0~2.0 | 330 | 185 |
| SKD-BN203LS6 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 370 | 260 | 1.0~2.3 | 1.0~2.0 | 330 | 185 |
| SKD-BN203LS7 | 0.2~3.5 | 0.18~3.08 | 0.02~0.34 | 230 | 160 | 1.0~2.3 | 1.0~2.0 | 330 | 185 |
| SKD-BN207L | 0.5~7 | 0.44~6.16 | 0.05~0.69 | 1000 | 700 | 1.4~2.6 | 1.4~2.3 | 330 | 185 |
| SKD-BN210L | 1~10 | 0.88~8.8 | 0.10~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 330 | 185 |
| SKD-BN210P | 2~10 | 1.76~8.8 | 0.2~0.98 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | 310 | 230 |
Torque min. (Nm)
0.2
Torque max. (Nm)
0.98
Speed min. (rpm)
160
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

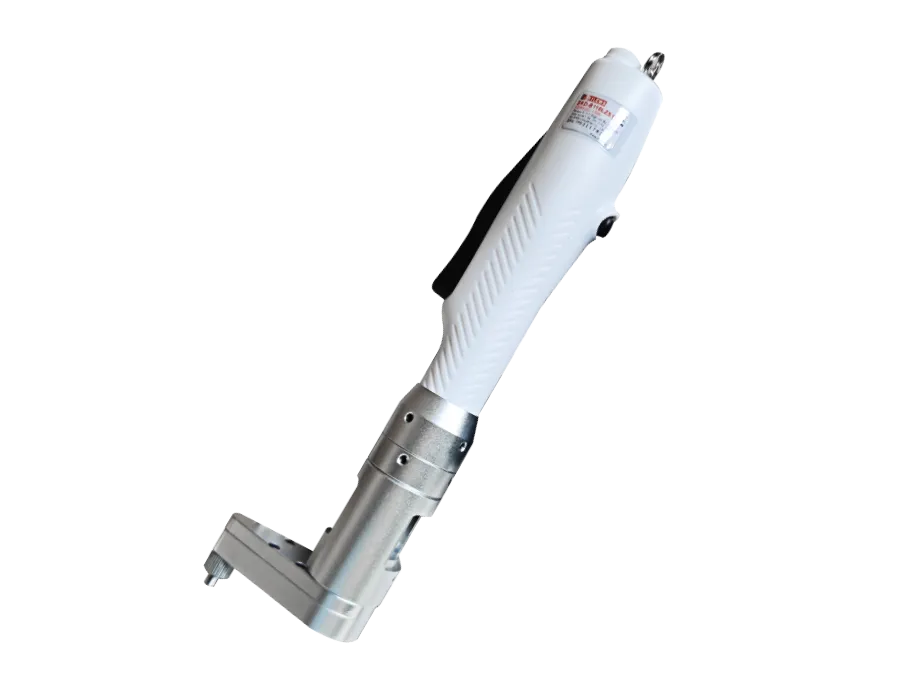

Kilews SKD-B100LZS series Brushless mini torque dc-type automatic Trigger start clutch type series
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) HI | 1000 |
| Free Speed (r.p.m) LO | 700 |
| Screw Size Dia (mm) Machine Screw | 1.0~1.7 |
| Screw Size Dia (mm) Tapping Screw | 1.0~1.5 |
| Weight (g) | 250 |
| Length (mm) | 213.6 |
| Power Controller | SKP-12HL |
| Bit Type | Tailored Bit |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) |
|---|---|---|---|
| SKD-B110LZS12 | 0.1~1.5 | 0.09~1.32 | 0.01~0.147 |
| SKD-B112LZS12 | 0.2~2.0 | 0.17~1.7 | 0.02~0.2 |
Torque min. (Nm)
0.01
Torque max. (Nm)
0.2
Speed min. (rpm)
700
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

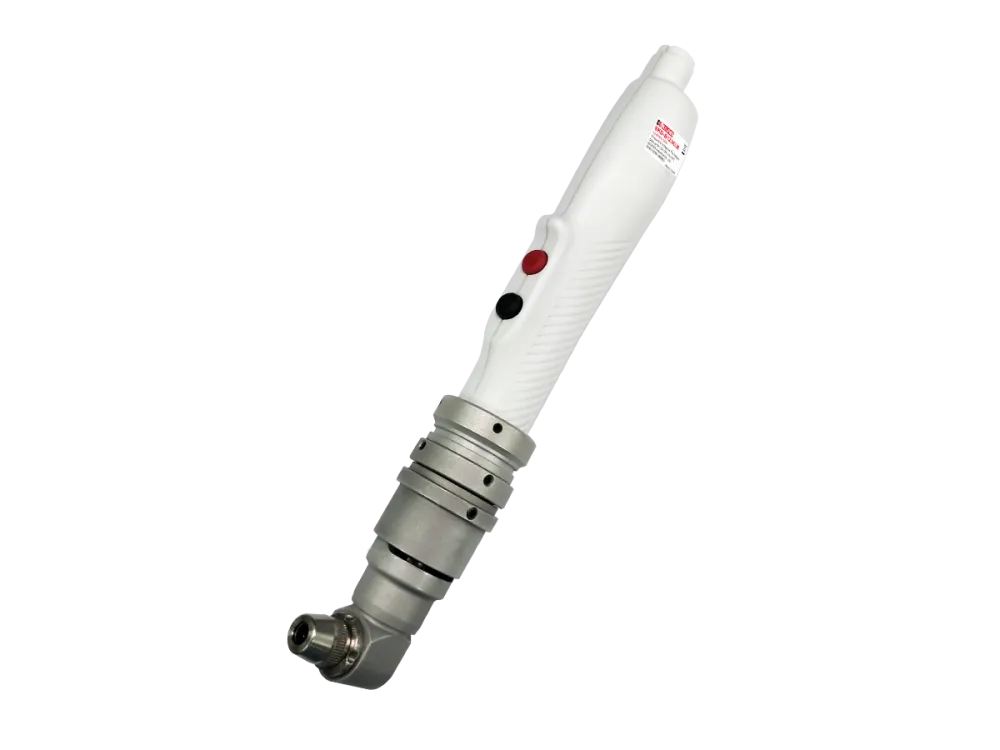

Kilews SKD-B100KLM series Brushless mini torque dc-type automatic Push button start clutch type series
Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary.
Model
SKD-B123KLM
Torque (kgf.cm)
0.2~2.0
Torque (Lbf.in)
0.17~1.7
Torque (N.m)
0.02~0.2
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) HI | 1000 |
| Free Speed (r.p.m) LO | 700 |
| Screw Size Dia (mm) Machine Screw | 1.0~1.7 |
| Screw Size Dia (mm) Tapping Screw | 1.0~1.5 |
| Weight (g) | 245 |
| Length (mm) | 202.9 |
| Power Controller | SKP-12HL |
| Bit Type | C |
Torque min. (Nm)
0.02
Torque max. (Nm)
0.2
Speed min. (rpm)
700
Speed max. (rpm)
1000
Szénkefemetes, alacsony és közepes myomatékú csavarozók
Adatlap megtekintése

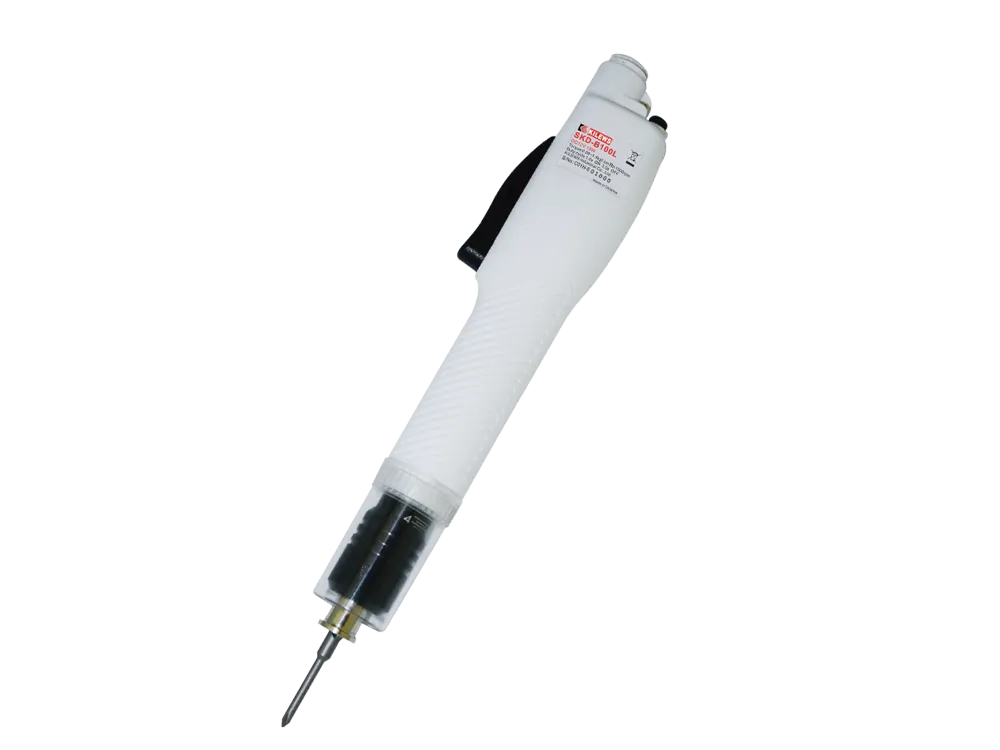

Kilews SKD-B100L series Brushless DC voltage automatic ultra-small torque hand-operated electric screwdriver series
Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Weight (g) | 170 |
| Length (mm) | 165 |
| Power Controller | SKP-12HL |
| Bit Type | C |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|---|---|
| SKD-B100L | 0.08~1.5 | 0.07~1.33 | 0.008~0.15 | 1000 | 700 | 1.0~1.7 | 1.0~1.5 |
| SKD-B103L | 0.5~3.5 | 0.44~3.01 | 0.05~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 |
| SKD-B100LS4 | 0.08~1.5 | 0.07~1.33 | 0.008~0.15 | 280 | 200 | 1.0~1.7 | 1.0~1.5 |
| SKD-B103LS4 | 0.5~3.5 | 0.44~3.01 | 0.05~0.34 | 280 | 200 | 1.0~2.3 | 1.0~2.0 |
Torque min. (Nm)
0.008
Torque max. (Nm)
0.34
Speed min. (rpm)
200
Speed max. (rpm)
1000
Kilews szénkefementes, kis és közepes nyomatékú csavarozók
A Kilews szénkefementes, kis és közepes nyomatékú csavarozói kifejezetten nagy ciklusszámú, folyamatos ipari felhasználásra készültek. A brushless motortechnológia csökkenti a kopó alkatrészek számát, ezáltal jelentősen megnöveli a szerszám élettartamát és csökkenti a karbantartási igényt. A precíz nyomatékszabályozás és a stabil fordulatszám gondoskodik róla, hogy minden csavarozási művelet ismételhető, megbízható minőségben történjen – még többműszakos üzemeltetés mellett is.
A Kilews brushless csavarozói ideálisak elektronikai szereléshez, finommechanikai összeszereléshez és általános ipari feladatokhoz, ahol egyszerre fontos a kompakt kialakítás, a jó ergonómia és a pontos nyomatékátadás. A különböző nyomatéktartományokkal és kivitelekkel (egyenes, pisztoly, esetenként automatizálásra előkészített verziók) a Kilews rugalmasan illeszthető bármilyen szerelősorhoz vagy munkapadhoz. A szénkefementes technológia csendesebb működést, tisztább munkakörnyezetet és hosszú távon alacsonyabb üzemeltetési költséget biztosít.
A Kilews brushless csavarozói ideálisak elektronikai szereléshez, finommechanikai összeszereléshez és általános ipari feladatokhoz, ahol egyszerre fontos a kompakt kialakítás, a jó ergonómia és a pontos nyomatékátadás. A különböző nyomatéktartományokkal és kivitelekkel (egyenes, pisztoly, esetenként automatizálásra előkészített verziók) a Kilews rugalmasan illeszthető bármilyen szerelősorhoz vagy munkapadhoz. A szénkefementes technológia csendesebb működést, tisztább munkakörnyezetet és hosszú távon alacsonyabb üzemeltetési költséget biztosít.
