Kilews SKD-BN500Pseries Brushless medium torque dc-type automatic push start clutch type series

Name: Kilews SKD-BN500Pseries Brushless medium torque dc-type automatic push start clutch type series
Brand: Kilews
SKU: SKD-BN500Pseries
Rating: 5 (10 reviews)

SKD-BN500Pseries Brushless medium torque dc-type automatic push start clutch type series

Cikkszám: SKD-BN500Pseries

Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.

Válassz termékvariációt

Model:

SKD-BN512P SKD-BN512PF SKD-BN517PF SKD-BN519P

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Közös adatok

Repeatable Torque Accuracy (%)	±3%
Weight (g)	520

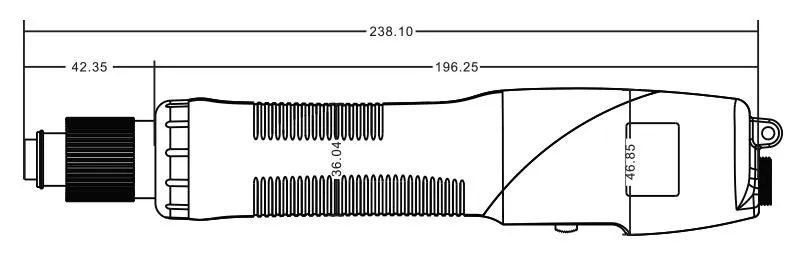

Length (mm)	235
Bit Type	A、B、C、D

Modellek összehasonlítása

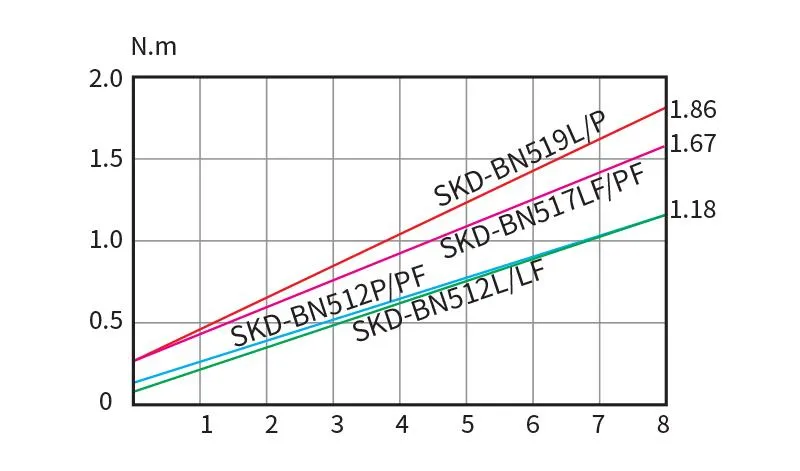

Model	Torque (kgf.cm)	Torque (Lbf.in)	Torque (N.m)	Free Speed (r.p.m) HI	Free Speed (r.p.m) LO	Screw Size Dia (mm) Machine Screw	Screw Size Dia (mm) Tapping Screw	Power Controller
SKD-BN512L	1.5~12	1.33~10.44	0.15~1.18	1000	700	1.6~3.0	1.6~2.6	SKP-32BC-60W
SKD-BN512P	2~12	1.77~10.56	0.19~1.18	1000	700	1.6~3.0	1.6~2.6	SKP-32BC-60W
SKD-BN512LF	1.5~12	1.32~10.56	0.15~1.18	2000	-	1.6~3.0	1.6~2.6	SKP-BE32HL
SKD-BN512PF	2~12	1.77~10.56	0.19~1.18	2000	-	1.6~3.0	1.6~2.6	SKP-BE32HL
SKD-BN517LF	3~17	2.64~14.96	0.29~1.67	2000	-	1.6~3.0	1.6~2.6	SKP-BE32HL
SKD-BN517PF	3~17	2.64~14.96	0.29~1.67	2000	-	1.6~3.0	1.6~2.6	SKP-BE32HL
SKD-BN519L	3~19	2.57~16.46	0.29~1.86	1000	700	2.3~3.5	2.3~3.0	SKP-32BC-60W
SKD-BN519P	3~19	2.57~16.46	0.29~1.86	1000	700	2.3~3.5	2.3~3.0	SKP-32BC-60W

Features Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless. Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor) Brushless Motor has more stable torque output；It is the fit for operating in clean-room circumstance and no worry of pollution will be arisen. The tool to assemble Watch, laptop, digital Camera, DVD player, Cell phone, communication equipment and high tech products which need to be assembled in clean-room. CE and ETL are optional

Kilews SKD-BN500Pseries
Brushless medium torque dc-type automatic push start clutch type series
