Industrial Soldering Solutions
Ipari forrasztási technológia – JBC forrasztóállomások és professzionális eszközök
Az ipari elektronika gyártásában a forrasztási folyamat minősége meghatározza a késztermék megbízhatóságát. A modern gyártósorok egyre nagyobb precizitást és gyors reakcióidőt igényelnek, amelyet csak fejlett forrasztási technológiákkal…
Forrasztóállomások

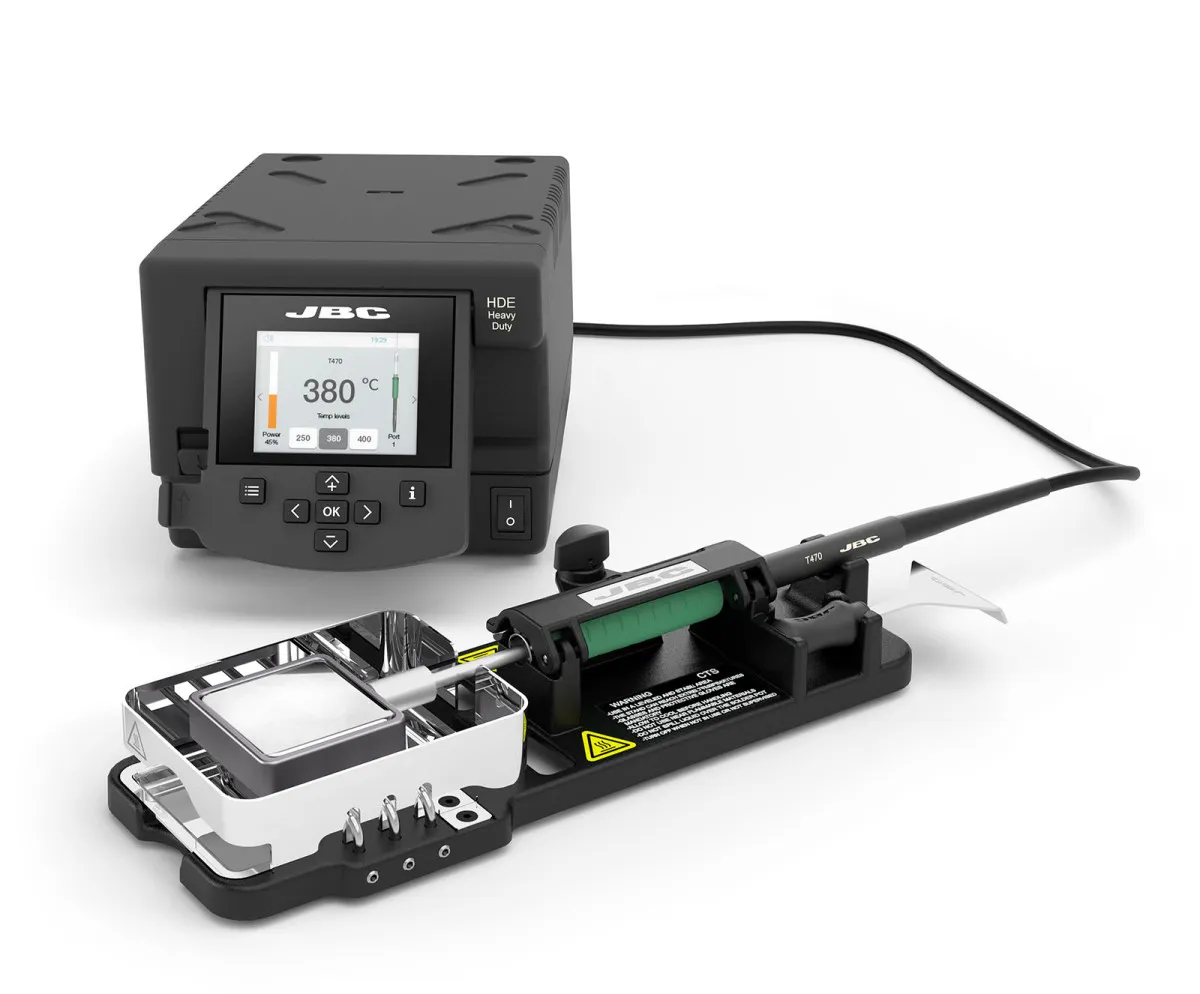

JBC HDCT Station
It is ideal for tinning wires quickly and safely as well as for soldering and desoldering through-hole multipin components.
Peak power
250 W – 42 V
Selectable temperature
90 - 500 °C / 190 - 932 °F
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <20 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Heavy Duty | 232 x 148 x 120 mm / 3.76 kg. , 9.13 x 5.83 x 4.72 in / 8.30 lb. |
| Package | 450 x 345 x 243 mm / 6.32 kg. , 17.72 x 13.58 x 9.57 in / 13.93 lb. |
Forrasztóállomások

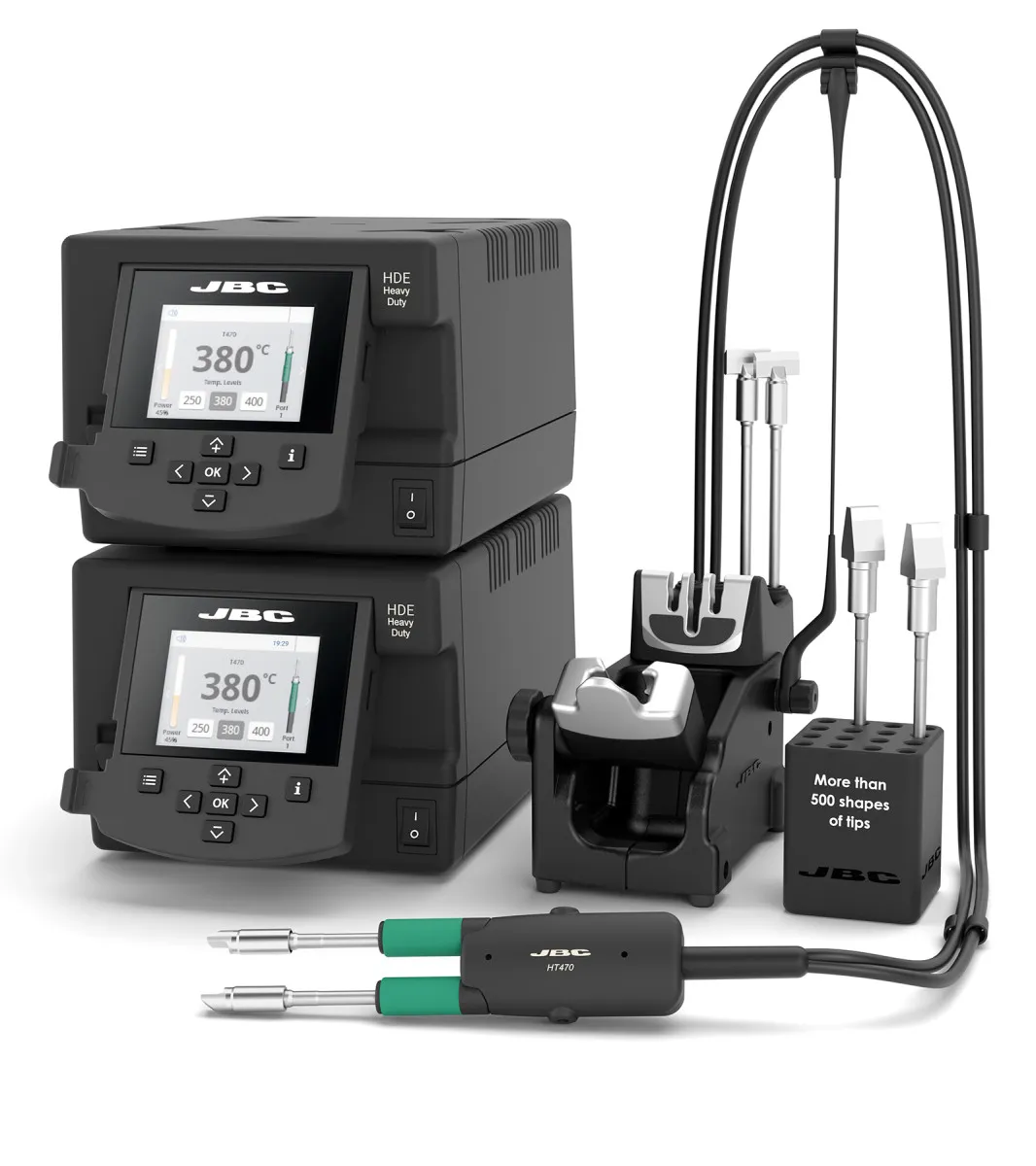

JBC HDEK Station
HDEK Heavy Duty Rework Station has been designed to reduce the soldering time in applications that require a large amount of heatspan.
Peak power
250 W – 42 V
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <20 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Heavy Duty | 232 x 148 x 240 mm / 7.27 kg. , 9.13 x 5.83 x 9.45 in / 16.02 lb. |
| Package | 425 x 360 x 433 mm / 11.12 kg. , 16.73 x 14.17 x 17.05 in / 24.52 lb. |
Forrasztóállomások

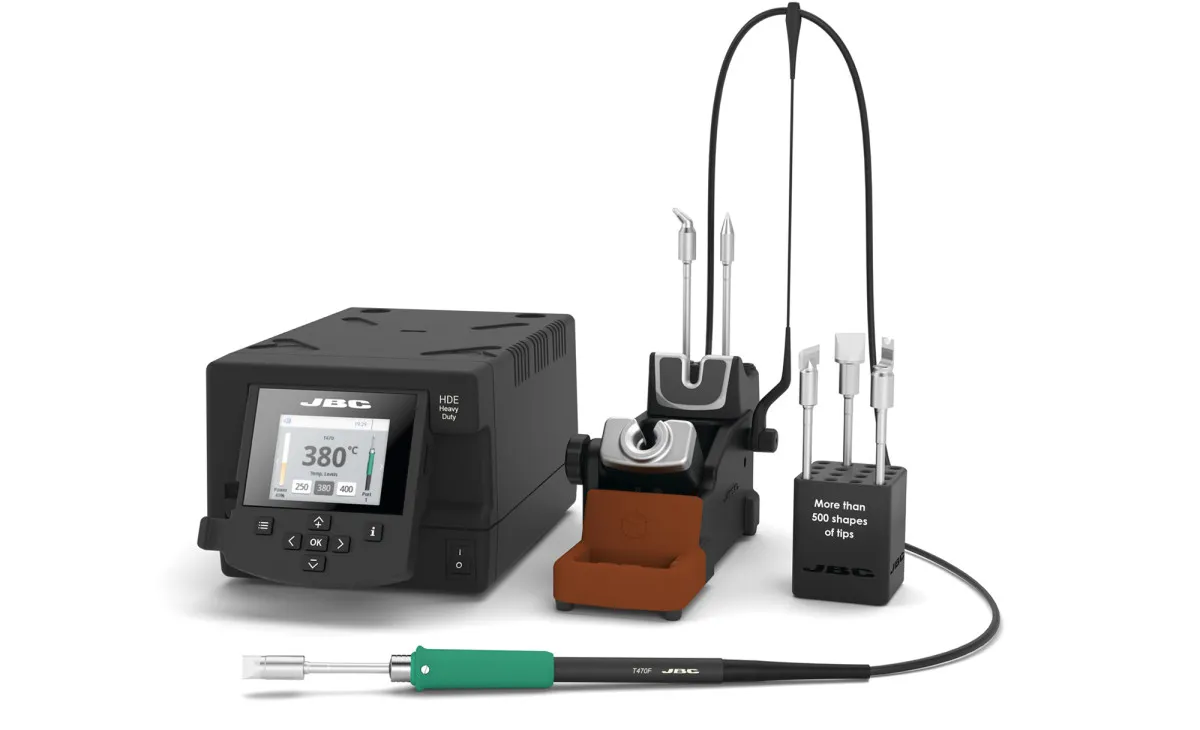

JBC HDE Station
This station is the most powerful soldering unit in the JBC range and it is designed for soldering applications that require large amounts of heat.
Peak power
250 W – 42 V
Selectable temperature
90 - 500 °C / 190 - 932 °F
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20-2021
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <20 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Heavy Duty | 232 x 148 x 120 mm / 5.37 kg. , 9.13 x 5.83 x 4.72 in / 11.84 lb. |
| Package | 450 x 345 x 243 mm / 6.82 kg. , 17.72 x 13.58 x 9.57 in / 15.04 lb. |
Forrasztóállomások

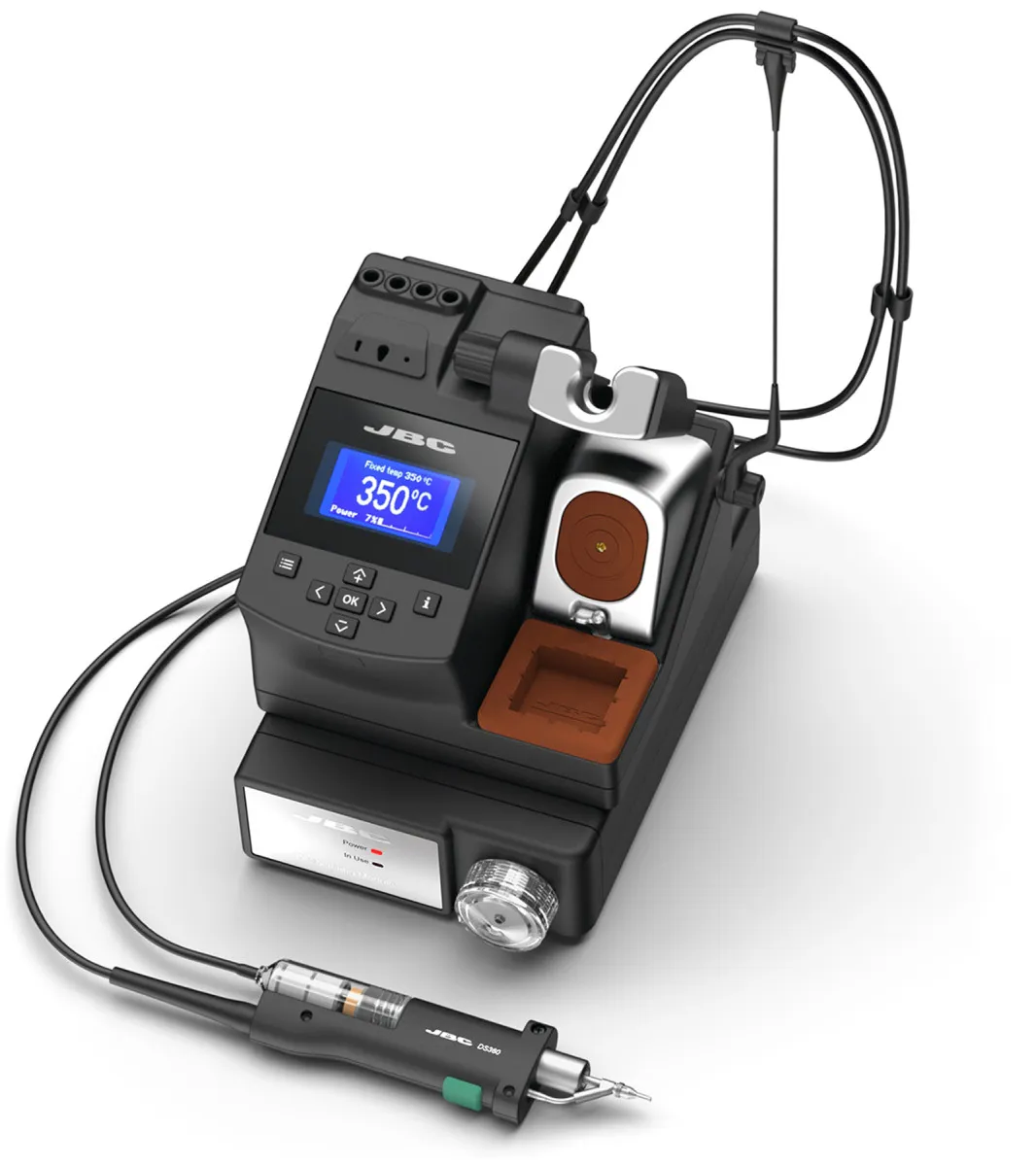

JBC CS Station
Ideal for desoldering small THT components and SMD pad cleaning.
Peak power
40 W - 23.5 V
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Vacuum
75% / 570 mmHg / 22.4 inHg
Flow rate
9 SLPM
| ESD safe | IEC/EN 61340-5-1 , IPC J-STD-001 |
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2V peak |
| USB-A | Firmware update , Graphics and profile management |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Net weight | 4,00 kg (8.82lb) |
| Control Unit | 170 x 176 x 145 mm / 4.00 kg. , 6.69 x 6.93 x 5.71 in / 8.82 lb. |
| Package | 495 x 295 x 255 mm / 5.90 kg. , 19.49 x 11.61 x 10.04 in / 13.01 lb. |
Forrasztóállomások

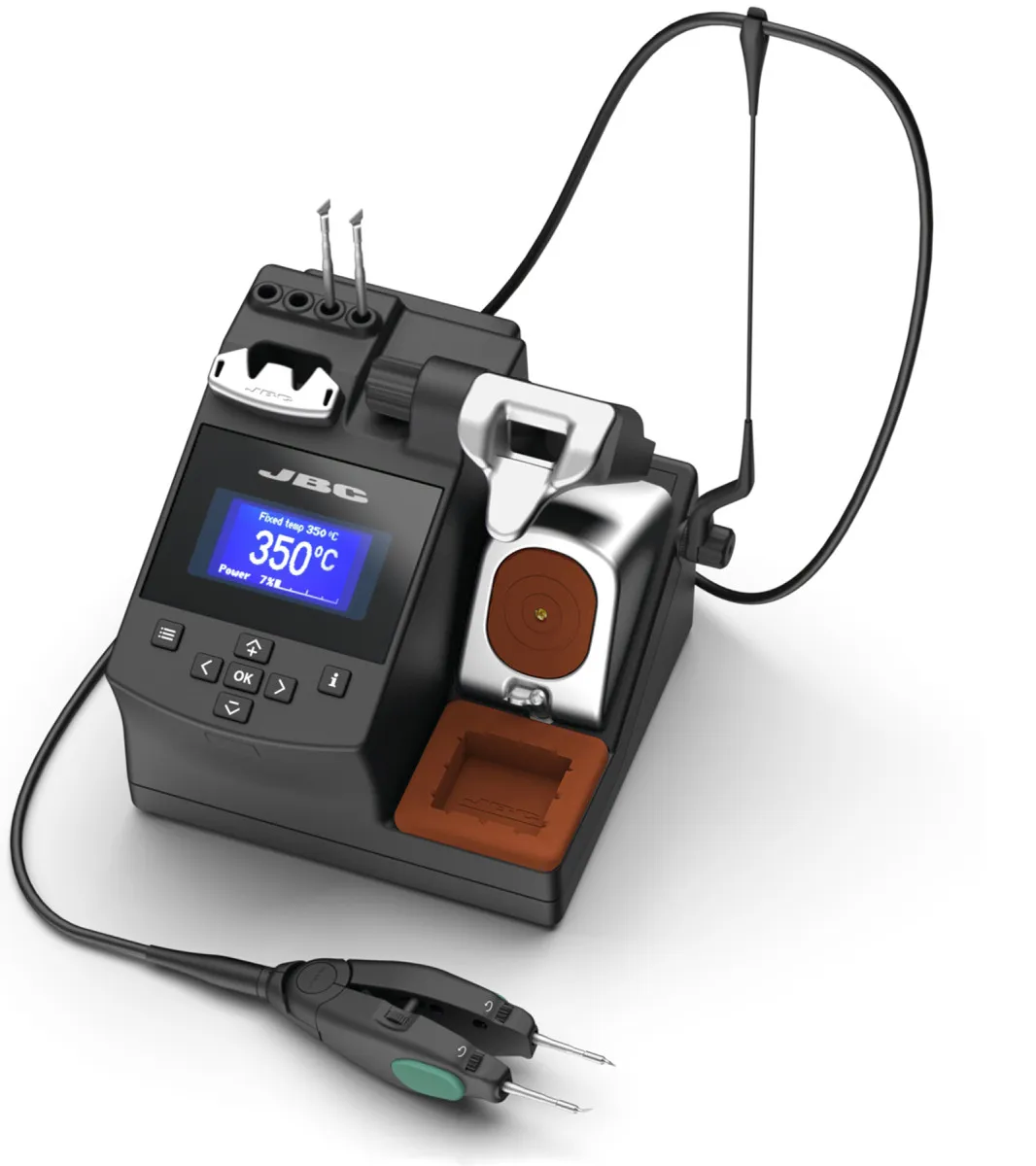

JBC CP Station
Ideal for soldering and reworking SMT chip components, small / medium SOP and dual line components.
Peak power (Tool)
80 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5ºC / ±3ºF (Meets and exceed IPC J-STD-001) |
| Temperature accuracy | ±3% (Using reference cartridge) |
| Temp. adjustment | ±50ºC / ±90ºF (Through station menu setting) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Earthing fuse | F 1.25A |
| ESD safe | Meet ANSI/ESD S20.20 |
| Control Unit | 170 x 176 x 145 mm / 2.70 kg. , 6.69 x 6.93 x 5.71 in / 5.96 lb. |
| Package | 234 x 234 x 258 mm / 3.14 kg. , 9.21 x 9.21 x 10.16 in / 6.92 lb. |
Forrasztóállomások

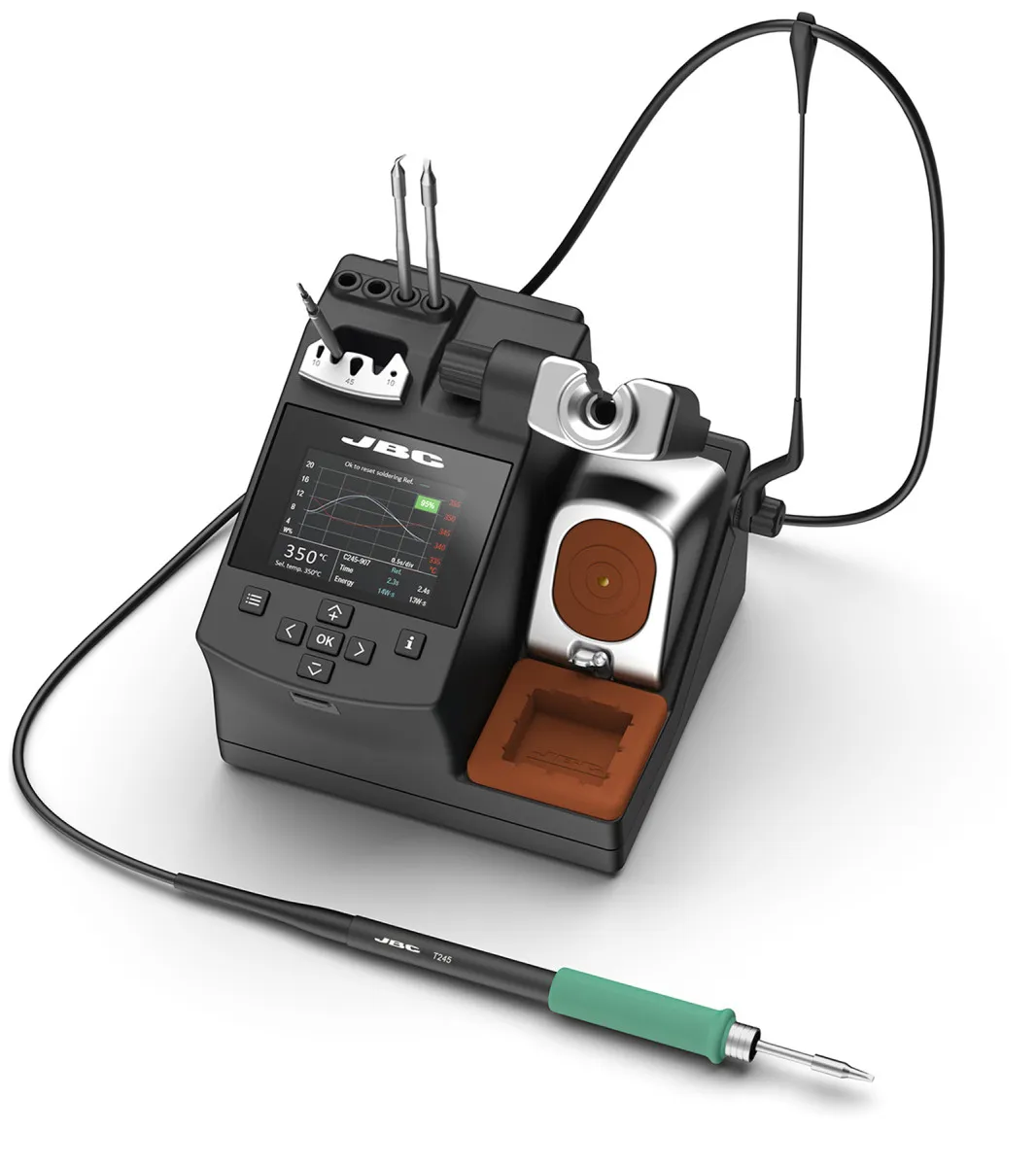

JBC CDEB Station
Improve your soldering quality in real time! JBC innovates CDE station with Soldering Assistant, the first system that measures the delivered energy during the soldering process. It will help to improve the soldering skills, to select the optimal temperature and cartridge and to have a more efficient and quality production.
Nominal power
160W
Peak power
130 W - 23.5 V
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF (Meets and exceed IPC J-STD-001)
| Temperature accuracy | ±3% |
| Temp. adjustment | ±50ºC / ±90ºF (Through station menu settings) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| Earthing fuse | F 1.25A |
| USB-A | Firmware update Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Peripheral connector | For MNE |
| Control Unit | 170 x 176 x 145 mm / 2.94 kg. , 6.69 x 6.93 x 5.71 in / 6.48 lb. |
| Package | 234 x 234 x 258 mm / 3.54 kg. , 9.21 x 9.21 x 10.16 in / 7.80 lb. |
Forrasztóállomások

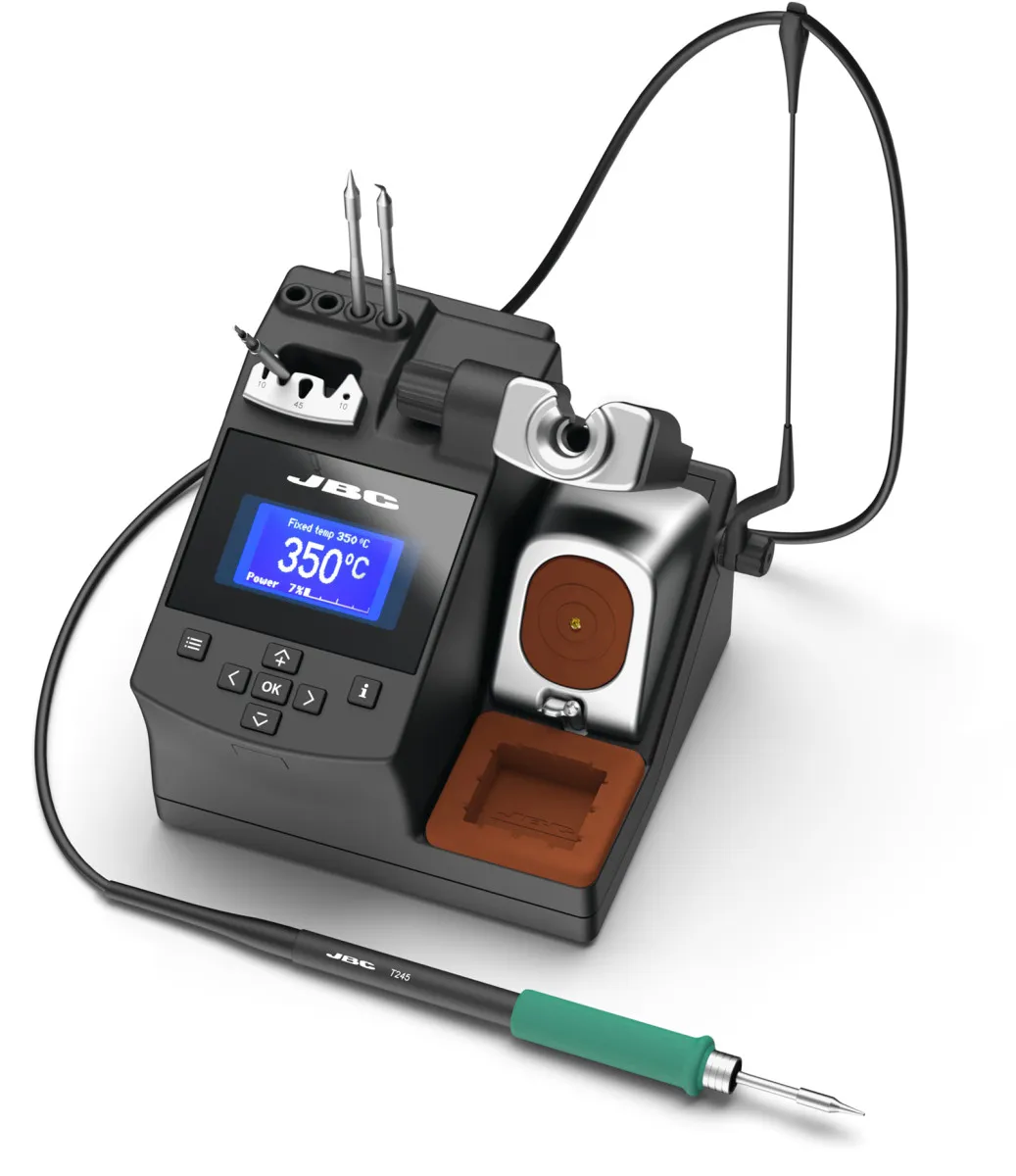

JBC CDB Station
For general electronics application.
Nominal power
175W
Peak power (Tool)
130W
Selectable temperature
90 - 450 °C / 190 - 840 °F
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceed IPC J-STD-001)
| Temperature accuracy | ±3 % (Using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu setting) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Earthing fuse | F 1.25A |
| ESD safe | Meet ANSI/ESD S20.20 |
| Control Unit | 170 x 176 x 145 mm / 2.74 kg. , 6.69 x 6.93 x 5.71 in / 6.04 lb. |
| Package | 234 x 234 x 258 mm / 3.34 kg. , 9.21 x 9.21 x 10.16 in / 7.36 lb. |
Forrasztóállomások

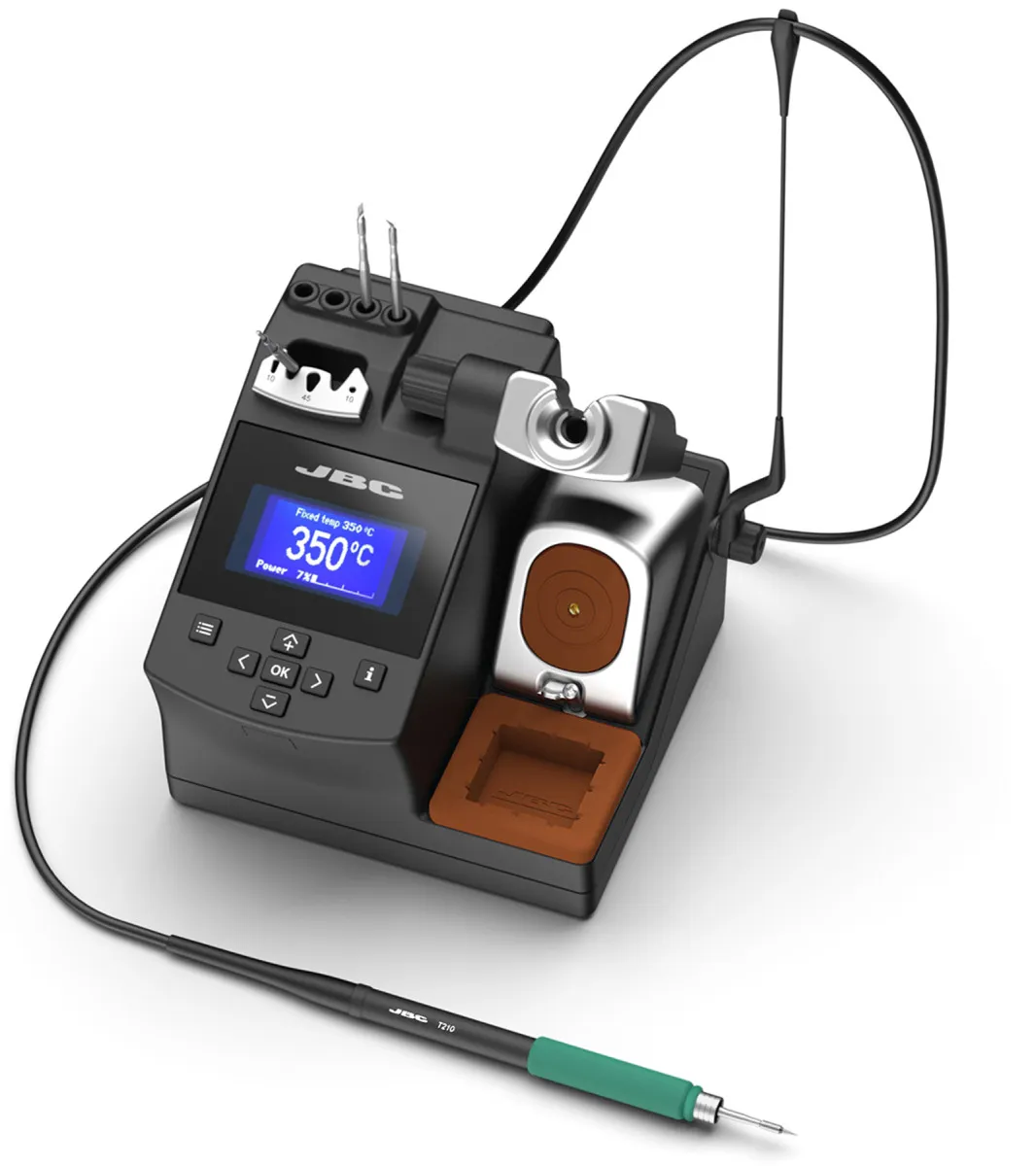

JBC CDS Station
Accuracy is the right word! Ideal for soldering SMD.
Peak power (Tool)
40 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC - ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu setting) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Earthing fuse | F 1.25A |
| ESD safe | Meet ANSI/ESD S20.20 |
| Control Unit | 170 x 176 x 145 mm / 2.70 kg. , 6.69 x 6.93 x 5.71 in / 5.95 lb. |
| Package | 234 x 234 x 258 mm / 3.27 kg. , 9.21 x 9.21 x 10.16 in / 7.21 lb. |
Forrasztóállomások

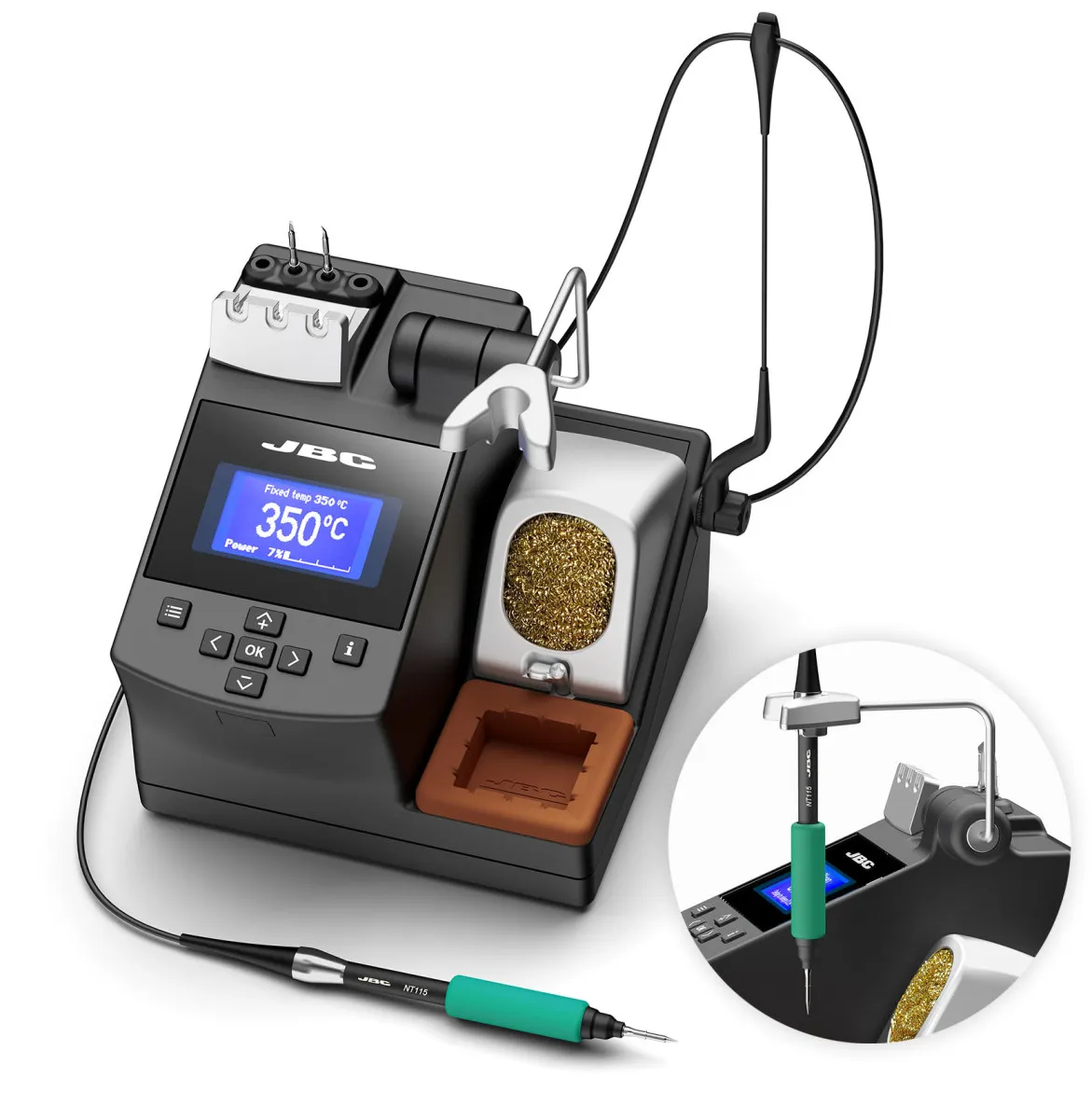

JBC CDN Station
This station is designed for highest-precision jobs in any micro-soldering application, offering maximum control working under the microscope.
Peak power
25W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Control Unit | 170 x 176 x 145 mm / 2.70 kg., 6.69 x 6.93 x 5.71 in / 5.95 lb. |
| Package | 234 x 234 x 258 mm / 3.27 kg. , 9.21 x 9.21 x 10.16 in / 7.21 lb. |
Forrasztóállomások

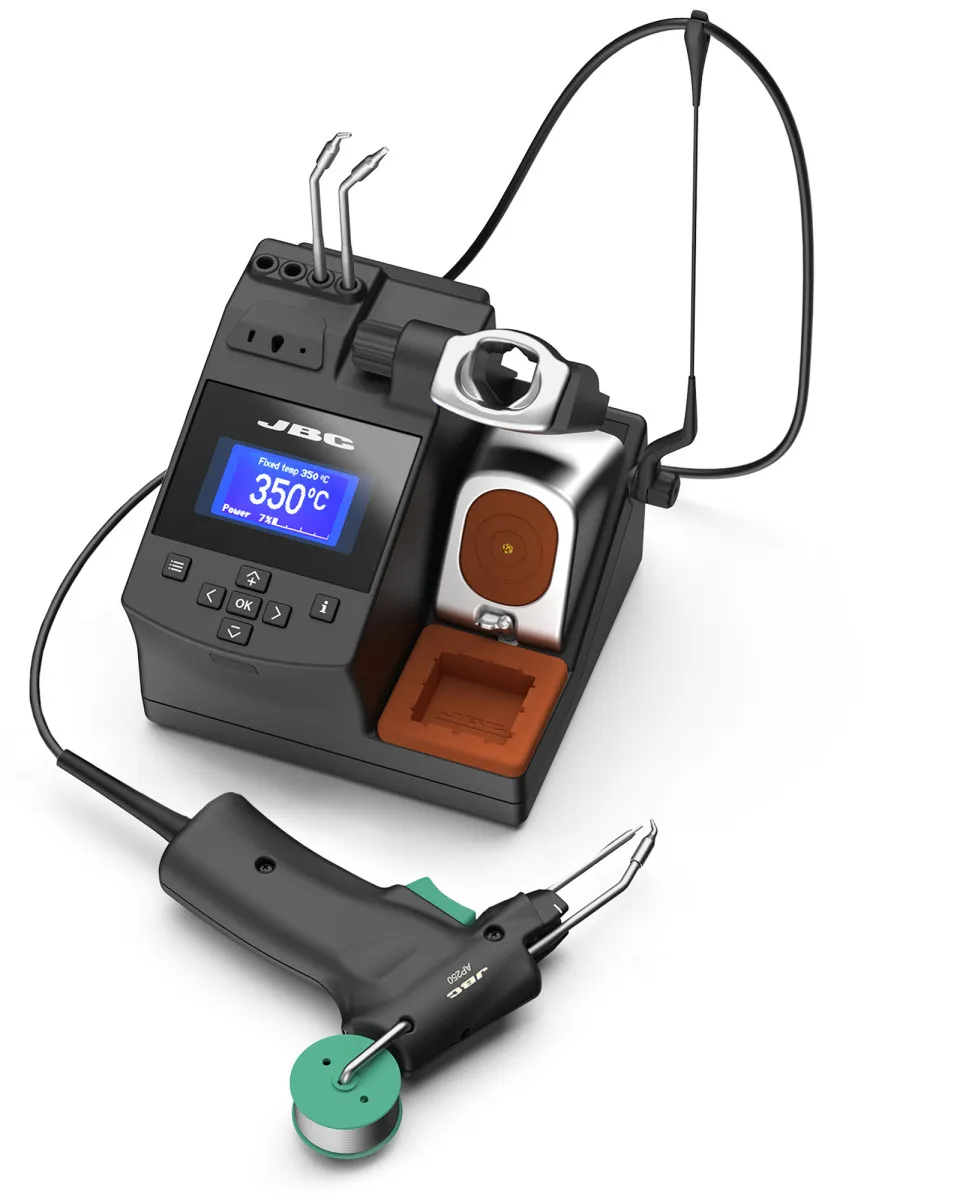

JBC CA Station
Designed to for those applications requiring a free hand. Ideal for soldering cables, connectors, etc.
Nominal power
175 W
Peak power (Tool)
130W
Selectable temperature
90 - 450 °C / 190 - 840 °F
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceed IPC J-STD-001)
| Temperature accuracy | ±3 % (Using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu setting) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Solder wire diameter | from 0.8 - 1 mm / 0.03 - 0.04 in, from 1.1 - 1.5 mm / 0.04 - 0.06 in |
| Earthing fuse | F 1.25A |
| ESD safe | Meet ANSI/ESD S20.20 |
| Control Unit | 170 x 176 x 145 mm / 2.91 kg. , 6.69 x 6.93 x 5.71 in / 6.42 lb. |
| Package | 234 x 234 x 258 mm / 3.52 kg. , 9.21 x 9.21 x 10.16 in / 7.76 lb. |
Automatikus huzaladagolós állomások

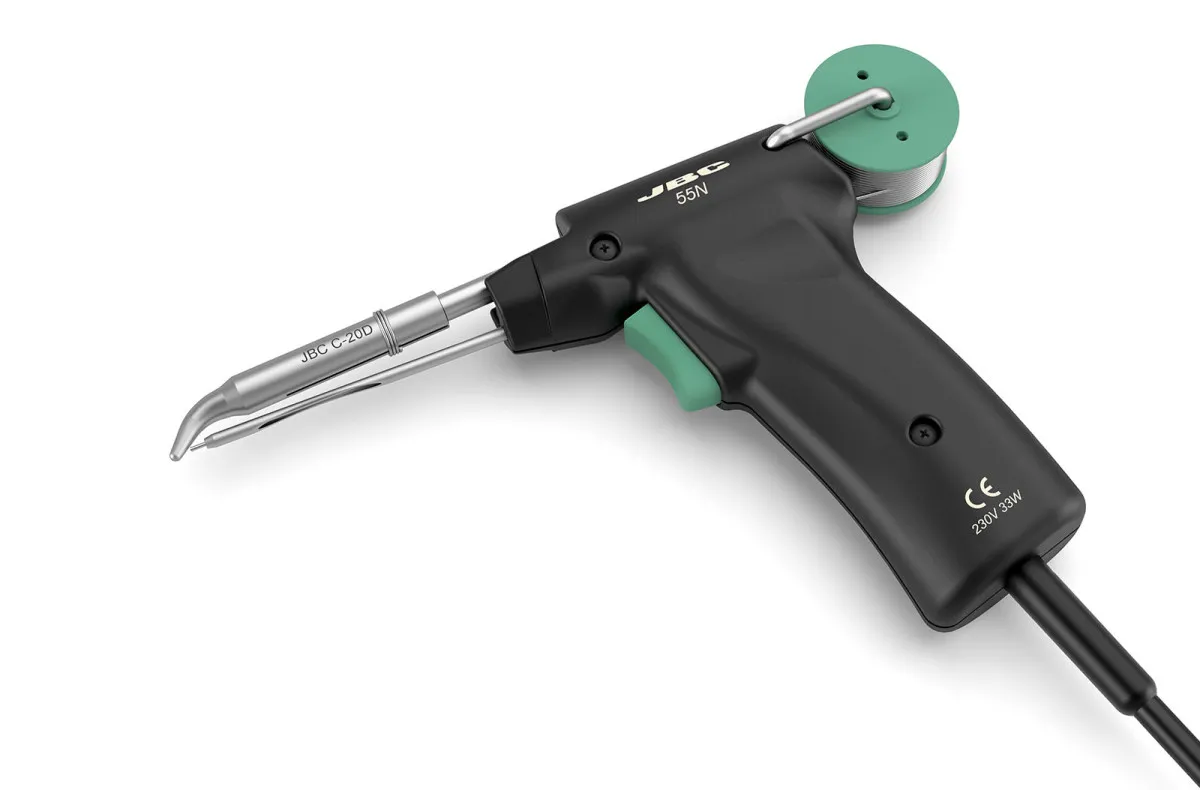

JBC 55N PULSMATIC
This soldering iron enables solder wire to be fed through as necessary, thus freeing the hand that normally holds the solder wire when soldering.
Power
33W
Max. temperature
450 ºC
Time to reach 300ºC
3 min
Net weight
0,36 kg (0.79lb)
| Weight and dimensions | 359 gr (0.79 lb) |
Automatikus huzaladagolós állomások

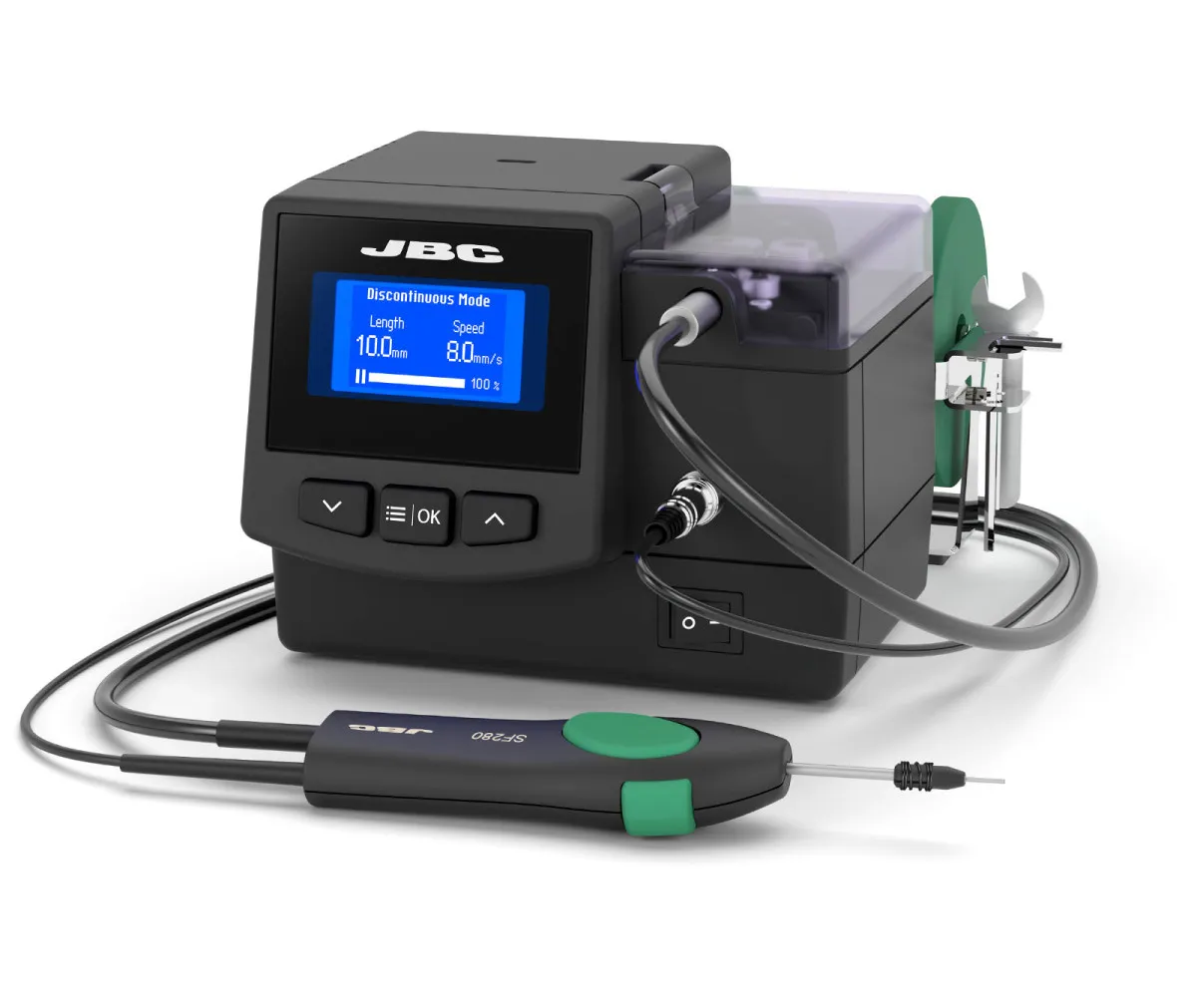

JBC SF Station
This Solder-Wire Feeder allows you to feed solder wire automatically from any position.
Solder wire diameter
1mm / 0.04 in with GSF10V
Max. wire length
250 mm / 9.84 in
Max. speed
120 mm/s / 4.72 in/s Forward & Reverse
| USB-B (front) | Firmware update and PC communications |
| Weight | up to 1 kg / 2.2 Ib |
| Diameter | max. 80 mm / 3.15 in |
| Height | max. 75 mm / 2.95 in |
| Reel stand axis | Ø 10 mm / Ø 0.4 in |
| Automatic Feed | 140 x 150 x 120 mm / 2.32 kg. , 5.51 x 5.91 x 4.72 in / 5.11 lb. |
| Package | 368 x 368 x 195 mm / 3.68 kg. , 14.49 x 14.49 x 7.68 in / 8.11 lb. |
Automatikus huzaladagolós állomások

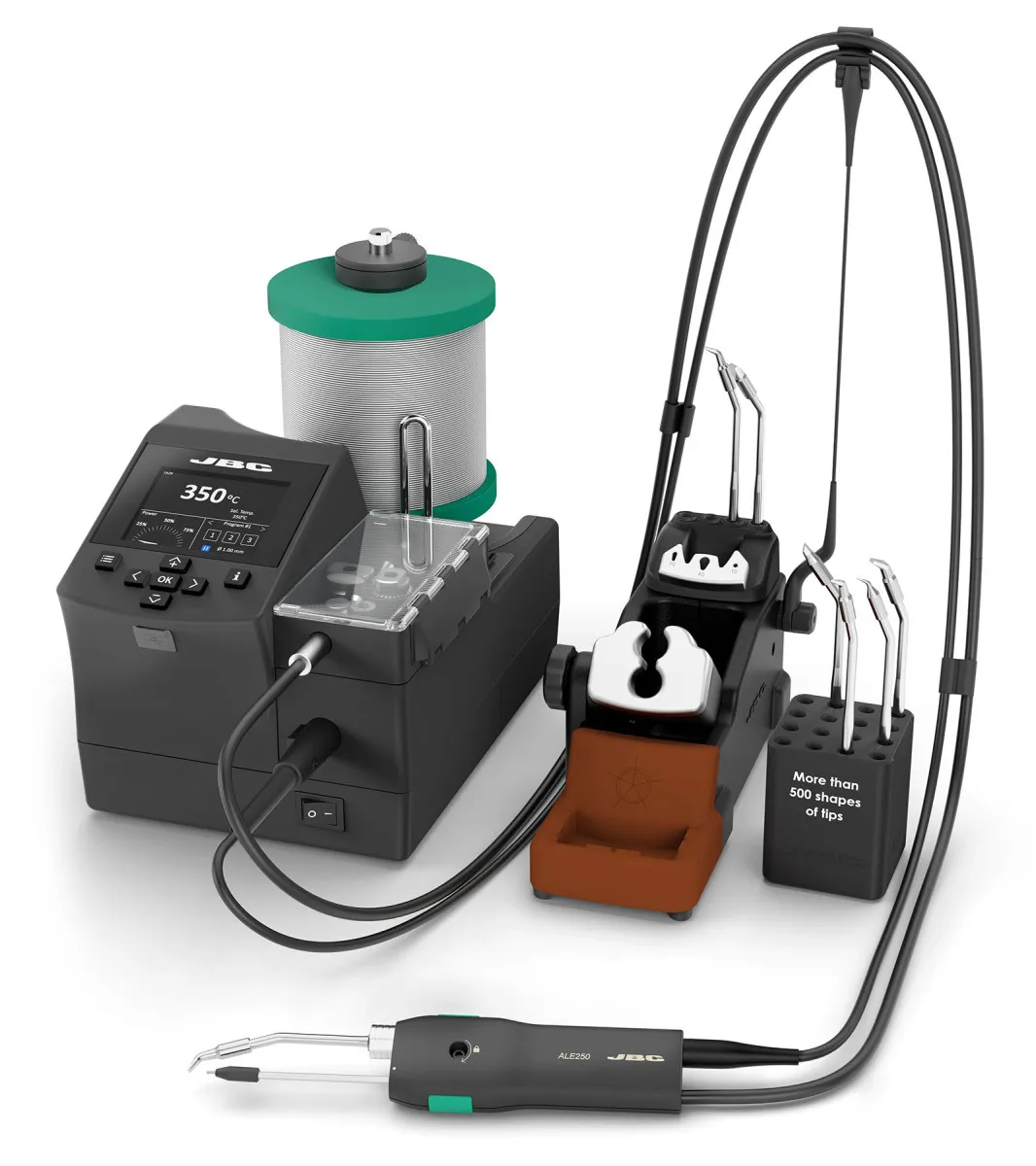

JBC ALE Station
Ideal for soldering processes requiring high productivity. It includes JBC Most Efficient Soldering System.
Nominal power
180 W
Peak power
150 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
| Temperature accuracy | ±3 % (Using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu settings) |
| Connections | USB-A Update and files import-export, USB-B Software PC, RJ12 Fume extractor connection |
| Equipotential bonding | Optional connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| ESD safe | Meet ANSI/ESD S20.20 |
| Solder wire diameter | 1.0 mm / 0.04 in with GALE10V already assembled |
| Max. wire length | 250 mm / 9.84 in (for discontinuous + program mode) |
| Min. wire length | 0.5 mm / 0.02 in |
| Max. forward speed | 0.5 to 50 mm/s / 0.02 to 1.97 in/s |
| Max. Backward Function | 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s |
| Programs | 5 Programs |
| Program Steps | 1 to 3 Steps (for each program) |
| USB-A | Firmware update Graphics and profiles |
| USB-B | PC communications |
| Pedal connector | Tool control |
| Weight | up to 2 kg / 4.4 Ib |
| Diameter | max. 100 mm / 3.94 in |
| Height | max. 100 mm / 3.94 in |
| Reel stand axis | Ø 10 mm / Ø 0.4 in |
| Automatic Feed | 235 x 170 x 112 mm / 7.83 kg. , 9.25 x 6.69 x 4.41 in / 17.25 lb. |
| Package | 545 x 345 x 275 mm / 8.46 kg. , 21.46 x 13.58 x 10.83 in / 18.65 lb. |
B.IRON akkumlátoros állomások

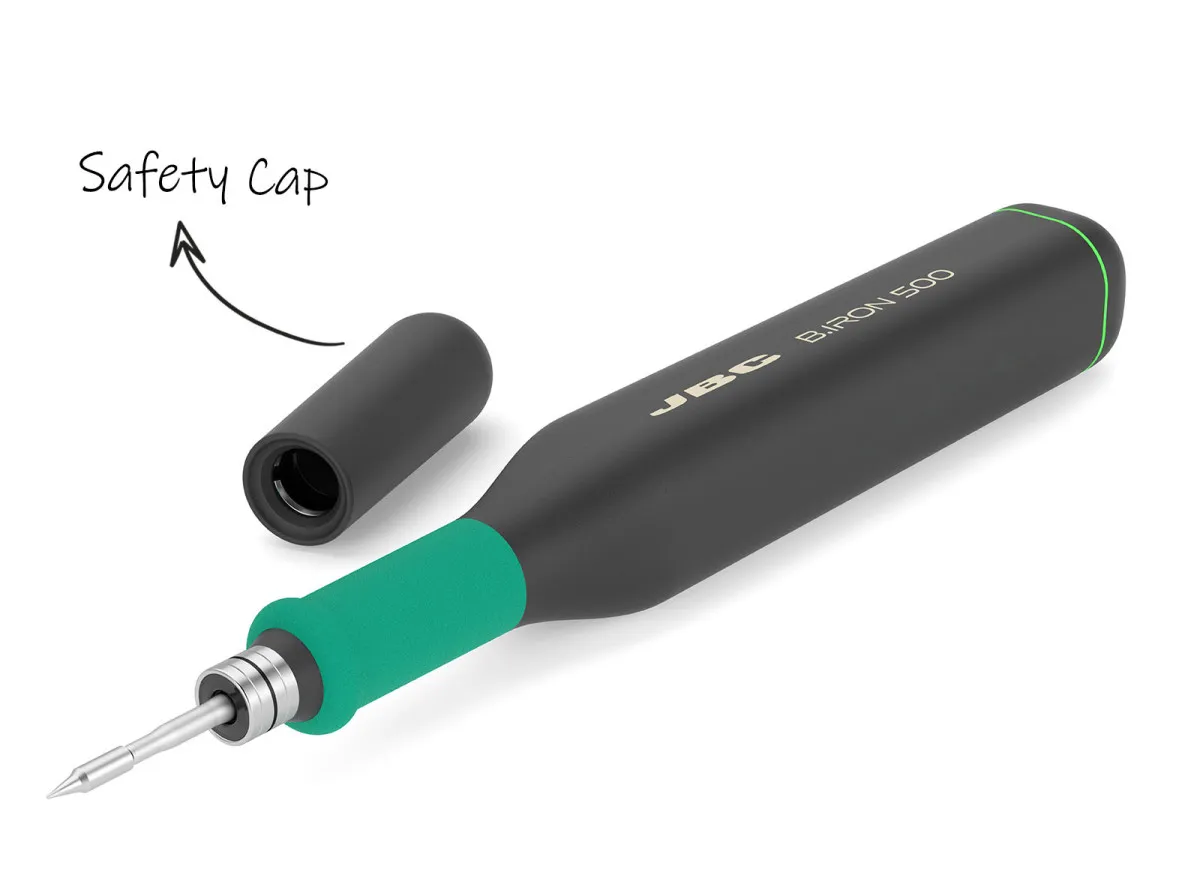

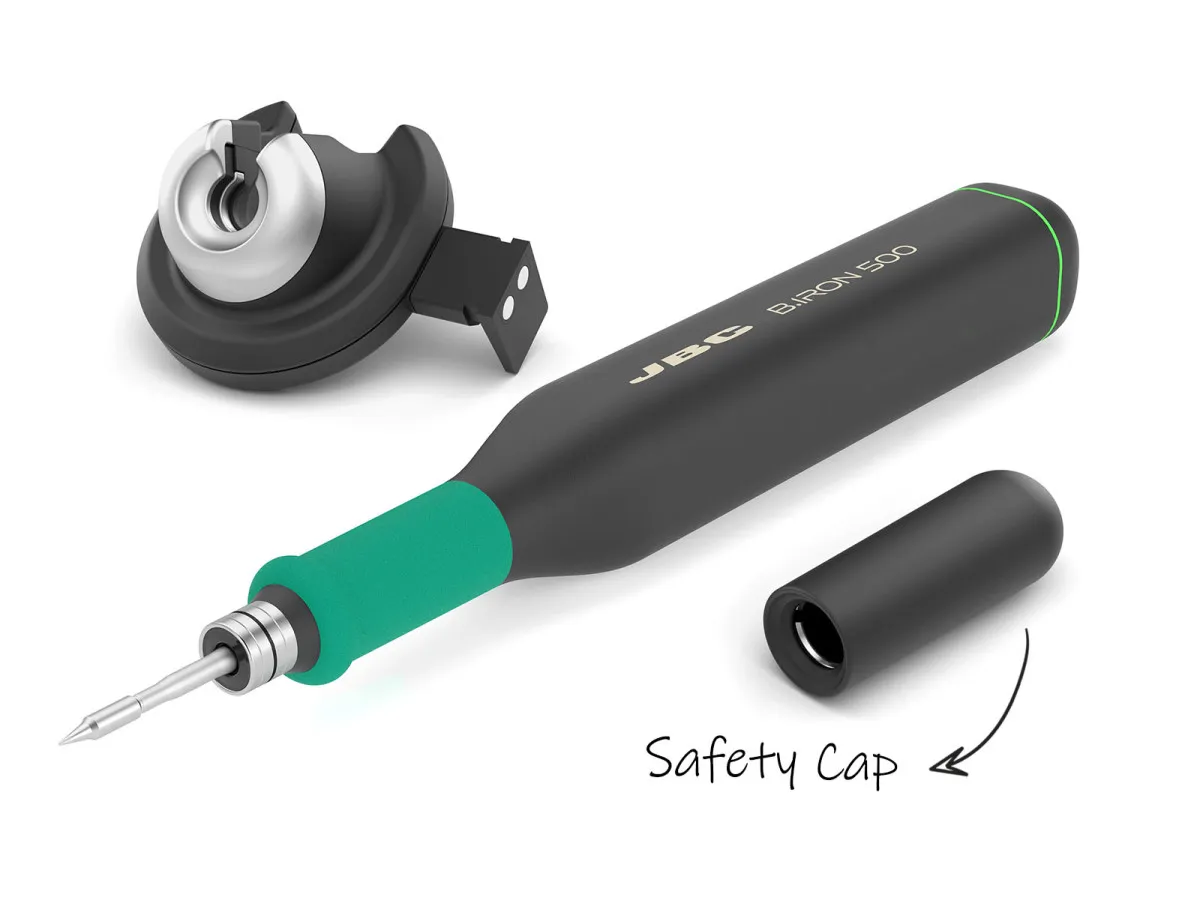

JBC B.500 K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
24 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (Using reference cartridge)
Battery
Li-Ion 7.4V / 750mAh
| Charge time | 60 minutes |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| Weight and dimensions | 165 gr (0.36 lb) , 324 gr (0.71 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

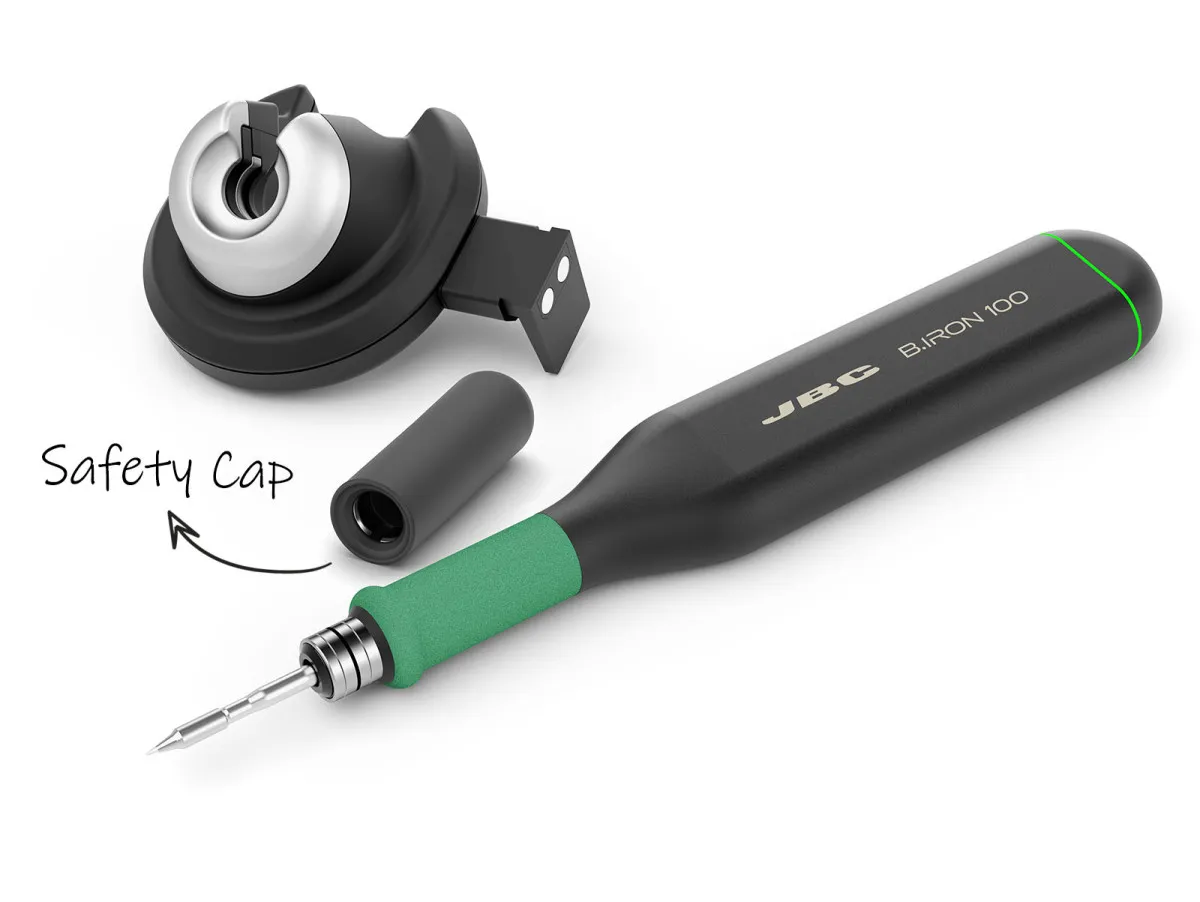

JBC B.100 K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
24 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (Using reference cartridge)
Battery
Li-Ion 7.4V / 180 mAh
| Charge time | 30 minutes |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 35 g / 0.077 lb |
| Weight and dimensions | 162 gr (0.36 lb) , 293 gr (0.65 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

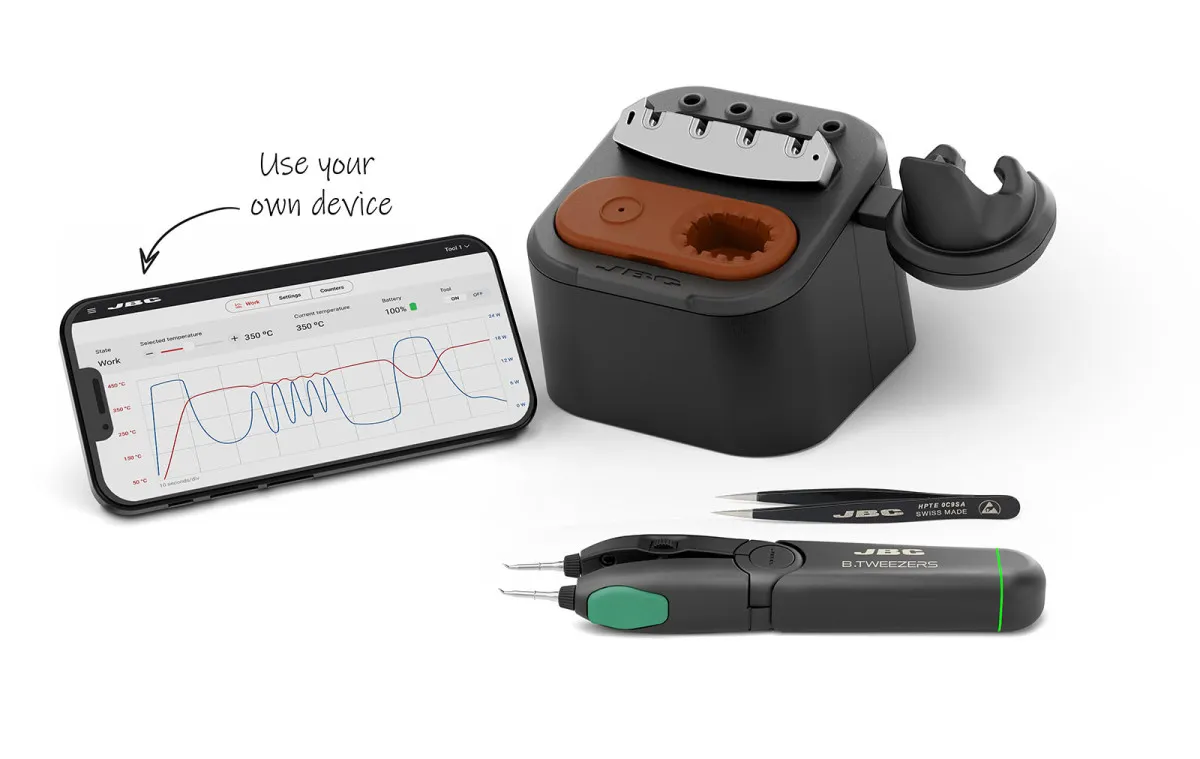

JBC B.TWEEZERS K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
15 W
Selectable temperature
200 to 450ºC / 390 to 840ºF
Temperature accuracy
± 3%
Battery
Li-Ion 7.4V / 180mAh
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 155 gr (0.34 lb) , 289 gr (0.64 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

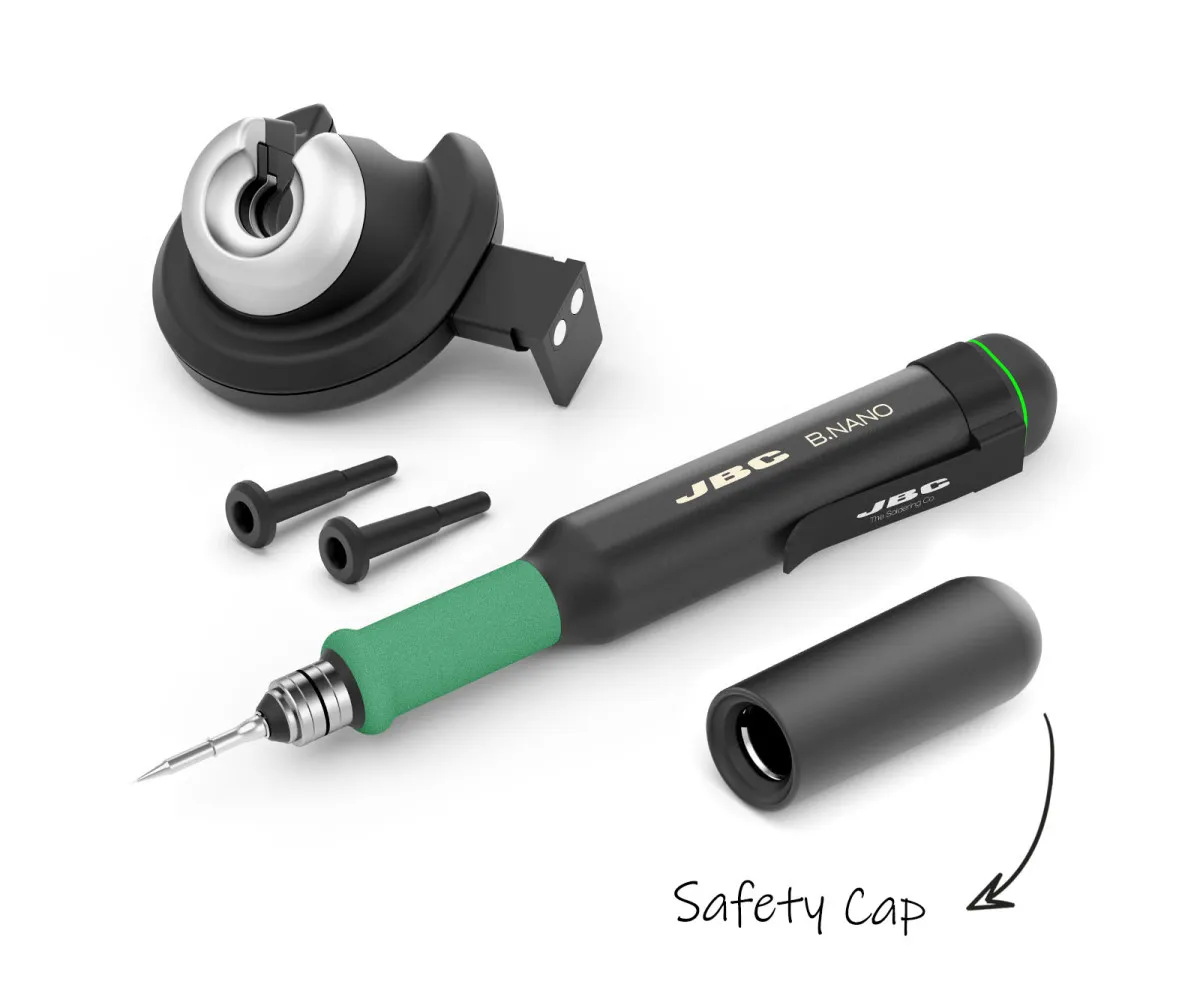

JBC B.NANO K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
15 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (using reference cartridge)
Battery
Li-Ion 7.4V / 120mAh
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 151 gr (0.33 lb) , 284 gr (0.63 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

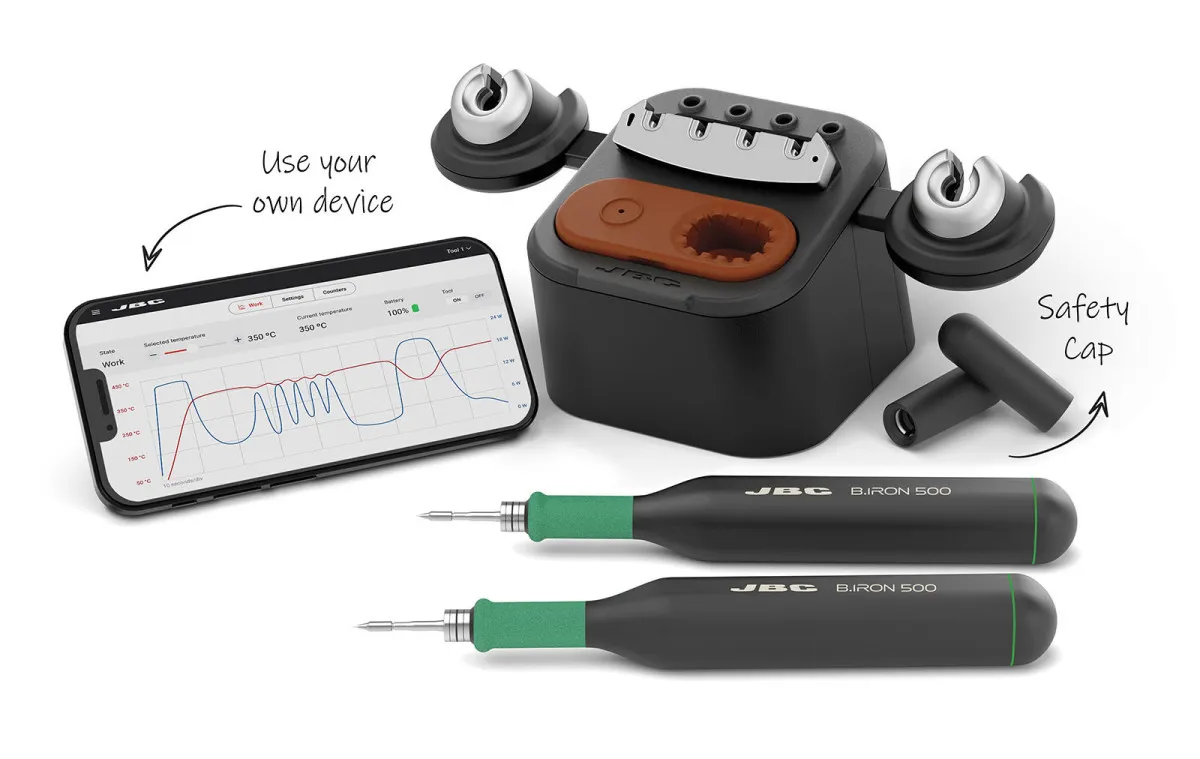

JBC B.IRON DUAL 500 Station
B.IRON DUAL 500 is specially designed for continuous work in mass production.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 750 mAh |
| Charge time | 60 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| B.IRON Battery-Powered System | 233 x 215 x 211 mm / 2.13 kg. , 9.17 x 8.46 x 8.31 in / 4.70 lb. |
| Package | 265 x 223 x 160 mm / 2.74 kg. , 10.43 x 8.78 x 6.30 in / 6.05 lb. |
B.IRON akkumlátoros állomások

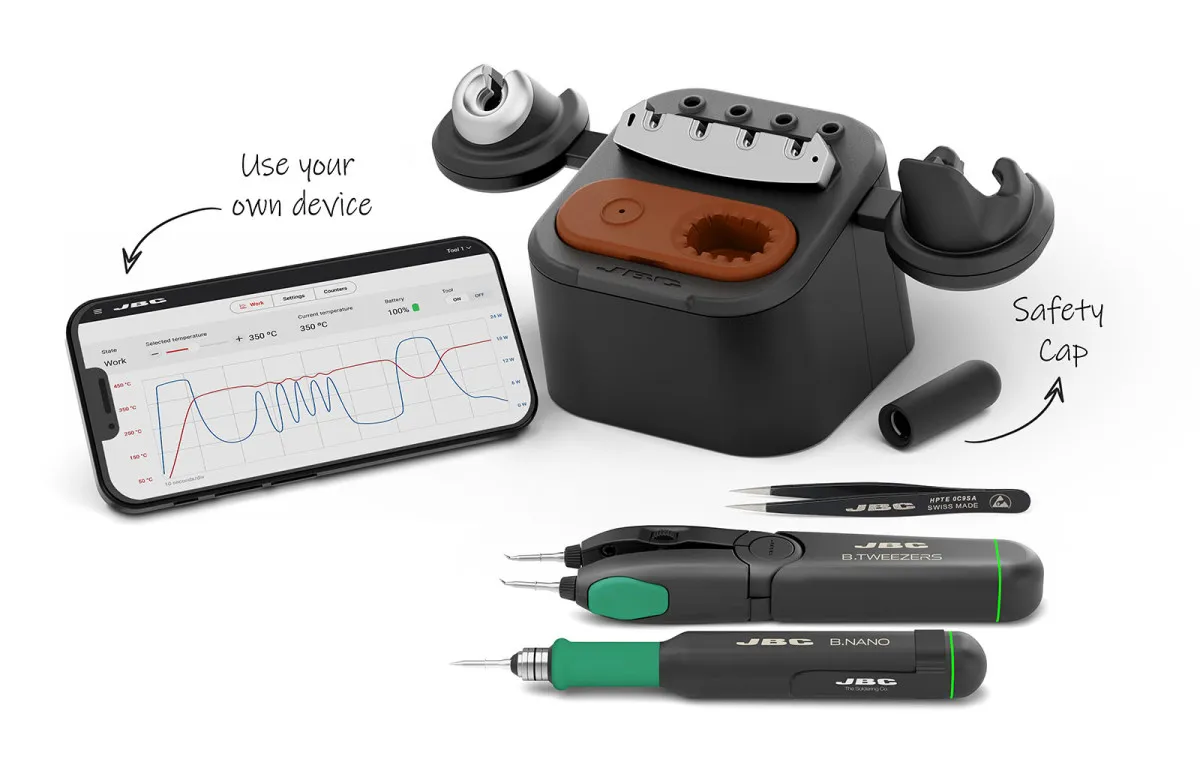

JBC B.IRON REWORK Station
B.IRON REWORK Station ideal for soldering and reworking the smallest SMD.
Input voltage
100 V - 240 V 50/60 Hz
Power
15 W
USB output
5 V / 1000 mA
| Peak power | 15 W |
| Selectable temperature | 200 to 450ºC / 390 to 840ºF |
| Temperature accuracy | ± 3% |
| Battery | Li-Ion 7.4V / 180mAh |
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" (1024 x 600px) |
| Connectivity | Bluetooth 4.2 |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 215 x 199 x 211 mm / 2.05 kg. , 8.46 x 7.83 x 8.31 in / 4.53 lb. |
| Package | 265 x 223 x 160 mm / 2.68 kg. , 10.43 x 8.78 x 6.30 in / 5.91 lb. |
B.IRON akkumlátoros állomások

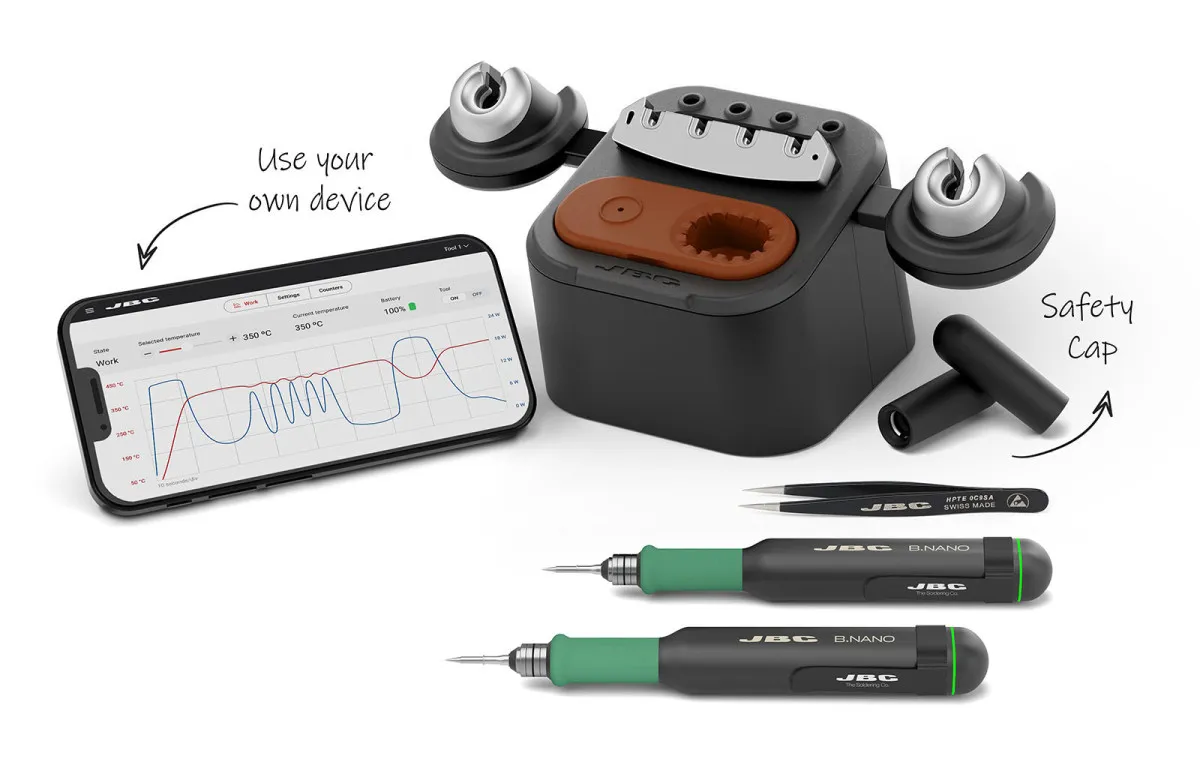

JBC B.IRON DUAL NANO Station
B.IRON DUAL NANO features two lightweight and ergonomic tools, providing the highest precision for soldering SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Peak power | 15 W |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Temperature accuracy | ± 3% (using reference cartridge) |
| Battery | Li-Ion 7.4V / 120mAh |
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" / 7 in |
| Connectivity | Bluetooth Low Energy (BLE) |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 215 x 199 x 211 mm / 2.05 kg. , 8.46 x 7.83 x 8.31 in / 4.51 lb. |
| Package | 223 x 265 x 160 mm / 2.66 kg. , 8.78 x 10.43 x 6.30 in / 5.87 lb. |
B.IRON akkumlátoros állomások

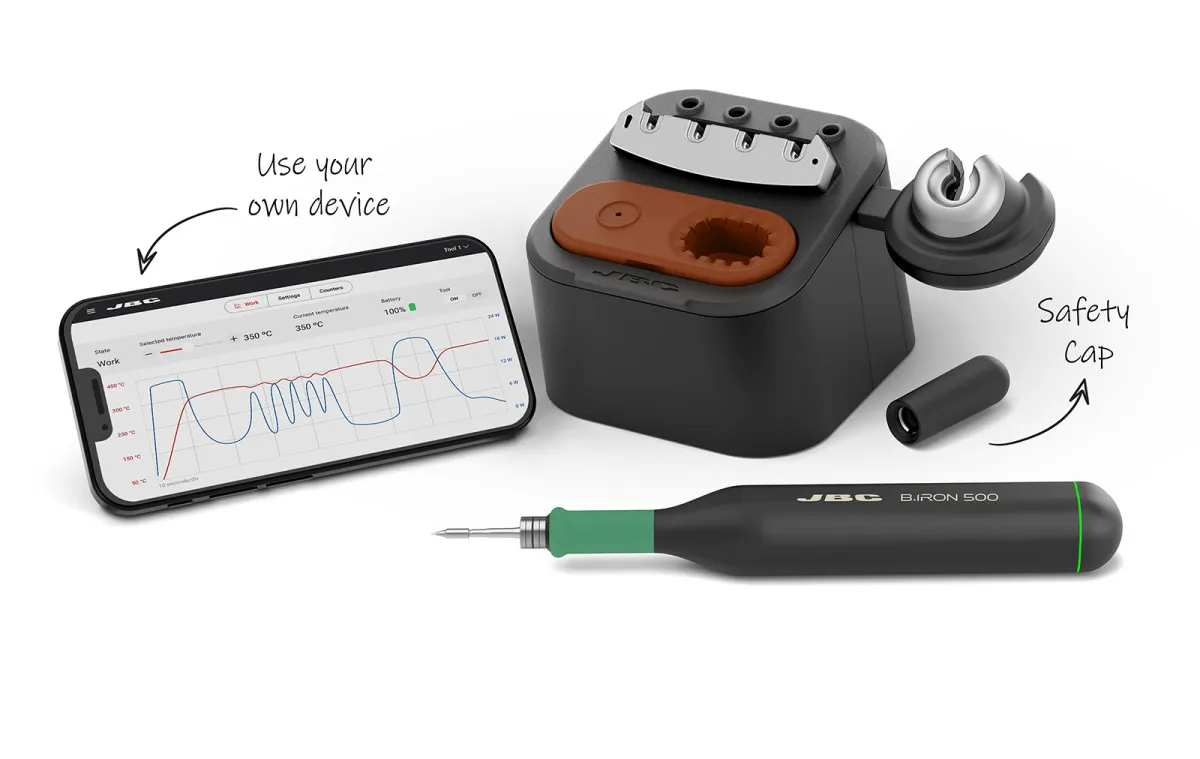

JBC B.IRON 500 Station
B.IRON 500 is specially designed for electronic production and intensive works.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 750 mAh |
| Charge time | 60 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| B.IRON Battery-Powered System | 233 x 202 x 211 mm / 1.98 kg. , 9.17 x 7.95 x 8.31 in / 4.37 lb. |
| Package | 265 x 223 x 160 mm / 2.56 kg. , 10.43 x 8.78 x 6.30 in / 5.64 lb. |
B.IRON akkumlátoros állomások

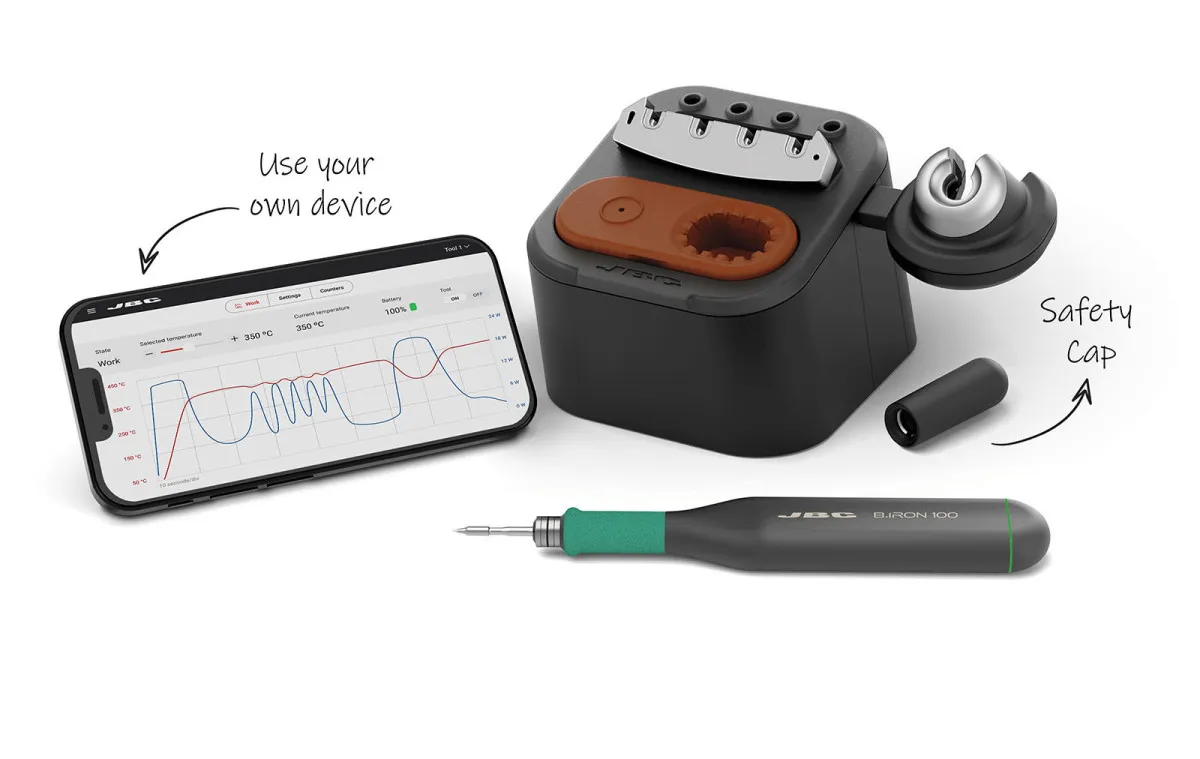

JBC B.IRON 100 Station
B.IRON 100 features a lightweight and ergonomic tool, specially designed for R&D and individual jobs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 180 mAh |
| Charge time | 30 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 35 g / 0.077 lb |
| B.IRON Battery-Powered System | 217 x 202 x 211 mm / 1.95 kg. , 8.54 x 7.95 x 8.31 in / 4.30 lb. |
| Package | 223 x 265 x 160 mm / 2.52 kg. , 8.78 x 10.43 x 6.30 in / 5.56 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON TWEEZERS Station
B.IRON TWEEZERS Station provides the highest precision when rework SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
USB output
5 V / 1000 mA
| Peak power | 15 W |
| Selectable temperature | 200 to 450ºC / 390 to 840ºF |
| Temperature accuracy | ± 3% |
| Battery | Li-Ion 7.4V / 180mAh |
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" (1024 x 600px) |
| Connectivity | Bluetooth 4.2 |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 202 x 198 x 211 mm / 1.95 kg. , 7.95 x 7.80 x 8.31 in / 4.29 lb. |
| Package | 265 x 223 x 160 mm / 2.53 kg. , 10.43 x 8.78 x 6.30 in / 5.57 lb. |
B.IRON akkumlátoros állomások

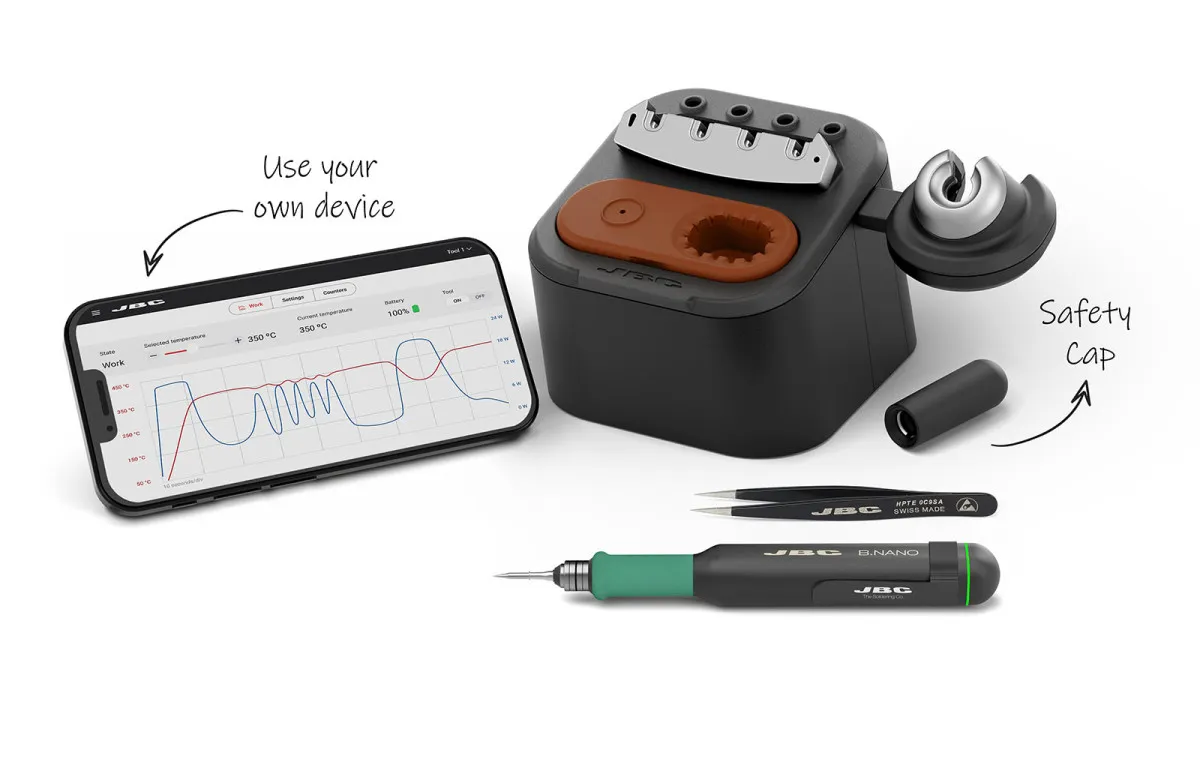

JBC B.IRON NANO Station
B.IRON NANO features a lightweight and ergonomic tool, providing the highest precision for soldering SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Peak power | 15 W |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Temperature accuracy | ± 3% (using reference cartridge) |
| Battery | Li-Ion 7.4V / 120mAh |
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" / 7 in |
| Connectivity | Bluetooth Low Energy (BLE) |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 202 x 200 x 211 mm / 1.94 kg. , 7.95 x 7.87 x 8.31 in / 4.28 lb. |
| Packag | 223 x 265 x 160 mm / 2.52 kg., 8.78 x 10.43 x 6.30 in / 5.55 lb. |
B.IRON akkumlátoros állomások
JBC B.500
B.500 is perfect for continuous and intensive work with larger components or ones connected to ground planes.
Peak power
24 W
Battery
Li-Ion 7.4 V / 750 mAh
Charge time
60 minutes
Selectable temperature
100 - 450 °C / 210 - 840 °F
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ±3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb (without cap) |
| Weight and dimensions | 107 gr (0.24 lb), 151 gr (0.33 lb), 220 x 75 x 30 mm |
Ipari forrasztási technológia – JBC forrasztóállomások és professzionális eszközök
Az ipari elektronika gyártásában a forrasztási folyamat minősége meghatározza a késztermék megbízhatóságát. A modern gyártósorok egyre nagyobb precizitást és gyors reakcióidőt igényelnek, amelyet csak fejlett forrasztási technológiákkal lehet biztosítani. Kínálatunkat úgy állítottuk össze, hogy minden feladatra megtalálható legyen a megfelelő eszköz – az alapvető szerelési műveletektől a nagy pontosságú SMD forrasztásig.
A JBC a világ egyik vezető prémium márkája a forrasztástechnika területén. Forrasztóállomásaik kiemelkedő hőstabilitást, villámgyors felfűtési időt és kivételes hőátadást biztosítanak, így tökéletesen alkalmasak ipari, többműszakos vagy nagy terhelésű gyártási környezetben. A JBC intelligens hőmérséklet-szabályozása és széles tartozékválasztéka lehetővé teszi a precíz, gyors és biztonságos munkavégzést.
Webáruházunkban teljes JBC forrasztási ökoszisztéma érhető el: professzionális forrasztóállomások, forrasztóhegyek, csipeszek, SMD újramunkáló eszközök és különféle kiegészítők. Ügyfeleink számára nem csupán a termékeket biztosítjuk, hanem szakmai támogatást és tanácsadást is – segítünk kiválasztani az adott feladathoz optimális konfigurációt, hogy a gyártási folyamat gyorsabbá, stabilabbá és költséghatékonyabbá váljon. Használja keresőnket a szükséges forrasztóhegy kiválasztásához
A JBC a világ egyik vezető prémium márkája a forrasztástechnika területén. Forrasztóállomásaik kiemelkedő hőstabilitást, villámgyors felfűtési időt és kivételes hőátadást biztosítanak, így tökéletesen alkalmasak ipari, többműszakos vagy nagy terhelésű gyártási környezetben. A JBC intelligens hőmérséklet-szabályozása és széles tartozékválasztéka lehetővé teszi a precíz, gyors és biztonságos munkavégzést.
Webáruházunkban teljes JBC forrasztási ökoszisztéma érhető el: professzionális forrasztóállomások, forrasztóhegyek, csipeszek, SMD újramunkáló eszközök és különféle kiegészítők. Ügyfeleink számára nem csupán a termékeket biztosítjuk, hanem szakmai támogatást és tanácsadást is – segítünk kiválasztani az adott feladathoz optimális konfigurációt, hogy a gyártási folyamat gyorsabbá, stabilabbá és költséghatékonyabbá váljon. Használja keresőnket a szükséges forrasztóhegy kiválasztásához
