JBC füstelszívók és hegytisztítók

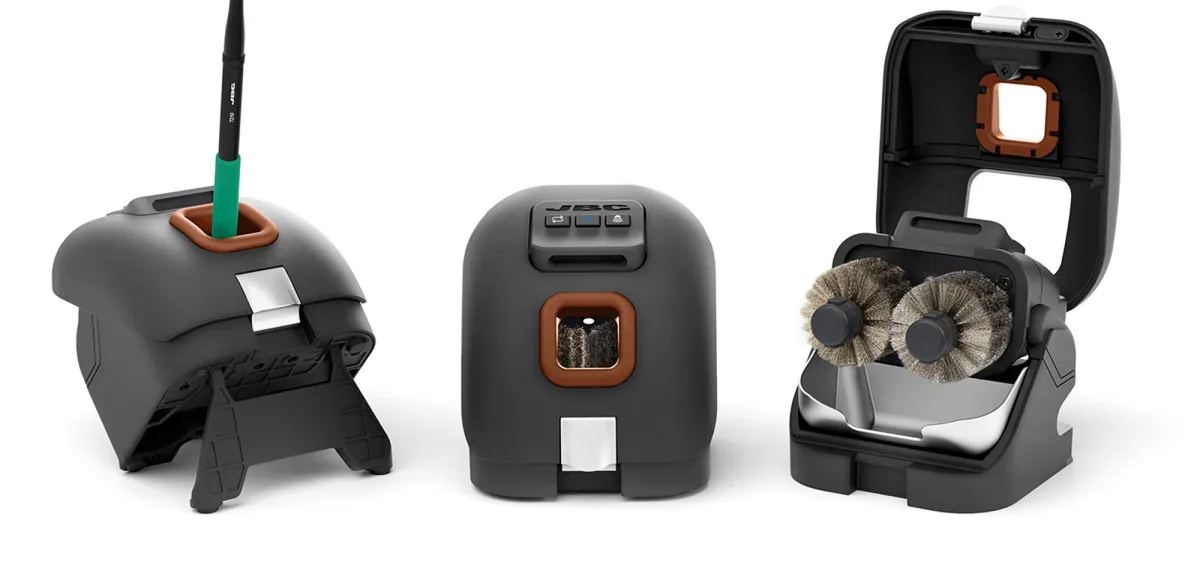

JBC CLMU Tip Cleaner
Perform a thorough and strong cleaning to recover the tip increasing heat transfer. CL1008 Metal Brushes supplied provides a deep cleaning.
| USB-B | Firmware update |
| AC adapter | Input: 100-240 V, 50/60 Hz |
| Output | DC 24 V, 2 A |
| Cleaning Unit | 131 x 129 x 136 mm / 2.10 kg. |
| Package | 220 x 213 x 160 mm / 2.32 kg. |

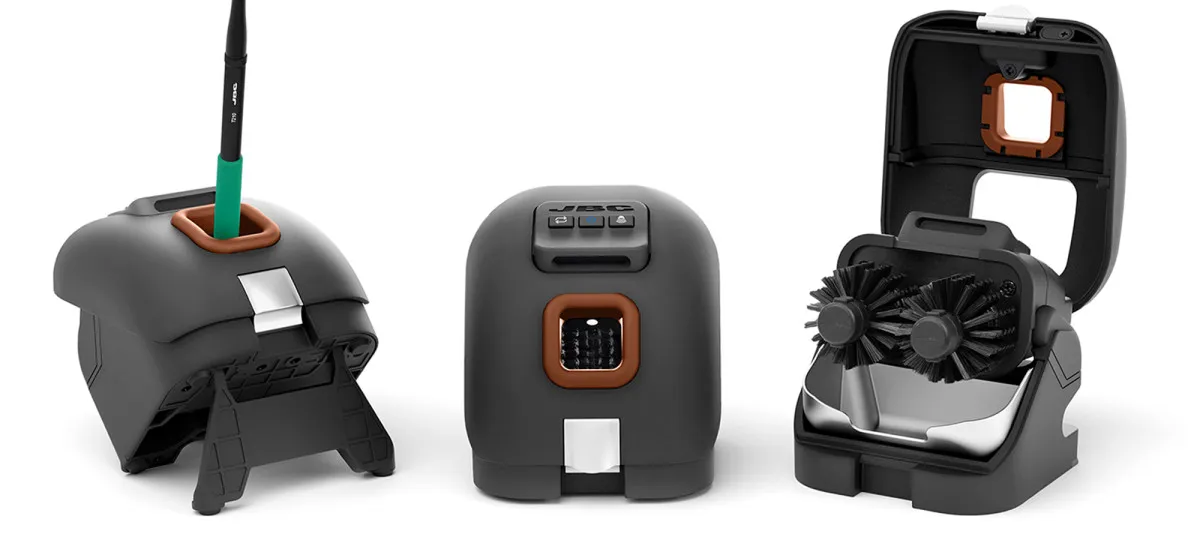

JBC CLMUP Tip Cleaner
Perform a thorough and gentle tip cleaning increasing heat transfer and maximizing the soldering quality in less than 1 second. CL2008 Fiber Brushes supplied provides a soft cleaning, specially recommended in regular usage to improve tip life.
| USB-B | Firmware update |
| AC adapter | Input: 100-240 V, 50/60 Hz |
| Output | DC 24 V, 2 A |
| Weight and dimensions | 2.100 kg (4.63 lb) |

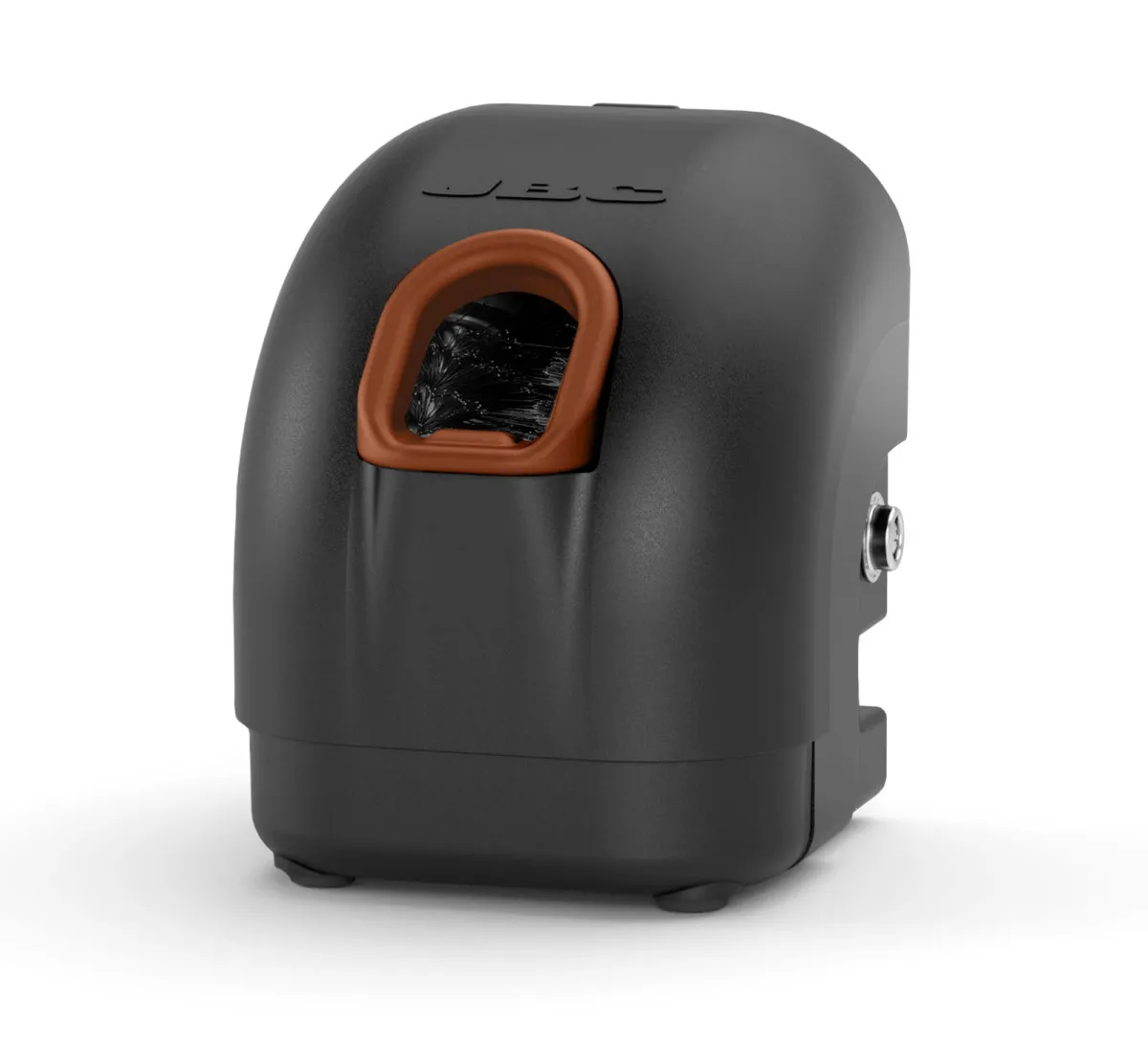

JBC CLMS Tip Cleaner
This automatic cleaner improves thermal transfer of the tip in only 1 second, which means you save time and optimize production.
| Silent operation | 30 dB at 30 cm |
| Operating temp. range | 10 to 40 ºC / 50 to 104 ºF |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| AC adapter | Input: 100-240 V, 50/60 Hz |
| Output | DC 12 V, 1 A |
| Weight and dimensions | 1.452 kg (3.20 lb) |

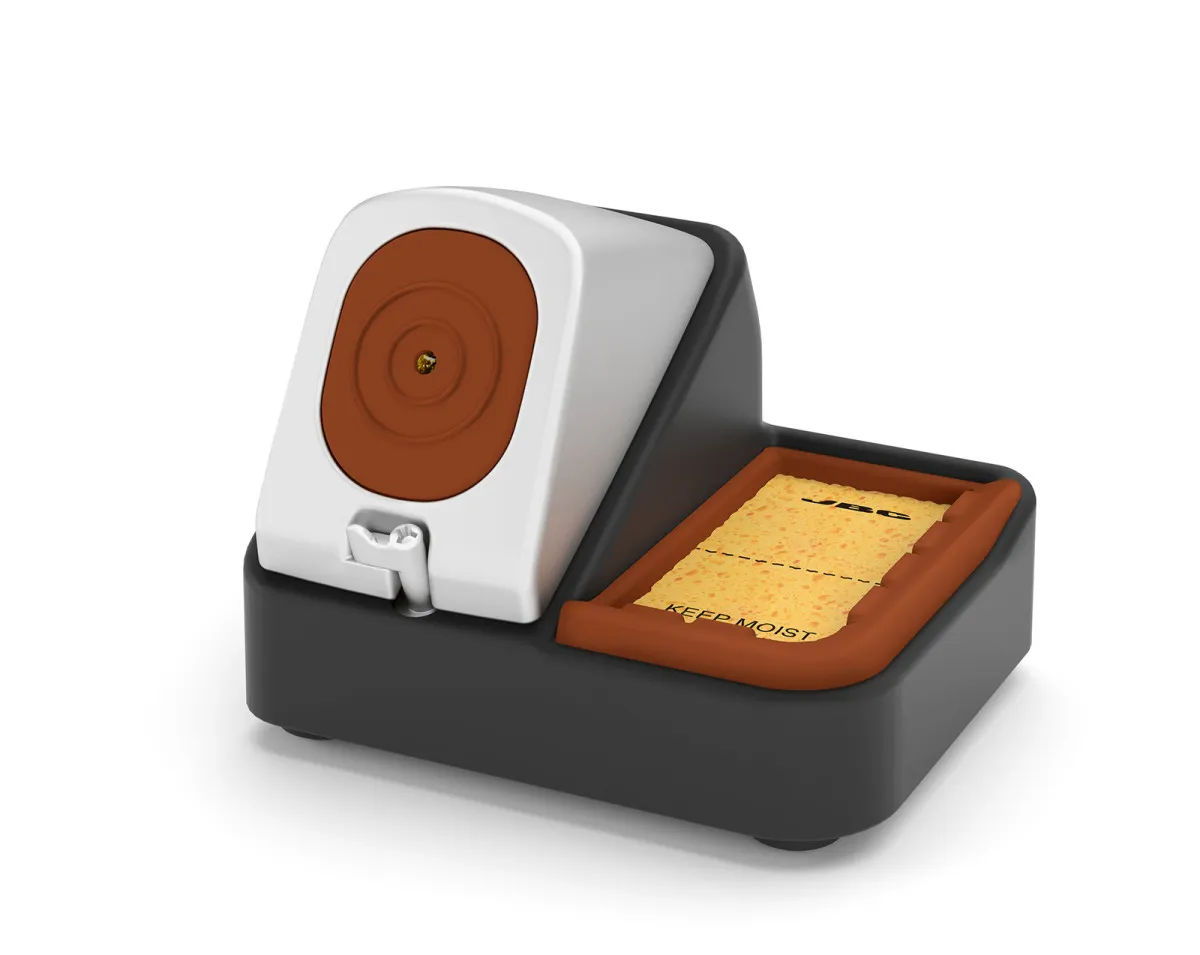

JBC CL Tip Cleaner
A complete Manual Tip Cleaning System equipped with 3 different cleaning methods.

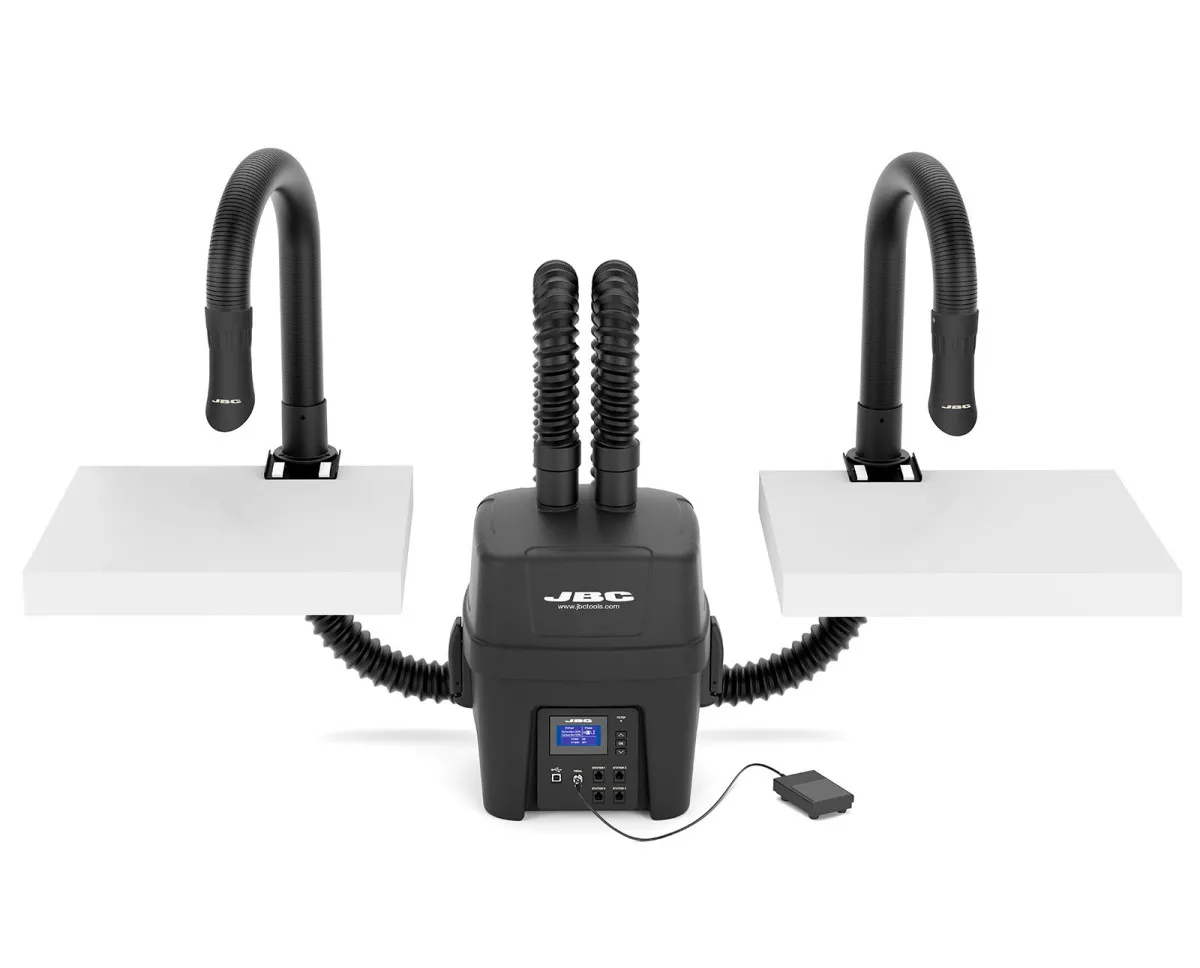

JBC FAE1 KIT2
FAE is the most effective solution to avoid exposure to solder fumes. Fume extraction starts up when the tool is lifted from the stand, operating only when soldering. This function saves power and extends filter life. Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
| Work areas | 1 or 2 |
| Noise Level | 55 dB @ 1m |
| ESD safe | Meet ANSI/ESD S20.20 |
| Pre-filter | Medium Dust Filter M5 (EN 779) |
| Compact filters | HEPA filter H13 (EN 1822) |
| Connections | USB-B |
| Pedal connector | Station connectors RJ12 (4x) |
| Input power | 200W. Fuse 4A - 100 V |
| Unit | 380 x 340 x 475 mm / 16.91 kg. |
| Package | 620 x 460 x 825 mm / 24.05 kg. |

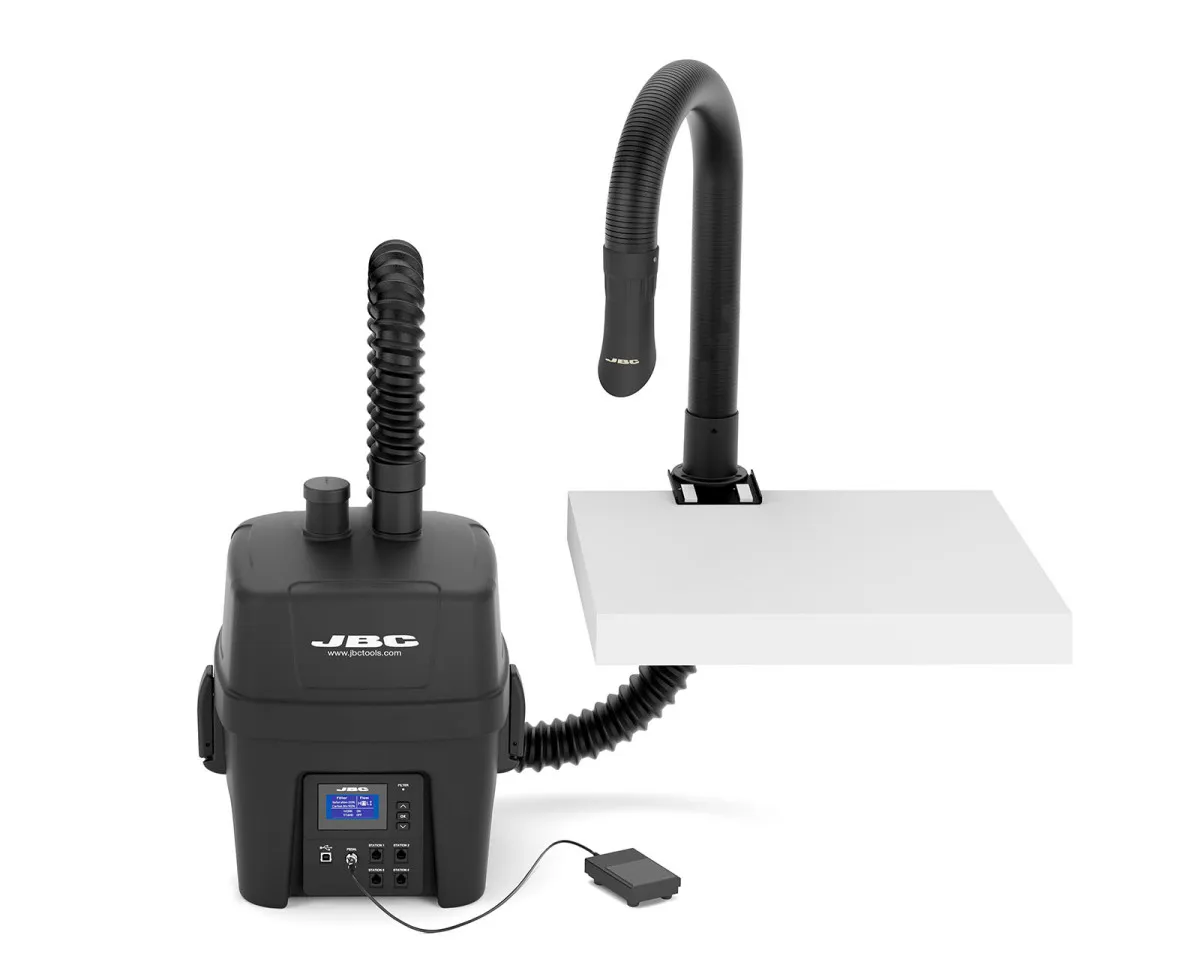

JBC FAE1 KIT1
FAE is the most effective solution to avoid exposure to solder fumes. Fume extraction starts up when the tool is lifted from the stand, operating only when soldering. This function saves power and extends filter life. Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
| Work areas | 1 or 2 |
| Noise Level | 55 dB @ 1m |
| ESD safe | Meet ANSI/ESD S20.20 |
| Pre-filter | Medium Dust Filter M5 (EN 779) |
| Compact filters | HEPA filter H13 (EN 1822) |
| Connections | USB-B |
| Pedal connector | Station connectors RJ12 (4x) |
| Input power | 200W. Fuse 4A - 100 V |
| Unit | 380 x 340 x 475 mm / 13.90 kg. |
| Package | 620 x 460 x 715 mm / 20.42 kg. |
JBC füstelszívók és hegytisztítók
A JBC hegytisztító rendszerek – legyen szó sárgaréz gyapjús betétről, forgó tisztítómodulról vagy antisplash megoldásokról – úgy tisztítják meg a pákahegyet, hogy közben nem károsítják annak felületét. A megfelelő hegytisztítás stabil ónnedvesítést, konzisztens forrasztási eredményt és jelentősen hosszabb hegy-élettartamot eredményez. A tiszta hegy ráadásul kevesebb oxidot, kevesebb újramelegített fluxot és kevesebb selejtet jelent – ezért a JBC hegytisztítók elengedhetetlen kiegészítői minden professzionális JBC forrasztóállomásnak.
