JBC ipari forrasztástechnika
JBC forrasztóállomások – Professzionális megoldások elektronikai gyártáshoz
A JBC forrasztóállomások kifejezetten ipari felhasználásra, mindennapos, intenzív terhelésre készültek. A kompakt és moduláris állomások gyors felfűtést, stabil hőmérsékletet és kiváló hőátadást biztosítanak, így alacsonyabb forrasztási…
Automatikus huzaladagolós állomások
JBC 55N PULSMATIC
This soldering iron enables solder wire to be fed through as necessary, thus freeing the hand that normally holds the solder wire when soldering.
Power
33W
Max. temperature
450 ºC
Time to reach 300ºC
3 min
Net weight
0,36 kg (0.79lb)
| Weight and dimensions | 359 gr (0.79 lb) |
Automatikus huzaladagolós állomások
JBC SF Station
This Solder-Wire Feeder allows you to feed solder wire automatically from any position.
Solder wire diameter
1mm / 0.04 in with GSF10V
Max. wire length
250 mm / 9.84 in
Max. speed
120 mm/s / 4.72 in/s Forward & Reverse
| USB-B (front) | Firmware update and PC communications |
| Weight | up to 1 kg / 2.2 Ib |
| Diameter | max. 80 mm / 3.15 in |
| Height | max. 75 mm / 2.95 in |
| Reel stand axis | Ø 10 mm / Ø 0.4 in |
| Automatic Feed | 140 x 150 x 120 mm / 2.32 kg. , 5.51 x 5.91 x 4.72 in / 5.11 lb. |
| Package | 368 x 368 x 195 mm / 3.68 kg. , 14.49 x 14.49 x 7.68 in / 8.11 lb. |
Automatikus huzaladagolós állomások
JBC ALE Station
Ideal for soldering processes requiring high productivity. It includes JBC Most Efficient Soldering System.
Nominal power
180 W
Peak power
150 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
| Temperature accuracy | ±3 % (Using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu settings) |
| Connections | USB-A Update and files import-export, USB-B Software PC, RJ12 Fume extractor connection |
| Equipotential bonding | Optional connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| ESD safe | Meet ANSI/ESD S20.20 |
| Solder wire diameter | 1.0 mm / 0.04 in with GALE10V already assembled |
| Max. wire length | 250 mm / 9.84 in (for discontinuous + program mode) |
| Min. wire length | 0.5 mm / 0.02 in |
| Max. forward speed | 0.5 to 50 mm/s / 0.02 to 1.97 in/s |
| Max. Backward Function | 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s |
| Programs | 5 Programs |
| Program Steps | 1 to 3 Steps (for each program) |
| USB-A | Firmware update Graphics and profiles |
| USB-B | PC communications |
| Pedal connector | Tool control |
| Weight | up to 2 kg / 4.4 Ib |
| Diameter | max. 100 mm / 3.94 in |
| Height | max. 100 mm / 3.94 in |
| Reel stand axis | Ø 10 mm / Ø 0.4 in |
| Automatic Feed | 235 x 170 x 112 mm / 7.83 kg. , 9.25 x 6.69 x 4.41 in / 17.25 lb. |
| Package | 545 x 345 x 275 mm / 8.46 kg. , 21.46 x 13.58 x 10.83 in / 18.65 lb. |
B.IRON akkumlátoros állomások
JBC B.500 K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
24 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (Using reference cartridge)
Battery
Li-Ion 7.4V / 750mAh
| Charge time | 60 minutes |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| Weight and dimensions | 165 gr (0.36 lb) , 324 gr (0.71 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások
JBC B.100 K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
24 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (Using reference cartridge)
Battery
Li-Ion 7.4V / 180 mAh
| Charge time | 30 minutes |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 35 g / 0.077 lb |
| Weight and dimensions | 162 gr (0.36 lb) , 293 gr (0.65 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

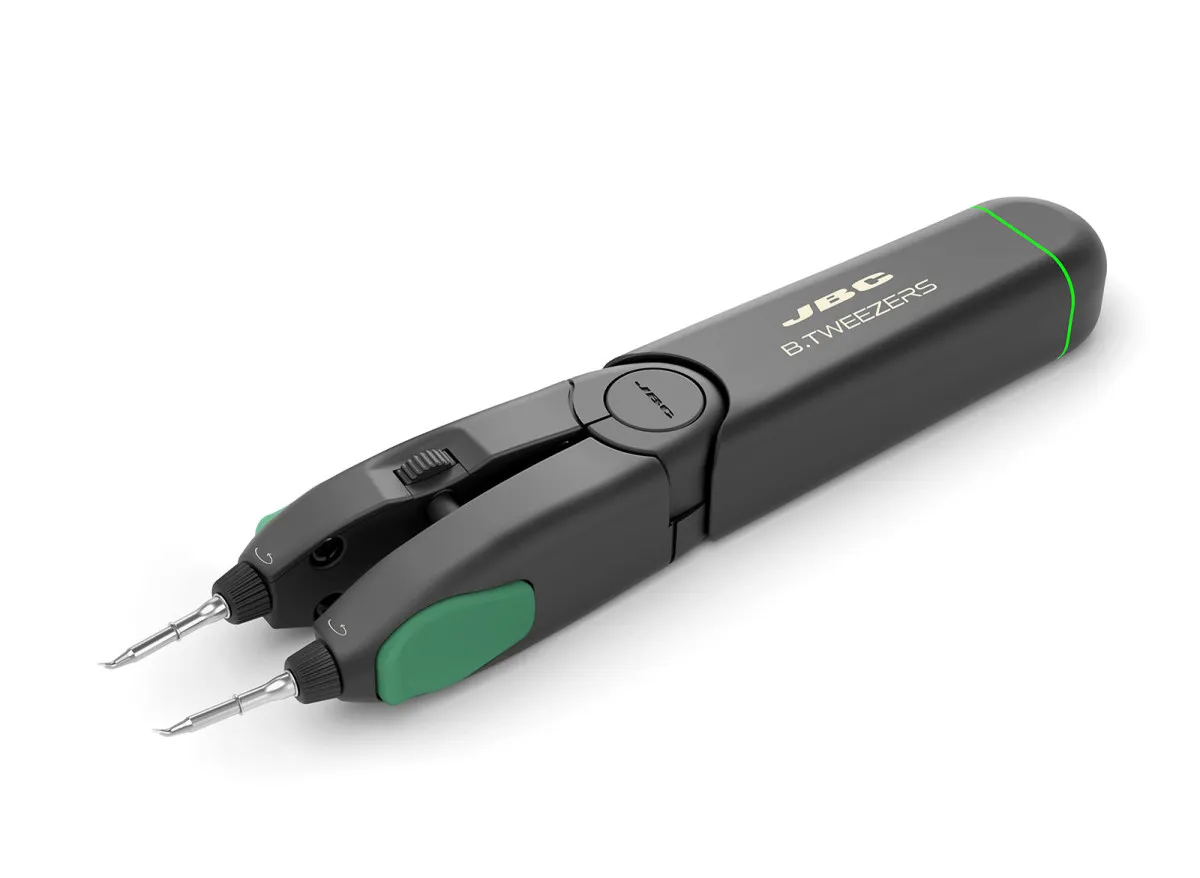

JBC B.TWEEZERS K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
15 W
Selectable temperature
200 to 450ºC / 390 to 840ºF
Temperature accuracy
± 3%
Battery
Li-Ion 7.4V / 180mAh
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 155 gr (0.34 lb) , 289 gr (0.64 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások

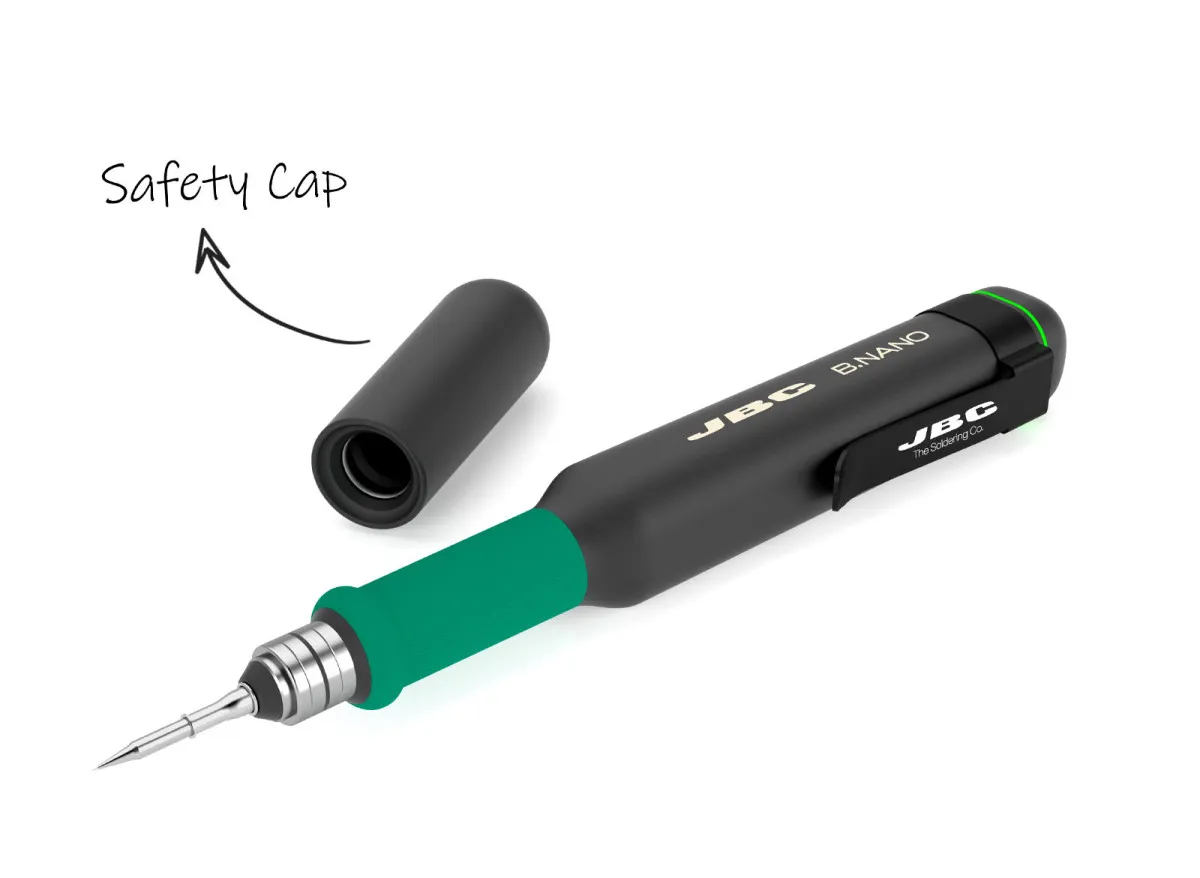

JBC B.NANO K
This kit allows you to extend any B.IRON Station adding an extra tool.
Peak power
15 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (using reference cartridge)
Battery
Li-Ion 7.4V / 120mAh
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 151 gr (0.33 lb) , 284 gr (0.63 lb) , 245 x 185 x 45 mm |
B.IRON akkumlátoros állomások
JBC B.IRON DUAL 500 Station
B.IRON DUAL 500 is specially designed for continuous work in mass production.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 750 mAh |
| Charge time | 60 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| B.IRON Battery-Powered System | 233 x 215 x 211 mm / 2.13 kg. , 9.17 x 8.46 x 8.31 in / 4.70 lb. |
| Package | 265 x 223 x 160 mm / 2.74 kg. , 10.43 x 8.78 x 6.30 in / 6.05 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON REWORK Station
B.IRON REWORK Station ideal for soldering and reworking the smallest SMD.
Input voltage
100 V - 240 V 50/60 Hz
Power
15 W
USB output
5 V / 1000 mA
| Peak power | 15 W |
| Selectable temperature | 200 to 450ºC / 390 to 840ºF |
| Temperature accuracy | ± 3% |
| Battery | Li-Ion 7.4V / 180mAh |
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" (1024 x 600px) |
| Connectivity | Bluetooth 4.2 |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 215 x 199 x 211 mm / 2.05 kg. , 8.46 x 7.83 x 8.31 in / 4.53 lb. |
| Package | 265 x 223 x 160 mm / 2.68 kg. , 10.43 x 8.78 x 6.30 in / 5.91 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON DUAL NANO Station
B.IRON DUAL NANO features two lightweight and ergonomic tools, providing the highest precision for soldering SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Peak power | 15 W |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Temperature accuracy | ± 3% (using reference cartridge) |
| Battery | Li-Ion 7.4V / 120mAh |
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" / 7 in |
| Connectivity | Bluetooth Low Energy (BLE) |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 215 x 199 x 211 mm / 2.05 kg. , 8.46 x 7.83 x 8.31 in / 4.51 lb. |
| Package | 223 x 265 x 160 mm / 2.66 kg. , 8.78 x 10.43 x 6.30 in / 5.87 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON 500 Station
B.IRON 500 is specially designed for electronic production and intensive works.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 750 mAh |
| Charge time | 60 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb |
| B.IRON Battery-Powered System | 233 x 202 x 211 mm / 1.98 kg. , 9.17 x 7.95 x 8.31 in / 4.37 lb. |
| Package | 265 x 223 x 160 mm / 2.56 kg. , 10.43 x 8.78 x 6.30 in / 5.64 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON 100 Station
B.IRON 100 features a lightweight and ergonomic tool, specially designed for R&D and individual jobs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Output peak power | 24 W |
| Battery | Li-Ion 7.4V / 180 mAh |
| Charge time | 30 minutes |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ± 3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 35 g / 0.077 lb |
| B.IRON Battery-Powered System | 217 x 202 x 211 mm / 1.95 kg. , 8.54 x 7.95 x 8.31 in / 4.30 lb. |
| Package | 223 x 265 x 160 mm / 2.52 kg. , 8.78 x 10.43 x 6.30 in / 5.56 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON TWEEZERS Station
B.IRON TWEEZERS Station provides the highest precision when rework SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
USB output
5 V / 1000 mA
| Peak power | 15 W |
| Selectable temperature | 200 to 450ºC / 390 to 840ºF |
| Temperature accuracy | ± 3% |
| Battery | Li-Ion 7.4V / 180mAh |
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" (1024 x 600px) |
| Connectivity | Bluetooth 4.2 |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 202 x 198 x 211 mm / 1.95 kg. , 7.95 x 7.80 x 8.31 in / 4.29 lb. |
| Package | 265 x 223 x 160 mm / 2.53 kg. , 10.43 x 8.78 x 6.30 in / 5.57 lb. |
B.IRON akkumlátoros állomások
JBC B.IRON NANO Station
B.IRON NANO features a lightweight and ergonomic tool, providing the highest precision for soldering SMDs.
Input voltage
100 V - 240 V 50/60 Hz
Power
40 W
Tool output
12 V / 1000 mA
| USB output | 5 V / 1000 mA |
| Peak power | 15 W |
| Selectable temperature | 100 to 450ºC / 210 to 840ºF |
| Temperature accuracy | ± 3% (using reference cartridge) |
| Battery | Li-Ion 7.4V / 120mAh |
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Screen size | 7" / 7 in |
| Connectivity | Bluetooth Low Energy (BLE) |
| Battery | Li-Ion 3.7V / 2500mAh |
| B.IRON Battery-Powered System | 202 x 200 x 211 mm / 1.94 kg. , 7.95 x 7.87 x 8.31 in / 4.28 lb. |
| Packag | 223 x 265 x 160 mm / 2.52 kg., 8.78 x 10.43 x 6.30 in / 5.55 lb. |
B.IRON akkumlátoros állomások
JBC B.500
B.500 is perfect for continuous and intensive work with larger components or ones connected to ground planes.
Peak power
24 W
Battery
Li-Ion 7.4 V / 750 mAh
Charge time
60 minutes
Selectable temperature
100 - 450 °C / 210 - 840 °F
| Idle temp. stability (still air) | ±1.5 °C / ±3 °F |
| Temperature accuracy | ±3% (Using reference cartridge) |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 70 g / 0.154 lb (without cap) |
| Weight and dimensions | 107 gr (0.24 lb), 151 gr (0.33 lb), 220 x 75 x 30 mm |
B.IRON akkumlátoros állomások

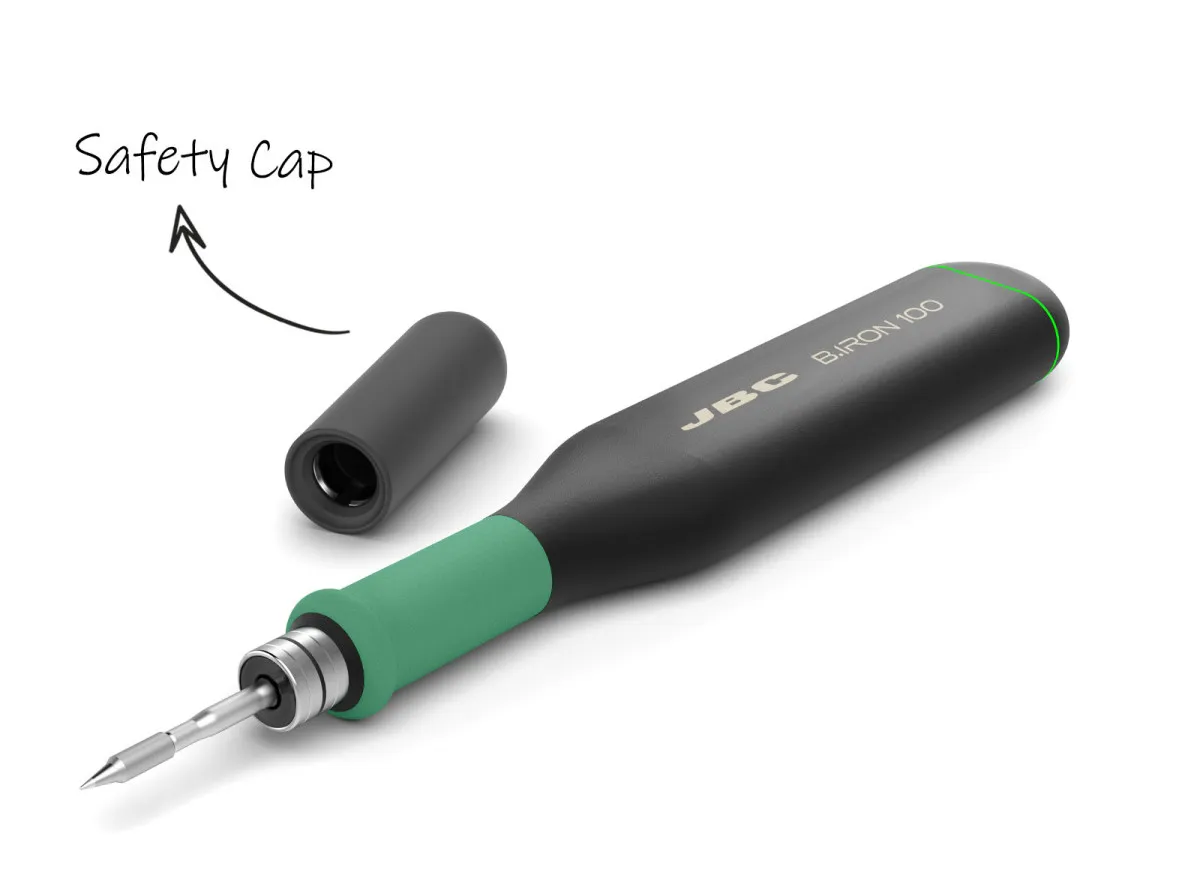

JBC B.100
B.100 is designed for precise soldering jobs with medium power requirements. Perfect for R&D department and individual jobs. Its design allows you to work on both conventional components and small SMDs, even when it’s used under a magnifying glass.
Peak power
24 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (Using reference cartridge)
Battery
Li-Ion 7.4V / 180 mAh
| Charge time | 30 minutes |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Connections | Bluetooth Low Energy (BLE) |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Tool Weight | 35 g / 0.077 lb |
| Package | 220 x 75 x 30 mm / 0.12 kg. , 8.66 x 2.95 x 1.18 in / 0.26 lb. |
B.IRON akkumlátoros állomások
JBC B.TWEEZERS
B.TWEEZERS are ideal for reworking ultra-miniature SMD on densely populated PCBs. They feature an adjustment system that ensures precise vertical and rotational alignment of the cartridges, enabling accurate and symmetrical tip positioning.
Peak power
15 W
Selectable temperature
200 to 450ºC / 390 to 840ºF
Temperature accuracy
± 3%
Battery
Li-Ion 7.4V / 180mAh
| Charge time | 45 minutes |
| Weight | 57 g / 0.126 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 79 gr (0.17 lb) , 123 gr (0.27 lb) , 220 x 75 x 30 mm |
B.IRON akkumlátoros állomások
JBC B.NANO
B.NANO is the perfect tool for High-Precision Soldering in hard-to-reach areas.
Peak power
15 W
Selectable temperature
100 to 450ºC / 210 to 840ºF
Temperature accuracy
± 3% (using reference cartridge)
Battery
Li-Ion 7.4V / 120mAh
| Charge time | 30 minutes |
| Ambient Operating Temp | 10 - 50 °C / 50 - 122 °F |
| Weight | 32 g / 0.071 lb |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Weight and dimensions | 66 gr (0.15 lb), 110 gr (0.24 lb), 220 x 75 x 30 mm |
Komplett rework állomások

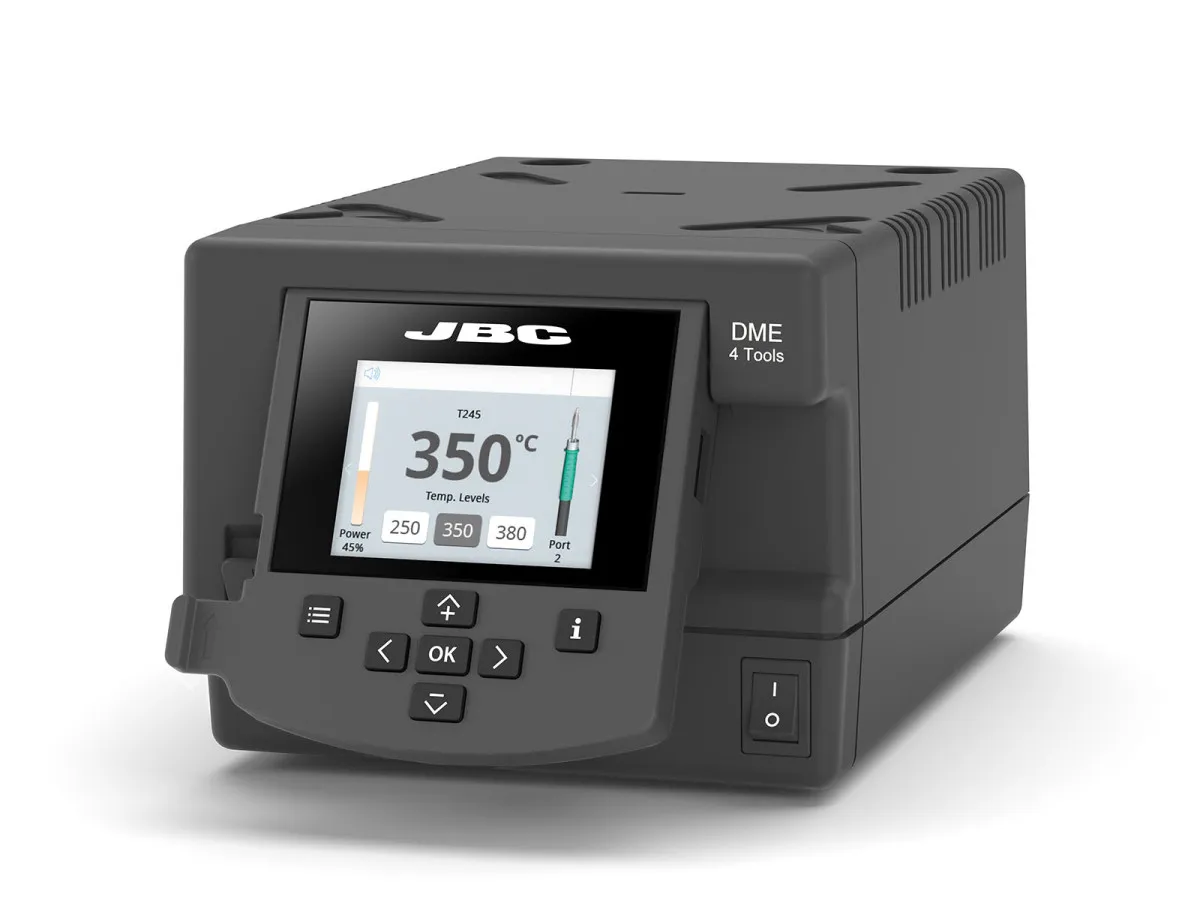

JBC DME Control Unit
DME control unit enables simultaneous operation with at least 4 soldering or desoldering tools and is fully compatible with 13 JBC tools, delivering up to 150 W per tool.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Control Unit | 232 x 148 x 120 mm / 4.57 kg. , 9.13 x 5.83 x 4.72 in / 10.08 lb. |
| Package | 258 x 328 x 208 mm / 4.97 kg. , 10.16 x 12.91 x 8.19 in / 10.96 lb. |
Komplett rework állomások

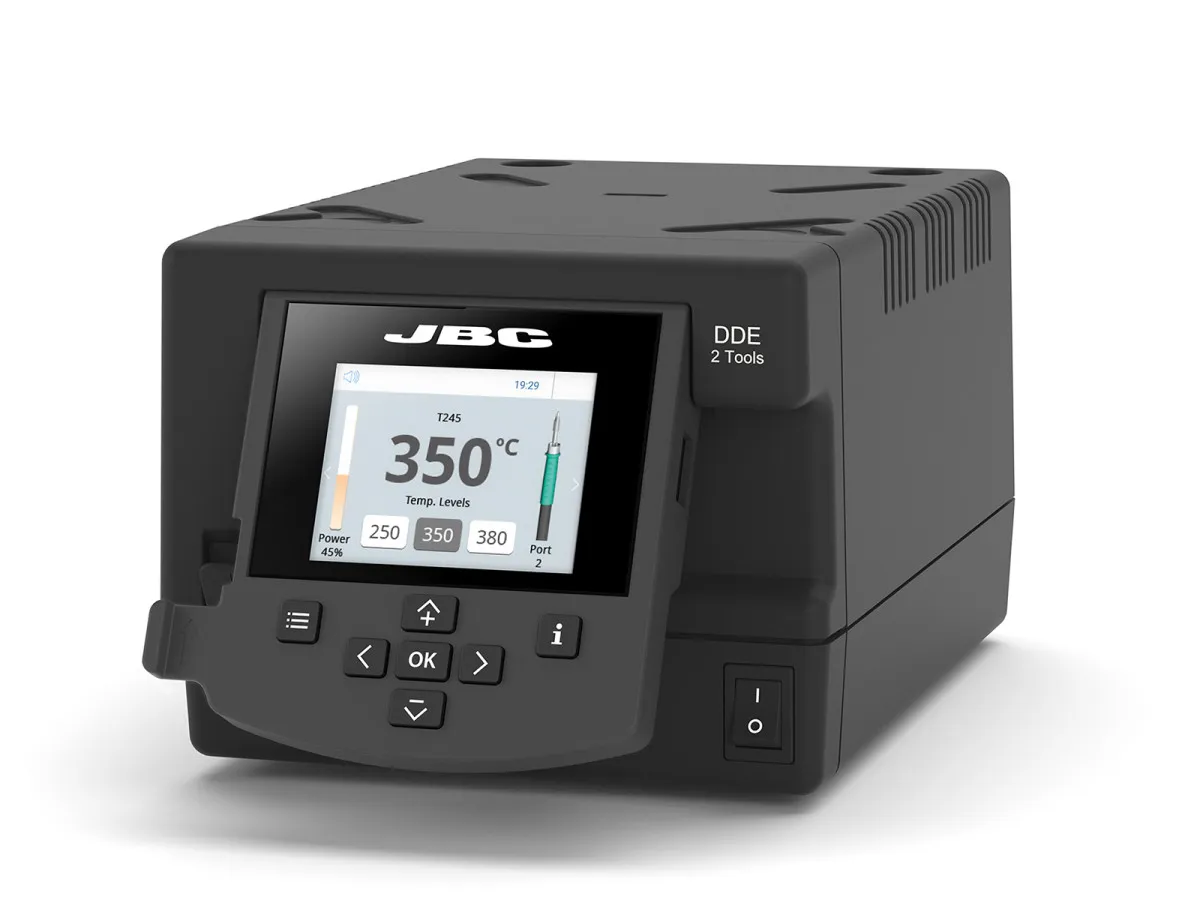

JBC DDE Control Unit
This control unit operates with 2 soldering or desoldering tools simultaneously and is fully compatible with 13 different JBC Tools delivering up to 150 W per tool.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Control Unit | 232 x 148 x 120 mm / 3.82 kg. , 9.13 x 5.83 x 4.72 in / 8.41 lb. |
| Package | 258 x 328 x 208 mm / 4.27 kg. , 10.16 x 12.91 x 8.19 in / 9.41 lb. |
Komplett rework állomások

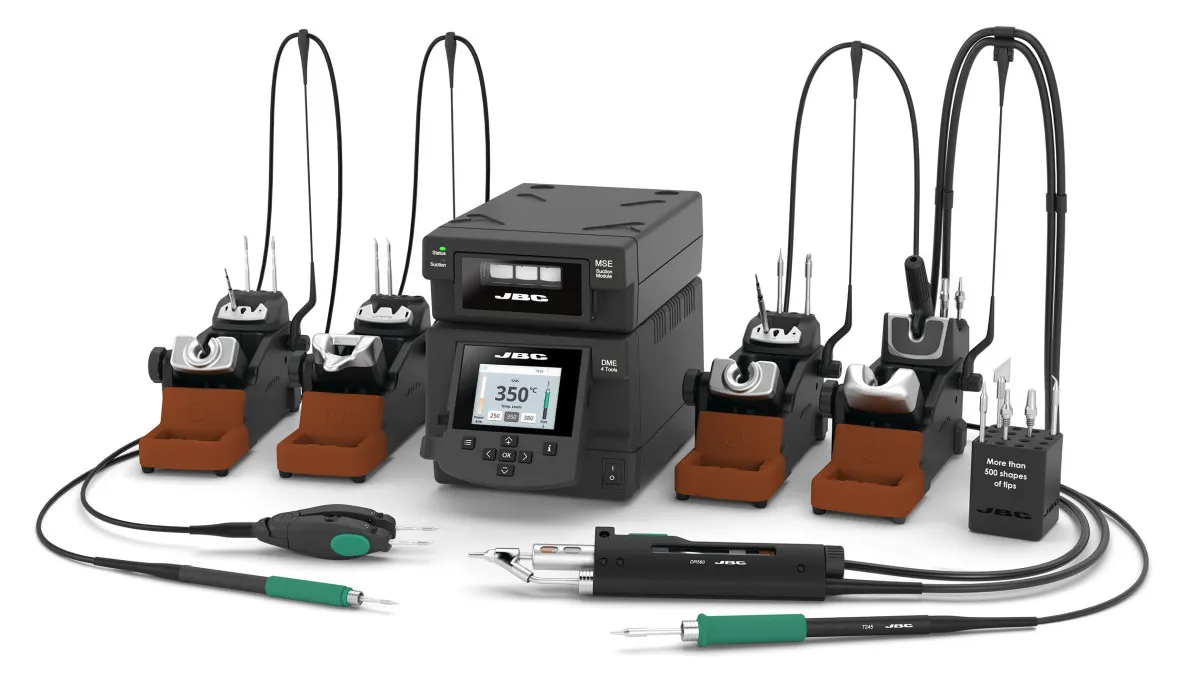

JBC DMPSE Station
DMPSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is perfect for precise soldering, SMD rework and handling high-power applications and enables efficient desoldering of through-hole components.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 13.06 kg. , 9.13 x 5.83 x 4.72 in / 28.79 lb. |
| Package | 495 x 415 x 395 mm / 18.56 kg. , 19.49 x 16.34 x 15.55 in / 40.92 lb. |
Komplett rework állomások

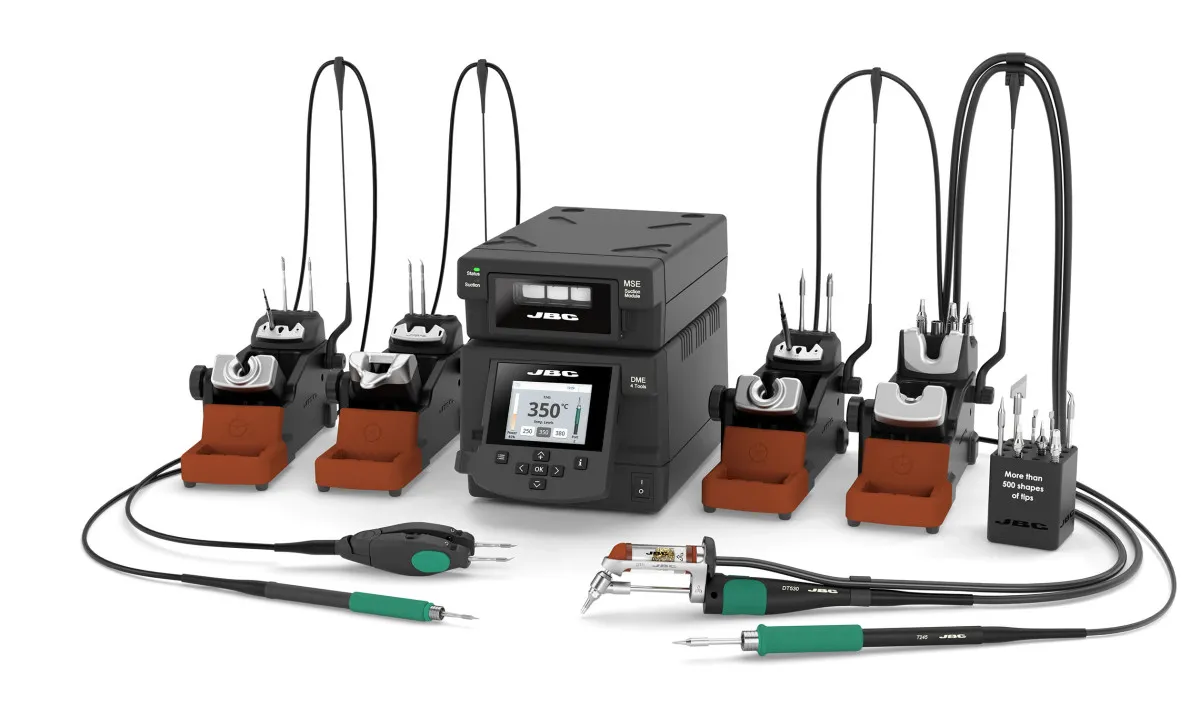

JBC DMPSD Station
DMPSD is perfect for precise soldering, SMD rework and handling high-power tasks, ensuring efficient desoldering of through-hole components.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 13.18 kg. , 9.13 x 5.83 x 4.72 in / 29.07 lb. |
| Package | 620 x 385 x 395 mm / 19.80 kg. , 24.41 x 15.16 x 15.55 in / 43.65 lb. |
Komplett rework állomások

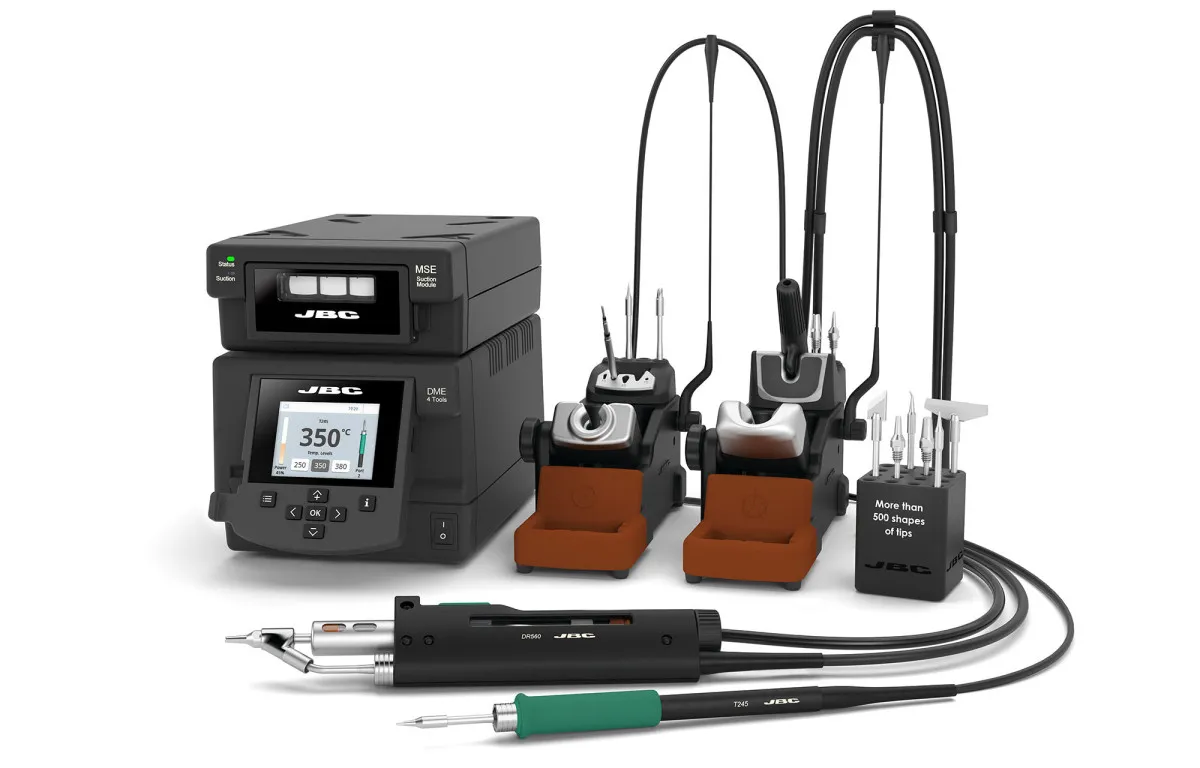

JBC DMSE Station
Equipped with MSE Module, DMSE Station offers a versatile solution for SMD and high-power applications. Its powerful suction module excels in desoldering through-hole components and removing excess solder after SMD rework, ensuring clean, precise results across a wide range of soldering tasks.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 7.85 kg. , 9.13 x 5.83 x 4.72 in / 17.30 lb. |
| Package | 425 x 360 x 433 mm / 11.28 kg. , 16.73 x 14.17 x 17.05 in / 24.86 lb. |
Komplett rework állomások

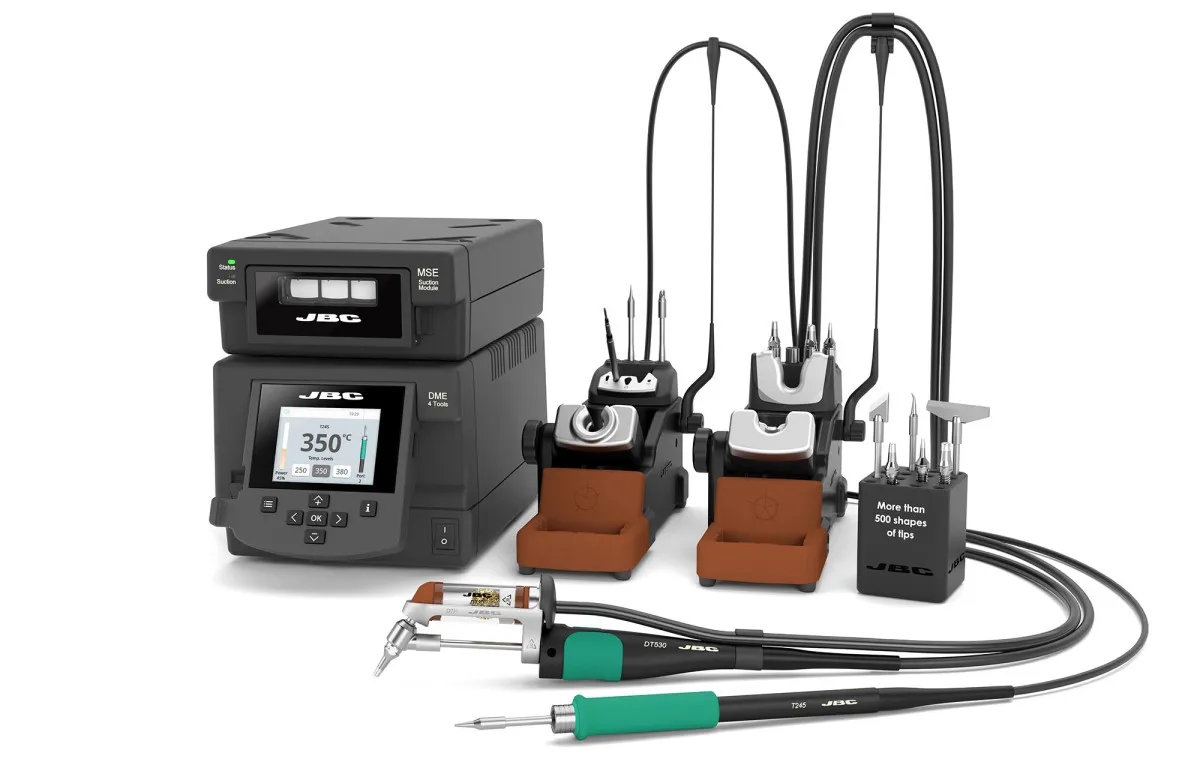

JBC DMSD Station
DMSD offers a solution for both SMDs and high-power applications. This station is perfect for desoldering jobs of through-hole components and removing excess solder after SMD rework.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 7.23 kg. , 9.13 x 5.83 x 4.72 in / 15.93 lb. |
| Package | 495 x 415 x 395 mm / 10.26 kg. ,19.49 x 16.34 x 15.55 in / 22.61 lb. |
Komplett rework állomások

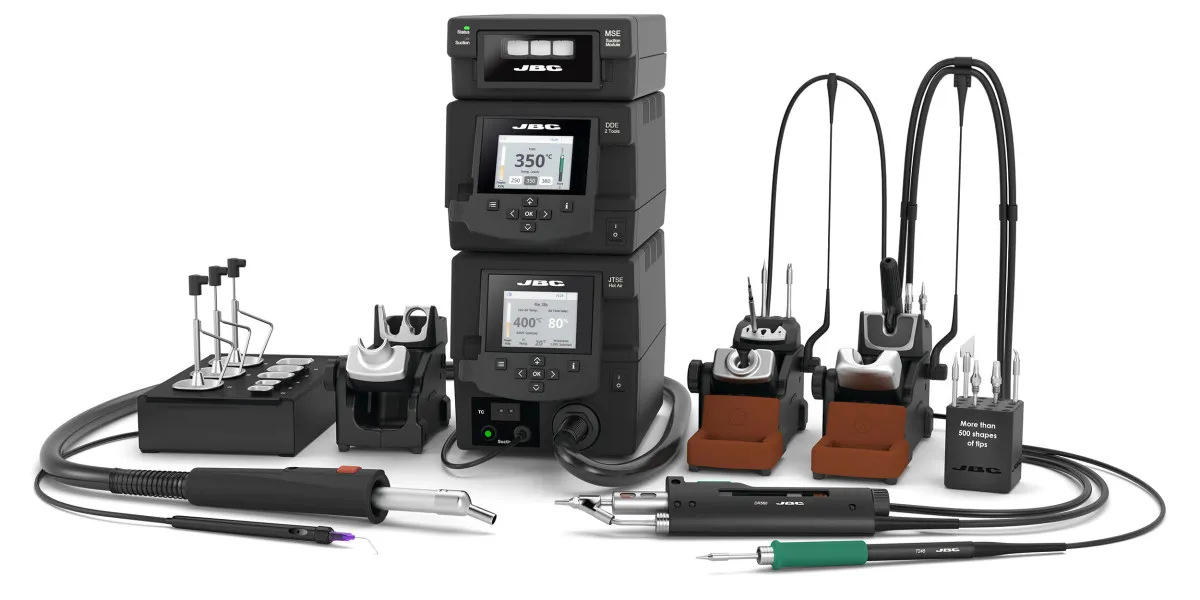

JBC RMSE System
RMSE Station, equipped with MSE Module, ensures efficient and precise solder removal with its powerful suction system. It provides the fastest and safest solution for soldering and rework, including hot air applications. The station features stackable modules and it includes all the necessary accessories to simplify your work.
Nominal power
700 W
Selectable temperature
150 to 450 °C / 300 to 840 °F
Air flow regulation
5 to 50 SLPM
| Vacuum | 30% / 228 mmHg / 9 inHg |
| Profiles | 25 (up to 10 steps for each), 1 preset profile |
| Type K TC connector | 1 for Control & Protection |
| ESD safe | Meet ANSI / ESD S20.20-2021 |
| Equipotential bonding | Connection to EPA |
| USB-A | Firmware update Graphics and profiles |
| USB-B | PC communications |
| RJ12 Connector | Remote control or FAE Fume Extractor connection |
| Pedal connector | Tool control |
| Peak power | 150 W per tool |
| Selectable temperature | 90 to 450 ºC / 190 to 840 ºF |
| Temperature accuracy | ±3% |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Equipotential bonding | Optional connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Vacuum | 85% / 640mmHg / 25.4inHg |
| Flow rate | 35 SLPM |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Control Unit | 232 x 148 x 295 mm / 14.83 kg. , 9.13 x 5.83 x 11.61 in / 32.69 lb. |
| Package | 700 x 410 x 390 mm / 20.88 kg. , 27.56 x 16.14 x 15.35 in / 46.03 lb. |
JBC forrasztóállomások – Professzionális megoldások elektronikai gyártáshoz
A JBC forrasztóállomások kifejezetten ipari felhasználásra, mindennapos, intenzív terhelésre készültek. A kompakt és moduláris állomások gyors felfűtést, stabil hőmérsékletet és kiváló hőátadást biztosítanak, így alacsonyabb forrasztási hőmérséklettel is megbízható, ismételhető kötéseket érhetünk el. Legyen szó SMD vagy THT forrasztásról, prototípus-gyártásról, szervizmunkáról vagy nagy volumenű sorozatgyártásról, a JBC állomások minden feladathoz professzionális szintű megoldást kínálnak.
A fejlett energiamenedzsment, a Sleep/Hibernation mód, az ergonomikus kéziszerszámok és a széles pákahegy-választék együtt biztosítják, hogy a JBC forrasztóállomások nemcsak kiemelkedő forrasztási minőséget, hanem alacsony üzemeltetési költséget és hosszú hegy-élettartamot is nyújtanak. A kategóriában elérhető állomások ideálisak EMS gyártók, autóipari beszállítók, fejlesztőlaborok és szervizközpontok számára, ahol a folyamatstabilitás, a nyomon követhetőség és az ESD-biztonság alapelvárás.
A fejlett energiamenedzsment, a Sleep/Hibernation mód, az ergonomikus kéziszerszámok és a széles pákahegy-választék együtt biztosítják, hogy a JBC forrasztóállomások nemcsak kiemelkedő forrasztási minőséget, hanem alacsony üzemeltetési költséget és hosszú hegy-élettartamot is nyújtanak. A kategóriában elérhető állomások ideálisak EMS gyártók, autóipari beszállítók, fejlesztőlaborok és szervizközpontok számára, ahol a folyamatstabilitás, a nyomon követhetőség és az ESD-biztonság alapelvárás.
