JBC DMSE Station
4-Tool Rework
Equipped with MSE Module, DMSE Station offers a versatile solution for SMD and high-power applications. Its powerful suction module excels in desoldering through-hole components and removing excess solder after SMD rework, ensuring clean, precise results across a wide range of soldering tasks.
A szállítási időt az ajánlatban pontosítjuk.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 7.85 kg. , 9.13 x 5.83 x 4.72 in / 17.30 lb. |
| Package | 425 x 360 x 433 mm / 11.28 kg. , 16.73 x 14.17 x 17.05 in / 24.86 lb. |

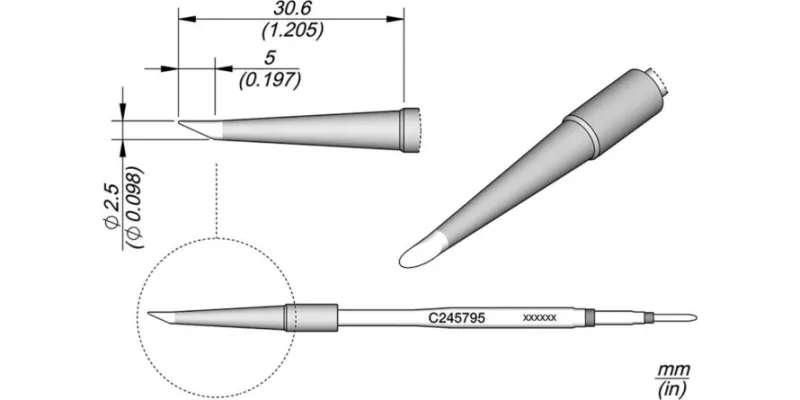

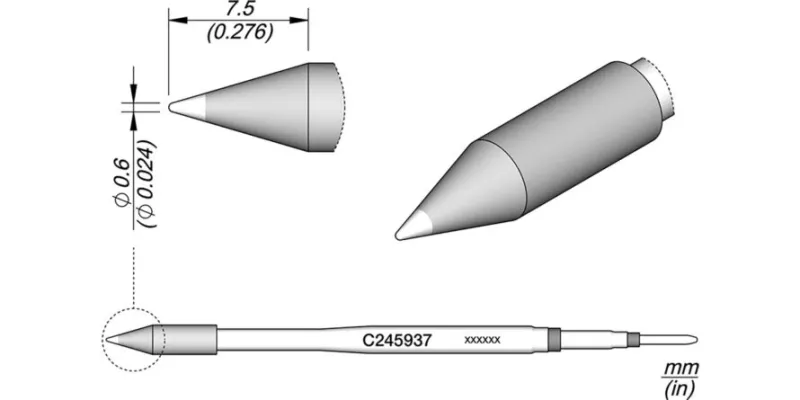

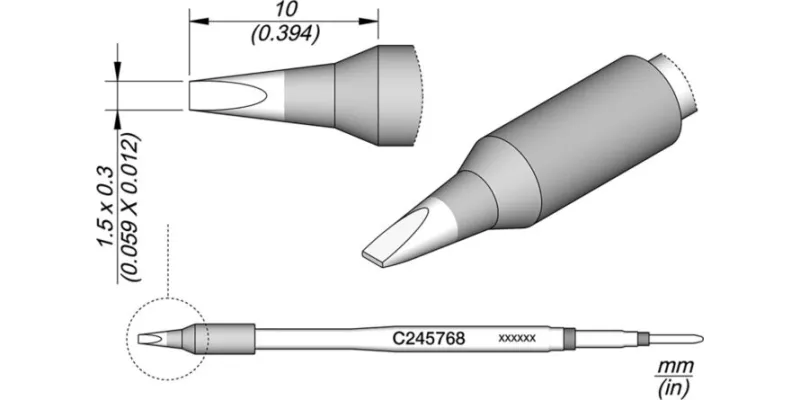

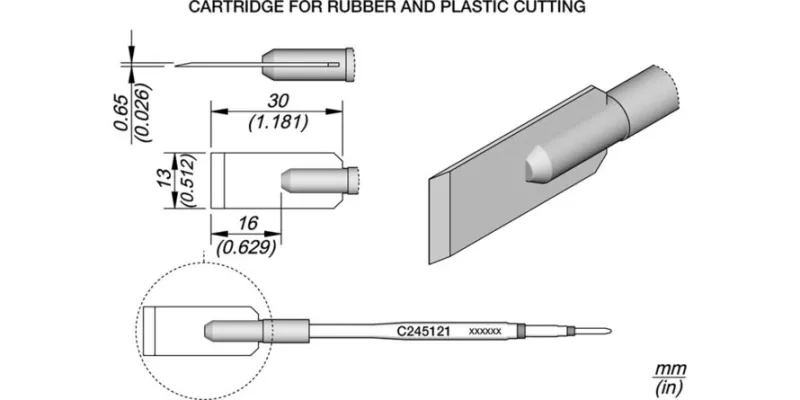

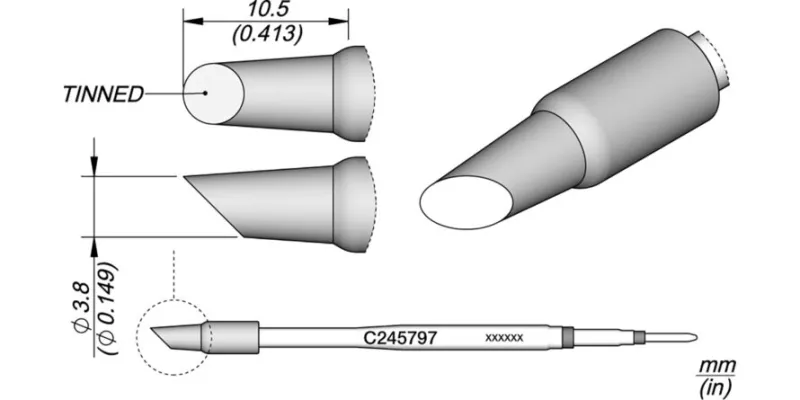

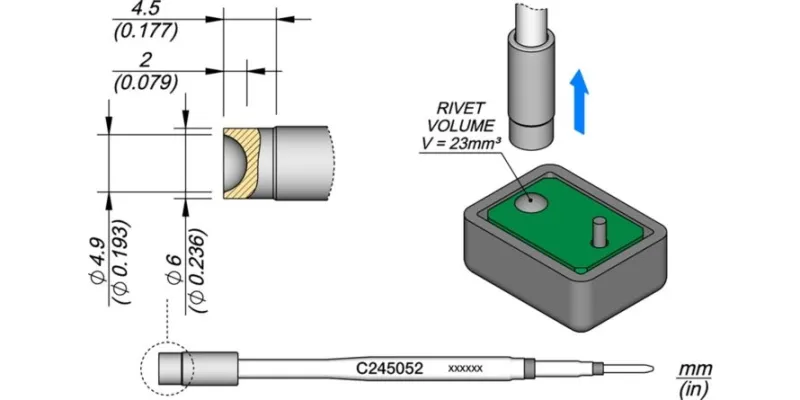

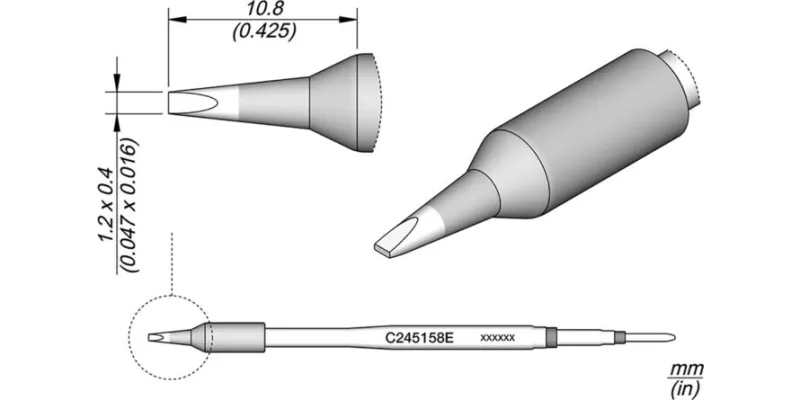

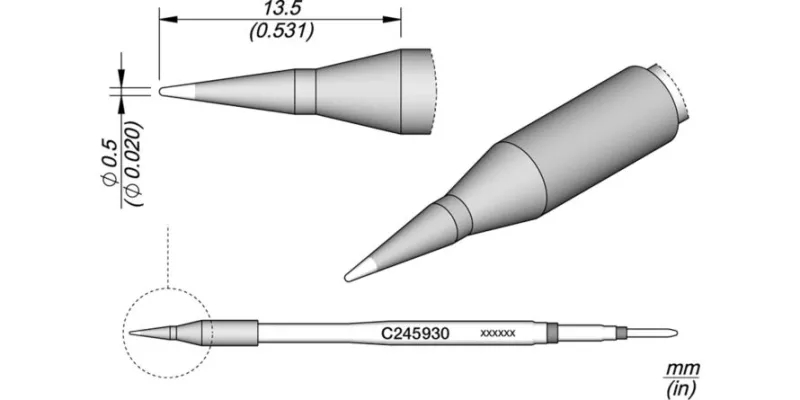

It offers the highest soldering quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption. Includes: • DME 4-Tool Control Unit managing up to 4 tools simultaneously and fully compatible with 13 different JBC Tools, delivering up to 150 W per tool. • T245 General Purpose Handle which works with C245 Cartridge Range. • DR560 Desoldering Iron which works with C560 Tip Range. • MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.
