Kilews brushless high torque
Kilews szénkefementes, magas nyomatékú csavarozók
A Kilews szénkefementes, magas nyomatékú csavarozói kifejezetten nagy terhelésű, robusztus szerelési feladatokra készültek. A brushless DC-motoros felépítés nagy teljesítményt és stabil nyomatékátadást biztosít, miközben jelentősen…
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

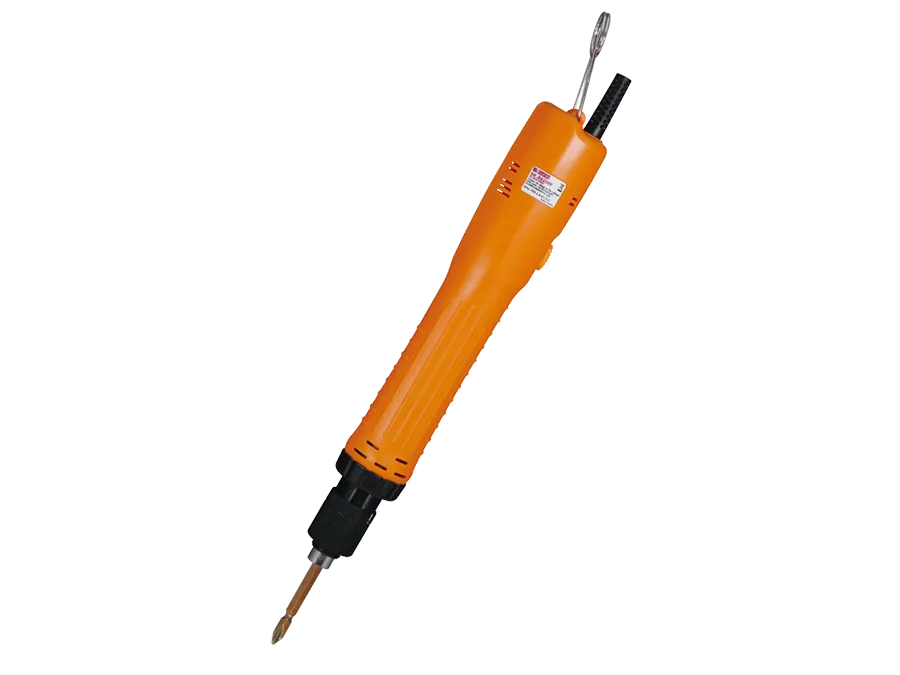

Kilews SK-B6P series
SK-B6P series
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Bit Type | A、B |
Modellek összehasonlítása
| Model | Voltage | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) Hard Joint | Torque (N.m) Soft Joint | Free Speed (r.p.m) | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SK-B6125L | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 1000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125P | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 1000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125LF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 2000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125PF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 2000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6150L | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | 740 | 285 |
| SK-B6150P | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | 740 | 285 |
| SK-B6230L | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230P | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230LF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230PF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6250L | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1200 | 4.0~5.0 | ≤4 | 810 | 305 |
| SK-B6250P | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1200 | 4.0~5.0 | ≤4 | 810 | 305 |
Torque min. (Nm)
0.49
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

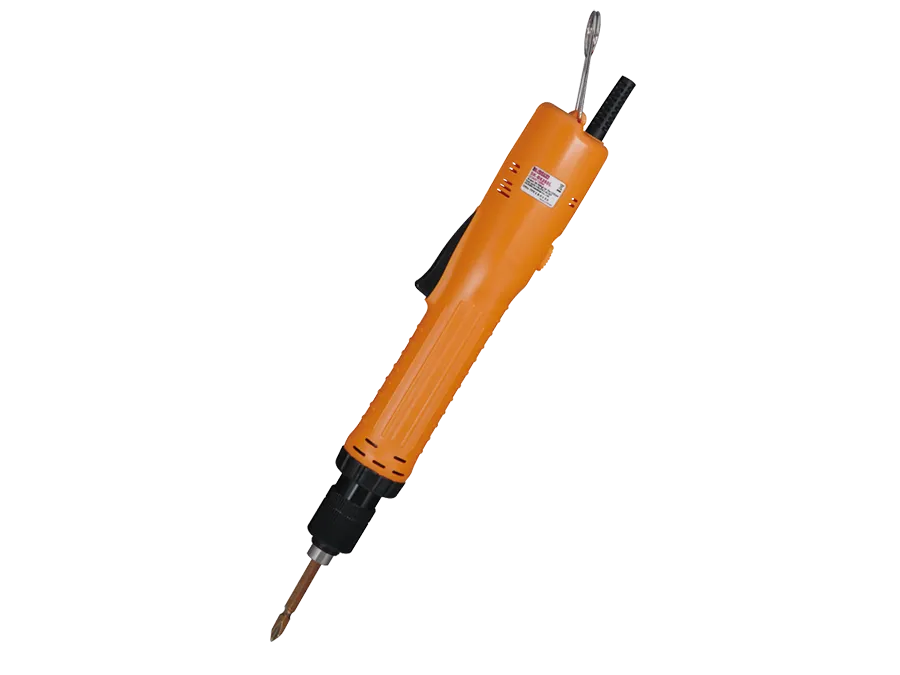

Kilews SK-B6L series
SK-B6L series
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Bit Type | A、B |
Modellek összehasonlítása
| Model | Voltage | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) Hard Joint | Torque (N.m) Soft Joint | Free Speed (r.p.m) | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Weight (g) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SK-B6125L | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 1000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125P | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 1000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125LF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 2000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6125PF | AC:110~120V | 5~25 | 4.34~21.68 | 0.49~2.45 | 0.49~1.96 | 2000 | 2.6~4.0 | 2.6~3.5 | 740 | 285 |
| SK-B6150L | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | 740 | 285 |
| SK-B6150P | AC:110~120V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | 740 | 285 |
| SK-B6230L | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230P | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 1200 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230LF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6230PF | AC:220~240V | 10~30 | 8.8~26.02 | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | 810 | 305 |
| SK-B6250L | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1200 | 4.0~5.0 | ≤4 | 810 | 305 |
| SK-B6250P | AC:220~240V | 20~50 | 17.35~43.37 | 1.96~4.90 | 1.96~3.92 | 1200 | 4.0~5.0 | ≤4 | 810 | 305 |
Torque min. (Nm)
0.49
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

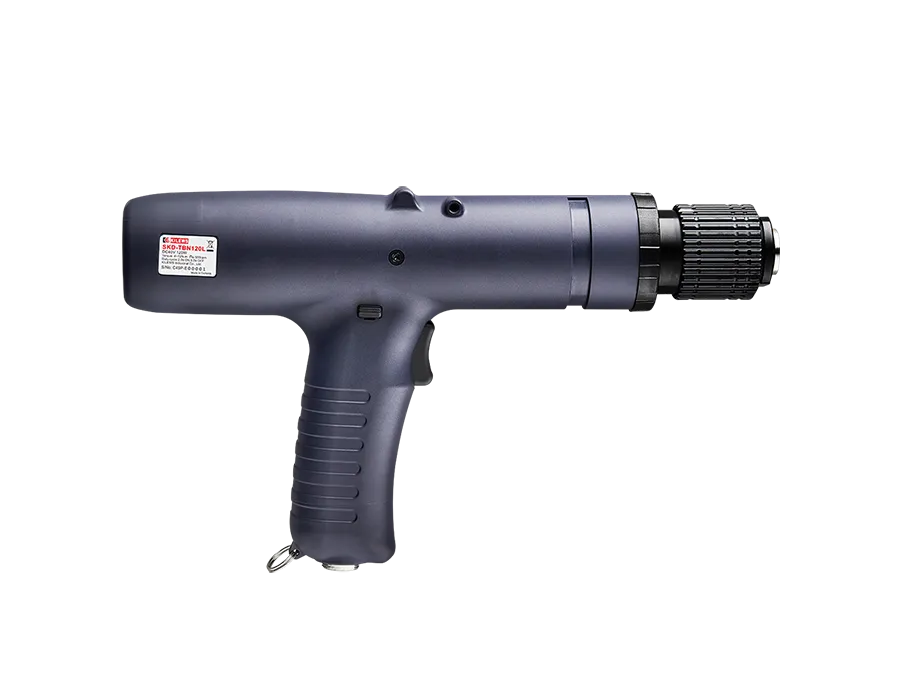

Kilews SKD-TBN series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Weight (Kg) | 1.2 |
| Length (mm) | 274x160 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B、W3/8” |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-TBN60L | 2~6 | 2~4.8 | 1000 | 4.0~5.0 | ≤4 |
| SKD-TBN90L | 3~9 | 3~7.2 | 800 | 5.0~6.0 | ≤4.5 |
| SKD-TBN120L | 4~12 | 4~9.6 | 550 | ≤8 | ≤6 |
| SKD-TBN180L | 6~18 | 6~14.4 | 350 | ≤10 | ≤8 |
Torque min. (Nm)
2
Torque max. (Nm)
18
Speed min. (rpm)
350
Speed max. (rpm)
1000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

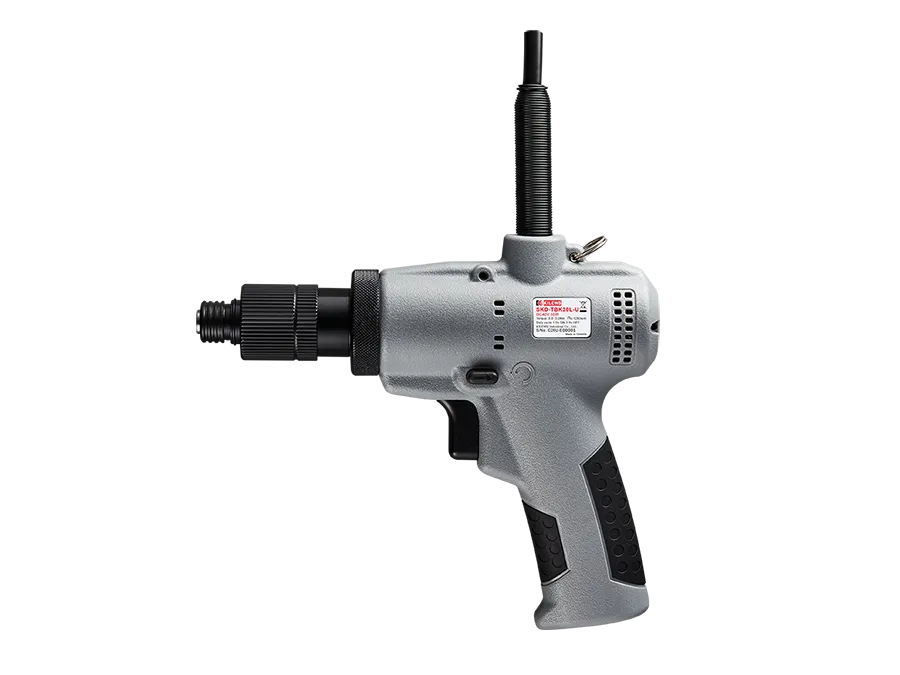

Kilews SKD-TBK-U series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 0.7 |
| Length (mm) | 185x150 |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller | Bit Type |
|---|---|---|---|---|---|---|---|
| SKD-TBK20L | 0.3~2.0 | 0.3~1.6 | 1200 | 2.3~3.5 | 2.3~3.0 | SKP-40B-HL | A、B9.5 |
| SKD-TBK30L | 0.8~3.0 | 0.8~2.4 | 1200 | 2.6~4.0 | 2.6~3.5 | SKP-40B-HL | A、B9.5 |
| SKD-TBK50L | 2~5 | 2~4 | 700 | 4.0~5.0 | ≤4 | SKP-40B-HL | A、B9.5 |
| SKD-TBK30LF | 1~3 | 1~2.4 | 3300 | 2.0~4.0 | 2.0~3.5 | SKP-40B-HL-800 | A、B9.5 |
| SKD-TBK35LF | 1.2~3.5 | 1.2~2.8 | 1700 | 2.6~4.0 | 2.6~3.5 | SKP-40B-HL-800 | A、B9.5 |
| SKD-TBK50LF | 2~5 | 2~4 | 1000 | 4.0~5.0 | ≤4 | SKP-40B-HL-800 | B9.5 |
| SKD-TBK70L | 2.5~7 | 2.5~5.6 | 850 | 5.0~6.0 | ≤5 | SKP-40B-HL-800 | B9.5 |
Torque min. (Nm)
0.3
Torque max. (Nm)
7
Speed min. (rpm)
700
Speed max. (rpm)
3300
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

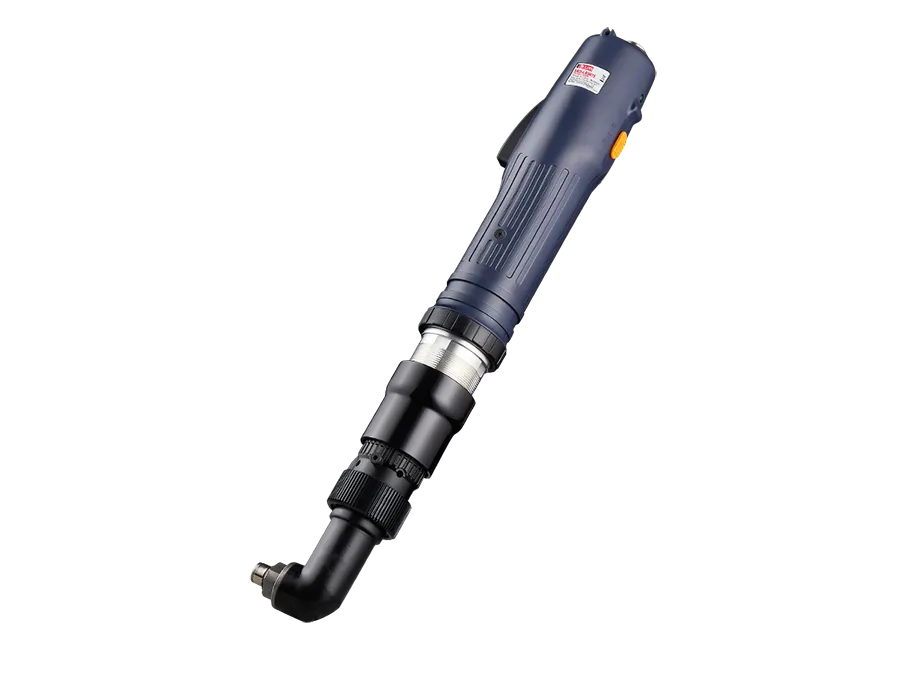

Kilews SKD-LRBK series
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 2.5 |
| Length (mm) | 393 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B9.5、W3/8” |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-LRBK50 | 2~5 | 2~4 | 1200 | ≤5 | ≤4 |
| SKD-LRBK75 | 3~7.5 | 3~6 | 900 | ≤6 | ≤4.5 |
| SKD-LRBK100 | 6~10 | 6~8 | 600 | ≤8 | ≤6 |
| SKD-LRBK100F | 6~10 | 6~8 | 880 | ≤8 | ≤6 |
| SKD-LRBK150F | 8~15 | 8~12 | 600 | ≤10 | ≤8 |
| SKD-LRBK150 | 8~15 | 8~12 | 370 | ≤10 | ≤8 |
| SKD-LRBK220 | 12~22 | 12~17.6 | 370 | ≤10 | ≤8 |
Torque min. (Nm)
2
Torque max. (Nm)
22
Speed min. (rpm)
370
Speed max. (rpm)
1200
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

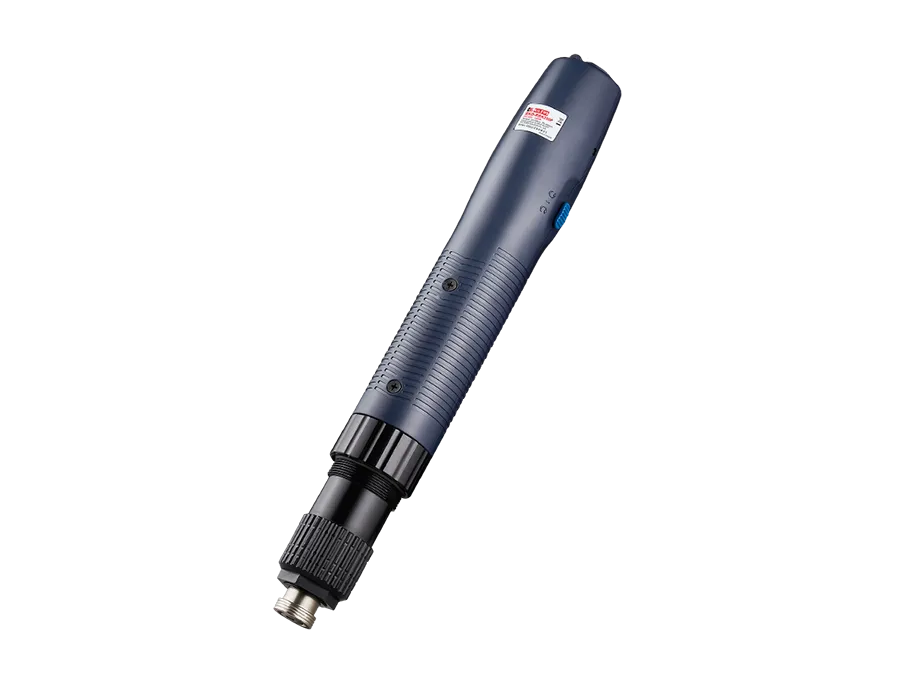

Kilews SKD-RBK P (power) series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 2.2 |
| Length (mm) | 380 |
| Power Controller | SKP-40B-HL-800 |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-RBK250LF | 8~25 | 8~20 | 550 | ≤10 | ≤8 | B9.5、W3/8” |
| SKD-RBK250PF | 8~25 | 8~20 | 550 | ≤10 | ≤8 | B9.5、W3/8” |
| SKD-RBK350L | 12~35 | 12~28 | 350 | ≤12 | ≤10 | B9.5、W3/8”、W1/2” |
| SKD-RBK350P | 12~35 | 12~28 | 350 | ≤12 | ≤10 | B9.5、W3/8”、W1/2” |
| SKD-RBK500L | 20~50 | 20~40 | 230 | ≤14 | ≤12 | W1/2” |
| SKD-RBK500P | 20~50 | 20~40 | 230 | ≤14 | ≤12 | W1/2” |
Torque min. (Nm)
8
Torque max. (Nm)
50
Speed min. (rpm)
230
Speed max. (rpm)
550
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

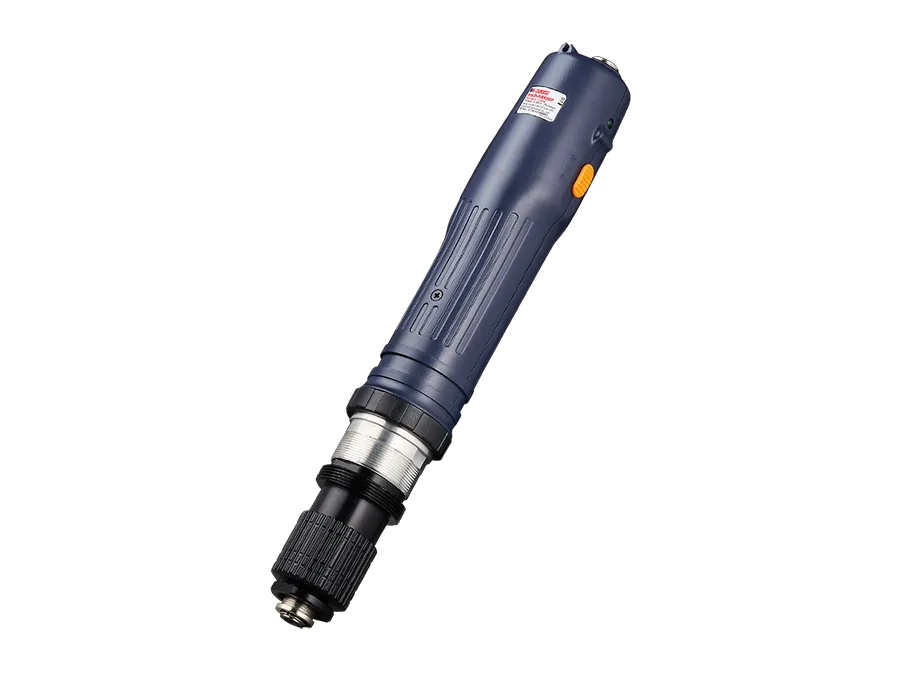

Kilews SKD-RBK P series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 1.25 |
| Length (mm) | 315 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B、W3/8” |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-RBK60L | 2~6 | 2~4.8 | 1200 | 4.0~5.0 | ≤4 |
| SKD-RBK60P | 2~6 | 2~4.8 | 1200 | 4.0~5.0 | ≤4 |
| SKD-RBK90L | 3~9 | 3~7.2 | 900 | 5.0~6.0 | ≤4.5 |
| SKD-RBK90P | 3~9 | 3~7.2 | 900 | 5.0~6.0 | ≤4.5 |
| SKD-RBK120L | 4~12 | 4~9.6 | 600 | ≤8 | ≤6 |
| SKD-RBK120P | 4~12 | 4~9.6 | 600 | ≤8 | ≤6 |
| SKD-RBK120LF | 4~12 | 4~9.6 | 880 | ≤8 | ≤8 |
| SKD-RBK120PF | 4~12 | 4~9.6 | 880 | ≤8 | ≤8 |
| SKD-RBK180L | 6~18 | 6~14.4 | 370 | ≤10 | ≤8 |
| SKD-RBK180P | 6~18 | 6~14.4 | 370 | ≤10 | ≤8 |
| SKD-RBK180LF | 6~18 | 6~14.4 | 600 | ≤10 | ≤8 |
| SKD-RBK180PF | 6~18 | 6~14.4 | 600 | ≤10 | ≤8 |
| SKD-RBK250L | 8~25 | 8~20 | 370 | ≤10 | ≤8 |
| SKD-RBK250P | 8~25 | 8~20 | 370 | ≤10 | ≤8 |
Torque min. (Nm)
2
Torque max. (Nm)
25
Speed min. (rpm)
370
Speed max. (rpm)
1200
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése
Kilews SKD-RBK L (power) series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 2.2 |
| Length (mm) | 380 |
| Power Controller | SKP-40B-HL-800 |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-RBK250LF | 8~25 | 8~20 | 550 | ≤10 | ≤8 | B9.5、W3/8” |
| SKD-RBK250PF | 8~25 | 8~20 | 550 | ≤10 | ≤8 | B9.5、W3/8” |
| SKD-RBK350L | 12~35 | 12~28 | 350 | ≤12 | ≤10 | B9.5、W3/8”、W1/2” |
| SKD-RBK350P | 12~35 | 12~28 | 350 | ≤12 | ≤10 | B9.5、W3/8”、W1/2” |
| SKD-RBK500L | 20~50 | 20~40 | 230 | ≤14 | ≤12 | W1/2” |
| SKD-RBK500P | 20~50 | 20~40 | 230 | ≤14 | ≤12 | W1/2” |
Torque min. (Nm)
8
Torque max. (Nm)
50
Speed min. (rpm)
230
Speed max. (rpm)
550
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése
Kilews SKD-RBK L series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 1.25 |
| Length (mm) | 315 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B、W3/8” |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-RBK60L | 2~6 | 2~4.8 | 1200 | 4.0~5.0 | ≤4 |
| SKD-RBK60P | 2~6 | 2~4.8 | 1200 | 4.0~5.0 | ≤4 |
| SKD-RBK90L | 3~9 | 3~7.2 | 900 | 5.0~6.0 | ≤4.5 |
| SKD-RBK90P | 3~9 | 3~7.2 | 900 | 5.0~6.0 | ≤4.5 |
| SKD-RBK120L | 4~12 | 4~9.6 | 600 | ≤8 | ≤6 |
| SKD-RBK120P | 4~12 | 4~9.6 | 600 | ≤8 | ≤6 |
| SKD-RBK120LF | 4~12 | 4~9.6 | 880 | ≤8 | ≤8 |
| SKD-RBK120PF | 4~12 | 4~9.6 | 880 | ≤8 | ≤8 |
| SKD-RBK180L | 6~18 | 6~14.4 | 370 | ≤10 | ≤8 |
| SKD-RBK180P | 6~18 | 6~14.4 | 370 | ≤10 | ≤8 |
| SKD-RBK180LF | 6~18 | 6~14.4 | 600 | ≤10 | ≤8 |
| SKD-RBK180PF | 6~18 | 6~14.4 | 600 | ≤10 | ≤8 |
| SKD-RBK250L | 8~25 | 8~20 | 370 | ≤10 | ≤8 |
| SKD-RBK250P | 8~25 | 8~20 | 370 | ≤10 | ≤8 |
Torque min. (Nm)
2
Torque max. (Nm)
25
Speed min. (rpm)
370
Speed max. (rpm)
1200
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

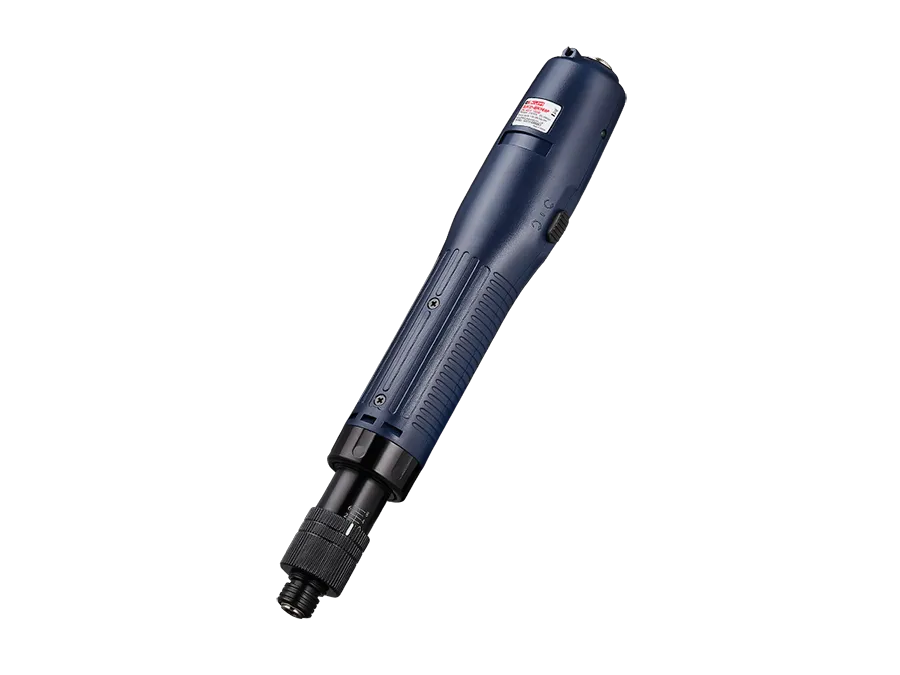

Kilews SKD-BK900P series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 1.03 |
| Length (mm) | 306 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-BK960L | 2~6 | 2~4.8 | 1000 | 4.0~5.0 | ≤4 |
| SKD-BK960P | 2~6 | 2~4.8 | 1000 | 4.0~5.0 | ≤4 |
| SKD-BK960LF | 2~6 | 2~4.8 | 2000 | 4.0~5.0 | ≤4 |
| SKD-BK960PF | 2~6 | 2~4.8 | 2000 | 4.0~5.0 | ≤4 |
| SKD-BK990L | 3~9 | 3~7.2 | 1000 | ≤6 | ≤5 |
| SKD-BK990P | 3~9 | 3~7.2 | 1000 | ≤6 | ≤5 |
| SKD-BK9120L | 6~12 | 6~9.6 | 880 | ≤8 | ≤6 |
| SKD-BK9120P | 6~12 | 6~9.6 | 880 | ≤8 | ≤6 |
Torque min. (Nm)
2
Torque max. (Nm)
12
Speed min. (rpm)
880
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

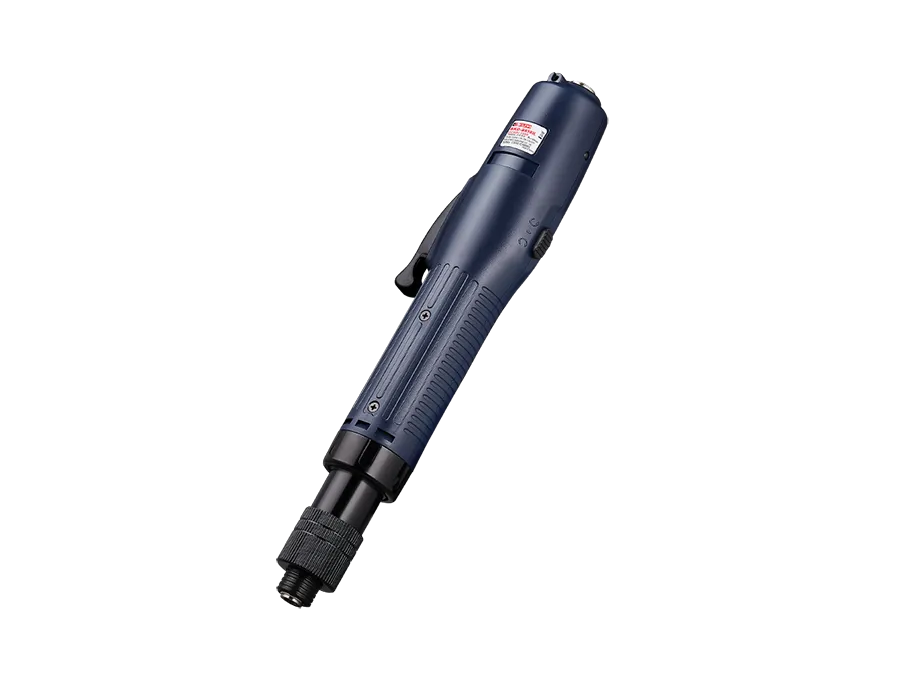

Kilews SKD-BK900L series
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Free Speed (r.p.m) LO | - |
| Weight (Kg) | 1.03 |
| Length (mm) | 306 |
| Power Controller | SKP-40B-HL-800 |
| Bit Type | B |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|
| SKD-BK960L | 2~6 | 2~4.8 | 1000 | 4.0~5.0 | ≤4 |
| SKD-BK960P | 2~6 | 2~4.8 | 1000 | 4.0~5.0 | ≤4 |
| SKD-BK960LF | 2~6 | 2~4.8 | 2000 | 4.0~5.0 | ≤4 |
| SKD-BK960PF | 2~6 | 2~4.8 | 2000 | 4.0~5.0 | ≤4 |
| SKD-BK990L | 3~9 | 3~7.2 | 1000 | ≤6 | ≤5 |
| SKD-BK990P | 3~9 | 3~7.2 | 1000 | ≤6 | ≤5 |
| SKD-BK9120L | 6~12 | 6~9.6 | 880 | ≤8 | ≤6 |
| SKD-BK9120P | 6~12 | 6~9.6 | 880 | ≤8 | ≤6 |
Torque min. (Nm)
2
Torque max. (Nm)
12
Speed min. (rpm)
880
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

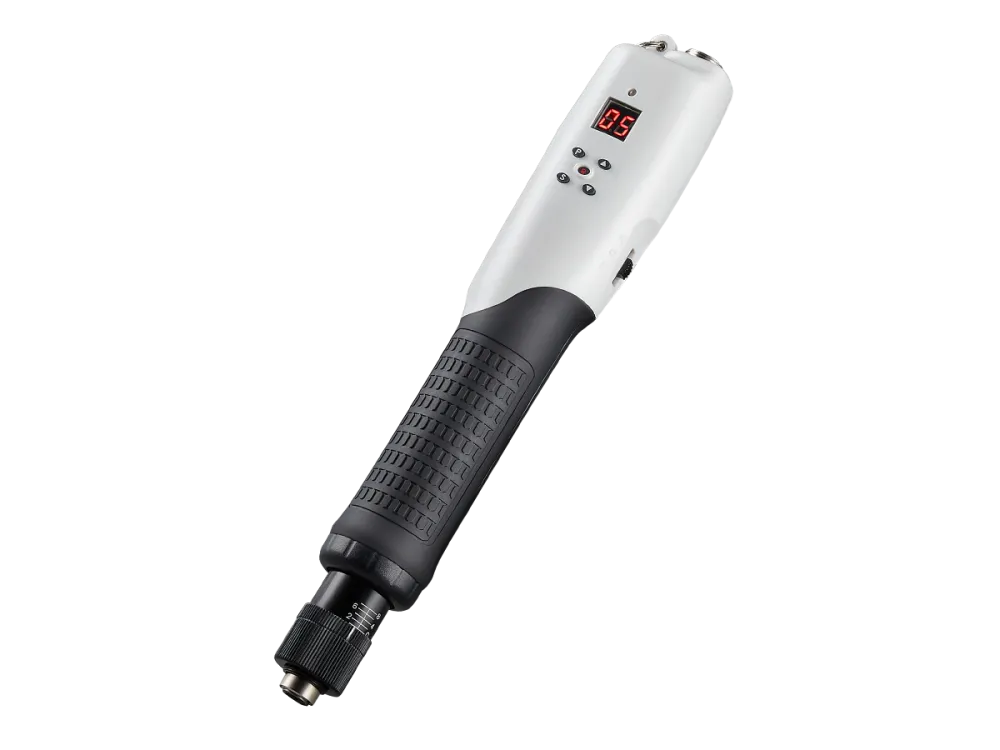

Kilews SKD-BE800P series
Brushless motor, the perfect combination between screw counter and electric screwdriver, and most fit for operating in clean-room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 820 |
| Length (mm) | 294 |
| Power Controller | SKP-40B-HL |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BE830L | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830P | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830LF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830PF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE850L | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BE850P | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Torque min. (Nm)
0.98
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

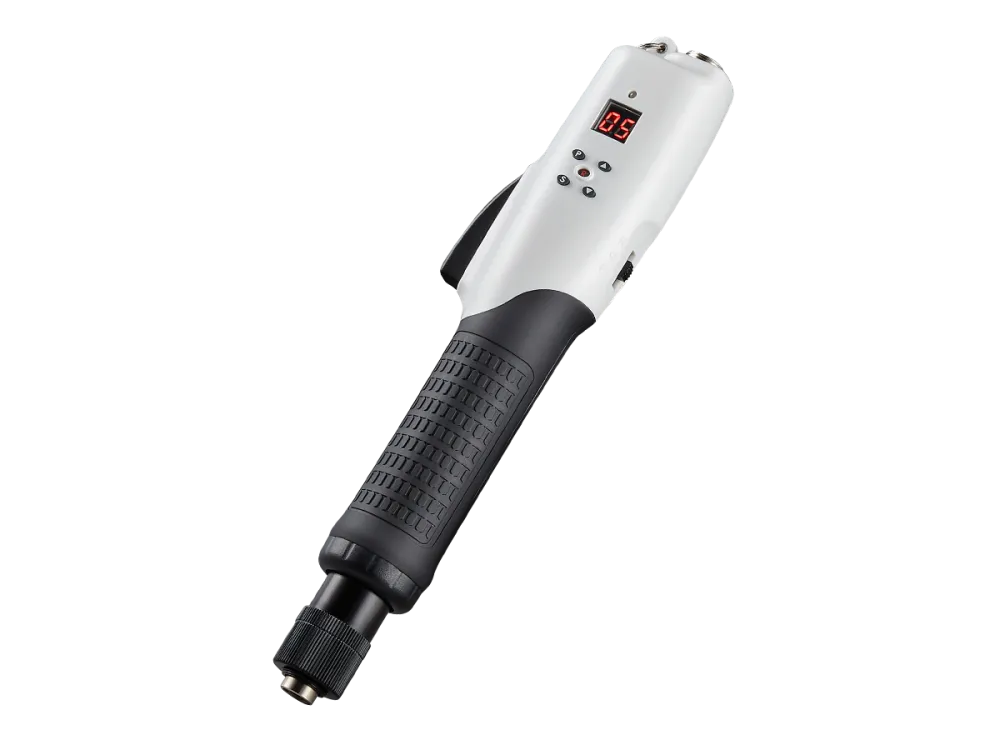

Kilews SKD-BE800L series
Brushless motor, the perfect combination between screw counter and electric screwdriver, and most fit for operating in clean-room environment.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 820 |
| Length (mm) | 294 |
| Power Controller | SKP-40B-HL |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BE830L | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830P | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830LF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE830PF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BE850L | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BE850P | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Torque min. (Nm)
0.98
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

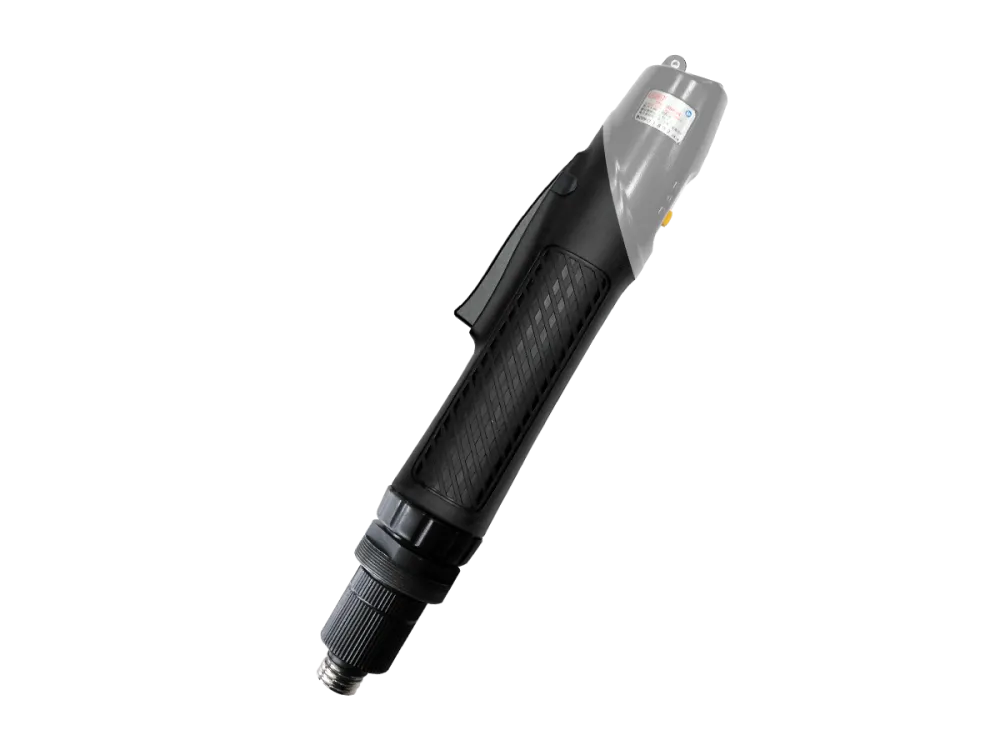

Kilews SKD-BN800LM series
Simply put a vacuum flange onto SKD-BN800L series for picking up non-magnetic type screws, such as plastic, aluminum, and stainless steel made screws.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 950 |
| Length (mm) | 289 |
| Power Controller | SKP-40B-HL |
| PART NO | P11032-15 | P11032-17 | P11032-18 |
| d 1 | 3.5 | 4.5 | 5.5 |
| d 2 | 5.5 | 6.5 | 7.5 |
| D | 6.5 | 7.5 | 8.5 |
| H | 2 | 2 | 2 |
| Applicable Model | BN800 | BN800 | BN800 |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BN830LM | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | B |
| SKD-BN830LFM | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | B |
| SKD-BN850LM | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BN823LFFM | 0.78~2.25 | 0.78~1.8 | 3000 | 2.6~4.0 | 2.6~3.5 | B、B9.5 |
Torque min. (Nm)
0.78
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
3000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

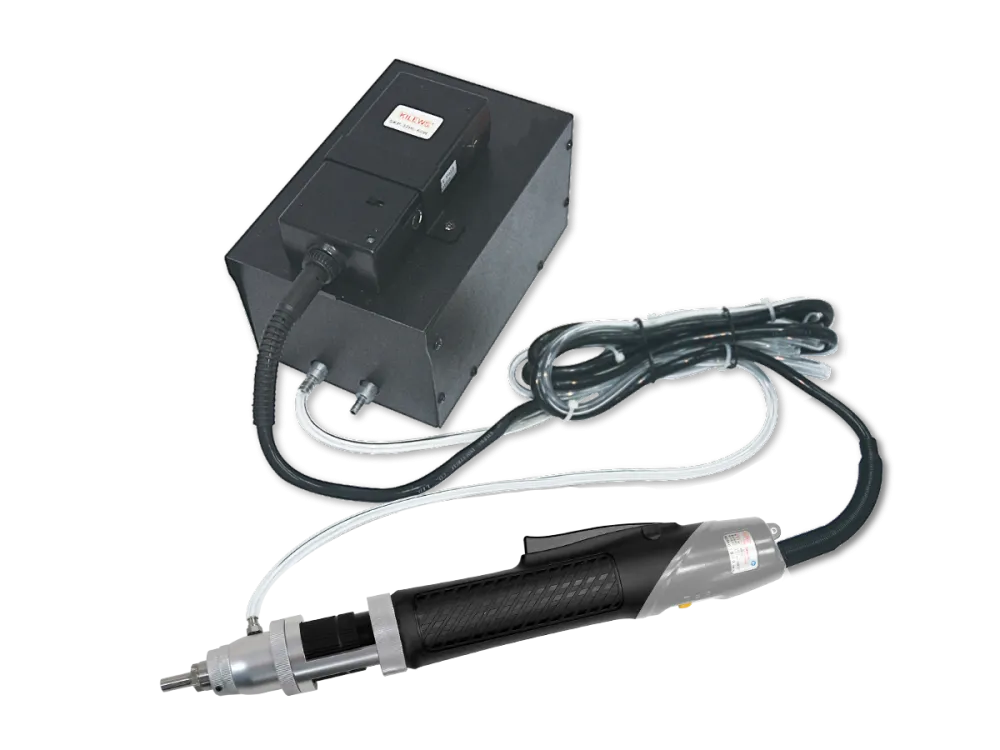

Kilews SKD-BN800L (VACUUM TYPE) series
Vacuum screwdriver was taking the series of SKD-BN800L/P as reference and being created by adding the vacuum head. The main purpose is sucking the non-magnetic screws, such as plastic screws / aluminum-made screws / stainless steel screws and any other screws that does not contain magnetic.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 895 |
| Length (mm) | 343 |
| Power Controller | SKP-40B-HL |
| PART NO | P11032-15 | P11032-17 | P11032-18 |
| d 1 | 3.5 | 4.5 | 5.5 |
| d 2 | 5.5 | 6.5 | 7.5 |
| D | 6.5 | 7.5 | 8.5 |
| H | 2 | 2 | 2 |
| Applicable Model | BN800 | BN800 | BN800 |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BN830L (VACUUM TYPE) | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830LF (VACUUM TYPE) | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN850L (VACUUM TYPE) | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Torque min. (Nm)
0.98
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

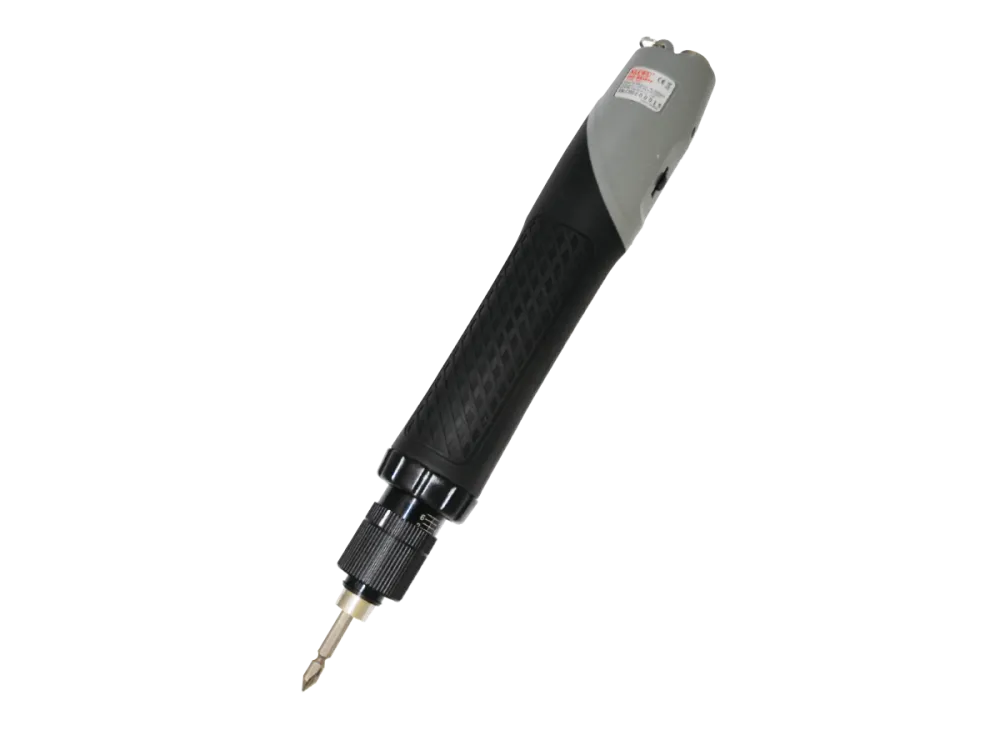

Kilews SKD-BN800P series
Brushless feature is applicable in a clean-room environment. The output of torque is highly stable. It is not only a easy-operate equipment but also be operated continuously for a long period.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 836 |
| Length (mm) | 278 |
| Power Controller | SKP-40B-HL |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BN830L | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830P | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830LF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830PF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN850L | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BN850P | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Torque min. (Nm)
0.98
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Szénkefementes, magas nyomatékú csavarozók
Adatlap megtekintése

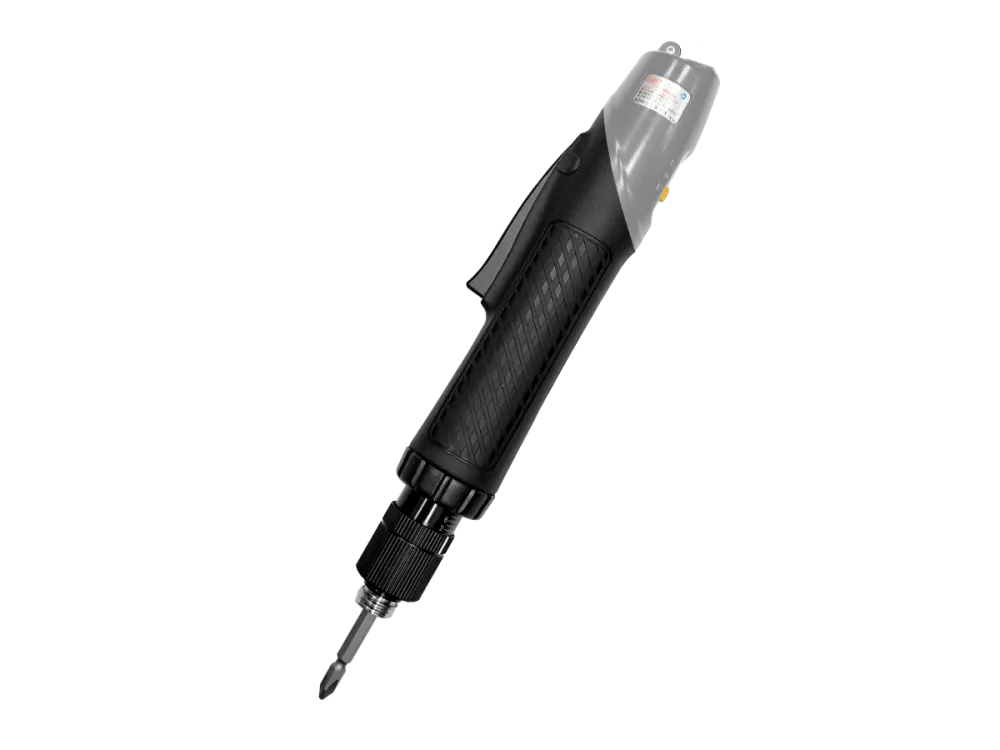

Kilews SKD-BN800L series
Brushless feature is applicable in a clean-room environment. The output of torque is highly stable. It is not only a easy-operate equipment but also be operated continuously for a long period.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 836 |
| Length (mm) | 278 |
| Power Controller | SKP-40B-HL |
Modellek összehasonlítása
| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BN830L | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830P | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830LF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830PF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN850L | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BN850P | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Torque min. (Nm)
0.98
Torque max. (Nm)
4.9
Speed min. (rpm)
1000
Speed max. (rpm)
2000
Kilews szénkefementes, magas nyomatékú csavarozók
A Kilews szénkefementes, magas nyomatékú csavarozói kifejezetten nagy terhelésű, robusztus szerelési feladatokra készültek. A brushless DC-motoros felépítés nagy teljesítményt és stabil nyomatékátadást biztosít, miközben jelentősen csökkenti a kopó alkatrészek számát. Ennek köszönhetően a szerszám hosszú távon is megbízhatóan üzemeltethető, akár többműszakos termelési környezetben, ahol a folyamatos, nagy darabszámú csavarozás alapelvárás.
A magas nyomatéktartományra hangolt Kilews csavarozók ideálisak gépészeti egységek, vázak, házak és szerkezeti elemek meghúzására, ahol a csavarozási pontosság és a mechanikai stabilitás kulcsfontosságú. A megfelelő vezérlőkkel kombinálva a szerszámok integrálhatók félautomata vagy automata állomásokra is, így nemcsak a meghúzások minősége, hanem a termelékenység is jelentősen javítható. A Kilews szénkefementes, magas nyomatékú csavarozói így azoknak a gyártóknak jelentenek ideális választást, akiknél a teljesítmény és a megbízhatóság egyszerre elsődleges szempont.
A magas nyomatéktartományra hangolt Kilews csavarozók ideálisak gépészeti egységek, vázak, házak és szerkezeti elemek meghúzására, ahol a csavarozási pontosság és a mechanikai stabilitás kulcsfontosságú. A megfelelő vezérlőkkel kombinálva a szerszámok integrálhatók félautomata vagy automata állomásokra is, így nemcsak a meghúzások minősége, hanem a termelékenység is jelentősen javítható. A Kilews szénkefementes, magas nyomatékú csavarozói így azoknak a gyártóknak jelentenek ideális választást, akiknél a teljesítmény és a megbízhatóság egyszerre elsődleges szempont.
