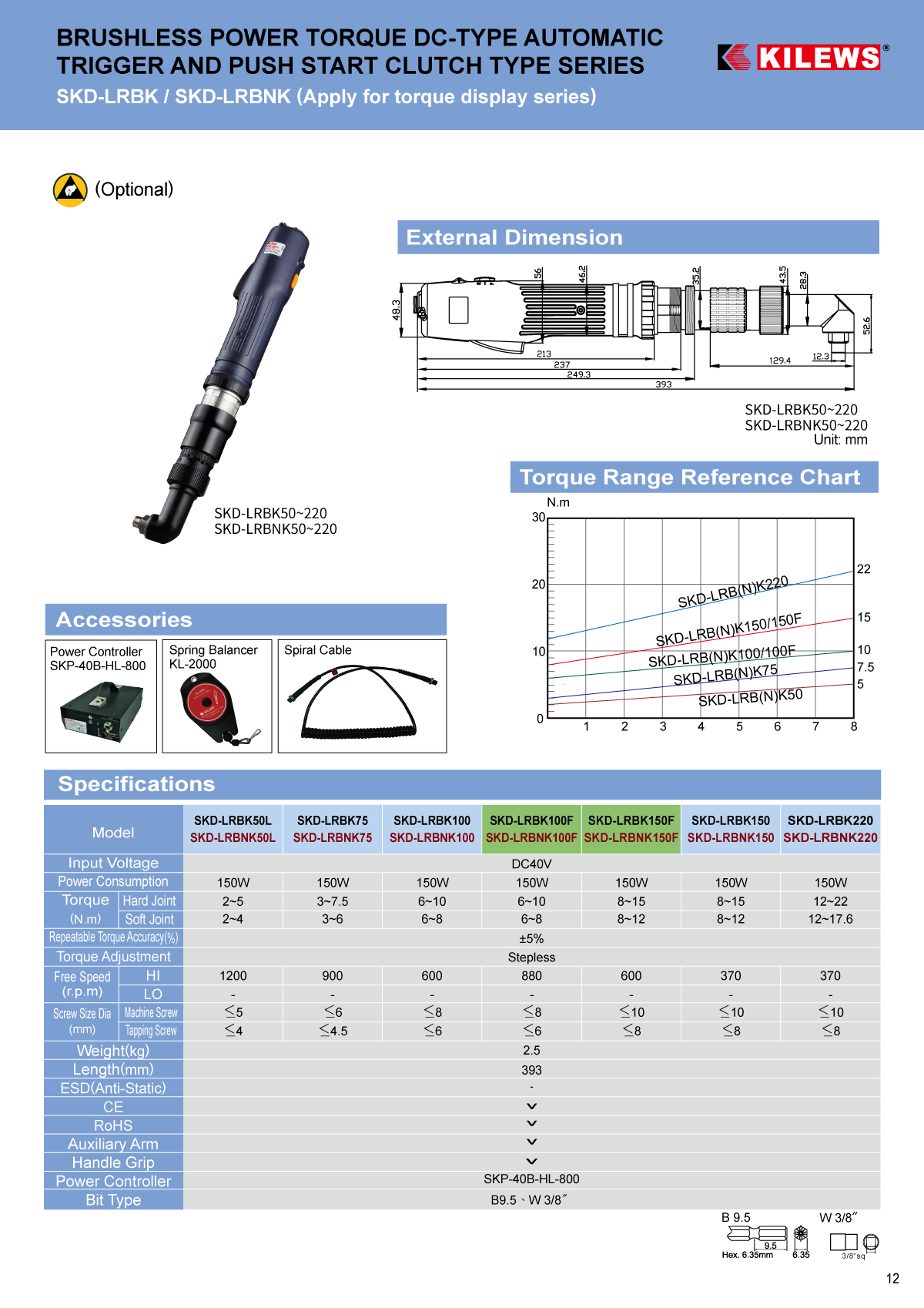

Kilews SKD-LRBK series

Kilews SKD-LRBK series

Brushless power torque dc-type automatic Trigger start clutch type series

Cikkszám: SKD-LRBK50/75/100/100F/150F/150/220
ESD RoHS CE
Válassz termékvariációt

A szállítási időt az ajánlatban pontosítjuk.

Közös adatok
Repeatable Torque Accuracy (%) ±5%
Free Speed (r.p.m) LO -
Weight (Kg) 2.5

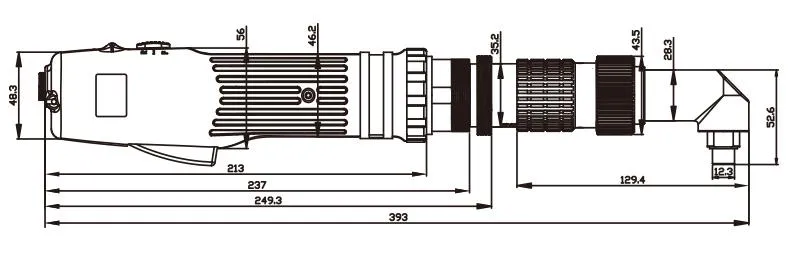

Length (mm) 393
Power Controller SKP-40B-HL-800
Bit Type B9.5、W3/8”
Modellek összehasonlítása

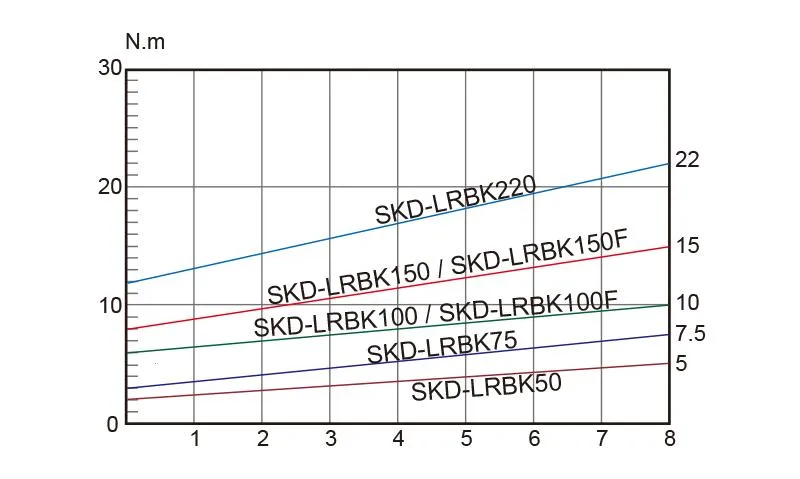

Model Torque (N.m) (Hard Joint) Torque (N.m) (Soft Joint) Free Speed (r.p.m) HI Screw Size Dia (mm) Machine Screw Screw Size Dia (mm) Tapping Screw
SKD-LRBK50 2~5 2~4 1200 ≤5 ≤4
SKD-LRBK75 3~7.5 3~6 900 ≤6 ≤4.5
SKD-LRBK100 6~10 6~8 600 ≤8 ≤6
SKD-LRBK100F 6~10 6~8 880 ≤8 ≤6
SKD-LRBK150F 8~15 8~12 600 ≤10 ≤8
SKD-LRBK150 8~15 8~12 370 ≤10 ≤8
SKD-LRBK220 12~22 12~17.6 370 ≤10 ≤8
