Kilews nyomatékellenőrzés és kalibrálás
Kilews nyomatékmérők
A Kilews nyomatékmérők (torque meter / torque tester) nélkülözhetetlen eszközök minden olyan gyártókörnyezetben, ahol a csavarozási nyomaték pontossága közvetlenül befolyásolja a termék minőségét és megbízhatóságát. Segítségükkel gyorsan…
Nyomatékmérők

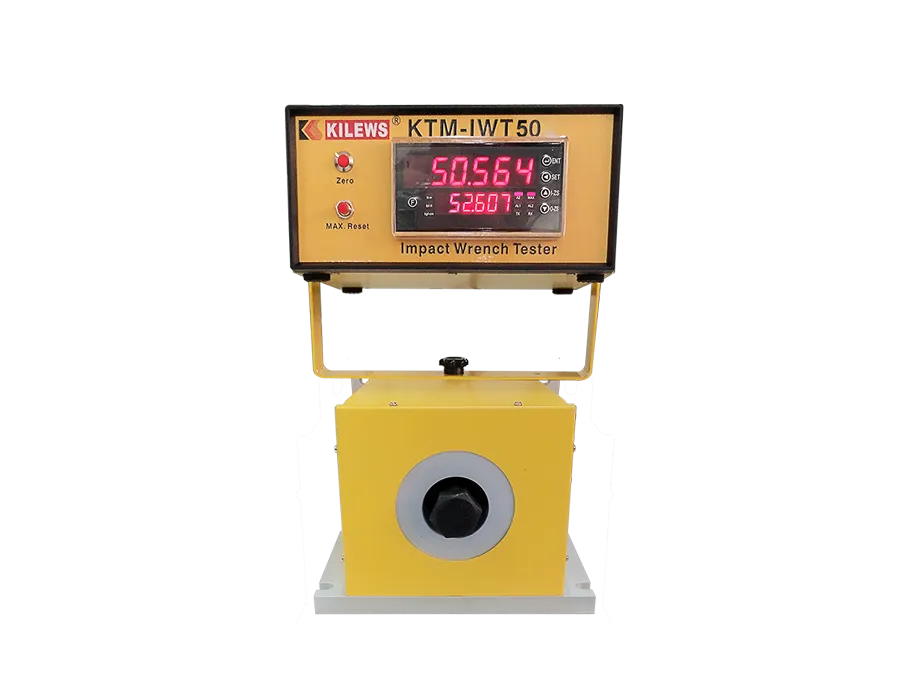

Kilews KTM-IWT50
Patented design for testing various power type impact wrench, oil pulse impact wrench, shut off impact wrench, non shut off impact wrench and manual wrench.
Modellek összehasonlítása
| Model | KTM-IWT50 | KTM-IWT400 |
|---|---|---|
| Torque Test Range (kgf.cm) | 0~509 | 0~4079 |
| Torque Test Range (Lbf.in) | 0~442 | 0~3540 |
| Torque Test Range (N. m) | 0~50 | 0~400 |
| Applicable Bolt | M6，M8，M10 | M10 ，M12，M14，M16 |
| Bolt Class | 12.9 | 12.9 |
| Torque Accuracy | ±10% of reading | ±10% of reading |
| Size (mm) | 200X190X285 | 295X200X305 |
| Weight(Kg) | 12.6 | 29.7 |
| Power | Input 100 - 240 Vac | Input 100 - 240 Vac |
| Accessory | M6 & M8 &M10 joint and bolt are included in tester | M10 & M12 & M14 & M16 joint and bolt are included in tester. |
Nyomatékmérők

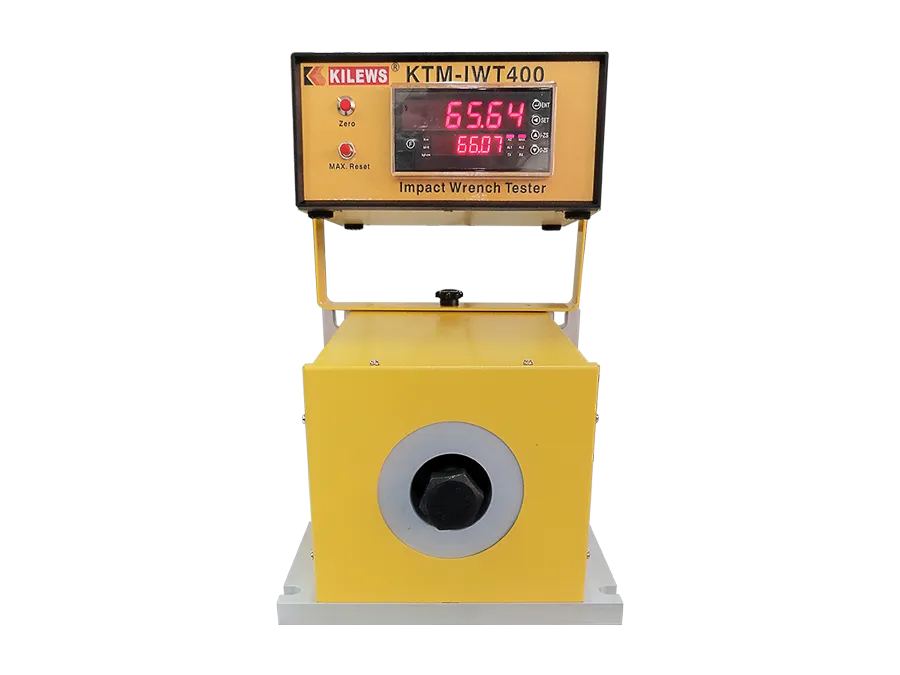

Kilews KTM-IWT400
Patented design for testing various power type impact wrench, oil pulse impact wrench, shut off impact wrench, non shut off impact wrench and manual wrench.
Modellek összehasonlítása
| Model | KTM-IWT50 | KTM-IWT400 |
|---|---|---|
| Torque Test Range (kgf.cm) | 0~509 | 0~4079 |
| Torque Test Range (Lbf.in) | 0~442 | 0~3540 |
| Torque Test Range (N. m) | 0~50 | 0~400 |
| Applicable Bolt | M6，M8，M10 | M10 ，M12，M14，M16 |
| Bolt Class | 12.9 | 12.9 |
| Torque Accuracy | ±10% of reading | ±10% of reading |
| Size (mm) | 200X190X285 | 295X200X305 |
| Weight(Kg) | 12.6 | 29.7 |
| Power | Input 100 - 240 Vac | Input 100 - 240 Vac |
| Accessory | M6 & M8 &M10 joint and bolt are included in tester | M10 & M12 & M14 & M16 joint and bolt are included in tester. |
Nyomatékmérők

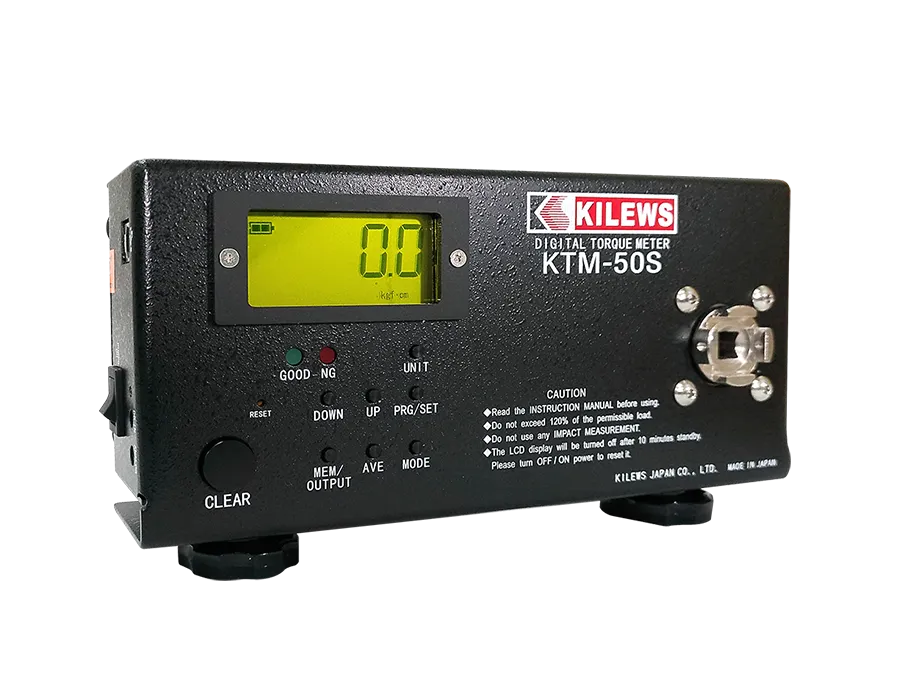

Kilews KTM-50S
KTM-50S
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Nyomatékmérők

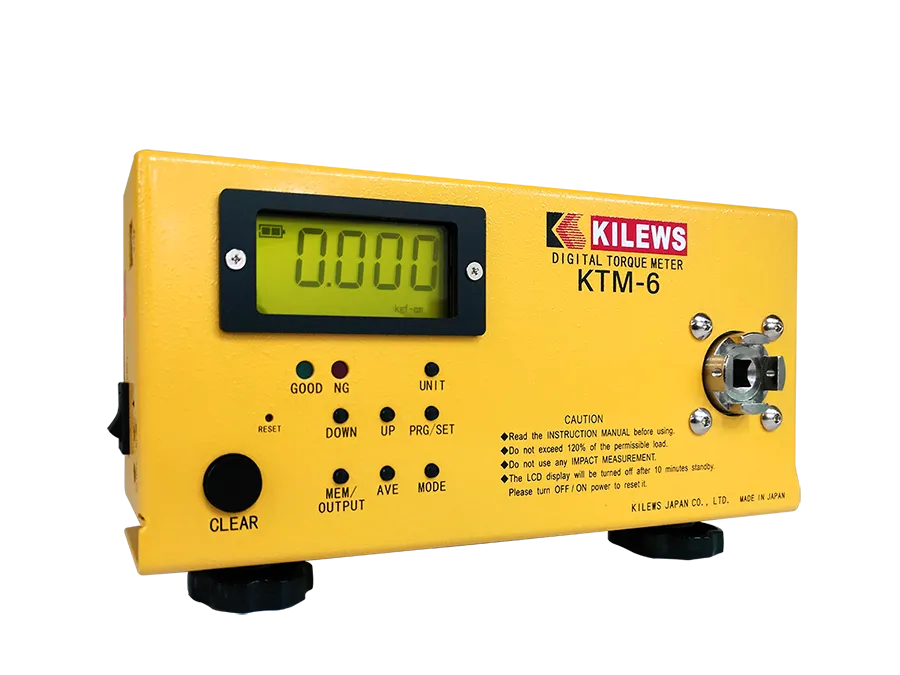

Kilews KTM-6
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Nyomatékmérők

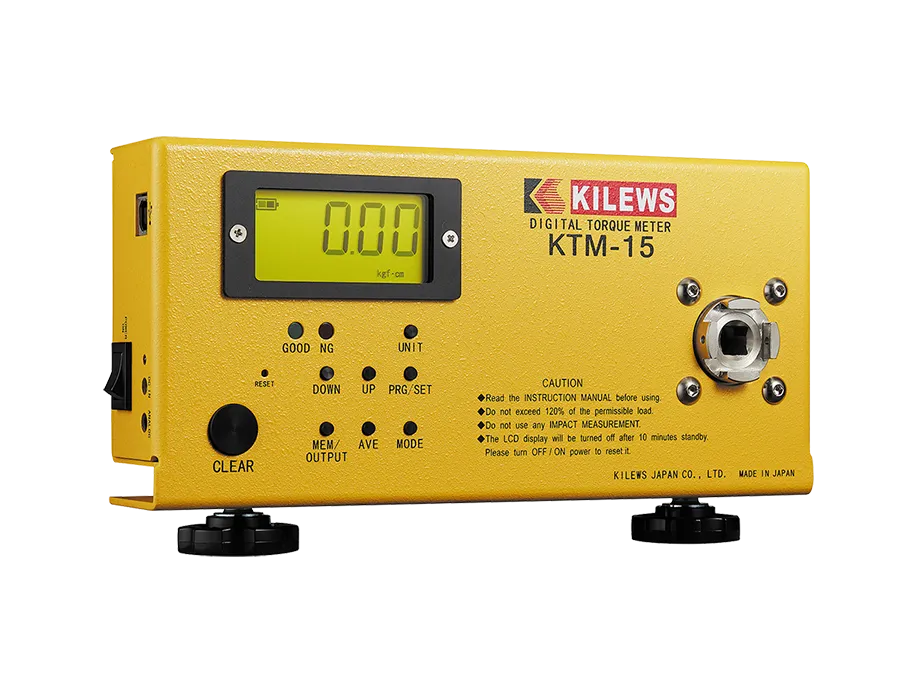

Kilews KTM-15
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Nyomatékmérők

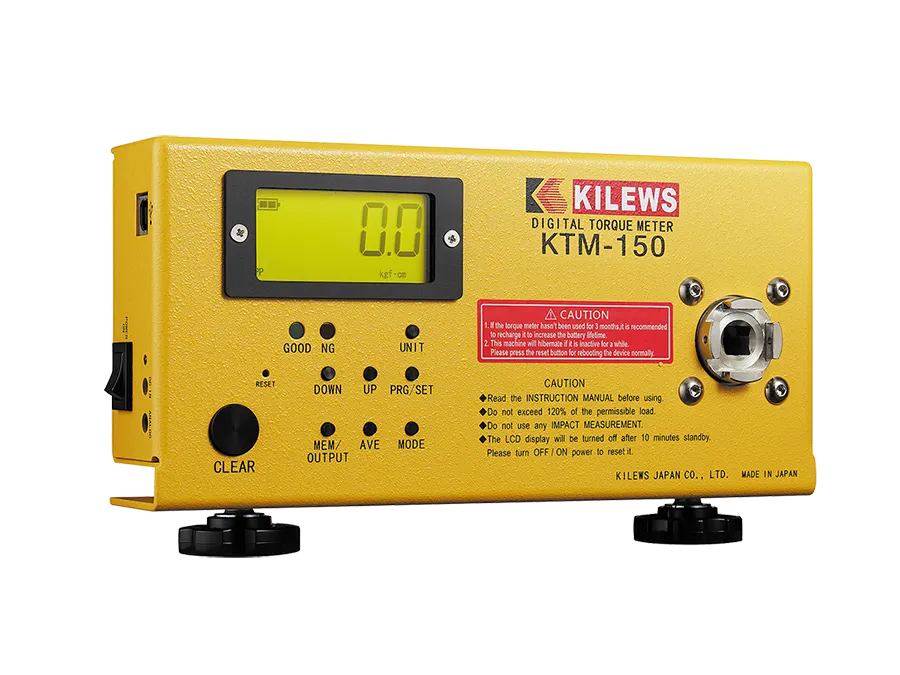

Kilews KTM-150
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Nyomatékmérők

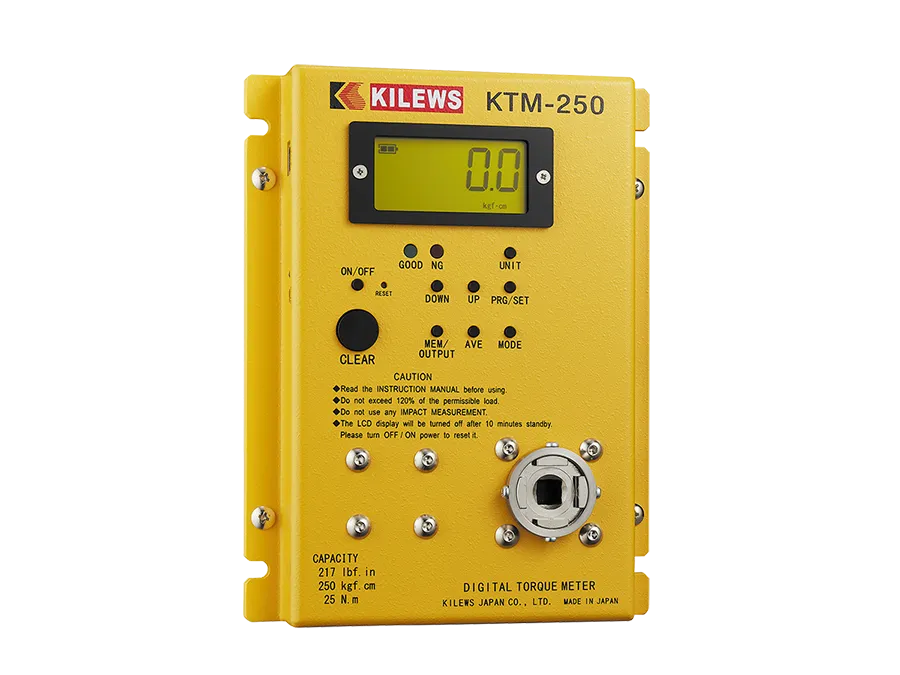

Kilews KTM-250
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Nyomatékmérők

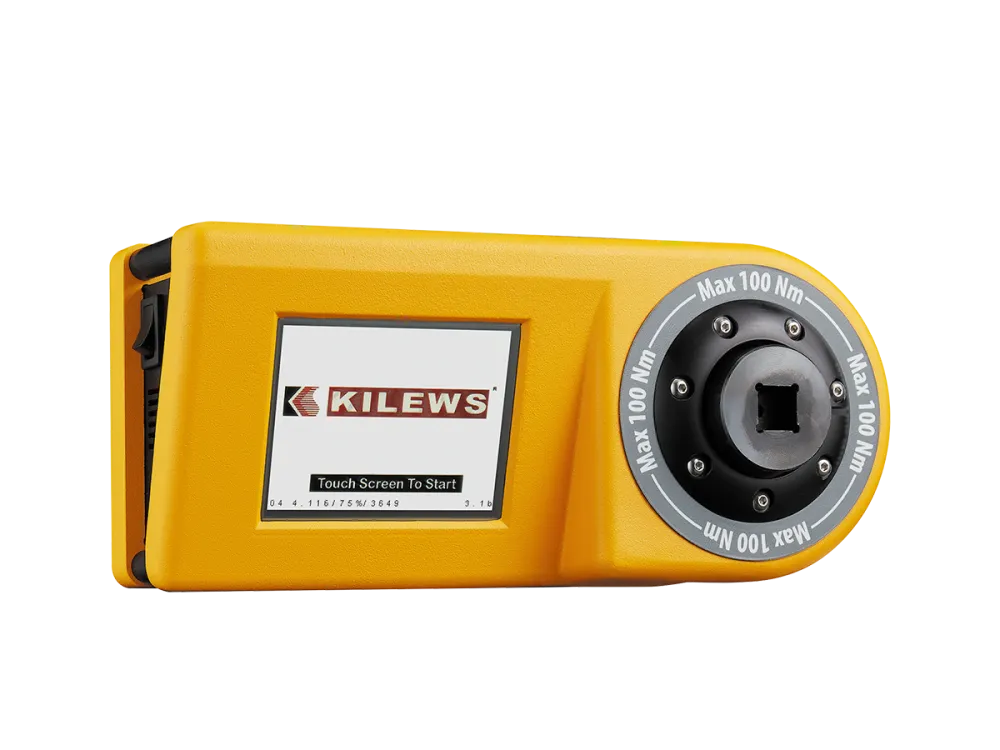

Kilews KTM-1000
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.
Modellek összehasonlítása
| Model | KTM-1000 | KTM-250 | KTM-150 | KTM-15 | KTM-6 | KTM-50S |
|---|---|---|---|---|---|---|
| Measuring Ranges (kgf.cm) | 50~1000 | 50~250.0 | 1.5~150.0 | 0.15~15.0 | 0.02~8.0 | 0.5~50.0 |
| Measuring Ranges (Lbf.in) | 45~885 | 45~217.0 | 1.5~130.00 | 0.15~13.0 | 0.02~7.0 | 0.5~43.4 |
| Measuring Ranges (N. m) | 5~100 | 5~25.00 | 0.15~15.00 | 0.015~1.500 | 0.2~80.0(CN.m) | 0.05~4.90 |
| Accuracy | +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% | +/- 0.5% |
| Power Supply | 3.7V, 4400mAh Lithium lon | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) | 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) |
| Charging Time | 8 hours | 3 hours | 3 hours | 3 hours | 3 hours | 3 hours |
| Operation Time | 8 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours | About 12 hours |
| Battery Life | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. | Chargeable for 300 times or more. However, it varies depending on operating conditions. |
| Size (mm) | 229X102X80 | 160X210X45 | 230x125x65 | 230x125x65 | 230x125x65 | 230x123x65 |
| Weight(Kg) | 2.7 | 2.0 | 1.8 | 1.8 | 1.8 | 1.8 |
| Exclusive Charger | Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA | Input : AC100V~240V 50/60Hz Output : DC12V 400mA |
| Accessory | Torque measuring adaptorX1 SJ-100N.m | Torque measuring adaptorX1 AJ-250 | Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K | Torque measuring adaptorX2 AJ-15 / AJ-3 | Torque measuring adaptorX1 AJ-3 | Torque measuring adaptorX1 AJ-50S |
Kilews nyomatékmérők
A Kilews nyomatékmérők (torque meter / torque tester) nélkülözhetetlen eszközök minden olyan gyártókörnyezetben, ahol a csavarozási nyomaték pontossága közvetlenül befolyásolja a termék minőségét és megbízhatóságát. Segítségükkel gyorsan és pontosan ellenőrizhető, hogy az elektromos vagy kézi csavarozó szerszámok a beállított nyomatéktartományon belül működnek-e, így időben felismerhetők az elhasználódásból, rossz beállításból vagy nem megfelelő karbantartásból eredő eltérések. A rendszeres nyomatékmérés alapja annak, hogy a csavarozási folyamat megfeleljen a minőségbiztosítási előírásoknak és auditkövetelményeknek.
A nyomatékmérők használata egyszerű: a csavarozó szerszámot a mérőre csatlakoztatva a kijelzőn azonnal leolvasható a tényleges meghúzási nyomaték, sok esetben csúcsérték (peak) és folyamatos kijelzés formájában is. A különböző mérési tartományoknak és adaptereknek köszönhetően egyetlen eszközzel többféle csavarhúzó típus is vizsgálható. A Kilews nyomatékmérők így nemcsak a szerszámok kalibrálását segítik, hanem a csavarozási folyamat hosszú távú stabilitását is támogatják – csökkentve a selejt, az utólagos javítás és a rejtett meghúzási hibák kockázatát.
A nyomatékmérők használata egyszerű: a csavarozó szerszámot a mérőre csatlakoztatva a kijelzőn azonnal leolvasható a tényleges meghúzási nyomaték, sok esetben csúcsérték (peak) és folyamatos kijelzés formájában is. A különböző mérési tartományoknak és adaptereknek köszönhetően egyetlen eszközzel többféle csavarhúzó típus is vizsgálható. A Kilews nyomatékmérők így nemcsak a szerszámok kalibrálását segítik, hanem a csavarozási folyamat hosszú távú stabilitását is támogatják – csökkentve a selejt, az utólagos javítás és a rejtett meghúzási hibák kockázatát.
