Kilews KTM-250

Kilews KTM-250

Torque Meter

Cikkszám: KTM-250
LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned.

A szállítási időt az ajánlatban pontosítjuk.

Modellek összehasonlítása

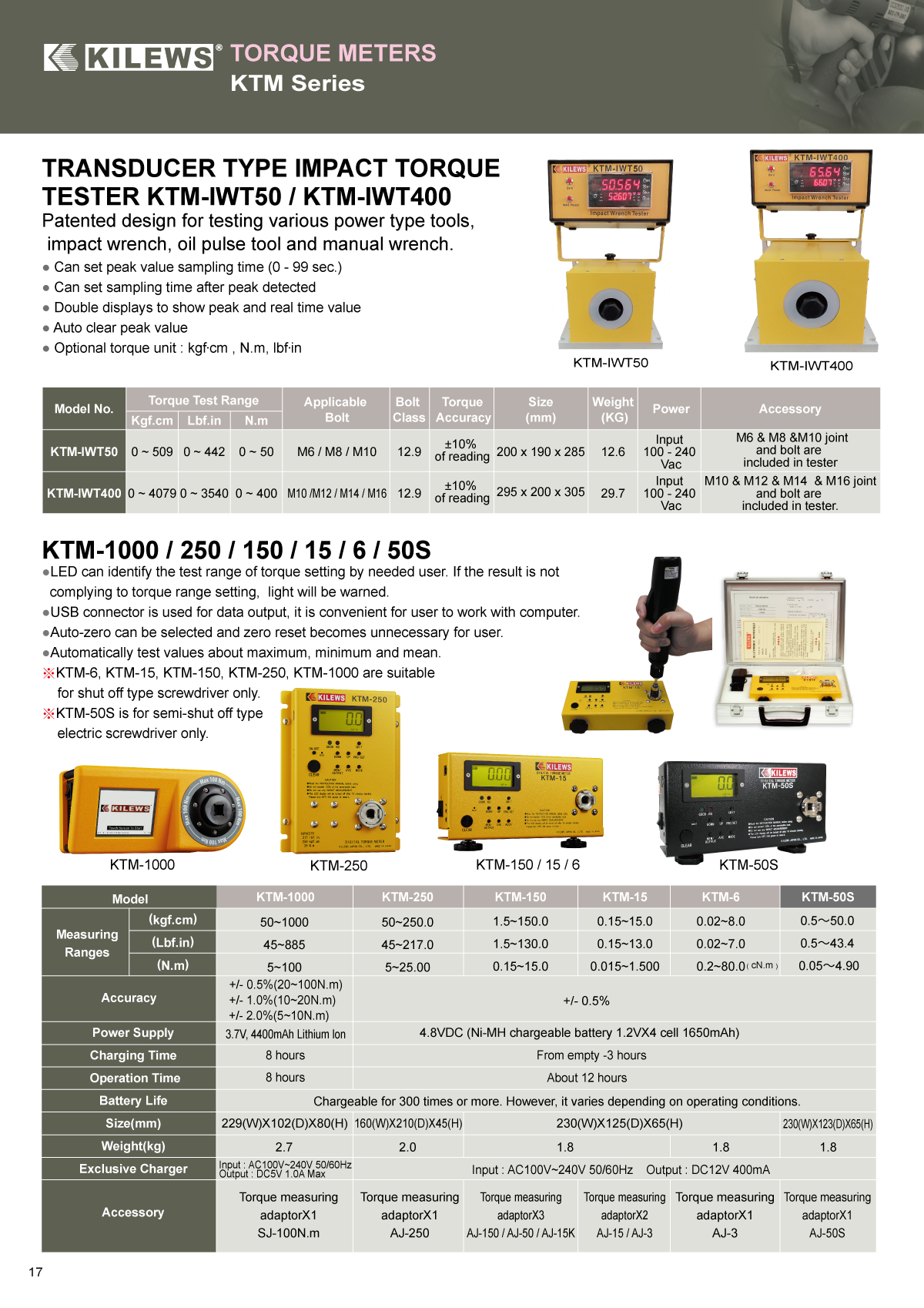

Model KTM-1000 KTM-250 KTM-150 KTM-15 KTM-6 KTM-50S
Measuring Ranges (kgf.cm) 50~1000 50~250.0 1.5~150.0 0.15~15.0 0.02~8.0 0.5~50.0
Measuring Ranges (Lbf.in) 45~885 45~217.0 1.5~130.00 0.15~13.0 0.02~7.0 0.5~43.4
Measuring Ranges (N. m) 5~100 5~25.00 0.15~15.00 0.015~1.500 0.2~80.0(CN.m) 0.05~4.90
Accuracy +/- 0.5%(20~100N.m) +/- 1.0%(10~20N.m) +/- 2.0%(5~10N.m) +/- 0.5% +/- 0.5% +/- 0.5% +/- 0.5% +/- 0.5%
Power Supply 3.7V, 4400mAh Lithium lon 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh) 4.8VDC (Ni-MH chargeable battery 1.2VX4 cell 1650mAh)
Charging Time 8 hours 3 hours 3 hours 3 hours 3 hours 3 hours
Operation Time 8 hours About 12 hours About 12 hours About 12 hours About 12 hours About 12 hours
Battery Life Chargeable for 300 times or more. However, it varies depending on operating conditions. Chargeable for 300 times or more. However, it varies depending on operating conditions. Chargeable for 300 times or more. However, it varies depending on operating conditions. Chargeable for 300 times or more. However, it varies depending on operating conditions. Chargeable for 300 times or more. However, it varies depending on operating conditions. Chargeable for 300 times or more. However, it varies depending on operating conditions.
Size (mm) 229X102X80 160X210X45 230x125x65 230x125x65 230x125x65 230x123x65
Weight(Kg) 2.7 2.0 1.8 1.8 1.8 1.8
Exclusive Charger Input : AC100V~240V 50/60Hz Output : DC5V 1.0A Max Input : AC100V~240V 50/60Hz Output : DC12V 400mA Input : AC100V~240V 50/60Hz Output : DC12V 400mA Input : AC100V~240V 50/60Hz Output : DC12V 400mA Input : AC100V~240V 50/60Hz Output : DC12V 400mA Input : AC100V~240V 50/60Hz Output : DC12V 400mA
Accessory Torque measuring adaptorX1 SJ-100N.m Torque measuring adaptorX1 AJ-250 Torque measuring adaptorX3 AJ-150 / AJ-50 / AJ-15K Torque measuring adaptorX2 AJ-15 / AJ-3 Torque measuring adaptorX1 AJ-3 Torque measuring adaptorX1 AJ-50S

Features LED can identify the test range of torque setting by needed user. If the result is not complying to torque range setting, light will be warned. USB connector is used for data output；it is convenient for user to work with computer. Auto-zero can be selected and zero reset becomes unnecessary for user. Automatically test values about maximum, minimum and mean. ※Products are suitable for shut off type screwdriver only.
