Előmelegítés & PCB támogatás
JBC előmelegítők és rework padek – Kontrollált hőeloszlás nagy hőtömegű paneleken
A JBC előmelegítők és rework padek kifejezetten nagy hőtömegű, többrétegű vagy érzékeny nyomtatott áramkörök forrasztásához és javításához készültek. Az előmelegítő zónázott, szabályozott hőleadása csökkenti a termikus sokkot…
Előmelegítők és rework pad
JBC PHNE Preheater 11 x 7 cm / 4 x 3"
It is a complete solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4 x 3 in.
Peak power
300 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Weight and dimensions | PreHeater Unit 179 x 165 x 42 mm / 1.20 kg., 7.05 x 6.50 x 1.65 in / 2.65 lb. |
| Package | 280 x 280 x 164 mm / 2.30 kg., 11.02 x 11.02 x 6.46 in / 5.07 lb. |
Előmelegítők és rework pad

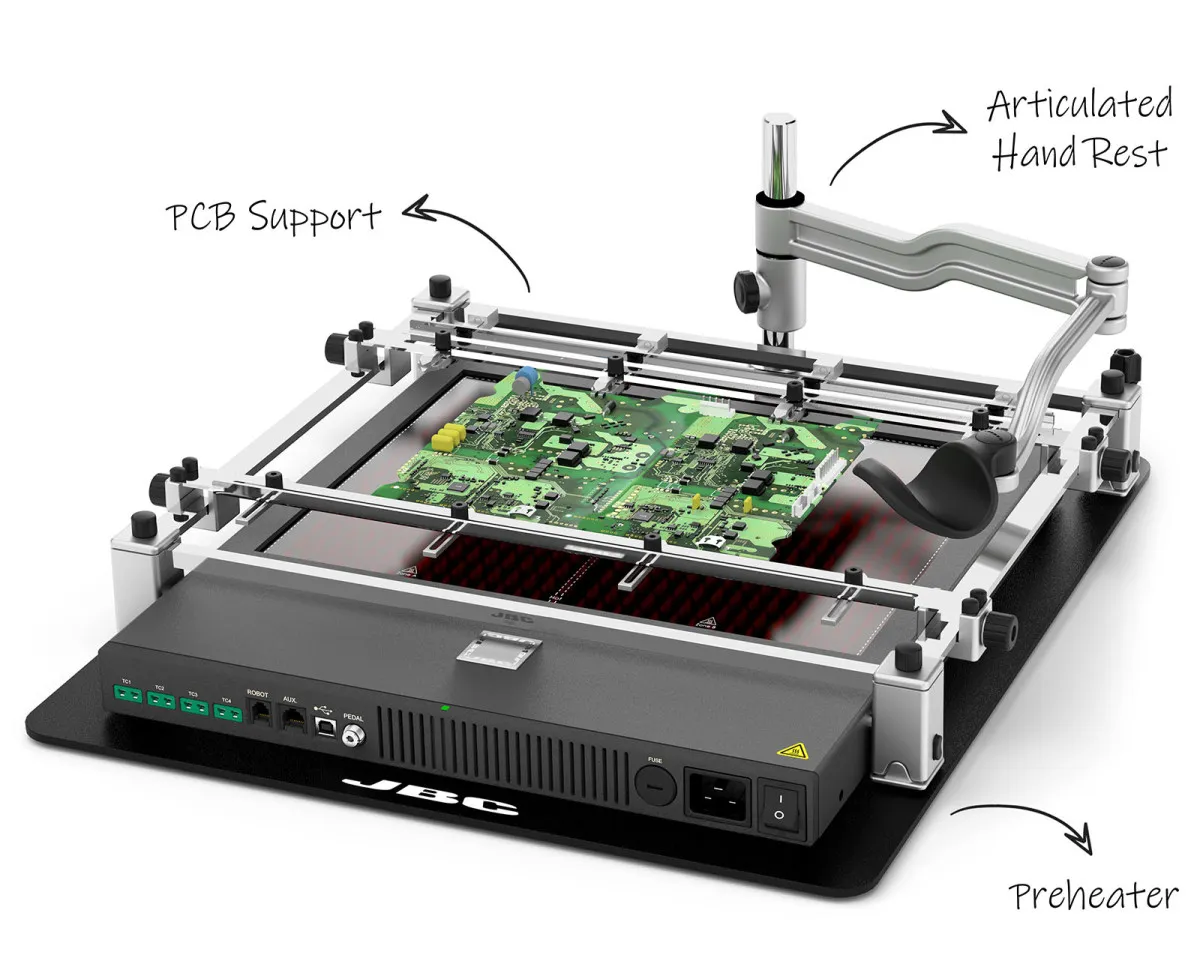

JBC RBB Rework Bench
This solution facilitates complete rework of medium / large PCBAs, such as the ones commonly used in laptops or PCB panels.
Peak power
1800W (120V & 230V), 1400W (100V)
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
180 x 277 mm / 7.1 x 10.9 in - 1 zone, 360 x 277 mm / 14.2 x 10.9 in -2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Rework Bench | 550 x 480 x 210 mm / 21.83 kg., 21.65 x 18.90 x 8.27 in / 48.13 lb. |
| Package | 685 x 610 x 525 mm / 31.31 kg.. 26.97 x 24.02 x 20.67 in / 69.03 lb. |
Előmelegítők és rework pad

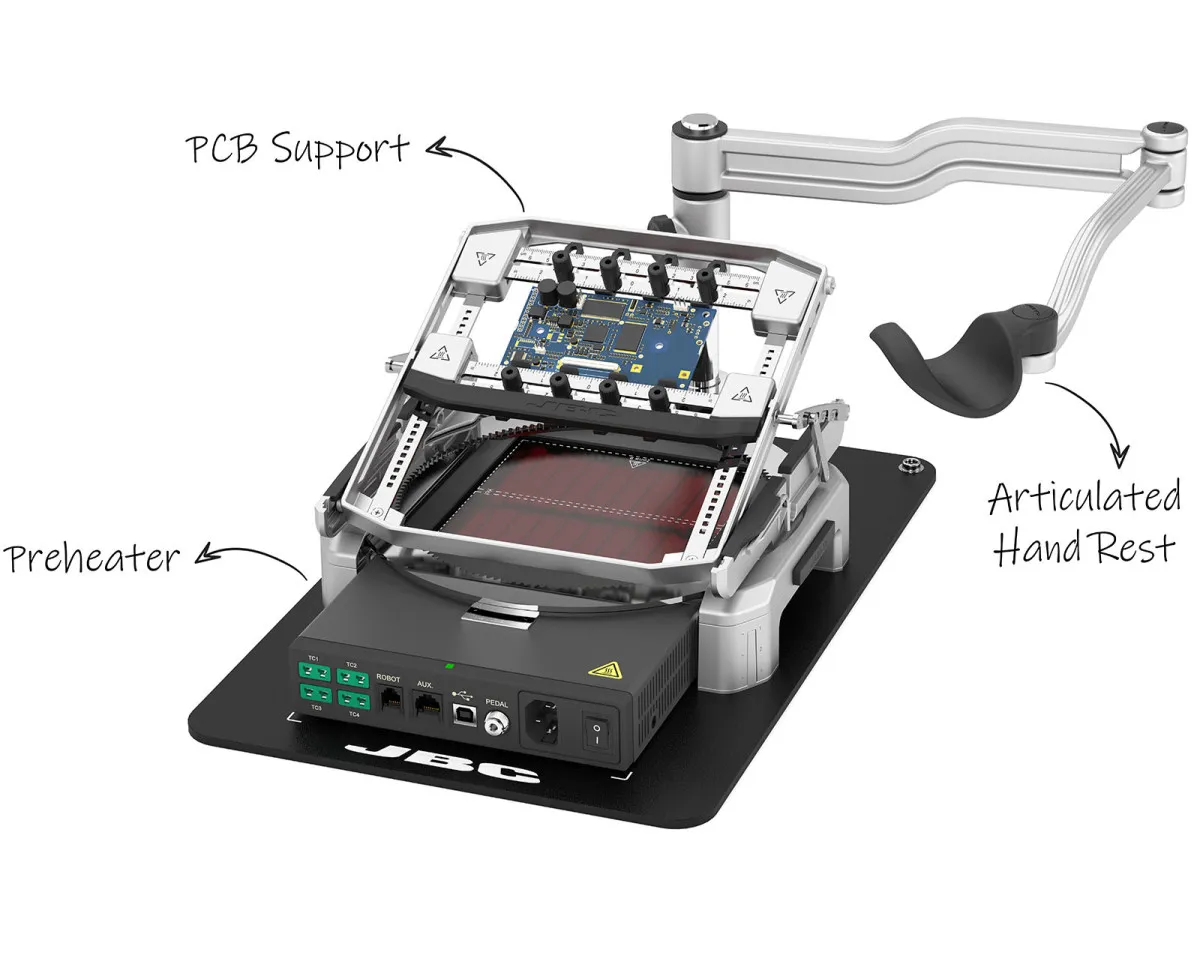

JBC RBSM Multiaxis Rework Bench
An optimal set for precision rework, JBC Multiaxis Rework Bench ensures maximum soldering quality by combining three key features:
Peak power
800 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone,130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Rework Bench | 415 x 360 x 205 mm / 11.00 kg., 16.34 x 14.17 x 8.07 in / 24.25 lb. |
Előmelegítők és rework pad

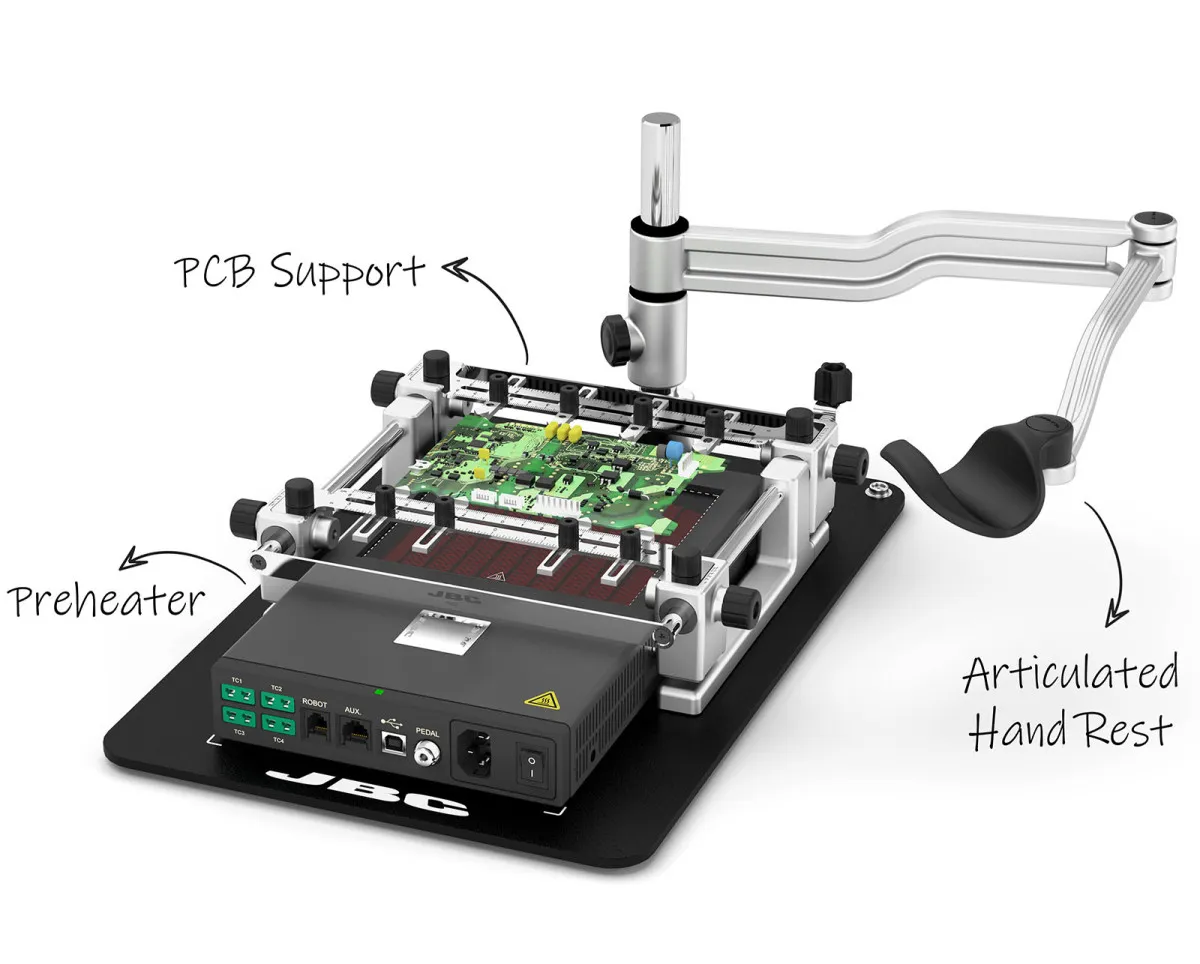

JBC RBS Rework Bench
This solution facilitates complete rework of small / medium PCBAs, such as the ones commonly used in electronic industries.
Peak power
800 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone, 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Rework Bench | 415 x 360 x 205 mm / 10.72 kg.,16.34 x 14.17 x 8.07 in / 23.63 lb. |
| Package | 495 x 415 x 395 mm / 14.70 kg.,19.49 x 16.34 x 15.55 in / 32.41 lb. |
Előmelegítők és rework pad
JBC RBN Rework Bench
This solution facilitates complete rework of small PCBAs, such as those commonly used in smartphones.
Peak power
300 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update,Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Rework Bench | 310 x 239 x 205 mm / 7.60 kg., 12.20 x 9.41 x 8.07 in / 16.75 lb. |
| Package | 480 x 370 x 380 mm / 11.20 kg.,18.90 x 14.57 x 14.96 in / 24.69 lb. |
Előmelegítők és rework pad

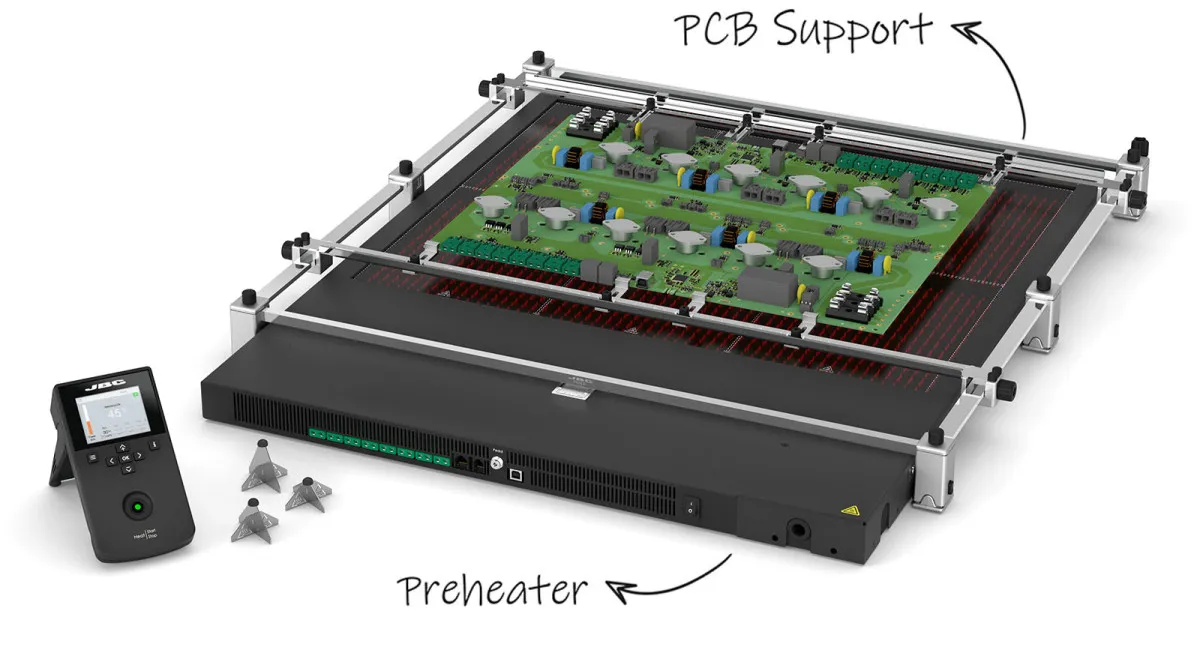

JBC PHXLEK Preheater Set
This is a complete system of Preheater and PCB support for preheating big-sized PCBAs such as communications boards, airplanes, etc. and ideal for repetitive soldering jobs.
Peak power
5400 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
255 x 203 mm / 10.04 x 8 in - 1 zone, 510 x 610 mm / 20 x 24 in - 6 zones
Type K TC connector
8 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2,3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 790 x 664 x 42 mm / 23.00 kg., 31.10 x 26.14 x 1.65 in / 50.71 lb. |
| Package | 1200 x 800 x 374 mm / 71.00 kg., 47.24 x 31.50 x 14.72 in / 156.53 lb. |
Előmelegítők és rework pad

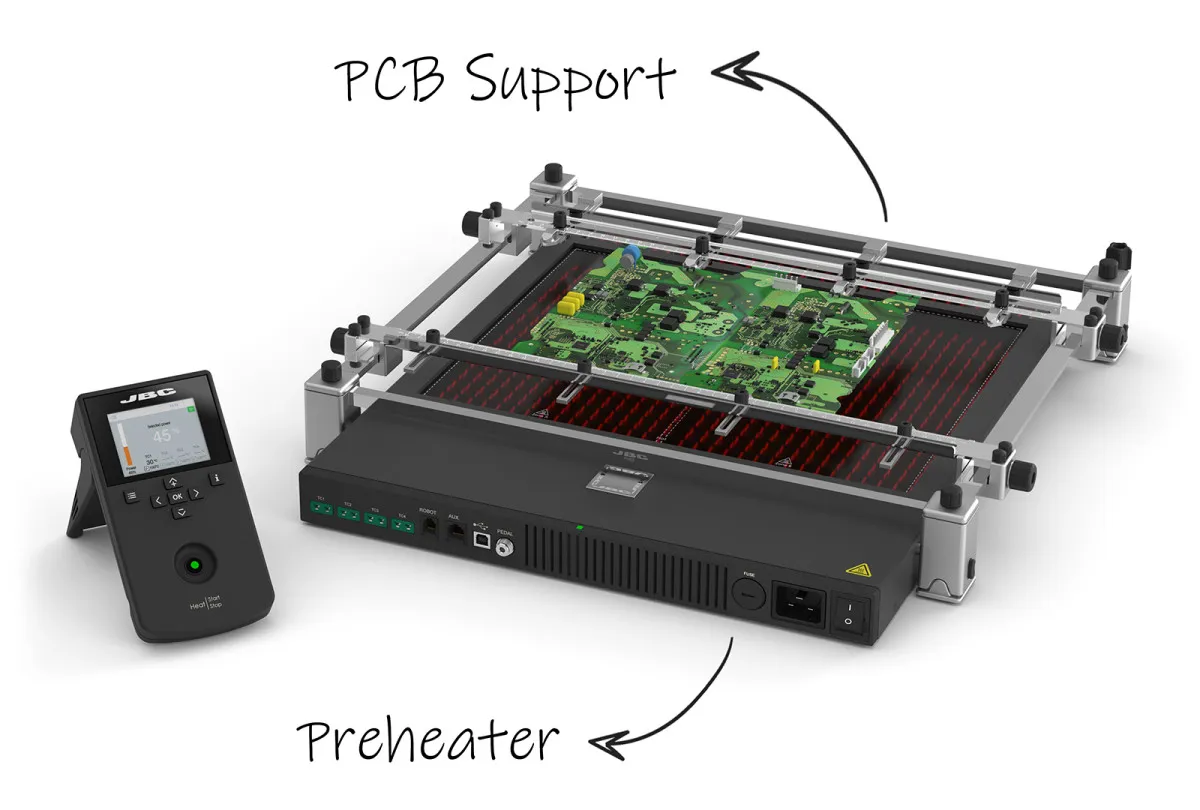

JBC PHBEK Preheater Set
Its composition, Preheater and PCB Support, is a complete solution to rework medium / large PCBAs, such as the ones commonly used in laptops or PCB panels.
Peak power
1800W (120V & 230V), 1400W (100V)
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
180 x 277 mm / 7.1 x 10.9 in - 1 zone, 360 x 277 mm / 14.2 x 10.9 in -2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 426 x 444 x 41 mm / 9.70 kg., 16.77 x 17.48 x 1.61 in / 21.38 lb. |
| Package | 705 x 625 x 365 mm / 15.65 kg., 27.76 x 24.61 x 14.37 in / 34.50 lb. |
Előmelegítők és rework pad

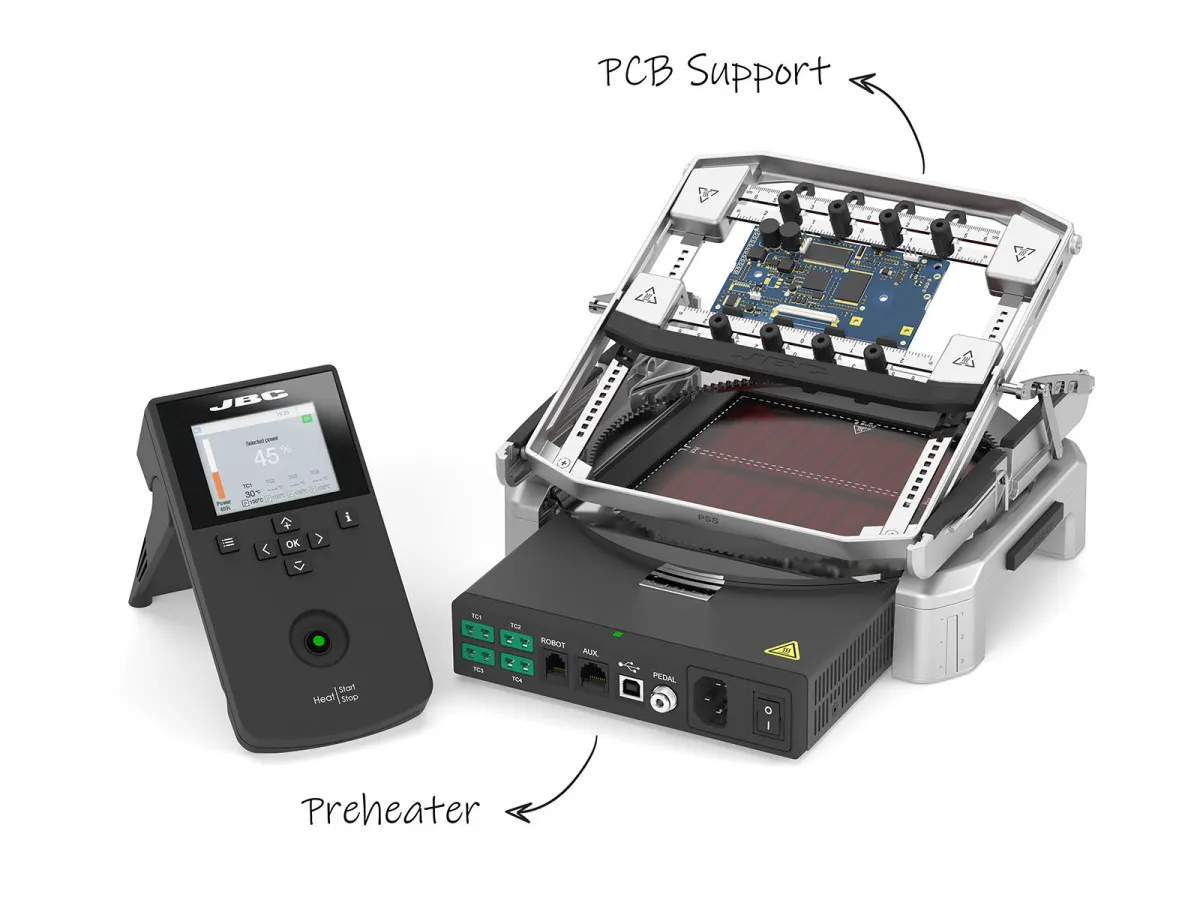

JBC PHSMK Multiaxis Preheater Set
This composition, Preheater and Multiaxis PCB Support, is a solution to rework small / medium PCBAs, by combining two key features:
Peak power
800 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone, 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 195 x 288 x 42 mm / 5.07 kg., 7.68 x 11.34 x 1.65 in / 11.17 lb. |
| Package | 444 x 395 x 273 mm / 7.21 kg., 17.48 x 15.55 x 10.75 in / 15.90 lb. |
Előmelegítők és rework pad

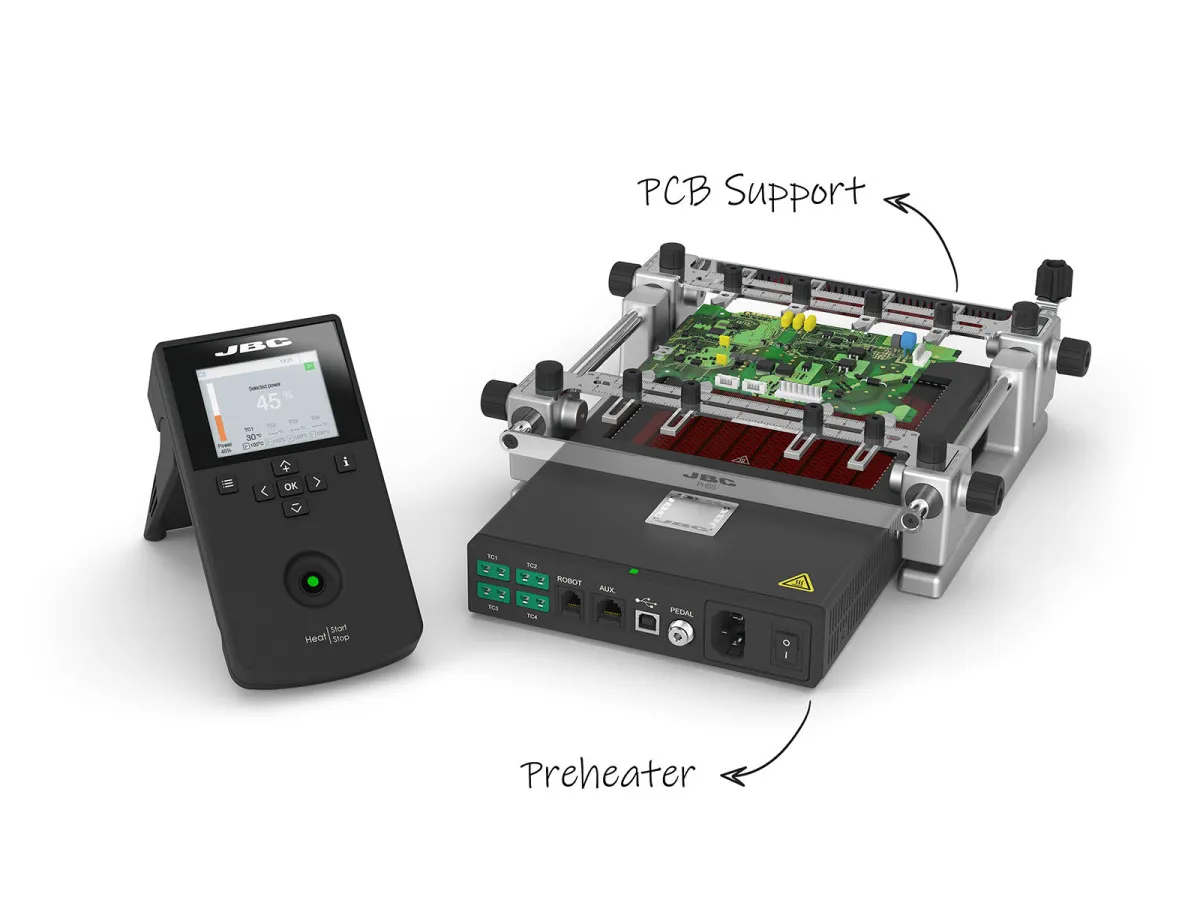

JBC PHSEK Preheater Set
Its composition, Preheater and PCB support, is a complete solution to rework small / medium PCBAs, such as the ones commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5.12 x 5.31 in and four TC connections.
Peak power
800 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone, 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 195 x 288 x 42 mm / 4.65 kg., 7.68 x 11.34 x 1.65 in / 10.26 lb. |
| Package | 368 x 368 x 195 mm / 5.95 kg., 14.49 x 14.49 x 7.68 in / 13.12 lb. |
Előmelegítők és rework pad

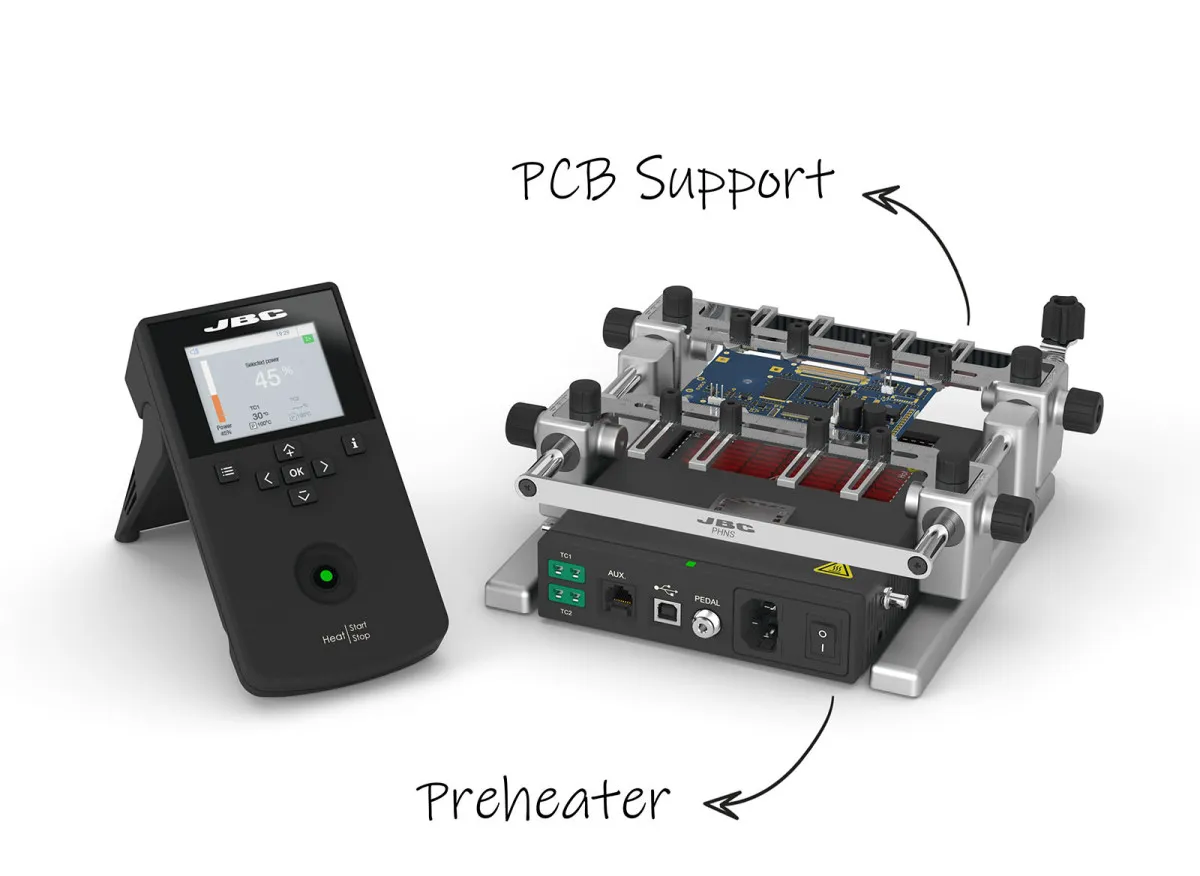

JBC PHNEK Preheater Set
Its composition, Preheater and PCB support, is a complete solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in.
Peak power
300 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 179 x 165 x 42 mm / 3.10 kg.,7.05 x 6.50 x 1.65 in / 6.83 lb. |
| Package | 280 x 280 x 164 mm / 4.20 kg.,11.02 x 11.02 x 6.46 in / 9.26 lb. |
Előmelegítők és rework pad

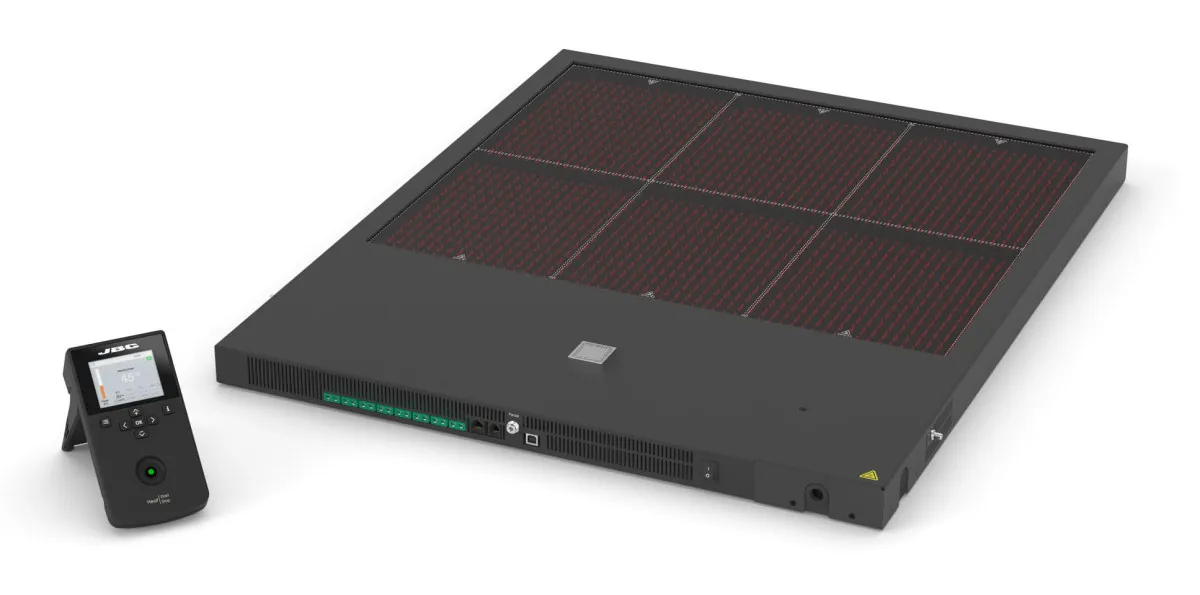

JBC PHXLE Preheater 51 x 61 cm
Indispensable for avoiding thermal shock on multilayer PCBs while reworking.
Peak power
5400 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
255 x 203 mm / 10.04 x 8 in - 1 zone , 510 x 610 mm / 20 x 24 in - 6 zones
Type K TC connector
8 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2,3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 790 x 664 x 42 mm / 19.30 kg. , 31.10 x 26.14 x 1.65 in / 42.55 lb. |
| Package | 1200 x 800 x 374 mm / 67.00 kg., 47.24 x 31.50 x 14.72 in / 147.71 lb. |
Előmelegítők és rework pad

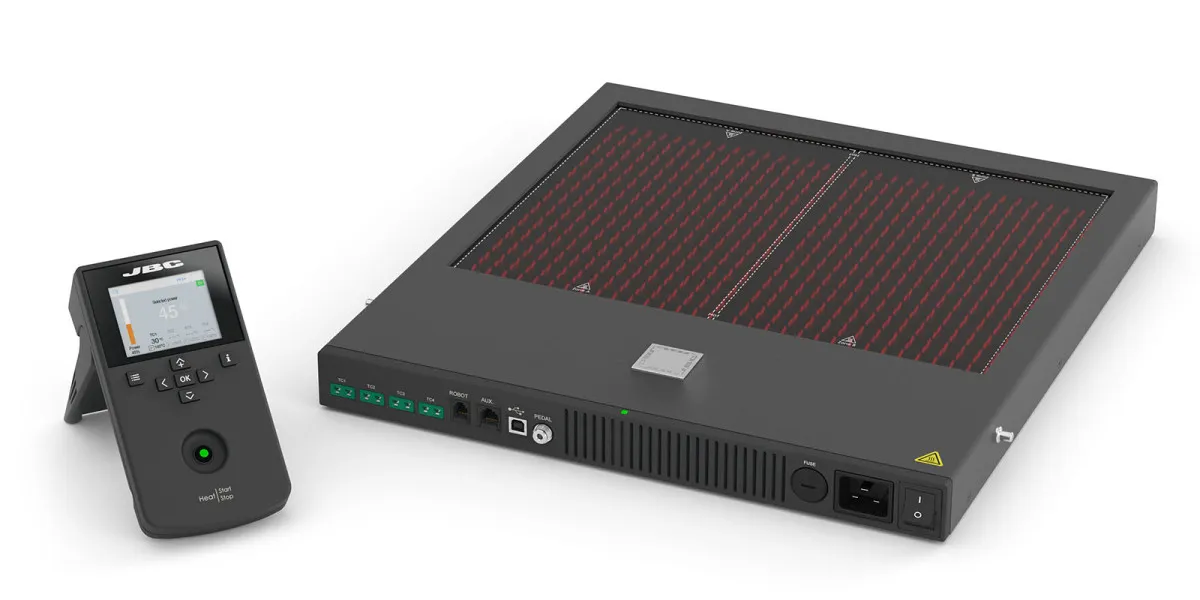

JBC PHBE Preheater 36 x 28 cm
It is a complete solution to rework medium / large PCBAs, such as the ones commonly used in laptops or PCB panels. It features a heating area of 360 x 277 mm / 14.2 x 10.9 in. and four TC connections.
Peak power
1800W (120V & 230V), 1400W (100V)
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
180 x 277 mm / 7.1 x 10.9 in - 1 zone, 360 x 277 mm / 14.2 x 10.9 in -2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 426 x 444 x 41 mm / 6.90 kg. , 16.77 x 17.48 x 1.61 in / 15.21 lb. |
| Package | 705 x 625 x 365 mm / 12.60 kg. , 27.76 x 24.61 x 14.37 in / 27.78 lb. |
Előmelegítők és rework pad

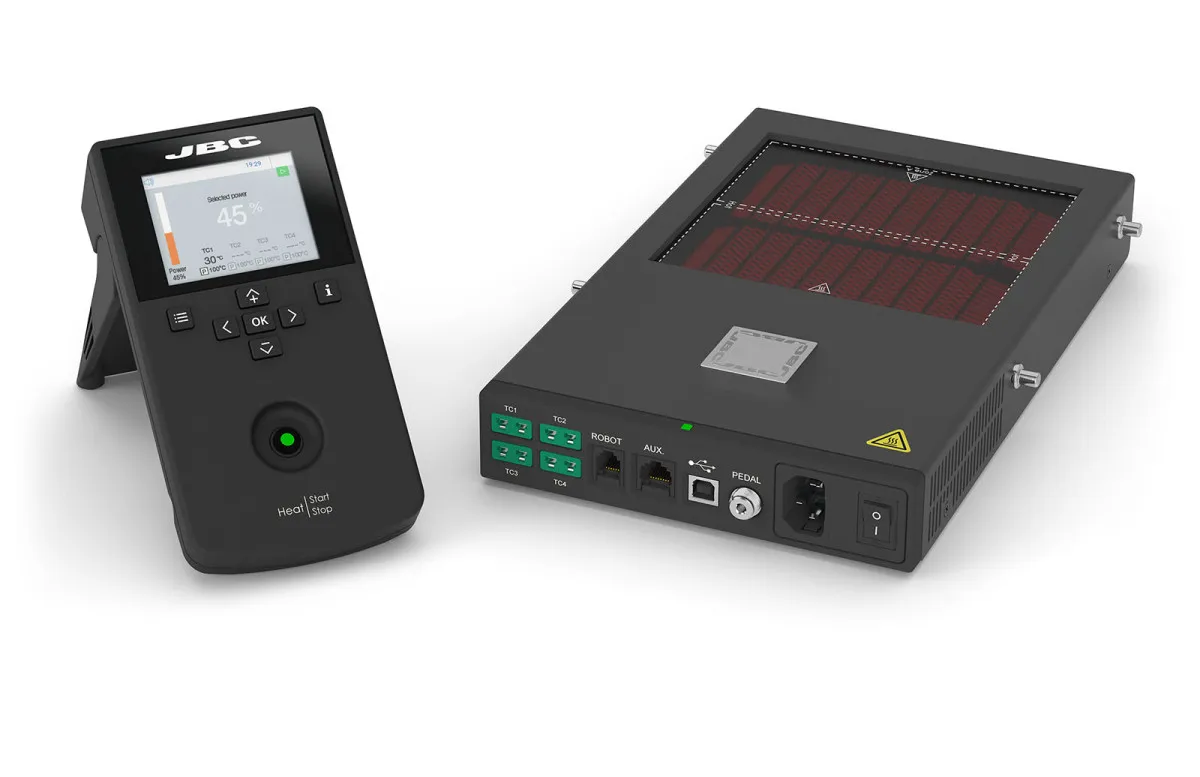

JBC PHSE Preheater 13 x 13 cm
It is a complete solution to rework small / medium PCBAs, such as the once commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5 x 5 in. and four TC connections.
Peak power
800 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone, 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| PreHeater Unit | 195 x 288 x 42 mm / 2.60 kg. , 7.68 x 11.34 x 1.65 in / 5.73 lb. |
| Package | 368 x 368 x 125 mm / 3.58 kg., 14.49 x 14.49 x 4.92 in / 7.89 lb. |
Előmelegítők és rework pad
JBC PHNEK Preheater Set 11 x 7 cm
It is a complete solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4 x 3 in.
Peak power
300 W
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
| Profiles | 22 (up to 16 steps for each) |
| Set temperature profiles | 3 profiles (2, 3 or 4 steps) |
| Maximum work time | 50 min or indefinite |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| USB-A | Firmware update, Graphics and profiles |
| USB-B | PC communications |
| Robot connector | Remote control |
| Aux. connector | Console connection |
| Pedal connector | Connect a pedal (ref. P-005) to control the heater |
| Weight and dimensions | PreHeater Unit 179 x 165 x 42 mm / 1.20 kg., 7.05 x 6.50 x 1.65 in / 2.65 lb. |
| Package | 280 x 280 x 164 mm / 2.30 kg., 11.02 x 11.02 x 6.46 in / 5.07 lb. |
JBC előmelegítők és rework padek – Kontrollált hőeloszlás nagy hőtömegű paneleken
A JBC előmelegítők és rework padek kifejezetten nagy hőtömegű, többrétegű vagy érzékeny nyomtatott áramkörök forrasztásához és javításához készültek. Az előmelegítő zónázott, szabályozott hőleadása csökkenti a termikus sokkot, egyenletesebbé teszi a hőeloszlást, és megkönnyíti a BGA, QFN, nagy csatlakozók és egyéb kritikus alkatrészek kiforrasztását és újraültetését. A stabil, alulról érkező hőnek köszönhetően a forrólevegős és pákaoldali hőterhelés is csökkenthető, így kímélhető a PCB és a komponensek élettartama.
A rework padek, állítható PCB-támaszok és rögzítőelemek gondoskodnak arról, hogy a panel a teljes javítási folyamat alatt stabilan, biztonságosan és ergonomikusan legyen megtámasztva. Az előmelegítők integrálhatók JBC rework rendszerekbe és hot air állomásokkal együtt kompletten vezérelhetők, így a teljes rework folyamat – az előmelegítéstől a kiforrasztáson át az újraültetésig – könnyebben standardizálható és dokumentálható. Ez a kategória ideális választás minden olyan gyártó és szerviz számára, ahol nagy értékű PCB-k, komplex panelek és érzékeny elektronikai egységek javítása / újraforrasztása mindennapos feladat.
A rework padek, állítható PCB-támaszok és rögzítőelemek gondoskodnak arról, hogy a panel a teljes javítási folyamat alatt stabilan, biztonságosan és ergonomikusan legyen megtámasztva. Az előmelegítők integrálhatók JBC rework rendszerekbe és hot air állomásokkal együtt kompletten vezérelhetők, így a teljes rework folyamat – az előmelegítéstől a kiforrasztáson át az újraültetésig – könnyebben standardizálható és dokumentálható. Ez a kategória ideális választás minden olyan gyártó és szerviz számára, ahol nagy értékű PCB-k, komplex panelek és érzékeny elektronikai egységek javítása / újraforrasztása mindennapos feladat.
