Kiegészítők
Spring-balanszerek

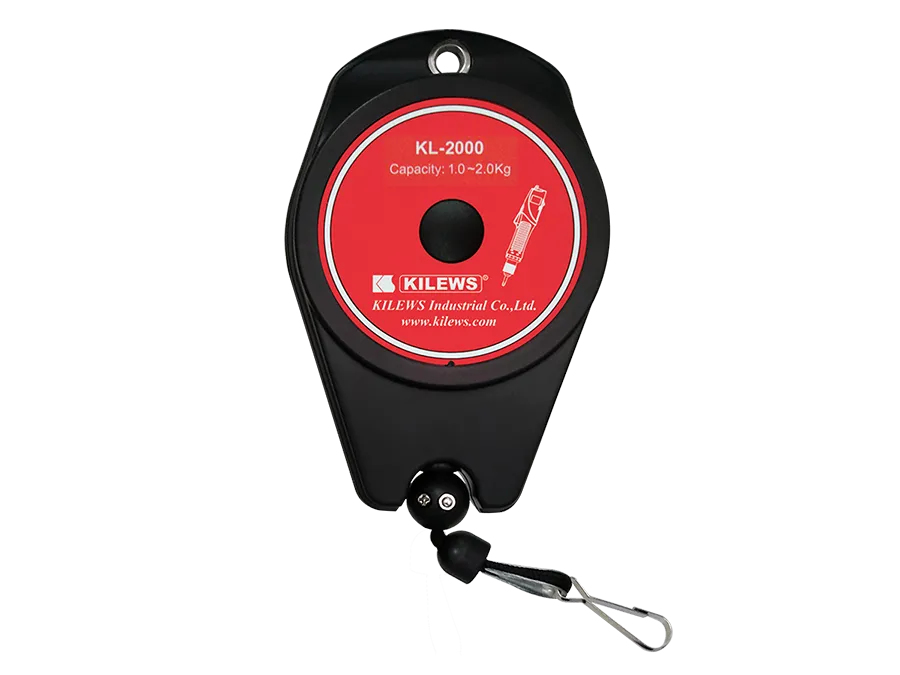

Kilews KL-2000
KL-2000
Model
KL-2000 1.0~2.0kg
Spring Balancer Applicable models
USE FOR ALL MODELS (SKD-B100、SKD-BN(E)200 series are not included)
Spring-balanszerek

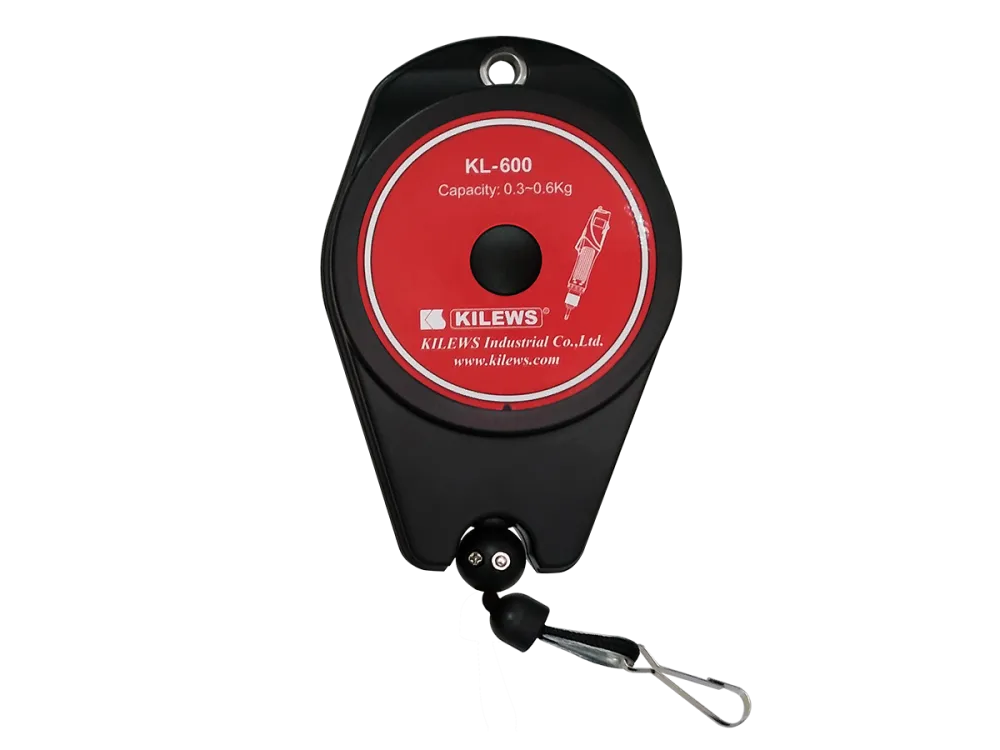

Kilews KL-600
KL-600
Model
Spring Balancer Applicable models
KL-600 0.3~0.6kg
SKD-B100,, SKD-B103L,, SKD-BN203L,, SKD-BE203L,, SKD-BN207L,, SKD-BE207L,, SKD-BN210L,, SKD-BE210L,, SKD-BN512L,, SKD-BN517L,, SKD-BN519L,, SKD-BE512L,, SKD-BE517L,, SKD-BE519L,, SKD-2000L,, SKD-2200L,, SKD-2300L
DC tápegységek
Kilews SKP-40B-HL-800
SKP-40B-HL-800
Model
SKP-40B-HL-800
Input Voltage
AC 115V/230V 50/60Hz
Output Voltage
DC40V
Capacity
9A
| External dimensions(mm) | 213X133X68(mm) |
| Weight | 1800g( main body Weight) |
| AC Cord Length | 2M with ground |
| Applicable Models | SKD-BK900 series, SKD-BNK900 series, SKD-RBK series, SKD-RBNK series, SKD-LRBK series, SKD-LRBNK series, SKD-TBK30LF/35LF/50LF/70L, SKD-TBN series, SKD-TBNK series, (Not included 20L/30L/50L) |
DC tápegységek

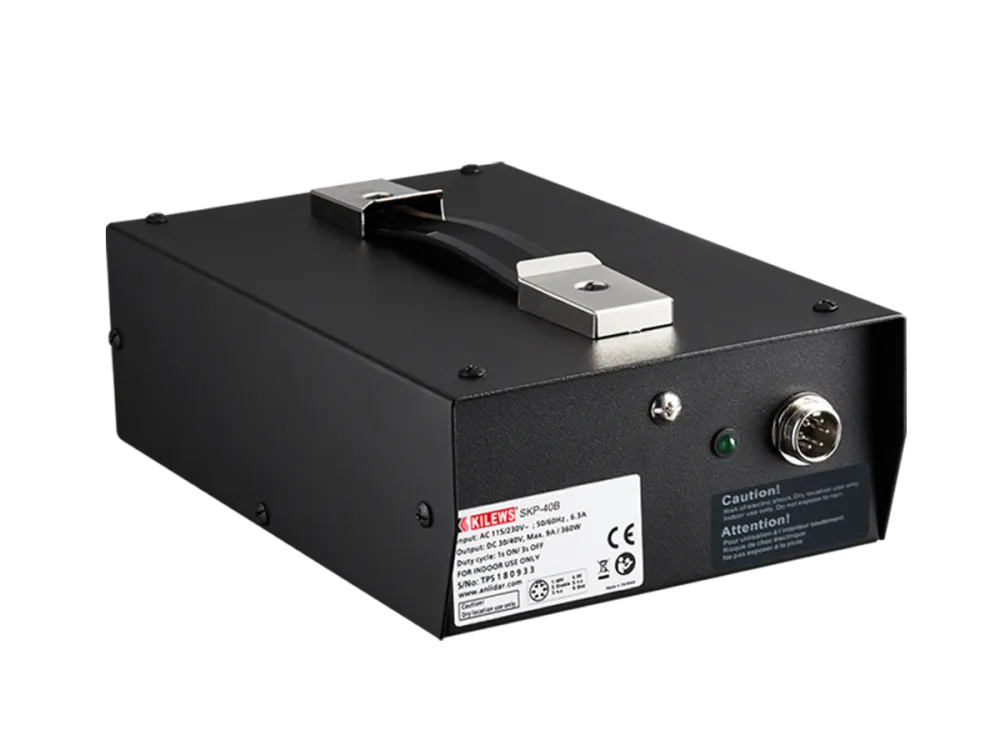

Kilews SKP-40B-HL
SKP-40B-HL
Model
SKP-40B-HL
Input Voltage
AC 100-240V 50/60Hz
Output Voltage
DC40V
Capacity
6.3A
| External dimensions(mm) | 213X133X68(mm) |
| Weight | 1800g( main body Weight) |
| AC Cord Length | 2M with ground |
| Applicable Models | SKP-40B-HL(N) Applicable Models, SKD-BN800 series, SKD-BNK800 series, SKD-BE800 series, SKD-TBK20L/30L/50L series, SKD-TBNK20L/30L/50L series |
DC tápegységek

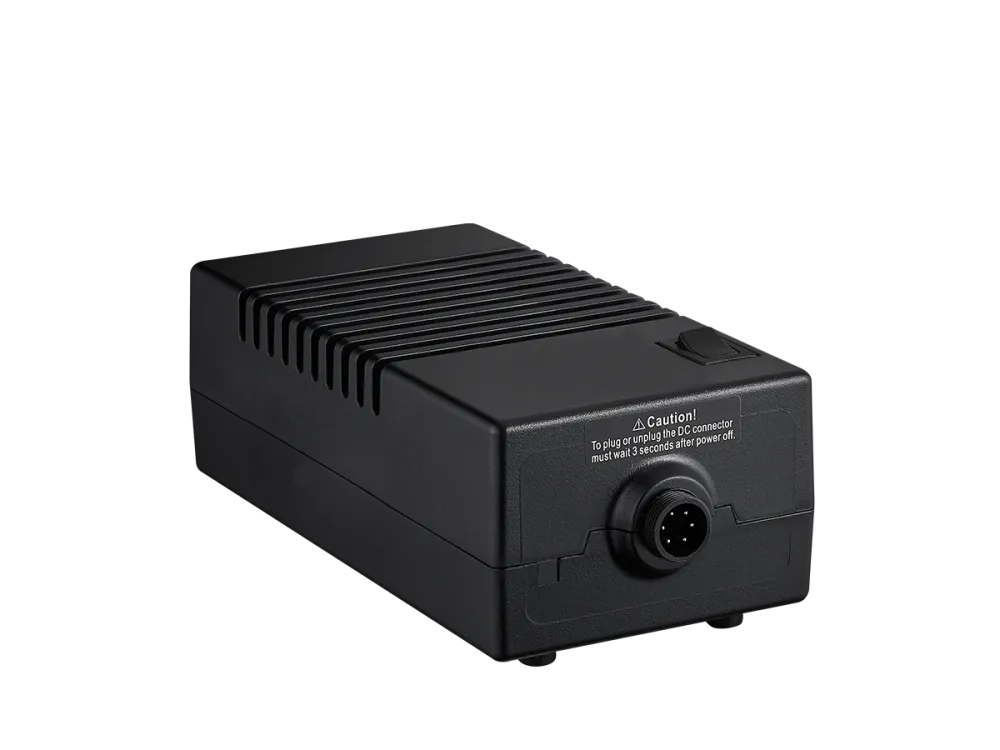

Kilews SKP-BE32HL
SKP-BE32HL
Model
SKP-BE32HL
Input Voltage
AC100~240V50/60HZ
Output Voltage
LO DC 24V / HI DC 32V
Capacity
3A MAX
| External dimensions(mm) | 200X80X66(mm) |
| Weight | 460g( main body Weight) |
| AC Cord Length | 2M with ground |
| Applicable Models | SKD-BNK200 series, SKD-BNK500 series, SKD-BN500 series, (F type series), SKD-BE500 series, (F type series), SKD-BN7000 series |
DC tápegységek

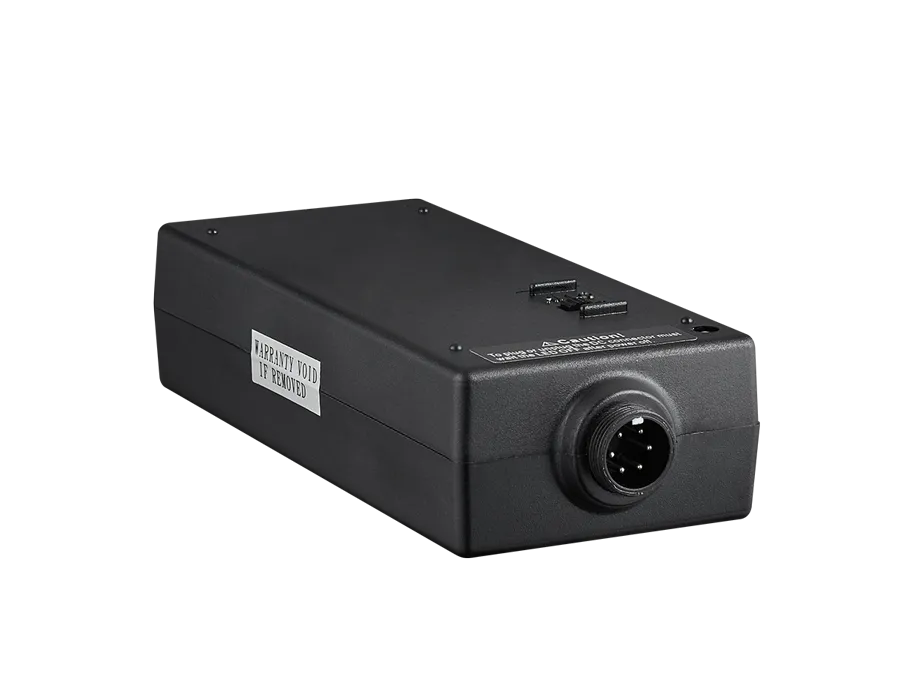

Kilews SKP-32BC-60W
SKP-32BC-60W
Model
SKP-32BC-60W
Input Voltage
AC100~240V50/60HZ
Output Voltage
LO DC 24V / HI DC 32V
Capacity
1.8A MAX
| External dimensions(mm) | 145X61.2X35(mm) |
| Weight | 250g( main body Weight) |
| AC Cord Length | 2M with ground |
| Applicable Models | SKD-BN200 series, SKD-BE200 series, SKD-BN500 series, ( not included F type series), SKD-BE500 series, ( not included F type series) |
DC tápegységek

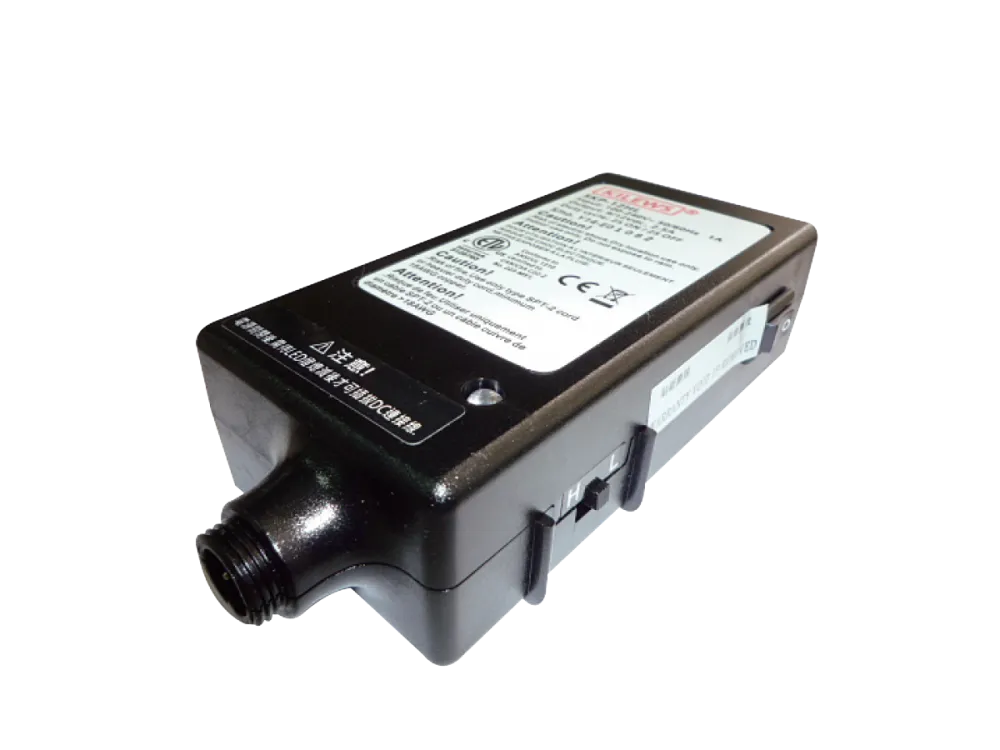

Kilews SKP-12HL
SKP-12HL
Model
SKP-12HL
Input Voltage
AC100~240V50/60HZ
Output Voltage
LO DC 9V / HI DC 12V
Capacity
2.5A
| External dimensions(mm) | 100X50X30(mm) |
| Weight | 144.5g( main body Weight) |
| AC Cord Length | 2M with ground |
| Applicable Models | B100 series |
Pozicionáló karok

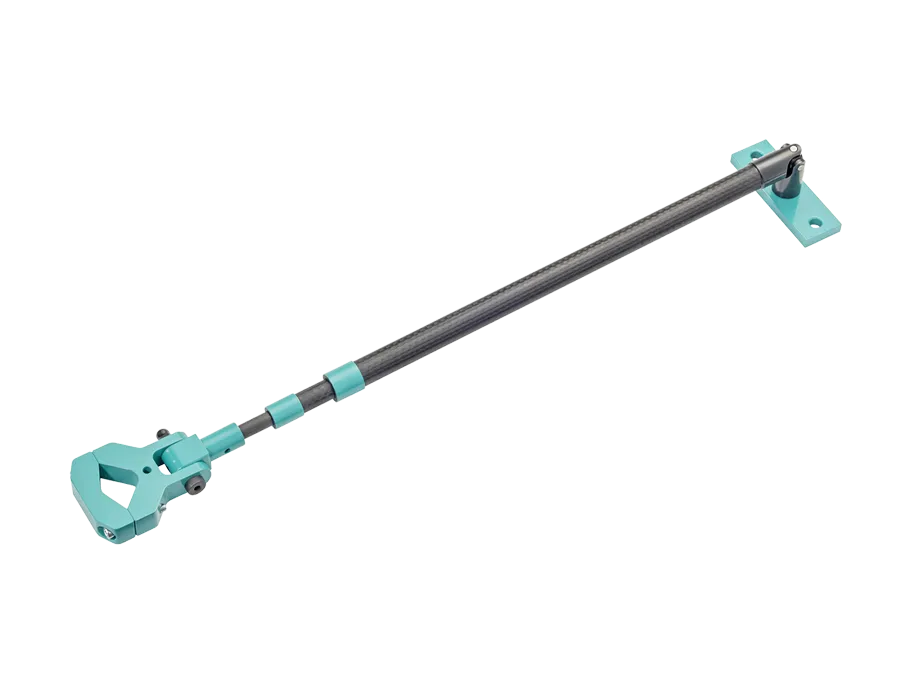

Kilews KP-AUX-GC18 I
KP-AUX-GC18 I
Közös adatok
| Max. Torque | 18Nm |
| Tool clamp | 28-56mm |
Modellek összehasonlítása
| Model | Min. Length | Max. Length | weight |
|---|---|---|---|
| KP-AUX-GC18I-600 | 414mm | 665mm | 320g |
| KP-AUX-GC18I-1000 | 503mm | 1123mm | 360g |
Pozicionáló karok

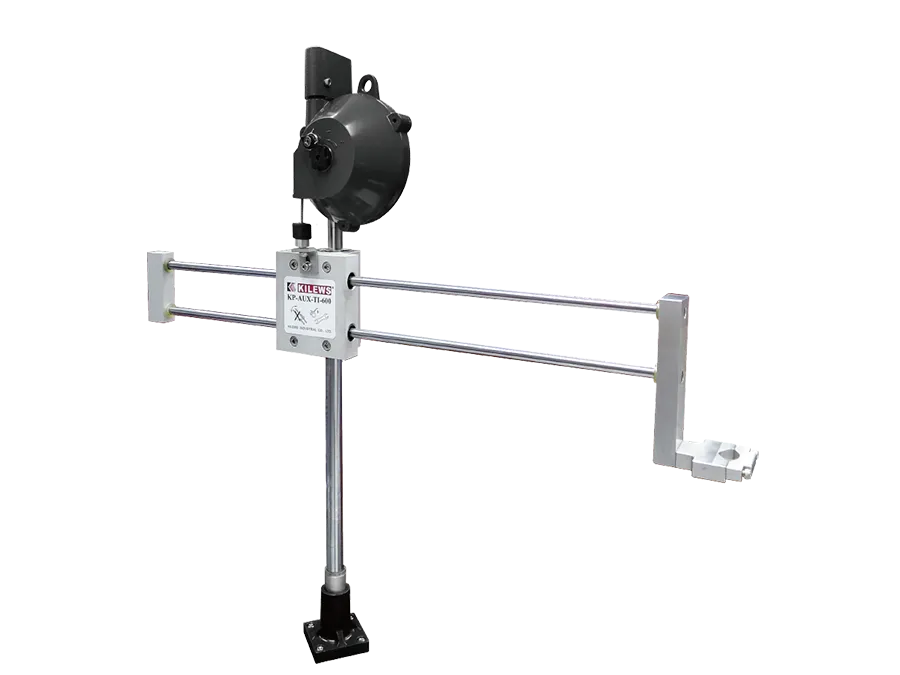

Kilews KP-AUX-TI-600
KP-AUX-TI-600
Model
KP-AUX-TI-600
Applicable Tool Weight
0.4~2.4kg
Max Working Area
740mm
Max Torque
150Kgf-cm
| Horizontal Stroke | 600mm |
| Vertical Stroke | 547mm |
| Size(HxW) | 820mmX908mm |
| Tool Dia. | 25~46mm |
| Applicable Models | SGT-CS series (Not included SGT-CS725), SGT-LCS503、SGT-LCS505、SGT-LCS507, SKT-CG series (Not included SKT-CG250), SKT-LCG30、SKT-LCG50、SKT-LCG70, SKT-CGT series |
Pozicionáló karok

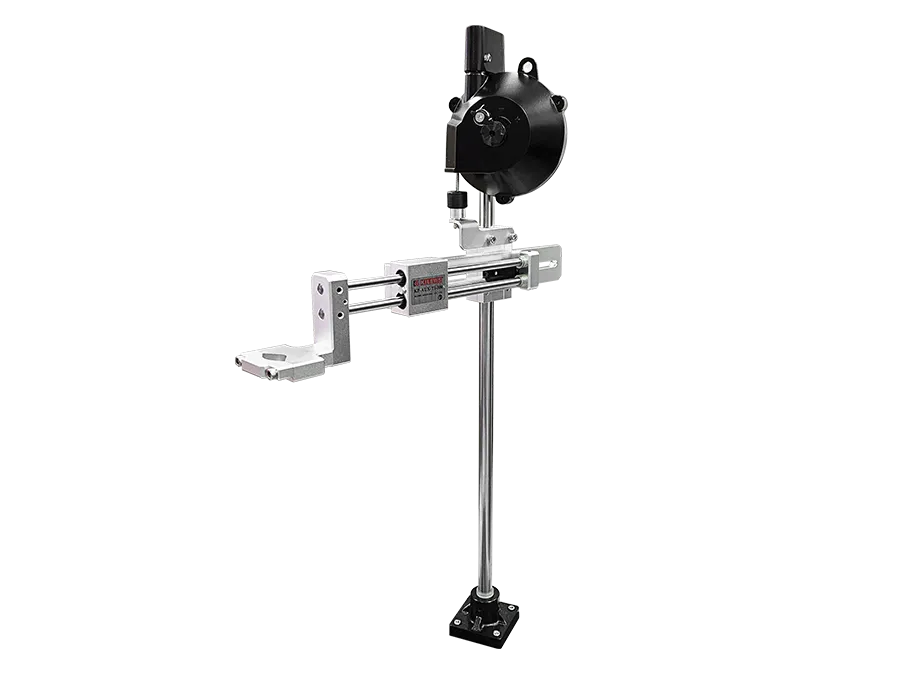

Kilews KP-AUX-TI-300N
KP-AUX-TI-300N
Model
KP-AUX-TI-300N
Applicable Tool Weight
0.8~2.8kg
Max Working Area
560mm
Max Torque
150Kgf-cm
| Tool Dia. | 25~45mm |
| Applicable Models | SGT-CS series (Not included SGT-CS725), SGT-LCS503、SGT-LCS505、SGT-LCS507, SKT-CG series (Not included SKT-CG180/250), SKT-LCG30、SKT-LCG50、SKT-LCG70, SKT-CGT series |
Pozicionáló karok

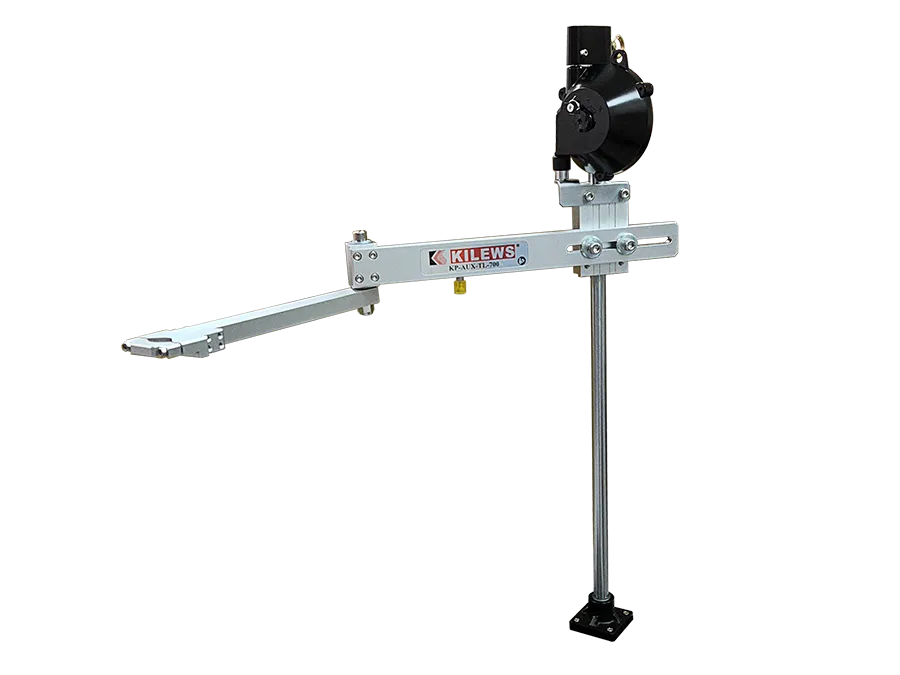

Kilews KP-AUX-TL-700N
KP-AUX-TL-700N
Modellek összehasonlítása
| Model | KP-AUX-TL-700N |
|---|---|
| Applicable Tool Weight | 1.4~3.4kg |
| Max Working Area | 755mm |
| Max Torque | 250Kgf-cm |
| Tool Dia. | 25~45mm |
| Applicable Models | SGT-CS series (Not included SGT-CS725) SGT-LCS503、SGT-LCS505、SGT-LCS507 SKT-CG series (Not included SKT-CG250) SKT-LCG30、SKT-LCG50、SKT-LCG70 SKT-CGT series |
Pozicionáló karok

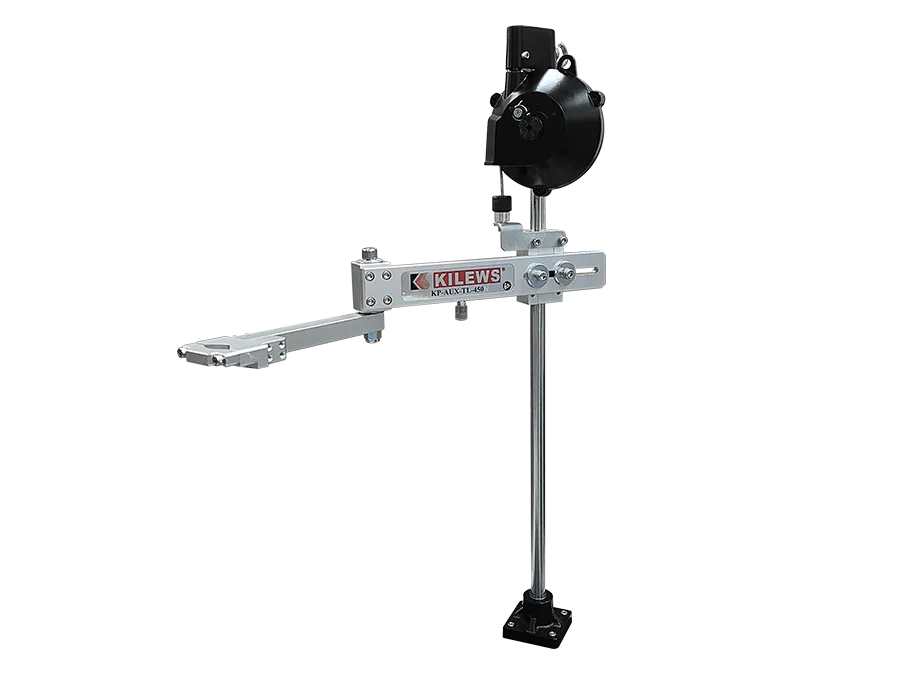

Kilews KP-AUX-TL-450N
KP-AUX-TL-450N
Modellek összehasonlítása
| Model | KP-AUX-TL-450N |
|---|---|
| Applicable Tool Weight | 0.8~2.8kg |
| Max Working Area | 514mm |
| Max Torque | 150Kgf-cm |
| Tool Dia. | 25~45mm |
| Applicable Models | SGT-CS series (Not included SGT-CS725) SGT-LCS503、SGT-LCS505、SGT-LCS507 SKT-CG series (Not included SKT-CG180/250) SKT-LCG30、SKT-LCG50、SKT-LCG70 SKT-CGT series |
Pozicionáló karok

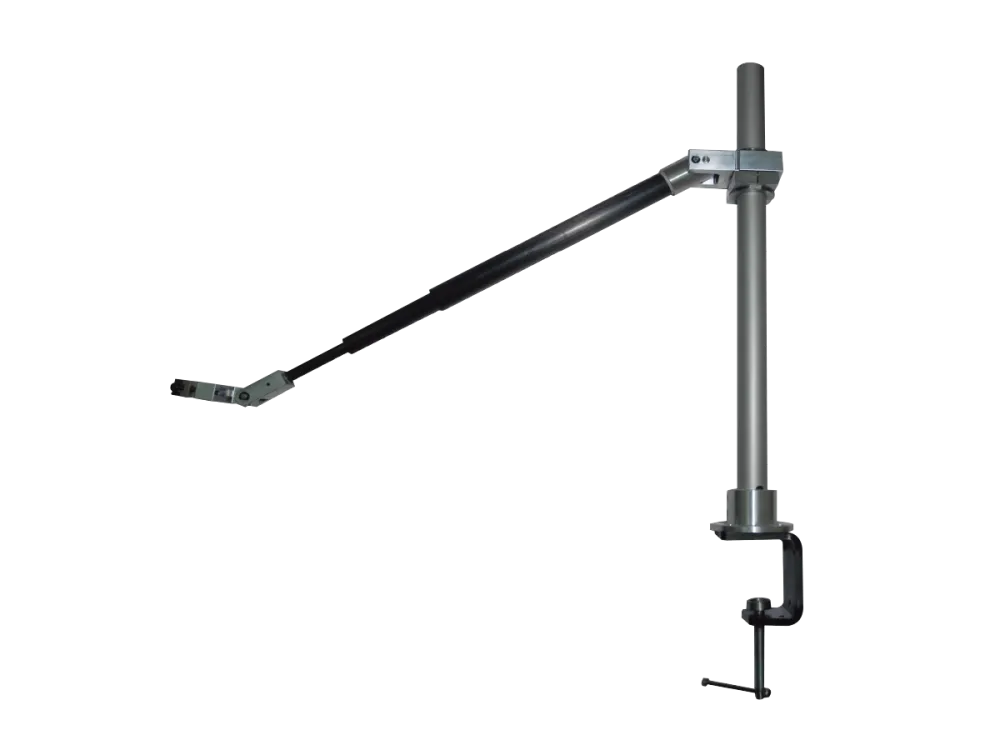

Kilews KP-AUX-B/C/D/E series
KP-AUX-B/C/D/E series
Közös adatok
| Max torque (Nm) | 50 |
| Tool Ø diameter(mm) | 38.5~52 |
Modellek összehasonlítása
| Model | A(mini/maxi) cm |
|---|---|
| KP-AUX-C50-1000 | 43~100 |
| KP-AUX-C50-1200 | 50~120 |
| KP-AUX-E50-1000 | 43~100 |
| KP-AUX-E50-1200 | 50~120 |
| KP-AUX-B50-1000 | 43~100 |
| KP-AUX-B50-1200 | 50~120 |
| KP-AUX-D50-1000 | 43~100 |
| KP-AUX-D50-1200 | 50~120 |
Pozicionáló karok

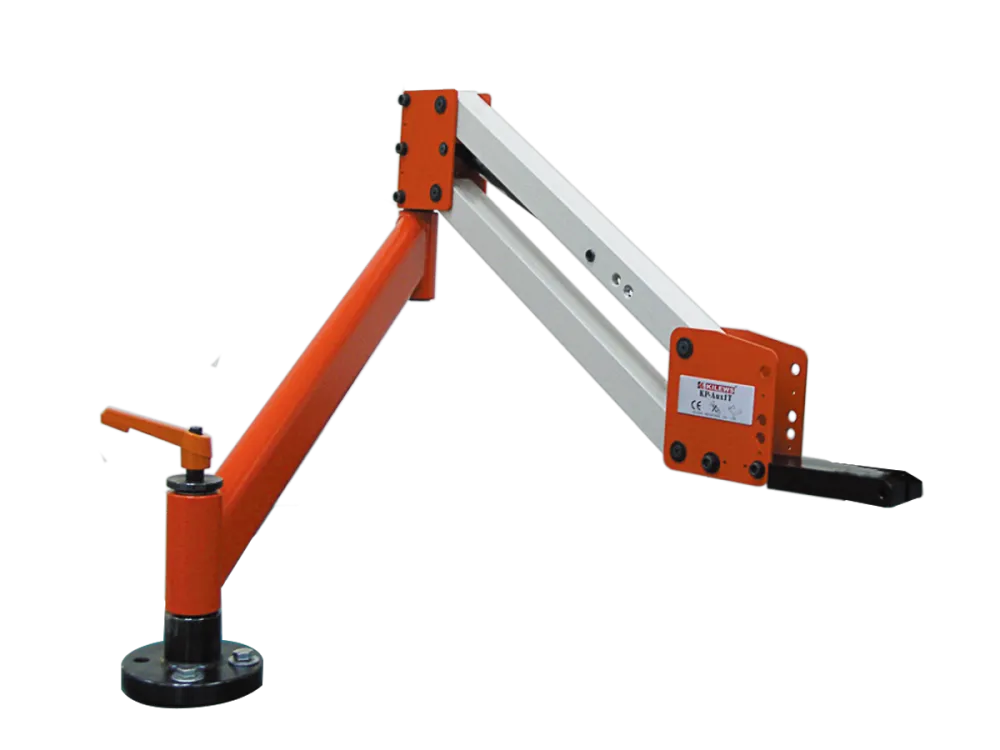

Kilews KP-AUXA、AUX1 series
Provide with the rocker arm , enable to revolve on 360 degrees.
Modellek összehasonlítása
| Model | KP-AUX1T | KP-AUX1T-B | KP-AUXA | KP-AUXA-1 | KP-AUXA-2 | KP-AUXA-500 |
|---|---|---|---|---|---|---|
| Description | Cantilevered | Cantilevered | Cantilevered | Cantilevered | Cantilevered | Cantilevered |
| Reach | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm |
| Gas Stick | 20Kg | 20kg | 25kg | 30kg | 25kg | 35kg |
| Applicable Models | SK-8 series、SK-9 series、SKD-8000 series | SKD-BN800 series、SKD-BE800 series | SKD-RBK series Not included RBK250LF/PF、350、500 Series | SKD-RBK series Not included RBK250LF/PF、350、500 Series | SKD-BK900 series | SKD-RBK250LF/PF、SKD-RBK350 series、SKD-RBK500 series |
| Remark | KP-VA1 Optional Accessories | KP-VA1 Optional Accessories | - | KP-VAR Optional Accessories | - | KP-VA2 Optional Accessories |
Újratölthetó akkumulátorok

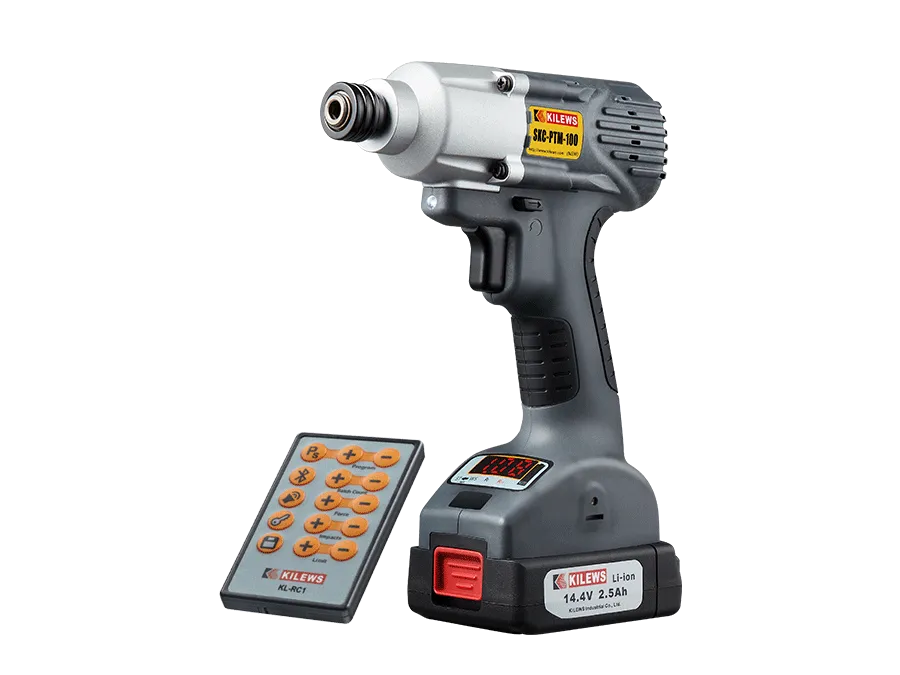

Kilews SKC-PTM-50/70/100
OK & NG indicator - Prevent cross head and stripped screw to secure fastening quality.
Közös adatok
| Input Voltage | 14.4V |
| Weight (Kg) | 1 |
| Size LxH (mm) | 174X202 |
| Applicable Battery | SKC-LB1430 |
| Applicable Charge Station | SKC-P70W |
Modellek összehasonlítása
| Model | Free Speed (r.p.m) | (b.p.m) | Torque (N.m) | Bolt Size (Class | Bit Type | Torque Tester |
|---|---|---|---|---|---|---|
| SKC-PTM-100 | 0~2000 | 0 ~ 2600 | 20 ~ 100 | 12.9) Torque:(M10) 8 - 40 N.m (M12) 20- 70 N.m (M14) 20 - 90 N.m (M16) 25 - 100 N.m | B 9.5 、W 3/8〞、W 1/2〞 | KTM-IWT400 |
| SKC-PTM-70 | 0~2600 | 0 ~ 3400 | 20~70 | 12.9) Torque:(M8) 8 - 30 N.m (M10) 8 - 40 N.m (M12) 20 - 60 N.m (M14) 25 - 70 N.m | B 9.5 、W 3/8〞 | KTM-IWT400 |
| SKC-PTM-50 | 0~1900 | 0 ~ 2500 | 8 ~50 | 12.9) Torque:(M6) 3 - 20 N.m (M8) 3 - 20 N.m (M10) 5 - 30 N.m (M12) 12 - 50 N.m | B 9.5、W 3/8〞 | KTM-IWT50、KTM-IWT400 |
Újratölthetó akkumulátorok

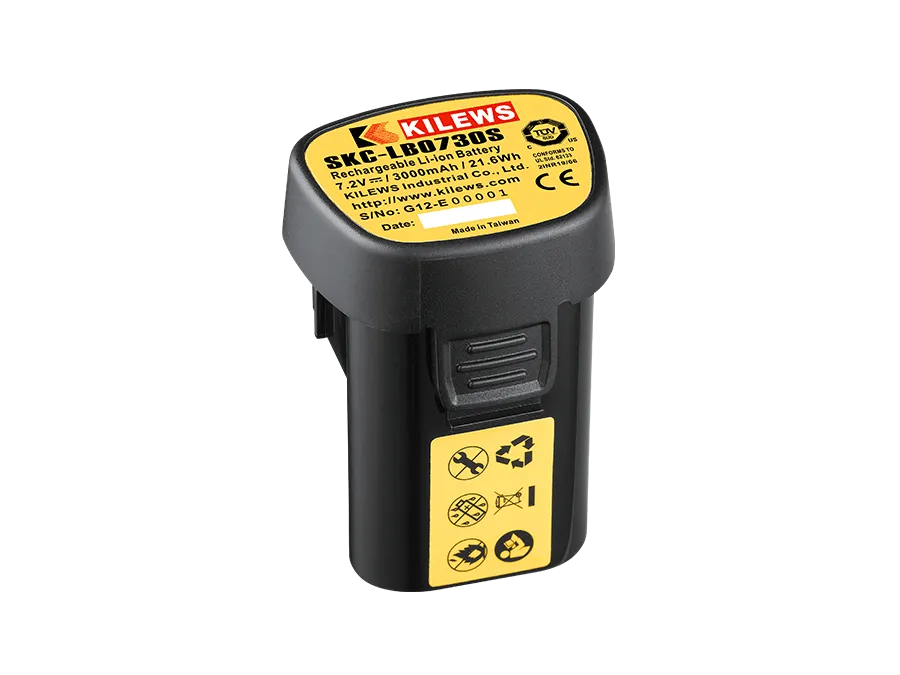

Kilews SKC-LB0730S
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |

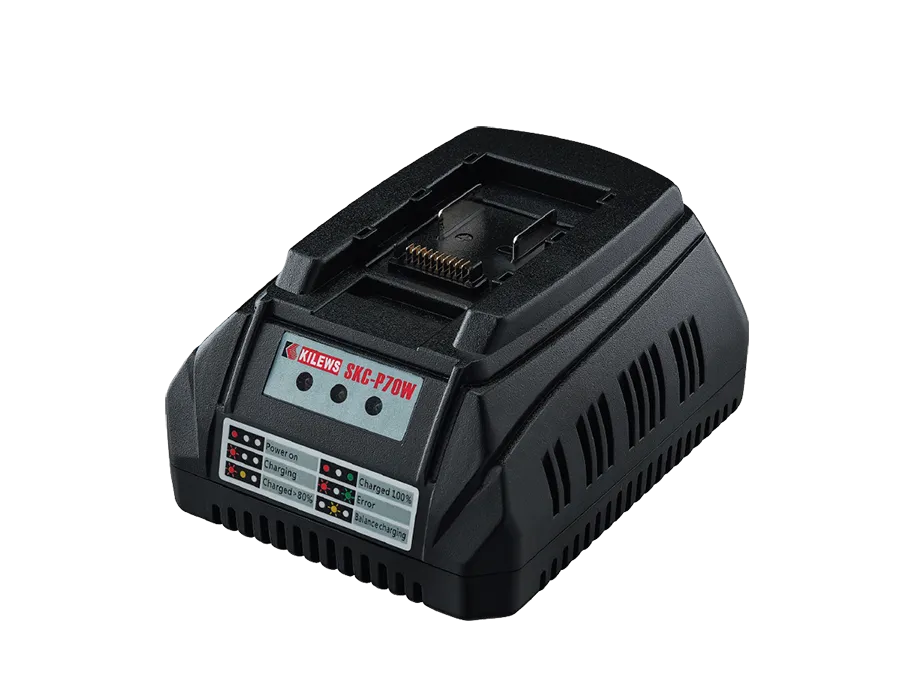

| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |

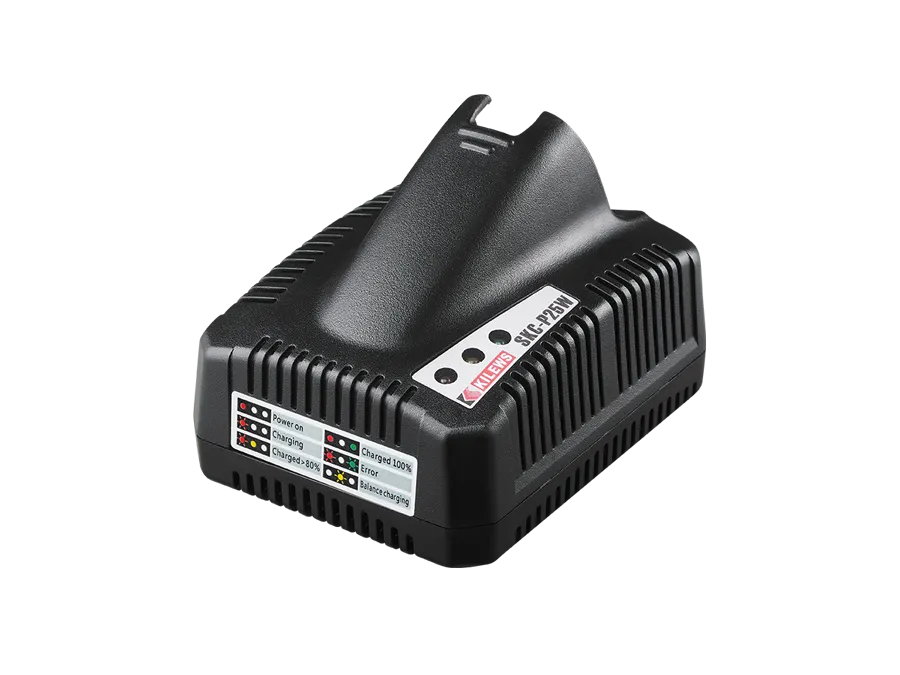

| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB0730S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|
| Voltage | 7.2V | — | — | — |
| Capacity | 3000mA/hr | — | — | — |
| Rated voltage | 7.2V | — | — | — |
| Power | 21.6Wh | — | — | — |
| Cells Permutation | 2 series 1 parallel | — | — | — |
| Weight | 128g | — | — | — |
| Dimensions (mm) | 51X44X70 | — | — | — |
| Certification | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | — | — | — |
| SKC-LB1820 | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — |
| SKC-LB1430 | — | — | — | — |
| SKC-LB1030S | — | — | — | — |
| SKC-LB0730S | — | — | — | — |
Újratölthetó akkumulátorok

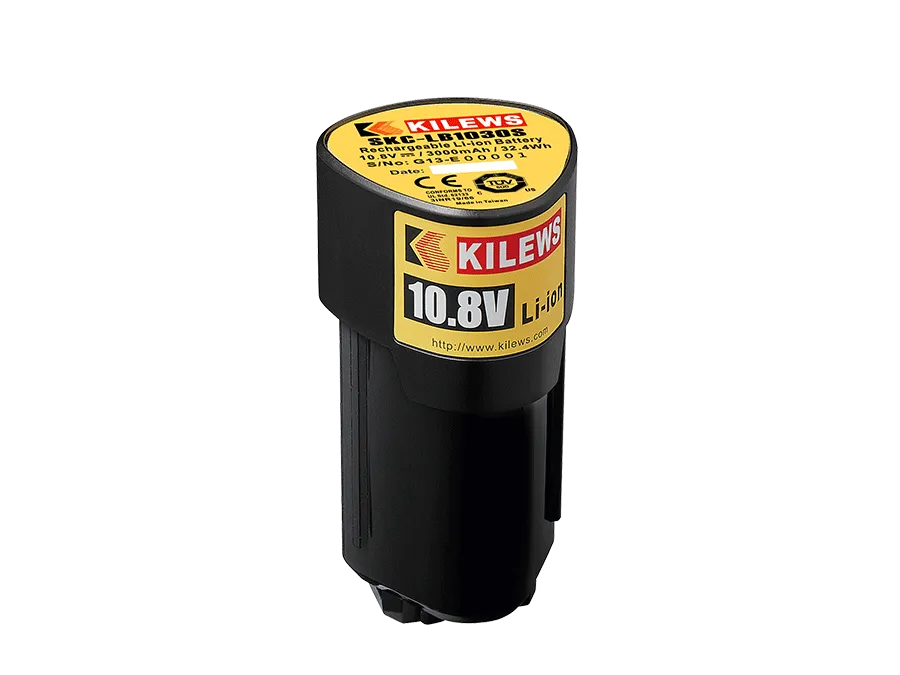

Kilews SKC-LB1030S
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |
| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |
| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB1820 | SKC-LB1840 | SKC-LB1830C | SKC-LB1430 | SKC-LB1030S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|---|---|---|---|
| Voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Capacity | 1950mA/HR | 3900mA/HR | 3000mA/HR | 3000mA/HR | 3000mA/HR | — | — | — |
| Rated voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Power | 35Wh | 70Wh | 54Wh | 43.2Wh | 32.4Wh | — | — | — |
| Cells Permutation | 5 series 1 parallel | 5 series 2 parallel | 5 series 1 parallel | 4 series 1 parallel | 3 series 1 parallel | — | — | — |
| Weight | 430g | 720g | 430g | 327g | 194g | — | — | — |
| Dimensions (mm) | 119x90x40 | 119x90x59 | 92x75x63 | 107x75x43 | 51x46x90 | — | — | — |
| Certification | CE，TUV | CE，TUV | CE，TUV | CE，TUV | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | YES | YES | YES | YES | — | — | — |
| SKC-LB1820 | — | — | — | — | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | — | — | — | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — | — | — | — | — |
| SKC-LB1430 | — | — | — | — | — | — | — | — |
| SKC-LB1030S | — | — | — | — | — | — | — | — |
| SKC-LB0730S | — | — | — | — | — | — | — | — |
Újratölthetó akkumulátorok

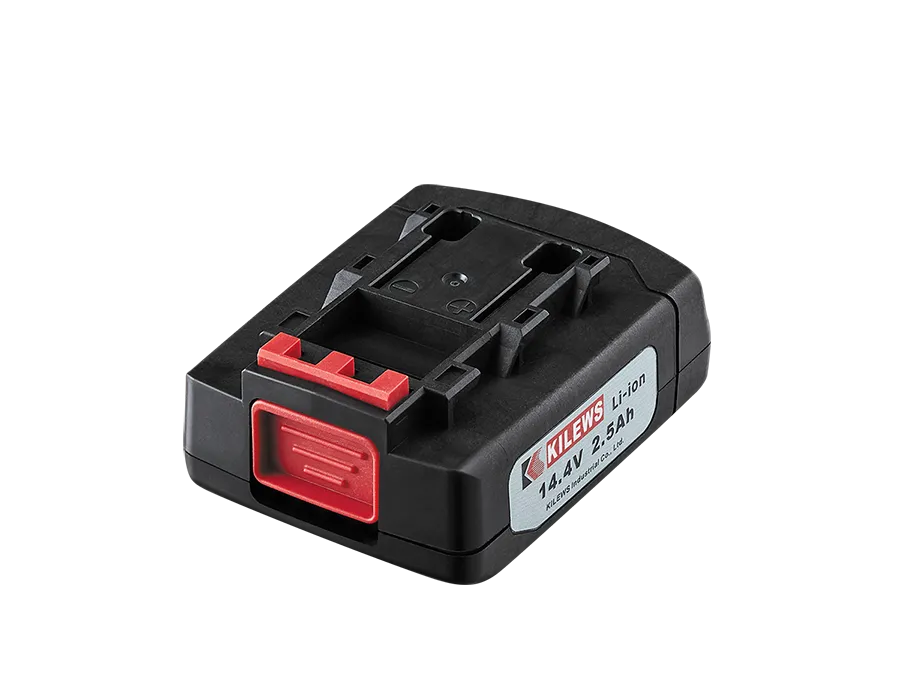

Kilews SKC-LB1430
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |
| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |
| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB1820 | SKC-LB1840 | SKC-LB1830C | SKC-LB1430 | SKC-LB1030S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|---|---|---|---|
| Voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Capacity | 1950mA/HR | 3900mA/HR | 3000mA/HR | 3000mA/HR | 3000mA/HR | — | — | — |
| Rated voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Power | 35Wh | 70Wh | 54Wh | 43.2Wh | 32.4Wh | — | — | — |
| Cells Permutation | 5 series 1 parallel | 5 series 2 parallel | 5 series 1 parallel | 4 series 1 parallel | 3 series 1 parallel | — | — | — |
| Weight | 430g | 720g | 430g | 327g | 194g | — | — | — |
| Dimensions (mm) | 119x90x40 | 119x90x59 | 92x75x63 | 107x75x43 | 51x46x90 | — | — | — |
| Certification | CE，TUV | CE，TUV | CE，TUV | CE，TUV | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | YES | YES | YES | YES | — | — | — |
| SKC-LB1820 | — | — | — | — | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | — | — | — | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — | — | — | — | — |
| SKC-LB1430 | — | — | — | — | — | — | — | — |
| SKC-LB1030S | — | — | — | — | — | — | — | — |
| SKC-LB0730S | — | — | — | — | — | — | — | — |
Újratölthetó akkumulátorok

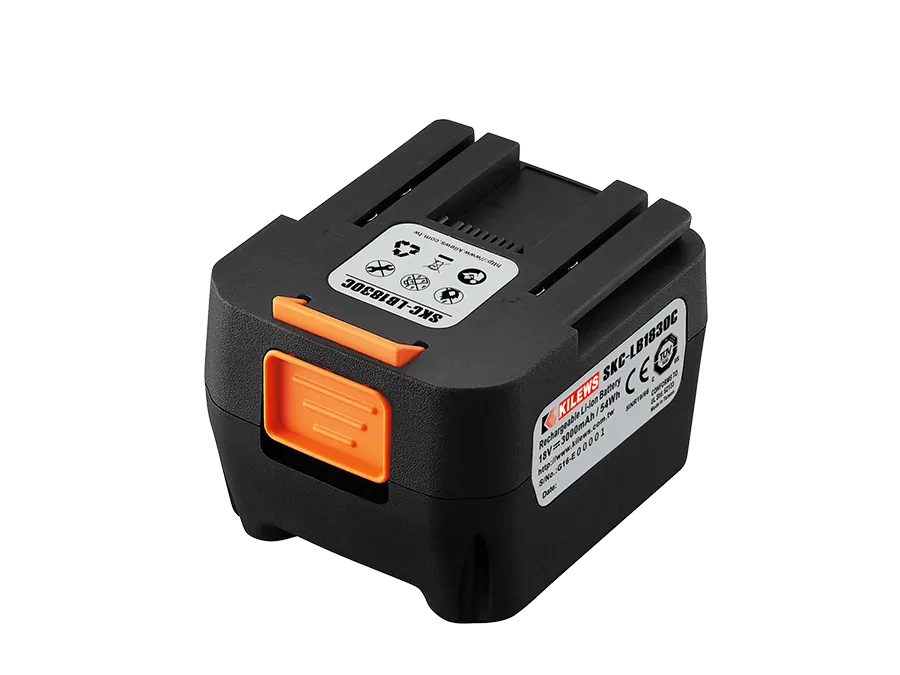

Kilews SKC-LB1830C
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |
| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |
| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB1820 | SKC-LB1840 | SKC-LB1830C | SKC-LB1430 | SKC-LB1030S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|---|---|---|---|
| Voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Capacity | 1950mA/HR | 3900mA/HR | 3000mA/HR | 3000mA/HR | 3000mA/HR | — | — | — |
| Rated voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Power | 35Wh | 70Wh | 54Wh | 43.2Wh | 32.4Wh | — | — | — |
| Cells Permutation | 5 series 1 parallel | 5 series 2 parallel | 5 series 1 parallel | 4 series 1 parallel | 3 series 1 parallel | — | — | — |
| Weight | 430g | 720g | 430g | 327g | 194g | — | — | — |
| Dimensions (mm) | 119x90x40 | 119x90x59 | 92x75x63 | 107x75x43 | 51x46x90 | — | — | — |
| Certification | CE，TUV | CE，TUV | CE，TUV | CE，TUV | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | YES | YES | YES | YES | — | — | — |
| SKC-LB1820 | — | — | — | — | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | — | — | — | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — | — | — | — | — |
| SKC-LB1430 | — | — | — | — | — | — | — | — |
| SKC-LB1030S | — | — | — | — | — | — | — | — |
| SKC-LB0730S | — | — | — | — | — | — | — | — |
Újratölthetó akkumulátorok

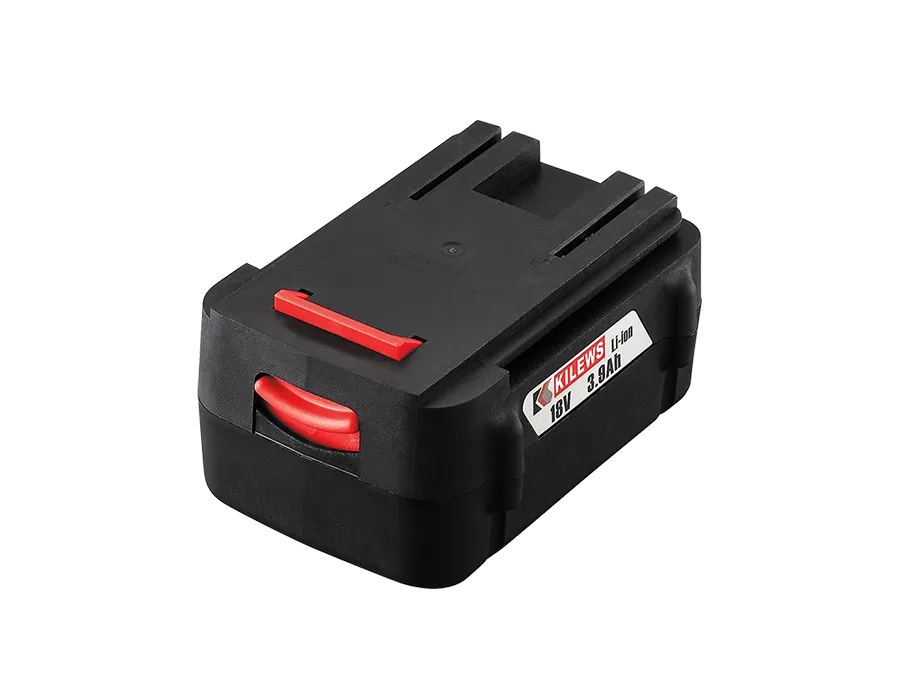

Kilews SKC-LB1840
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |
| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |
| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB1820 | SKC-LB1840 | SKC-LB1830C | SKC-LB1430 | SKC-LB1030S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|---|---|---|---|
| Voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Capacity | 1950mA/HR | 3900mA/HR | 3000mA/HR | 3000mA/HR | 3000mA/HR | — | — | — |
| Rated voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Power | 35Wh | 70Wh | 54Wh | 43.2Wh | 32.4Wh | — | — | — |
| Cells Permutation | 5 series 1 parallel | 5 series 2 parallel | 5 series 1 parallel | 4 series 1 parallel | 3 series 1 parallel | — | — | — |
| Weight | 430g | 720g | 430g | 327g | 194g | — | — | — |
| Dimensions (mm) | 119x90x40 | 119x90x59 | 92x75x63 | 107x75x43 | 51x46x90 | — | — | — |
| Certification | CE，TUV | CE，TUV | CE，TUV | CE，TUV | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | YES | YES | YES | YES | — | — | — |
| SKC-LB1820 | — | — | — | — | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | — | — | — | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — | — | — | — | — |
| SKC-LB1430 | — | — | — | — | — | — | — | — |
| SKC-LB1030S | — | — | — | — | — | — | — | — |
| SKC-LB0730S | — | — | — | — | — | — | — | — |
Újratölthetó akkumulátorok

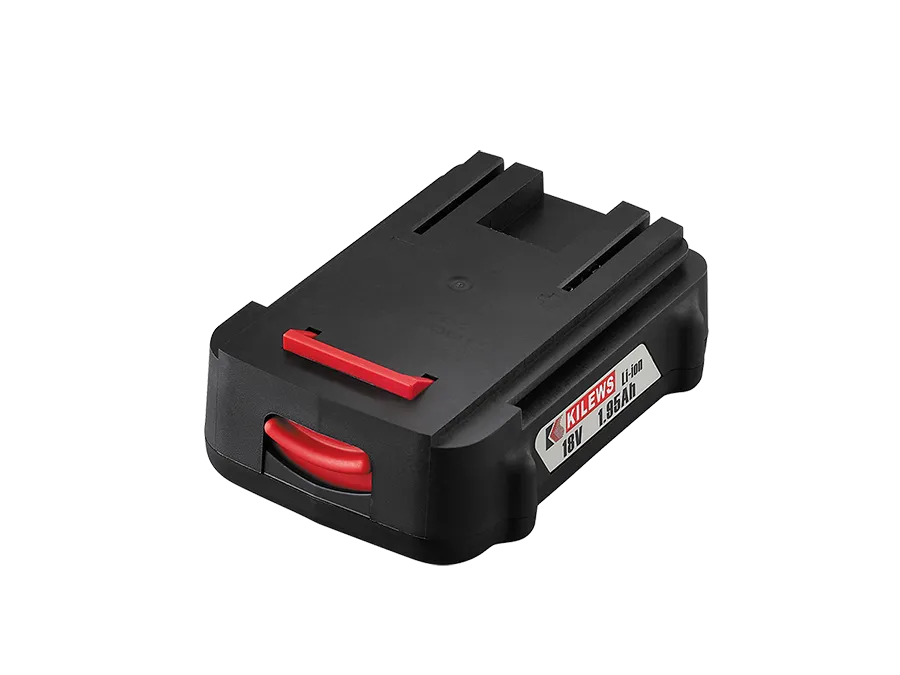

Kilews SKC-LB1820
Adopting Japanese high performance Li-ion (Li-Mn) battery.
Közös adatok
| SKC-80WN-D | 45 min. |
| SKC-P70W | 70 min. |
| SKC-50WN-S | 55 min. |
| SKC-P25W | 70 min. |
Modellek összehasonlítása
| Model | SKC-LB1820 | SKC-LB1840 | SKC-LB1830C | SKC-LB1430 | SKC-LB1030S | SKC-P120W | SKC-P80WN | SKC-80WN |
|---|---|---|---|---|---|---|---|---|
| Voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Capacity | 1950mA/HR | 3900mA/HR | 3000mA/HR | 3000mA/HR | 3000mA/HR | — | — | — |
| Rated voltage | 18V | 18V | 18V | 14.4V | 10.8V | — | — | — |
| Power | 35Wh | 70Wh | 54Wh | 43.2Wh | 32.4Wh | — | — | — |
| Cells Permutation | 5 series 1 parallel | 5 series 2 parallel | 5 series 1 parallel | 4 series 1 parallel | 3 series 1 parallel | — | — | — |
| Weight | 430g | 720g | 430g | 327g | 194g | — | — | — |
| Dimensions (mm) | 119x90x40 | 119x90x59 | 92x75x63 | 107x75x43 | 51x46x90 | — | — | — |
| Certification | CE，TUV | CE，TUV | CE，TUV | CE，TUV | CE，TUV | — | — | — |
| UN38.3 Inspection report | YES | YES | YES | YES | YES | — | — | — |
| SKC-LB1820 | — | — | — | — | — | 40 min. | 40 min. | 40 min. |
| SKC-LB1840 | — | — | — | — | — | 60 min. | 80 min. | 80 min. |
| SKC-LB1830C | — | — | — | — | — | — | — | — |
| SKC-LB1430 | — | — | — | — | — | — | — | — |
| SKC-LB1030S | — | — | — | — | — | — | — | — |
| SKC-LB0730S | — | — | — | — | — | — | — | — |
Akkumulátoros csavarozók toltóállomásai
Kilews SKC-P25W
SKC-P25W
Model
SKC-P25W
Input Voltage
100V~240V
Output Voltage
8.4V
Output Current
3.0A
| Applicable BatteryModel | SKC-LB0730S |
| Battery Identification | V |
| Buzzer | V |
| Cooling fan | - |
| Dimensions (WXLXH) | 115X145X101mm |
| Weight | 430g |
| LCD Display | - |
| Safety Certification | CE、ETL |
Akkumulátoros csavarozók toltóállomásai

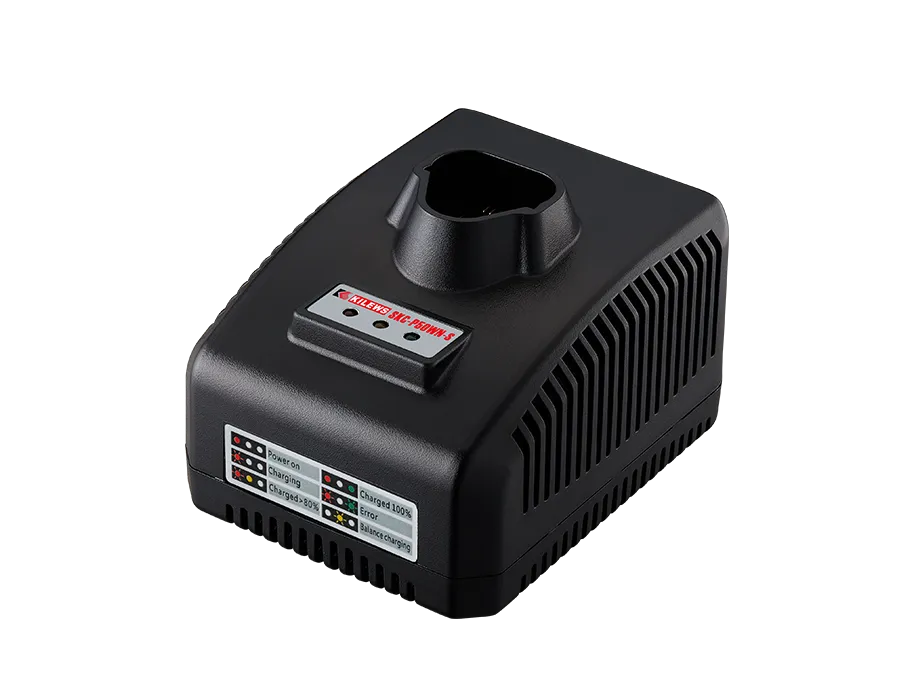

Kilews SKC-P50WN-S
Built-in LCD display shows recharging status. If the temperature is over the limit when recharging, the charge station will activate the protection function to stop recharging.
Model
SKC-P50WN-S
Input Voltage
100V~240V
Output Voltage
12.6V
Output Current
3.75A
| Applicable BatteryModel | SKC-LB1030S |
| Battery Identification | V |
| Buzzer | V |
| Cooling fan | - |
| Dimensions (WXLXH) | 145X115X93mm |
| Weight | 470g |
| LCD Display | - |
| Safety Certification | CE,ETL |
Akkumulátoros csavarozók toltóállomásai
Kilews SKC-P70W
Built-in LCD display shows recharging status. If the temperature is over the limit when recharging, the charge station will activate the protection function to stop recharging.
Model
SKC-P70W
Input Voltage
100V~240V
Output Voltage
16.8V
Output Current
3 A
| Applicable BatteryModel | SKC-LB1430 |
| Battery Identification | V |
| Buzzer | V |
| Cooling fan | - |
| Dimensions (WXLXH) | 145X115X75mm |
| Weight | 460g |
| LCD Display | - |
| Safety Certification | CE,ETL |
