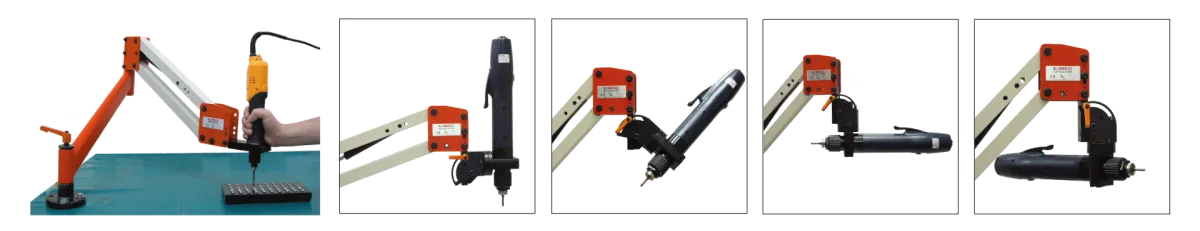

Kilews KP-AUXA、AUX1 series
Auxiliary Arm
Provide with the rocker arm , enable to revolve on
360 degrees.
A szállítási időt az ajánlatban pontosítjuk.
Modellek összehasonlítása
| Model | KP-AUX1T | KP-AUX1T-B | KP-AUXA | KP-AUXA-1 | KP-AUXA-2 | KP-AUXA-500 |
|---|---|---|---|---|---|---|
| Description | Cantilevered | Cantilevered | Cantilevered | Cantilevered | Cantilevered | Cantilevered |
| Reach | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm | 50mm~830mm |
| Gas Stick | 20Kg | 20kg | 25kg | 30kg | 25kg | 35kg |
| Applicable Models | SK-8 series、SK-9 series、SKD-8000 series | SKD-BN800 series、SKD-BE800 series | SKD-RBK series Not included RBK250LF/PF、350、500 Series | SKD-RBK series Not included RBK250LF/PF、350、500 Series | SKD-BK900 series | SKD-RBK250LF/PF、SKD-RBK350 series、SKD-RBK500 series |
| Remark | KP-VA1 Optional Accessories | KP-VA1 Optional Accessories | - | KP-VAR Optional Accessories | - | KP-VA2 Optional Accessories |
Features KP-AUXA, KP-AUX1T Provide with the rocker arm , enable to revolve on 360 degrees. Main shaft can be extended to maximum 830mm Power arm inside includes nitrogen gas stick , allow user to grab the arm easily, automatic lift up to position after finishing the work . Easy to assemble and disassemble. Optional accessory KP-VA1, KP-VA2, KP-VAR (90 degree adapter) is available for user to adjust angle in accordance with the object to be fastened.

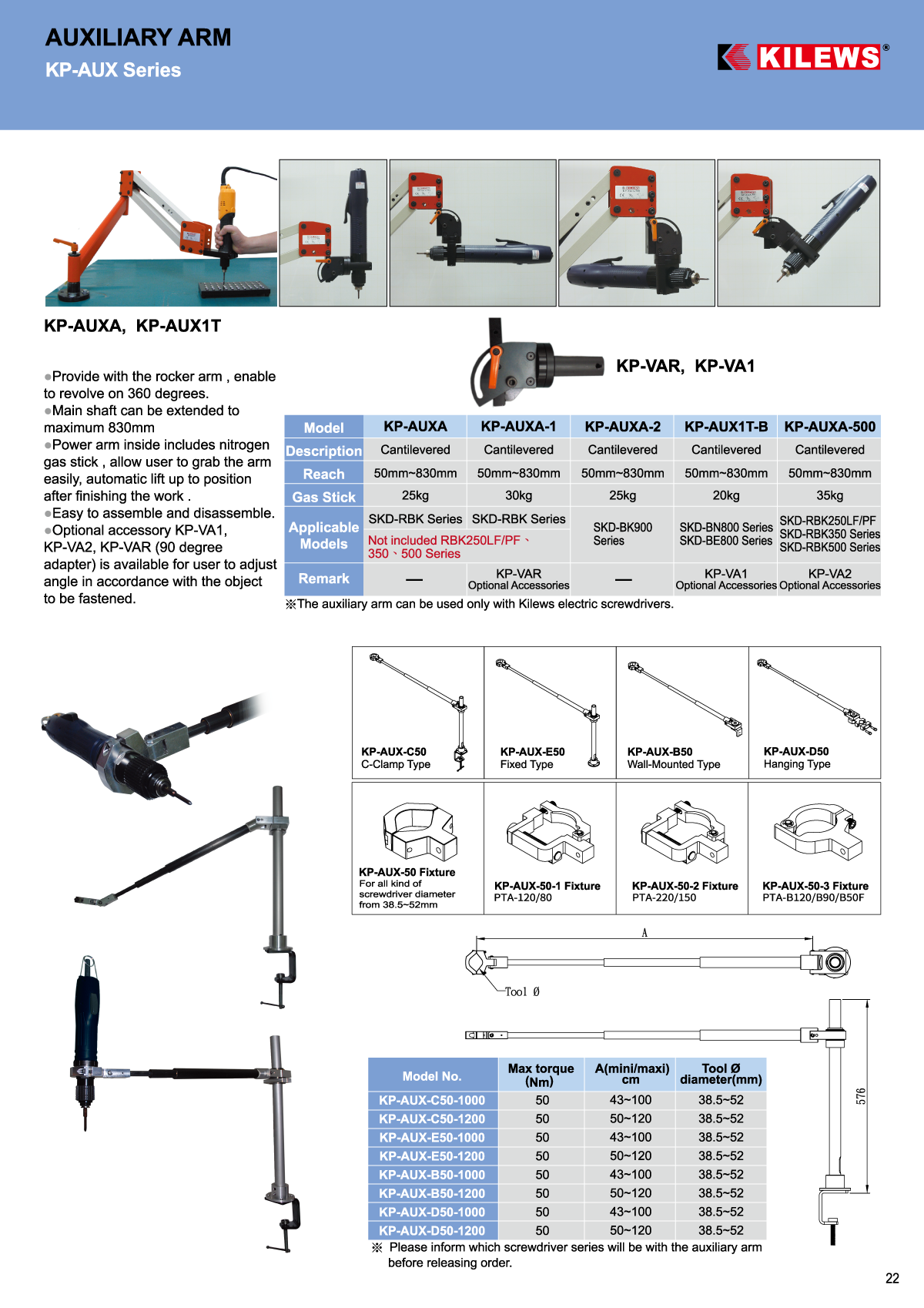

- 📄 Dokumentum: download_202010131940592.pdf
- 📄 Dokumentum: download_202402071504362.png
