Minden rework feladat egy állomáson
JBC Komplett rework állomások
A JBC komplett rework állomások „all-purpose” megoldást adnak: egy rendszerrel lefedhető a precíz forrasztás, az SMD rework és a nagyobb igénybevételű feladatok is, így kevesebb kompromisszummal és gyorsabban dolgozhatsz.
Komplett rework állomások
JBC DME Control Unit
DME control unit enables simultaneous operation with at least 4 soldering or desoldering tools and is fully compatible with 13 JBC tools, delivering up to 150 W per tool.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Control Unit | 232 x 148 x 120 mm / 4.57 kg. , 9.13 x 5.83 x 4.72 in / 10.08 lb. |
| Package | 258 x 328 x 208 mm / 4.97 kg. , 10.16 x 12.91 x 8.19 in / 10.96 lb. |
Komplett rework állomások
JBC DDE Control Unit
This control unit operates with 2 soldering or desoldering tools simultaneously and is fully compatible with 13 different JBC Tools delivering up to 150 W per tool.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Control Unit | 232 x 148 x 120 mm / 3.82 kg. , 9.13 x 5.83 x 4.72 in / 8.41 lb. |
| Package | 258 x 328 x 208 mm / 4.27 kg. , 10.16 x 12.91 x 8.19 in / 9.41 lb. |
Komplett rework állomások
JBC DMPSE Station
DMPSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is perfect for precise soldering, SMD rework and handling high-power applications and enables efficient desoldering of through-hole components.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 13.06 kg. , 9.13 x 5.83 x 4.72 in / 28.79 lb. |
| Package | 495 x 415 x 395 mm / 18.56 kg. , 19.49 x 16.34 x 15.55 in / 40.92 lb. |
Komplett rework állomások
JBC DMPSD Station
DMPSD is perfect for precise soldering, SMD rework and handling high-power tasks, ensuring efficient desoldering of through-hole components.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 13.18 kg. , 9.13 x 5.83 x 4.72 in / 29.07 lb. |
| Package | 620 x 385 x 395 mm / 19.80 kg. , 24.41 x 15.16 x 15.55 in / 43.65 lb. |
Komplett rework állomások
JBC DMSE Station
Equipped with MSE Module, DMSE Station offers a versatile solution for SMD and high-power applications. Its powerful suction module excels in desoldering through-hole components and removing excess solder after SMD rework, ensuring clean, precise results across a wide range of soldering tasks.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 7.85 kg. , 9.13 x 5.83 x 4.72 in / 17.30 lb. |
| Package | 425 x 360 x 433 mm / 11.28 kg. , 16.73 x 14.17 x 17.05 in / 24.86 lb. |
Komplett rework állomások
JBC DMSD Station
DMSD offers a solution for both SMDs and high-power applications. This station is perfect for desoldering jobs of through-hole components and removing excess solder after SMD rework.
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
| Idle temp. stability (still air) | ±1.5 ºC / ±3 ºF / Meets and exceeds , IPC J-STD-001F |
| Temperature accuracy | ±3 % (using reference cartridge) |
| Temp. adjustment | ±50 ºC / ±90 ºF through station setting menu |
| Tip to ground vol./ resist. | Meets and exceeds , ANSI/ESD S20.20 and IPC J-STD-001F |
| Ambient Operating Temp | 10 - 40 ºC / 50 - 104 ºF |
| USB-A | Firmware Update , Graphics and Profiles , Dino-Lite USB Microscope (models AM2011, AM2111) |
| USB-B | PC Communication |
| RJ12 | Fume Extractor/Peripherals/Robot |
| Power | 42 W |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Ambient Operating Temp | 10 - 40 °C / 50 - 104 °F |
| Pedal connector | Yes |
| Control Unit | 232 x 148 x 120 mm / 7.23 kg. , 9.13 x 5.83 x 4.72 in / 15.93 lb. |
| Package | 495 x 415 x 395 mm / 10.26 kg. ,19.49 x 16.34 x 15.55 in / 22.61 lb. |
Komplett rework állomások
JBC RMSE System
RMSE Station, equipped with MSE Module, ensures efficient and precise solder removal with its powerful suction system. It provides the fastest and safest solution for soldering and rework, including hot air applications. The station features stackable modules and it includes all the necessary accessories to simplify your work.
Nominal power
700 W
Selectable temperature
150 to 450 °C / 300 to 840 °F
Air flow regulation
5 to 50 SLPM
| Vacuum | 30% / 228 mmHg / 9 inHg |
| Profiles | 25 (up to 10 steps for each), 1 preset profile |
| Type K TC connector | 1 for Control & Protection |
| ESD safe | Meet ANSI / ESD S20.20-2021 |
| Equipotential bonding | Connection to EPA |
| USB-A | Firmware update Graphics and profiles |
| USB-B | PC communications |
| RJ12 Connector | Remote control or FAE Fume Extractor connection |
| Pedal connector | Tool control |
| Peak power | 150 W per tool |
| Selectable temperature | 90 to 450 ºC / 190 to 840 ºF |
| Temperature accuracy | ±3% |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Equipotential bonding | Optional connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Vacuum | 85% / 640mmHg / 25.4inHg |
| Flow rate | 35 SLPM |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Control Unit | 232 x 148 x 295 mm / 14.83 kg. , 9.13 x 5.83 x 11.61 in / 32.69 lb. |
| Package | 700 x 410 x 390 mm / 20.88 kg. , 27.56 x 16.14 x 15.35 in / 46.03 lb. |
Komplett rework állomások

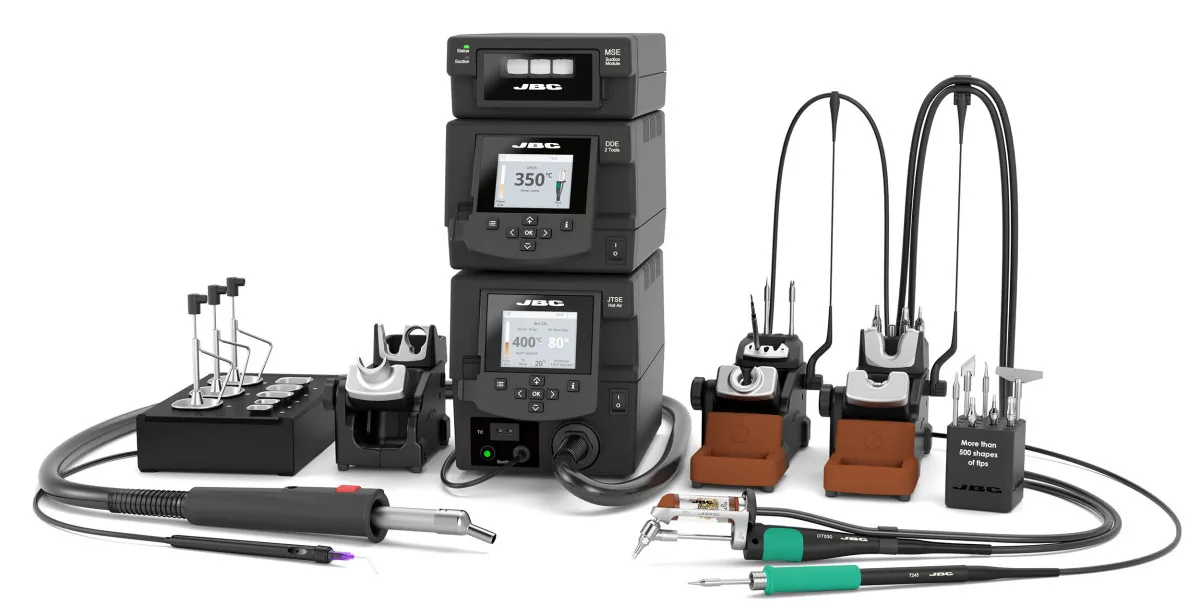

JBC RMSD System
RMSD is not only the fastest but also the safest option for soldering and rework, including the use of hot air.
Nominal power
700 W
Selectable temperature
150 to 450 °C / 300 to 840 °F
Air flow regulation
5 to 50 SLPM
| Vacuum | 30% / 228 mmHg / 9 inHg |
| Profiles | 25 (up to 10 steps for each), 1 preset profile |
| Type K TC connector | 1 for Control & Protection |
| ESD safe | Meet ANSI / ESD S20.20-2021 |
| Equipotential bonding | Connection to EPA |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| RJ12 Connector | Remote control or FAE Fume Extractor connection |
| Pedal connector | Tool control |
| Peak power | 150 W per tool |
| Selectable temperature | 90 to 450 ºC / 190 to 840 ºF |
| Temperature accuracy | ±3% |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Equipotential bonding | Optional connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Control Unit | 232 x 148 x 295 mm / 13.85 kg. , 9.13 x 5.83 x 11.61 in / 30.53 lb. |
| Package | 615 x 368 x 637 mm / 19.83 kg. , 24.21 x 14.49 x 25.08 in / 43.71 lb. |
Komplett rework állomások

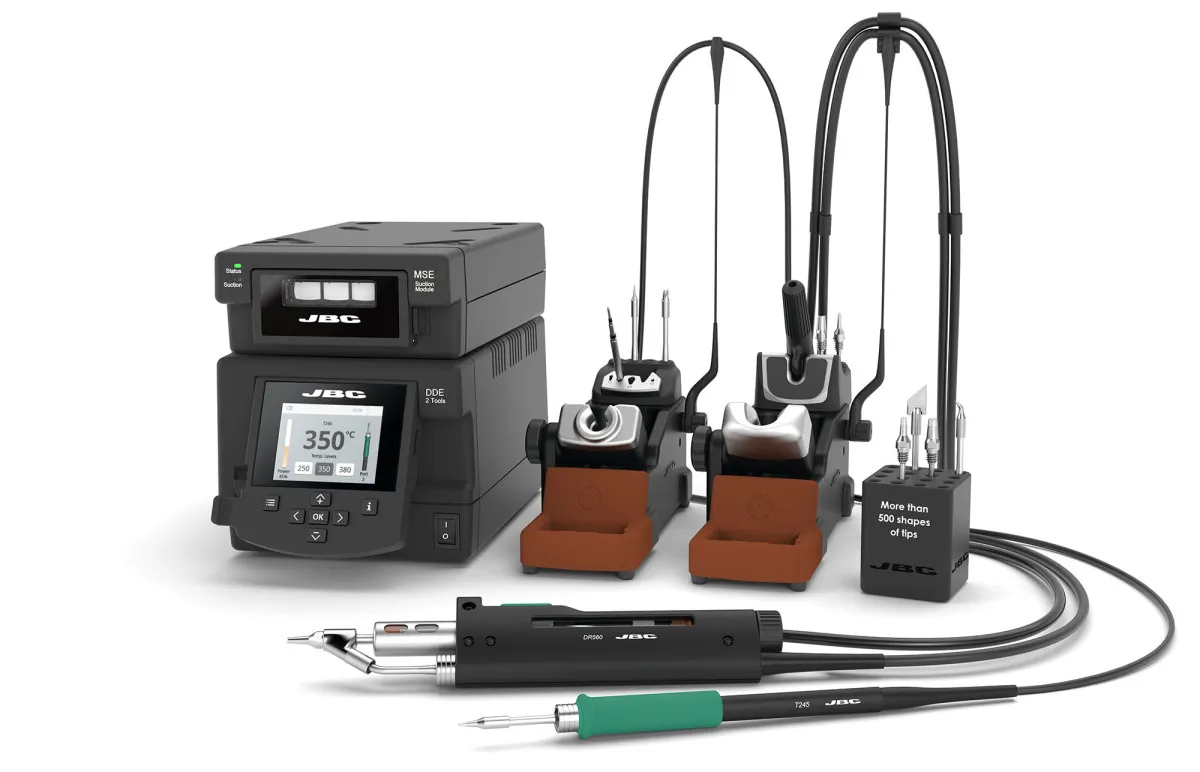

JBC DDSE Station
DDSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is ideal for SMDs, high-power applications, desoldering through-hole components and removing excess solder after SMD removal.
Nominal power
370W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Temperature accuracy | ±3% (using reference cartridge) |
| Temp. adjustment | ±50ºC / ±90ºF Through station menu setting |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Control Unit | 232 x 148 x 120 mm / 8.40 kg. , 9.13 x 5.83 x 4.72 in / 18.52 lb. |
| Package | 425 x 360 x 433 mm / 12.92 kg. , 16.73 x 14.17 x 17.05 in / 28.48 lb. |
Komplett rework állomások

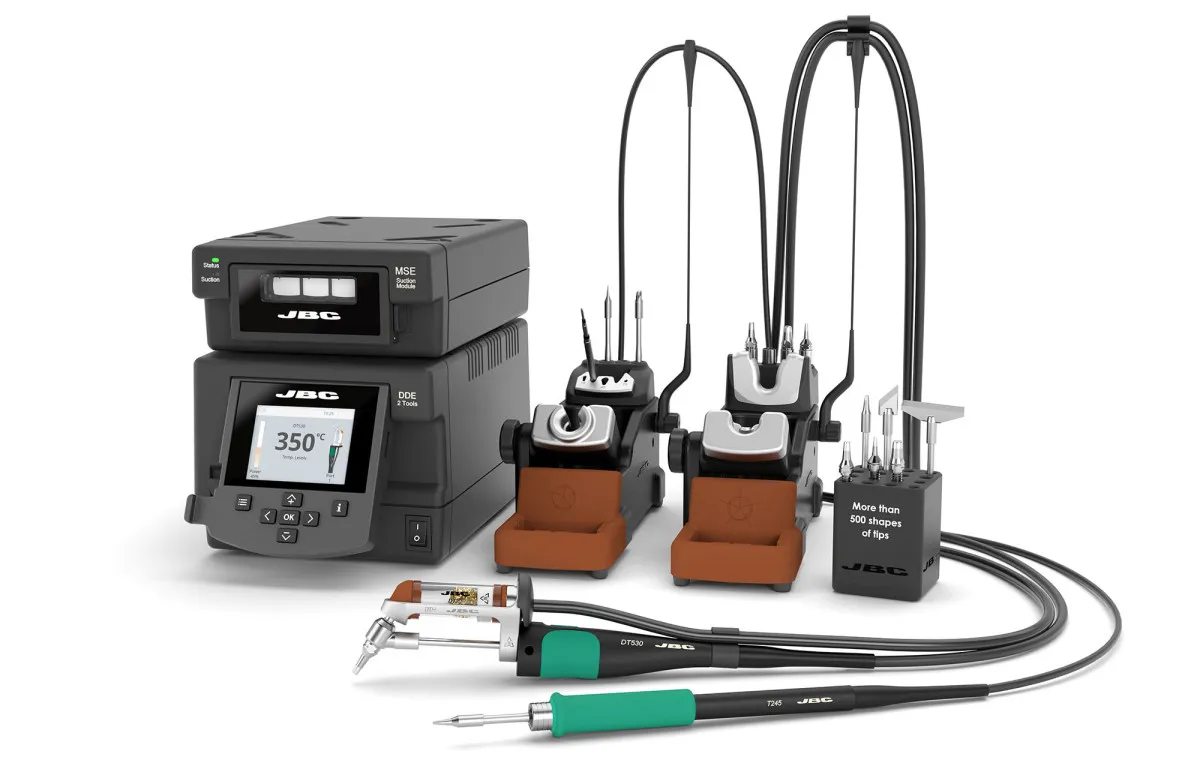

JBC DDSD Station
DDSD Station provides a versatile solution for SMD and high-power applications, excelling in desoldering through-hole components and removing excess solder after SMD removal. It is ideal for delivering clean, precise results across various soldering tasks.
Nominal power
370W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
| Vacuum | 85 % / 640 mmHg / 25.4 inHg |
| Flow rate | 35 SLPM |
| Temperature accuracy | ±3% (using reference cartridge) |
| Temp. adjustment | ±50ºC / ±90ºF Through station menu setting |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| ESD safe | Meet ANSI/ESD S20.20-2021 |
| Control Unit | 232 x 148 x 120 mm / 8.96 kg. , 9.13 x 5.83 x 4.72 in / 19.74 lb. |
| Package | 495 x 415 x 395 mm / 13.12 kg. , 19.49 x 16.34 x 15.55 in / 28.92 lb. |
Komplett rework állomások

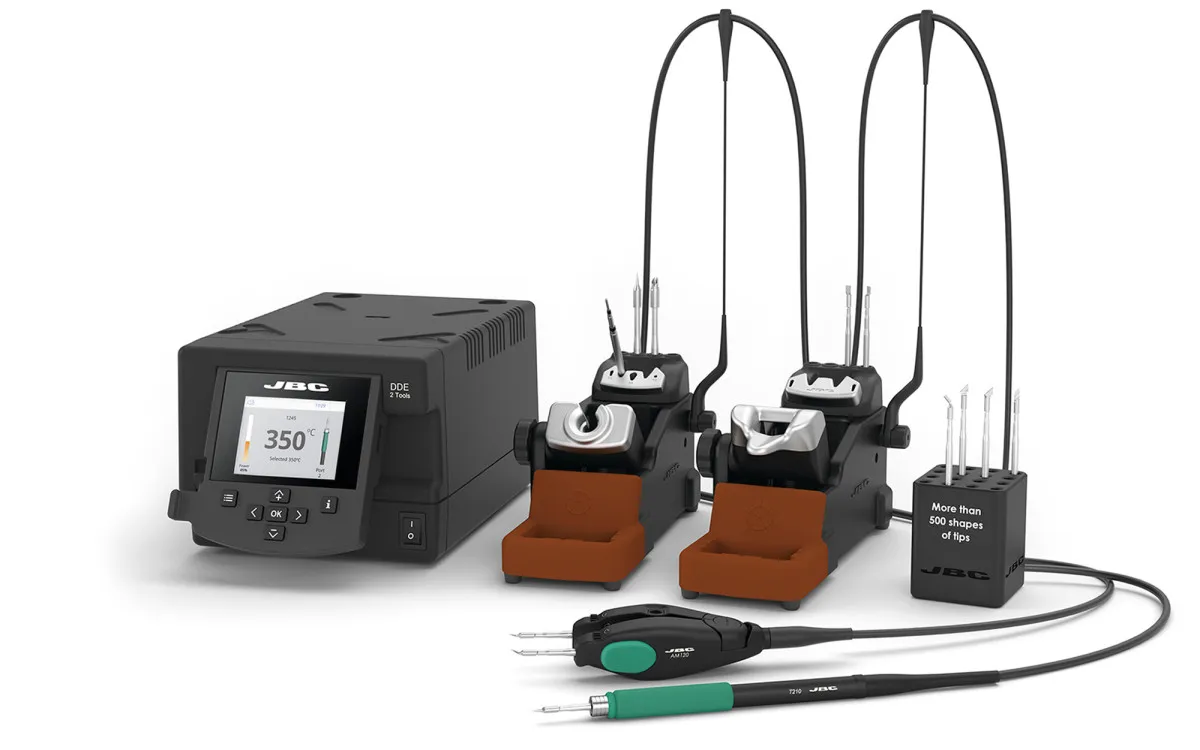

JBC DDPE Station
DDPE offers fast and precise rework for SMD components and small outline ICs.
Nominal power
370W
Peak power (Tool)
150W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
| Temperature accuracy | ±3% |
| Temp. adjustment | ±50ºC / ±90ºF Through station menu setting |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-A | Firmware update , Graphics and profiles |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Control Unit | 232 x 148 x 120 mm / 7.16 kg. , 9.13 x 5.83 x 4.72 in / 15.78 lb. |
| Package | 545 x 345 x 275 mm / 10.40 kg. , 21.46 x 13.58 x 10.83 in / 22.93 lb |
JBC Komplett rework állomások
A JBC komplett rework állomások „all-purpose” megoldást adnak: egy rendszerrel lefedhető a precíz forrasztás, az SMD rework és a nagyobb igénybevételű feladatok is, így kevesebb kompromisszummal és gyorsabban dolgozhatsz.
A több szerszámos vezérlők (2-es vagy 4-es port) lehetővé teszik, hogy egy állomással több feladatot kezelj, miközben portonként külön beállításokat adhatsz meg, valós időben láthatod a tip hőmérsékletet és a teljesítmény-leadást, illetve profilokkal csökkentheted a hősokk kockázatát.
A rendszer a mindennapi termelékenységet is támogatja: a szerszám felvételekor azonnal felfűt, gyors a hő-visszaállás, a Sleep & Hibernation módok pedig csökkentik az oxidációt és kímélik a hegyet, amikor a kéziszerszám a standban van.
A több szerszámos vezérlők (2-es vagy 4-es port) lehetővé teszik, hogy egy állomással több feladatot kezelj, miközben portonként külön beállításokat adhatsz meg, valós időben láthatod a tip hőmérsékletet és a teljesítmény-leadást, illetve profilokkal csökkentheted a hősokk kockázatát.
A rendszer a mindennapi termelékenységet is támogatja: a szerszám felvételekor azonnal felfűt, gyors a hő-visszaállás, a Sleep & Hibernation módok pedig csökkentik az oxidációt és kímélik a hegyet, amikor a kéziszerszám a standban van.
