COBOTTA kollaboratív Robotok
COBOTTA kollaboratív Robot

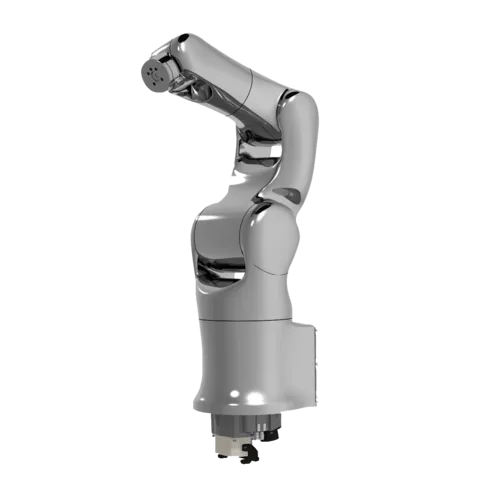

Denso Pharmaceutical & Medical Robot VS-050S2
model
VS-050S2
Arm Reach
520 mm
Payload
4 kg
Cycle Time
0.35 sec
| H2O2 resistant | 35% hydrogen peroxide steam(dry/wet) |
| Protection level | Wrist IP67 / Unit IP65 |
| Cleanliness | Cleanliness |
COBOTTA kollaboratív Robot

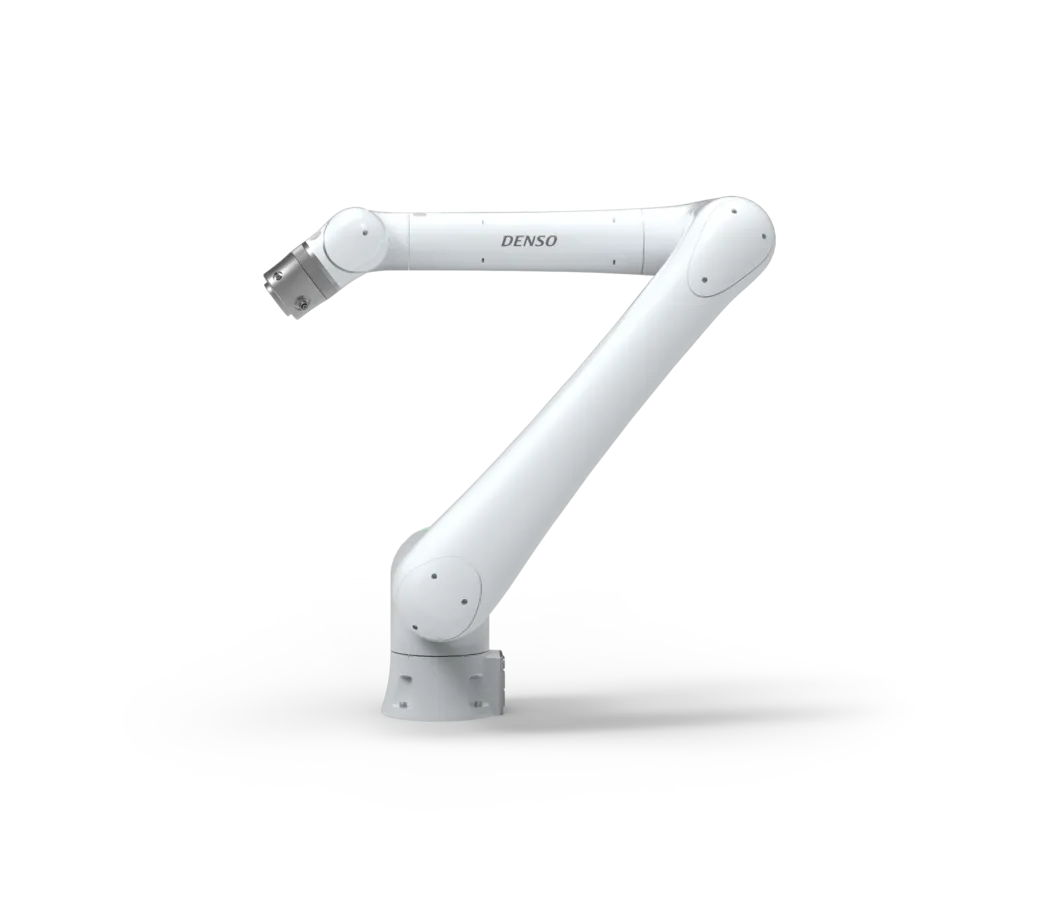

Denso Collaborative Robot COBOTTA PRO
Közös adatok
| Protection | IP54 |
| Cleanroom class | ISO 5 |
| ISO Standards | EN ISO 10218-1:2011, EN ISO 13849-1:2015, ISO/TS 15066:2016 |
Modellek összehasonlítása
| Model | Arm length | Payload | Max TCP Speed | Position repeatability |
|---|---|---|---|---|
| COBOTTA PRO 900 | 908 mm | 6kg | 2.100 mm/s | ± 0.03 mm |
| COBOTTA PRO 1300 | 1303 mm | 12 kg | 2.500 mm/s | ± 0.04 mm |
COBOTTA kollaboratív Robot

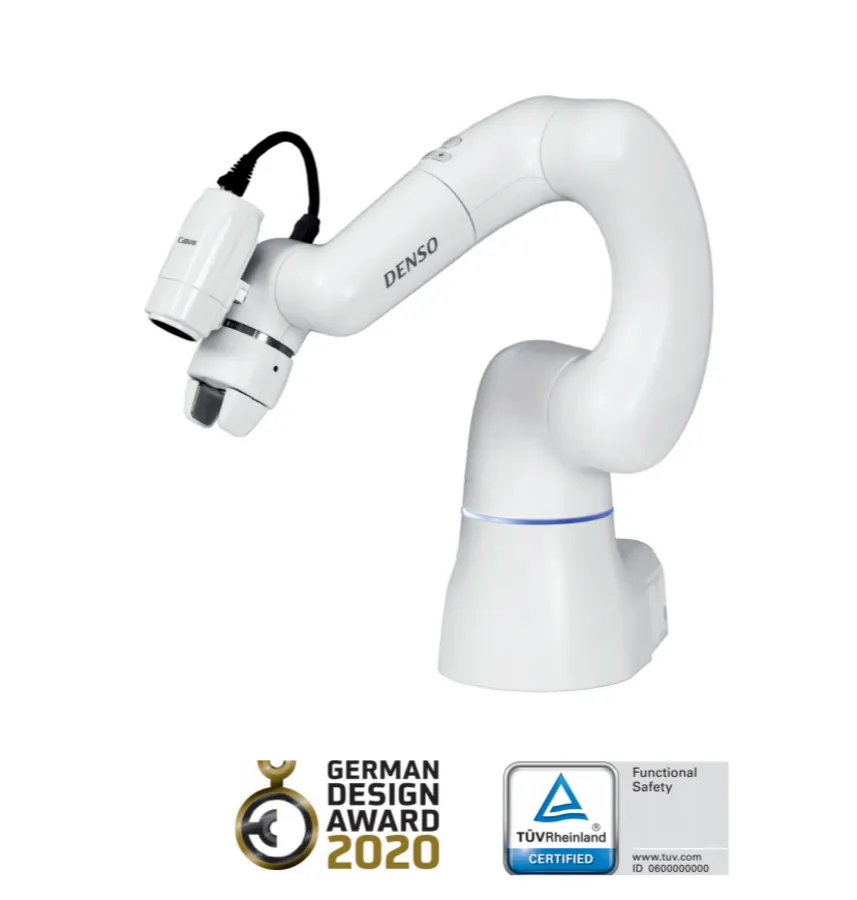

Denso Collaborative Robot COBOTTA
model
COBOTTA
Arm length
342.5 mm (TCP 385 mm)
Payload
0.5 kg (*0.7 kg wrist direction downward within ± 10 degrees)
Position repeatability
± 0.05 mm
| Total arm weight | 4 kg |
| Options | Built-in Electrical Gripper (force controlled) |
