Kilews SKD-TBN series

Brushless power torque dc-type automatic Pistol type series

Cikkszám: SKD-TBN60L/90L/120L/180L
RoHS CE
Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products.
Válassz termékvariációt


A szállítási időt az ajánlatban pontosítjuk.

Közös adatok
Repeatable Torque Accuracy (%) ±5%
Weight (Kg) 1.2

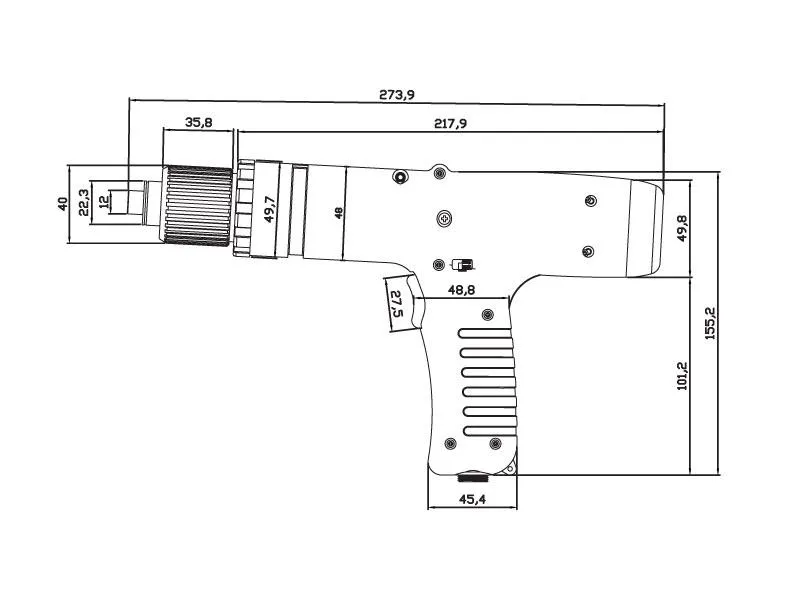

Length (mm) 274x160
Power Controller SKP-40B-HL-800
Bit Type B、W3/8”

Modellek összehasonlítása

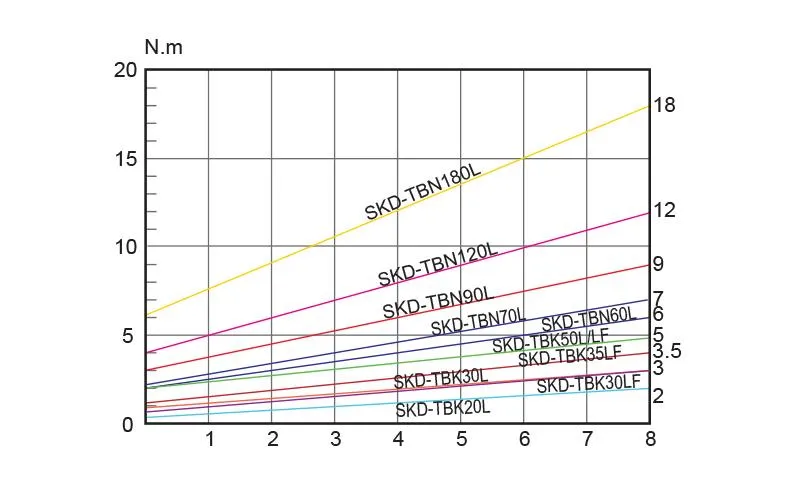

Model Torque (N.m) (Hard Joint) Torque (N.m) (Soft Joint) Free Speed (r.p.m) HI Screw Size Dia (mm) Machine Screw Screw Size Dia (mm) Tapping Screw
SKD-TBN60L 2~6 2~4.8 1000 4.0~5.0 ≤4
SKD-TBN90L 3~9 3~7.2 800 5.0~6.0 ≤4.5
SKD-TBN120L 4~12 4~9.6 550 ≤8 ≤6
SKD-TBN180L 6~18 6~14.4 350 ≤10 ≤8

Features Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the fit for assembling power torque products. Assemble large-sized LED/LCD panel and home appliances. Tools can be hanged with spring balancer to lessen work fatigue. SKD-TBK(K) series torque range can replace pneumatic screwdriver to avoid unstable torque due to the fluctuation of the air pressure. Also can prevent oil and noise pollution and achieve energy saving and more Eco-friendly. SKD-TBK(K) series must be equipped with side handle, which can increase stable torque output, torque precision, and easier for user to operate. Suitable for applications such as automotive industrial parts assembly, air conditioning, electricity, telecommunications, large appliances and medical equipment assembly. Highly mobility, easy to operate, stable torque, high efficiency. Motor can be free from fatigue under long-working hours.
