Kilews SKD-BN800L series
Brushless power torque dc-type automatic with Trigger start clutch type series
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) LO | - |
| Weight (g) | 836 |

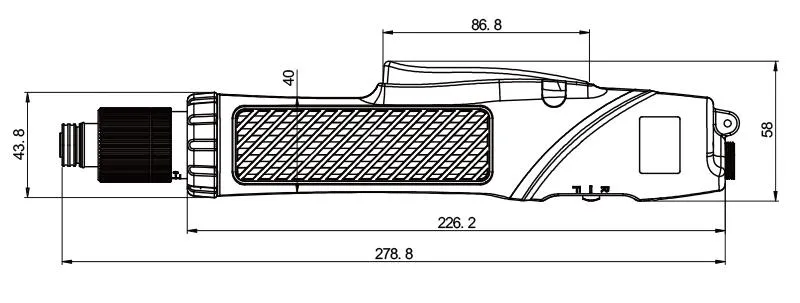

| Length (mm) | 278 |
| Power Controller | SKP-40B-HL |

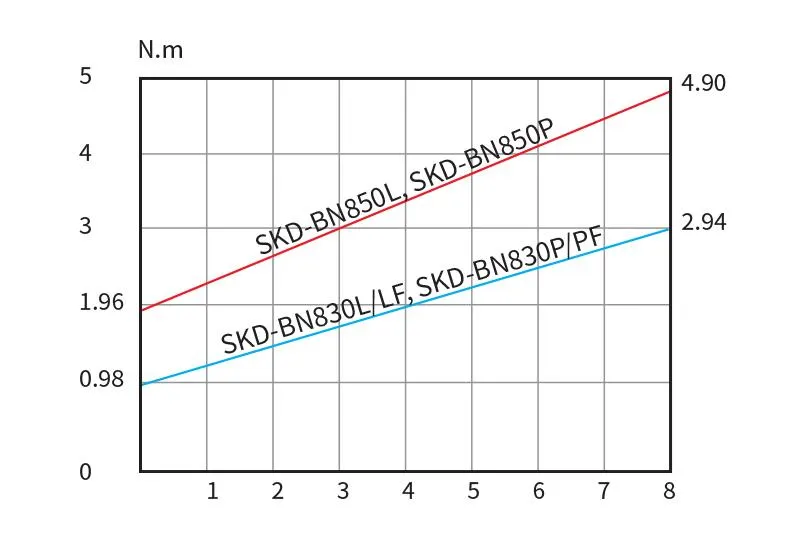

| Model | Torque (N.m) (Hard Joint) | Torque (N.m) (Soft Joint) | Free Speed (r.p.m) HI | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|
| SKD-BN830L | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830P | 0.98~2.94 | 0.98~2.35 | 1000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830LF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN830PF | 0.98~2.94 | 0.98~2.35 | 2000 | 2.6~4.0 | 2.6~3.5 | A、B |
| SKD-BN850L | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
| SKD-BN850P | 1.96~4.90 | 1.96~3.92 | 1000 | 4.0~5.0 | ≤4 | B |
Features Brushless feature is applicable in a clean-room environment. The output of torque is highly stable. It is not only a easy-operate equipment but also be operated continuously for a long period. One LED on the housing is to remind the operators that the scewdriver is connecting to the power controller. Besides, it is a non-carbon, low noise equipment and low voltage. The choice when composing the vertical’s internal parts and/or any large-size electric equipments, including home appliances, LED/LCD panels and etc. Optional accessories spring balancer hoist or pistol grip can be added for easy and safe operation.
