Kilews SK-B6P series

Name: Kilews SK-B6P series
Brand: Kilews
SKU: SK-B6125P/125PF/150P/230P/230pf/250P
Rating: 5 (10 reviews)

Brushless high torque ac-type automatic push start clutch type series

Cikkszám: SK-B6125P/125PF/150P/230P/230pf/250P

SK-B6P series

Model:

SK-B6125P SK-B6125PF SK-B6150P SK-B6230P SK-B6230PF SK-B6250P

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Közös adatok

Repeatable Torque Accuracy (%)	±3%
Bit Type	A、B

Modellek összehasonlítása

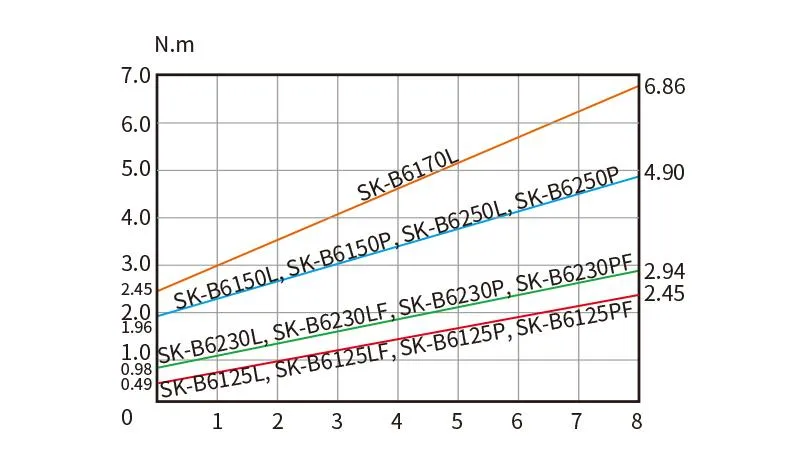

Model	Voltage	Torque (kgf.cm)	Torque (Lbf.in)	Torque (N.m) Hard Joint	Torque (N.m) Soft Joint	Free Speed (r.p.m)	Screw Size Dia (mm) Machine Screw	Screw Size Dia (mm) Tapping Screw	Weight (g)	Length (mm)
SK-B6125L	AC:110~120V	5~25	4.34~21.68	0.49~2.45	0.49~1.96	1000	2.6~4.0	2.6~3.5	740	285
SK-B6125P	AC:110~120V	5~25	4.34~21.68	0.49~2.45	0.49~1.96	1000	2.6~4.0	2.6~3.5	740	285
SK-B6125LF	AC:110~120V	5~25	4.34~21.68	0.49~2.45	0.49~1.96	2000	2.6~4.0	2.6~3.5	740	285
SK-B6125PF	AC:110~120V	5~25	4.34~21.68	0.49~2.45	0.49~1.96	2000	2.6~4.0	2.6~3.5	740	285
SK-B6150L	AC:110~120V	20~50	17.35~43.37	1.96~4.90	1.96~3.92	1000	4.0~5.0	≤4	740	285
SK-B6150P	AC:110~120V	20~50	17.35~43.37	1.96~4.90	1.96~3.92	1000	4.0~5.0	≤4	740	285
SK-B6230L	AC:220~240V	10~30	8.8~26.02	0.98~2.94	0.98~2.35	1200	2.6~4.0	2.6~3.5	810	305
SK-B6230P	AC:220~240V	10~30	8.8~26.02	0.98~2.94	0.98~2.35	1200	2.6~4.0	2.6~3.5	810	305
SK-B6230LF	AC:220~240V	10~30	8.8~26.02	0.98~2.94	0.98~2.35	2000	2.6~4.0	2.6~3.5	810	305
SK-B6230PF	AC:220~240V	10~30	8.8~26.02	0.98~2.94	0.98~2.35	2000	2.6~4.0	2.6~3.5	810	305
SK-B6250L	AC:220~240V	20~50	17.35~43.37	1.96~4.90	1.96~3.92	1200	4.0~5.0	≤4	810	305
SK-B6250P	AC:220~240V	20~50	17.35~43.37	1.96~4.90	1.96~3.92	1200	4.0~5.0	≤4	810	305

Features AC plug ; no adaptor needed. Adopts High-Functional Brushless Motor. The fit for general machine screws operation. High rotation speed.
