JBC CA Station

Name: JBC CA Station
Brand: JBC
SKU: MT-874
Rating: 5 (10 reviews)

Manual-Feed Soldering

Cikkszám: MT-874

Designed to for those applications requiring a free hand. Ideal for soldering cables, connectors, etc.

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Nominal power

175 W

Peak power (Tool)

130W

Selectable temperature

90 - 450 °C / 190 - 840 °F

Idle temp. stability (still air)

±1.5 ºC / ±3 ºF (Meets and exceed IPC J-STD-001)

Temperature accuracy	±3 % (Using reference cartridge)
Temp. adjustment	±50 ºC / ±90 ºF (Through station menu setting)
Tip-to-ground resistance	<2 ohms
Tip-to-ground voltage	<2 mV RMS
USB-B	PC communications
FAE / Robot connector	Remote control or FAE Fume Extractor connection
Solder wire diameter	from 0.8 - 1 mm / 0.03 - 0.04 in, from 1.1 - 1.5 mm / 0.04 - 0.06 in
Earthing fuse	F 1.25A
ESD safe	Meet ANSI/ESD S20.20
Control Unit	170 x 176 x 145 mm / 2.91 kg. , 6.69 x 6.93 x 5.71 in / 6.42 lb.
Package	234 x 234 x 258 mm / 3.52 kg. , 9.21 x 9.21 x 10.16 in / 7.76 lb.

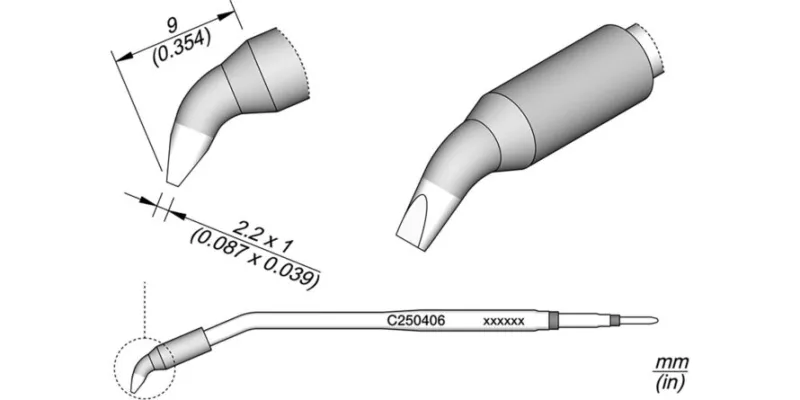

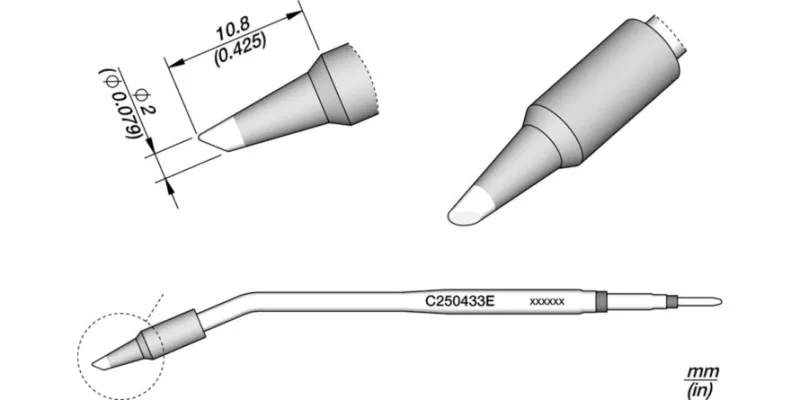

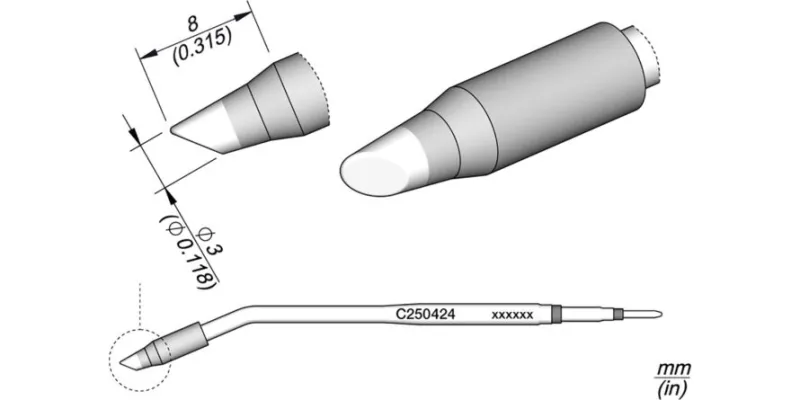

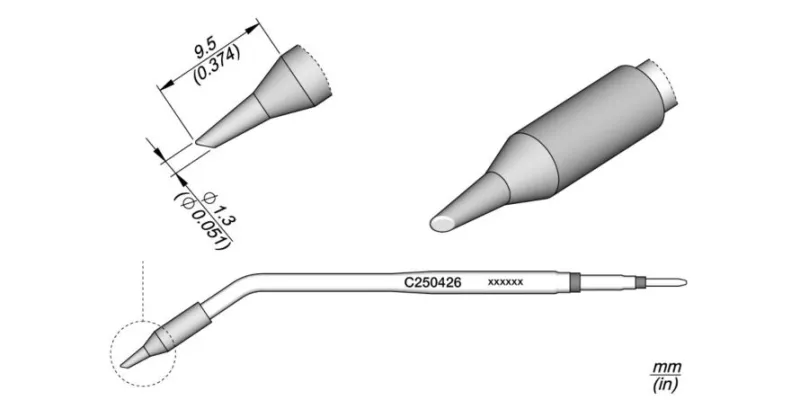

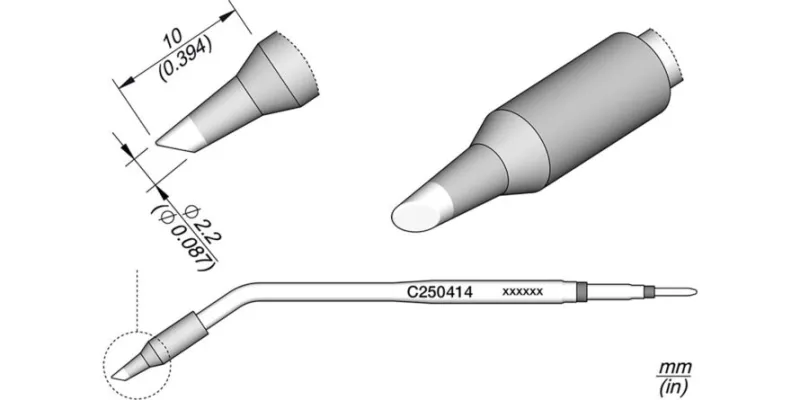

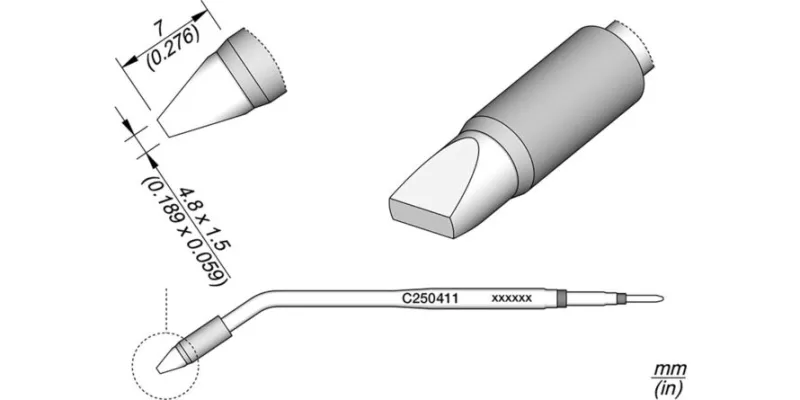

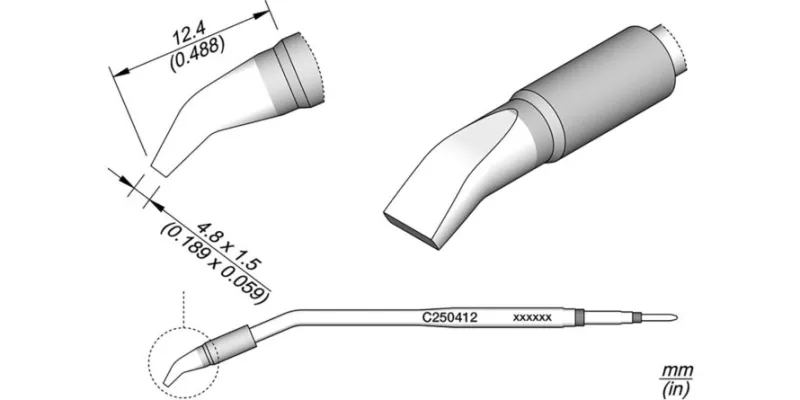

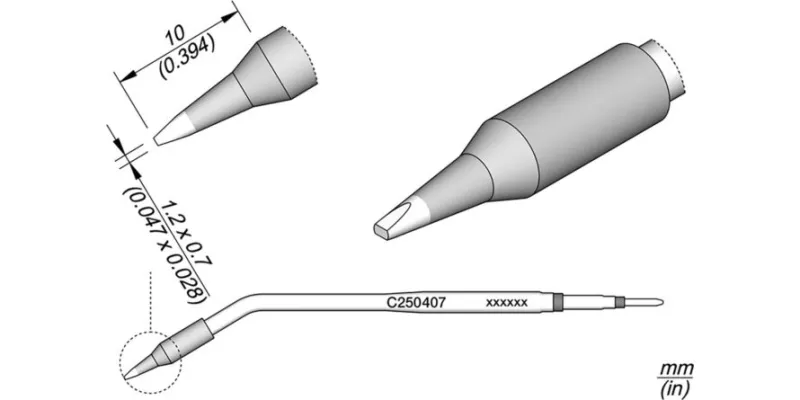

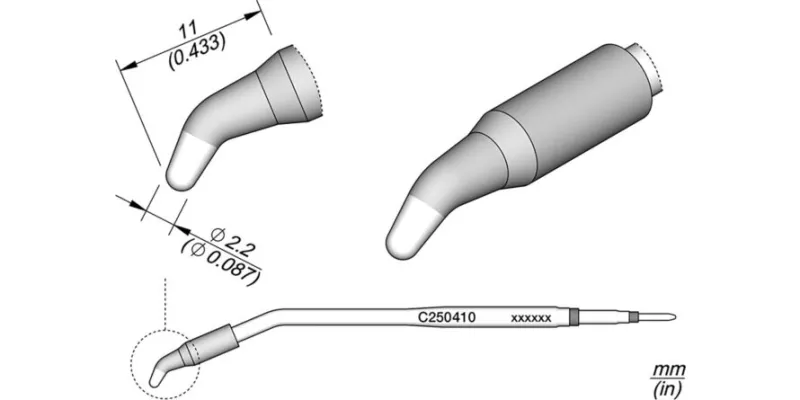

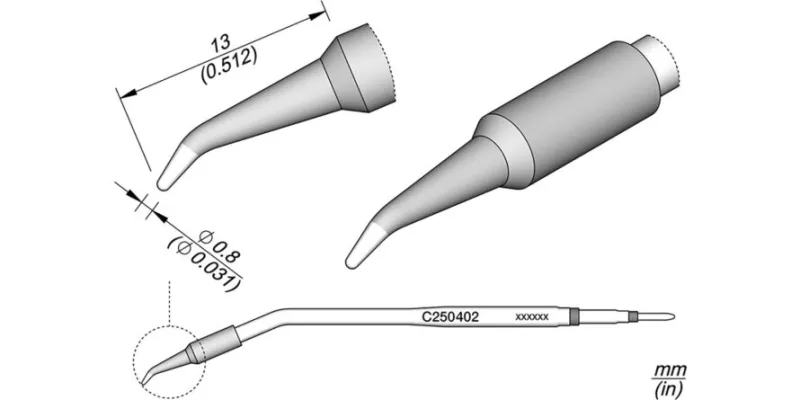

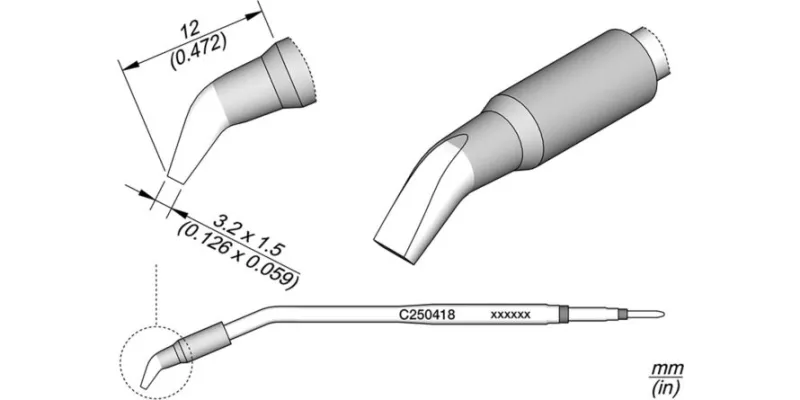

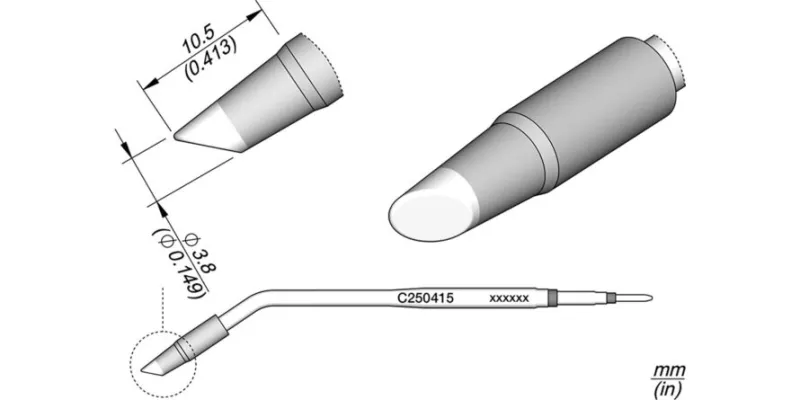

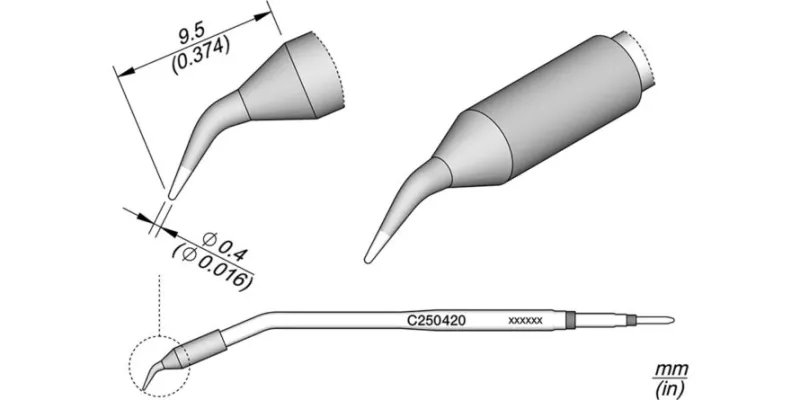

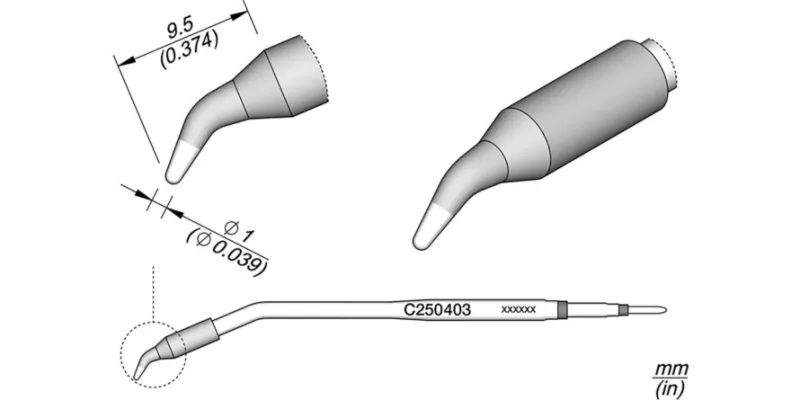

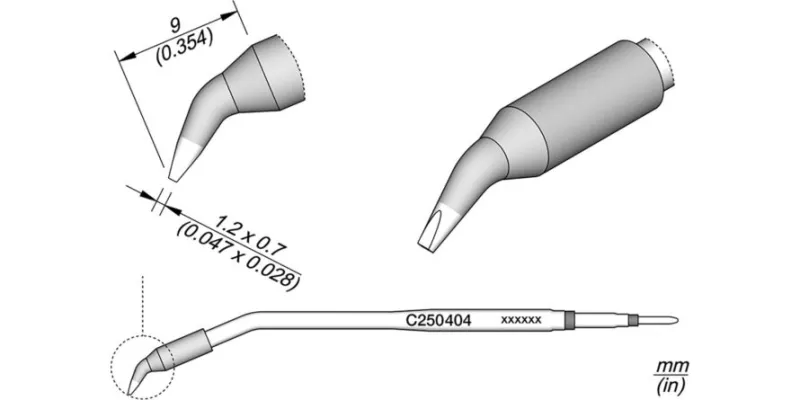

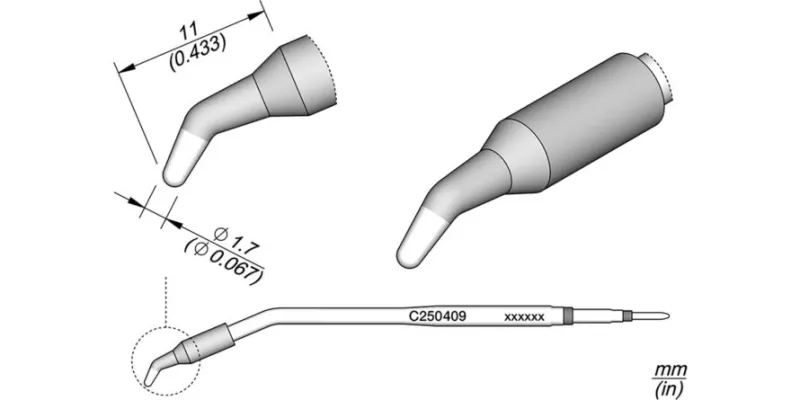

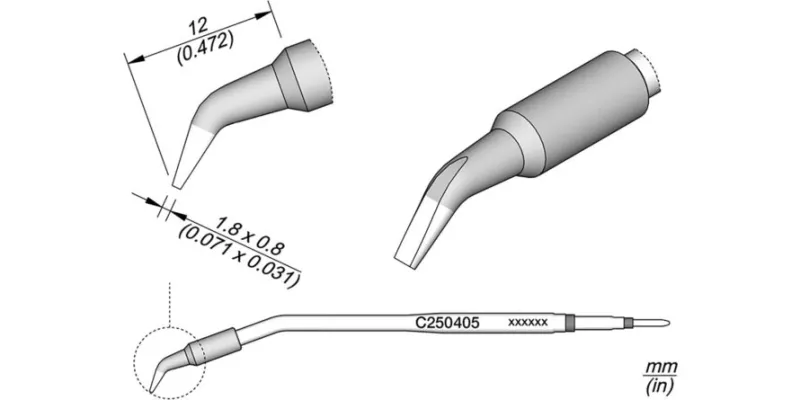

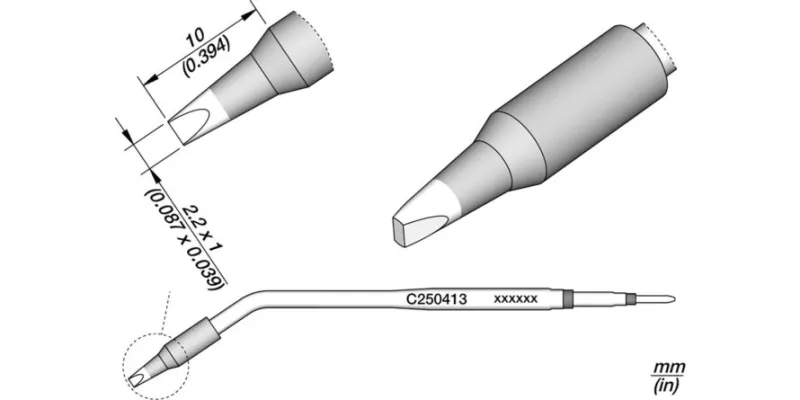

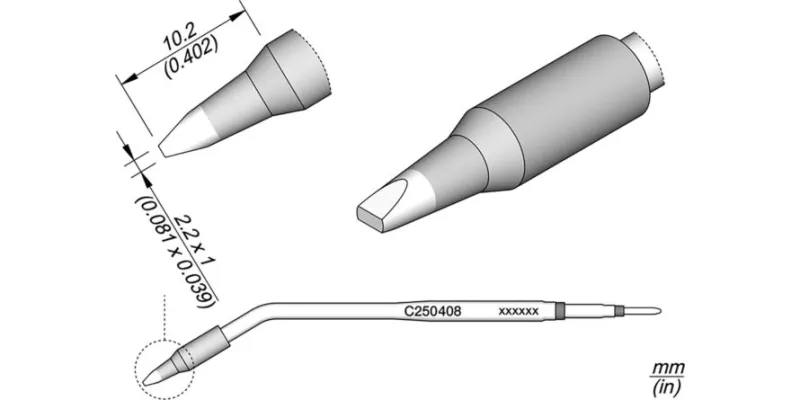

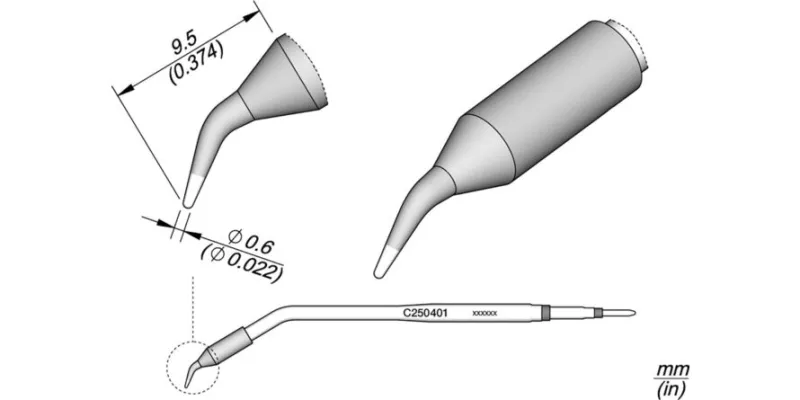

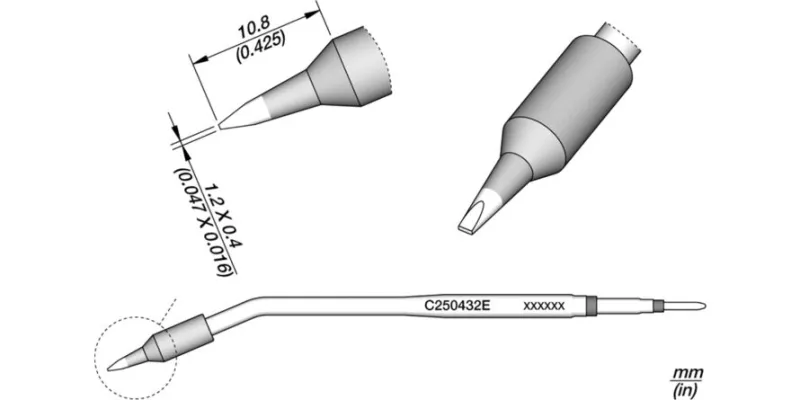

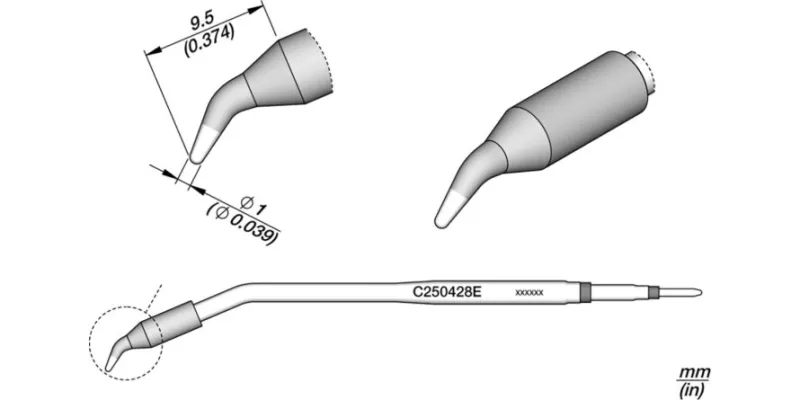

Designed to for those applications requiring a free hand. Ideal for soldering cables, connectors, etc. It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint: • JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times. • Complete with the Stand, Tip Cleaning System and Cartridge Holder. • Connectivity: - Fume Extractor - Data Download - Software Updates - Traceability • Includes AP250 Manual-Feed Soldering Iron that works with the wide range of C250 Cartridges. Check out more information about features Automatic-Feed Stations. *Cartridge not included
