JBC CDS Station
Precision Soldering
Accuracy is the right word!
Ideal for soldering SMD.
A szállítási időt az ajánlatban pontosítjuk.
Peak power (Tool)
40 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC - ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
| Temp. adjustment | ±50 ºC / ±90 ºF (Through station menu setting) |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Earthing fuse | F 1.25A |
| ESD safe | Meet ANSI/ESD S20.20 |
| Control Unit | 170 x 176 x 145 mm / 2.70 kg. , 6.69 x 6.93 x 5.71 in / 5.95 lb. |
| Package | 234 x 234 x 258 mm / 3.27 kg. , 9.21 x 9.21 x 10.16 in / 7.21 lb. |

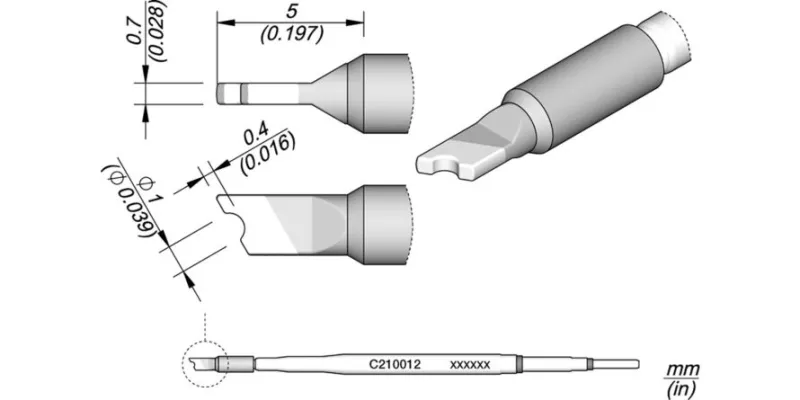

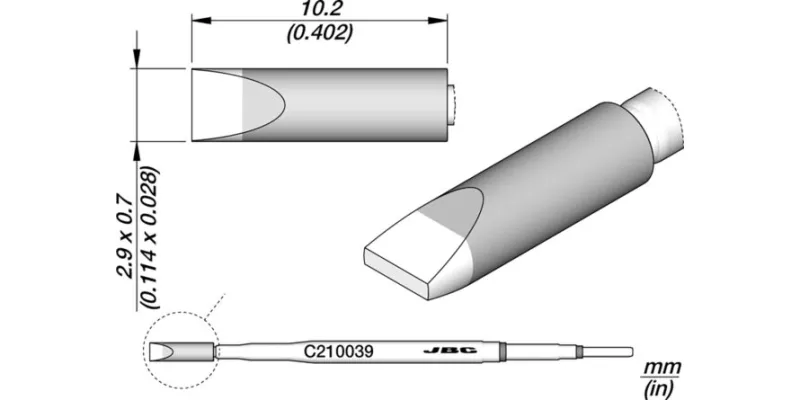

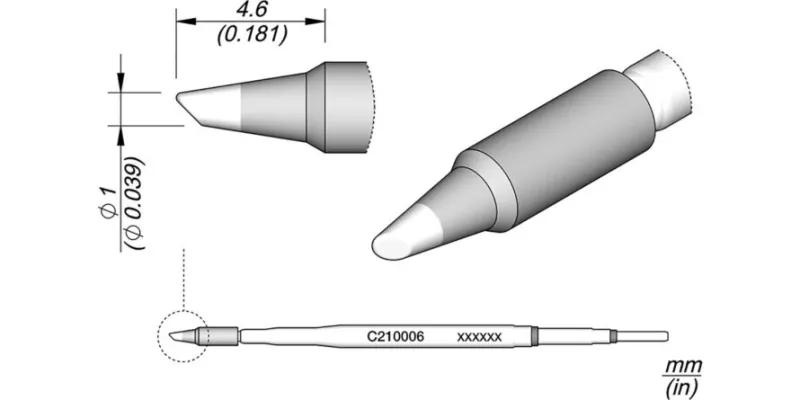

It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint: • JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times. • Complete Tip Cleaning System, with exclusive fast and safe Cartridge Exchanger. • Connectivity: - Fume Extractor. - Data Download. - Software Updates. - Traceability. • Includes T210 Precision Handle that works with our wide range of C210 Cartridges. *Cartridge not included
