JBC CDN Station
High-Precision Soldering
This station is designed for highest-precision jobs in any micro-soldering application, offering maximum control working under the microscope.
A szállítási időt az ajánlatban pontosítjuk.
Peak power
25W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Temperature accuracy
±3%
ESD safe
Meet ANSI/ESD S20.20
| Equipotential bonding | Connection to EPA |
| Tip-to-ground resistance | <2 ohms |
| Tip-to-ground voltage | <2 mV RMS |
| USB-B | PC communications |
| FAE / Robot connector | Remote control or FAE Fume Extractor connection |
| Control Unit | 170 x 176 x 145 mm / 2.70 kg., 6.69 x 6.93 x 5.71 in / 5.95 lb. |
| Package | 234 x 234 x 258 mm / 3.27 kg. , 9.21 x 9.21 x 10.16 in / 7.21 lb. |

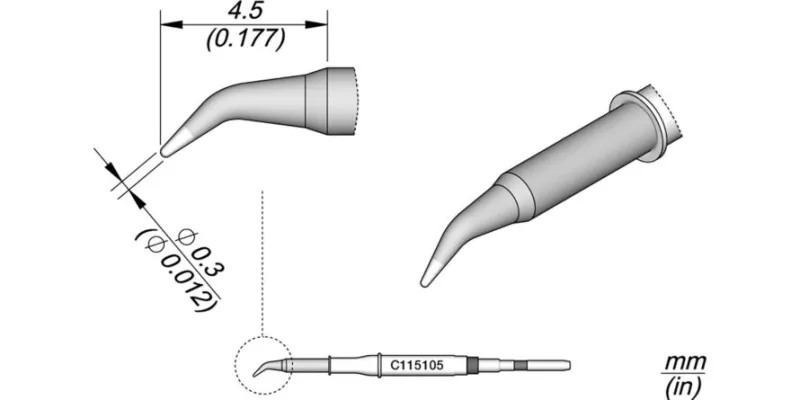

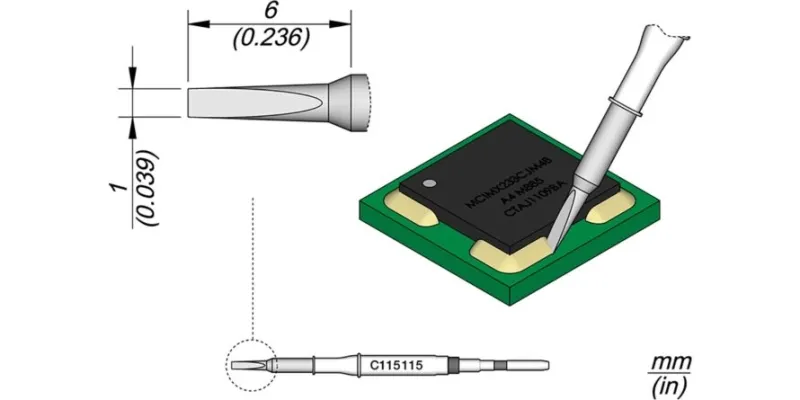

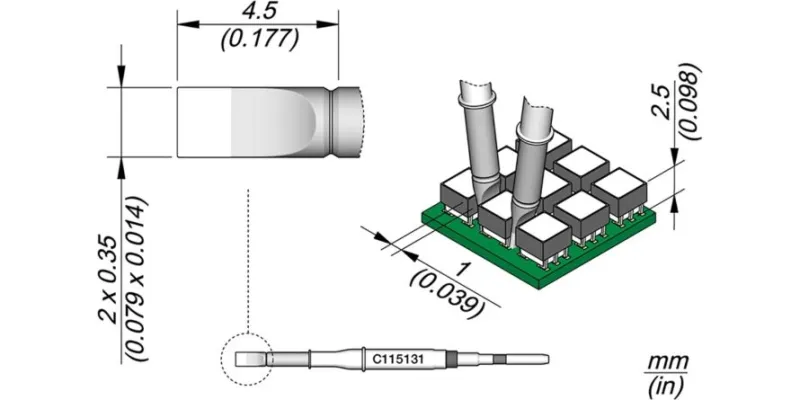

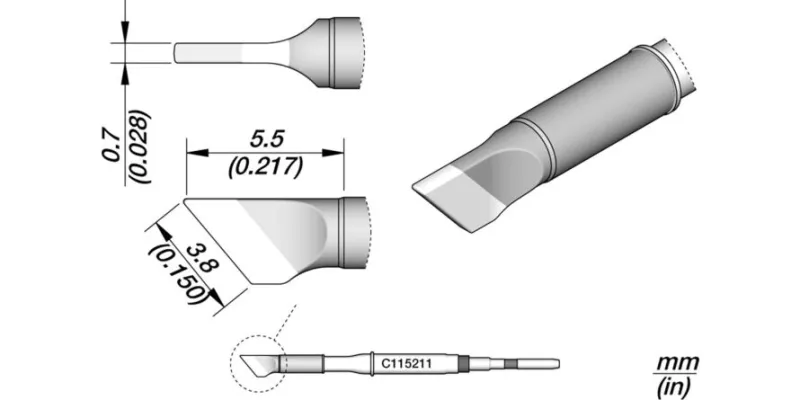

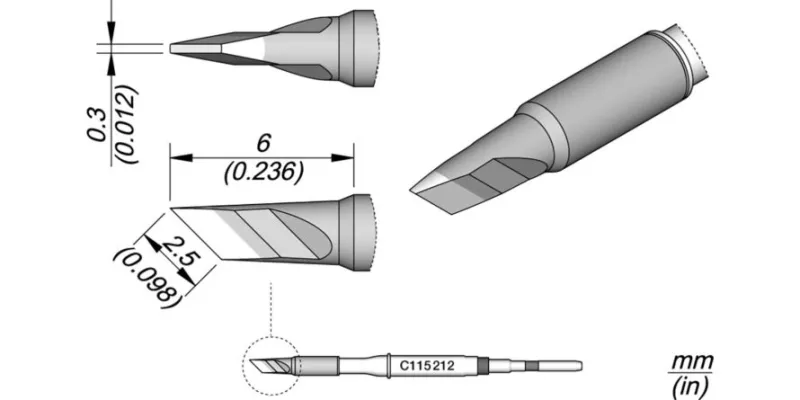

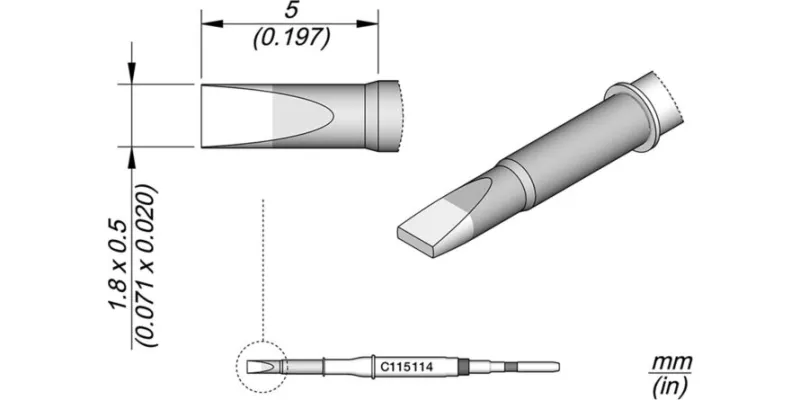

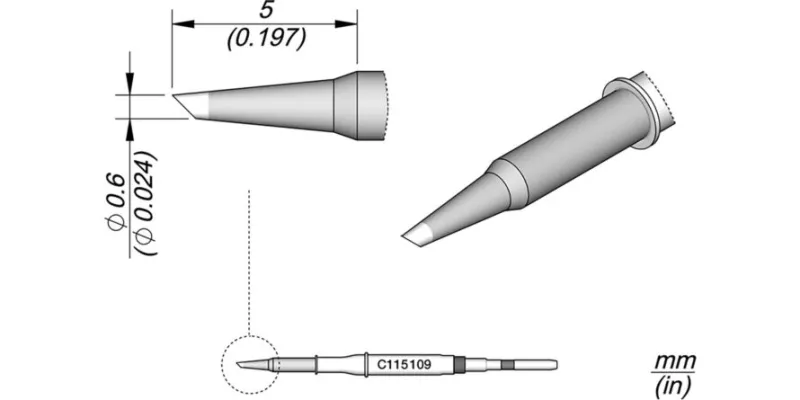

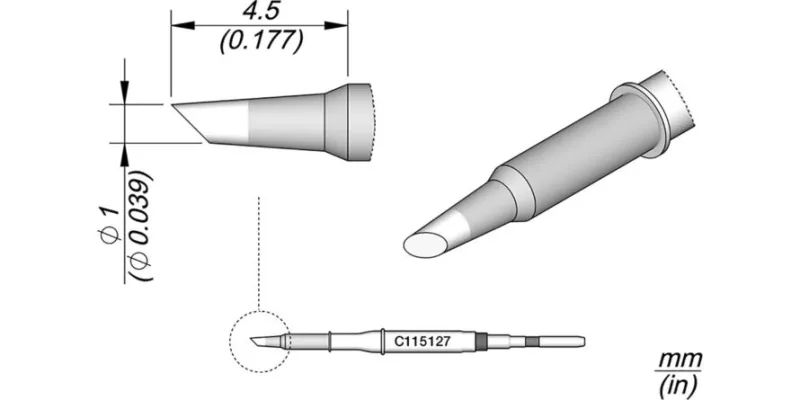

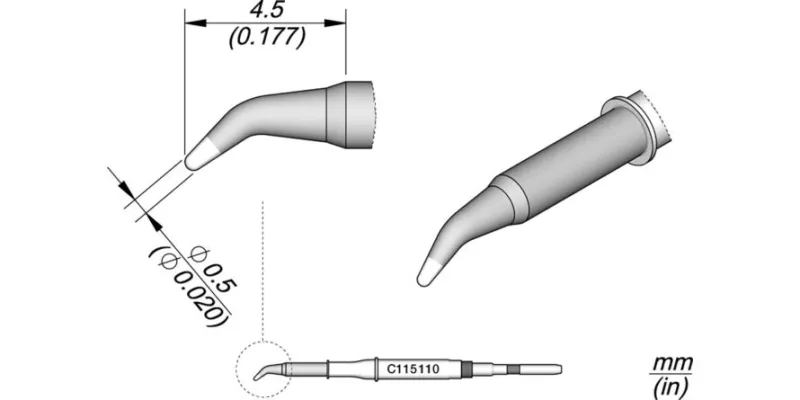

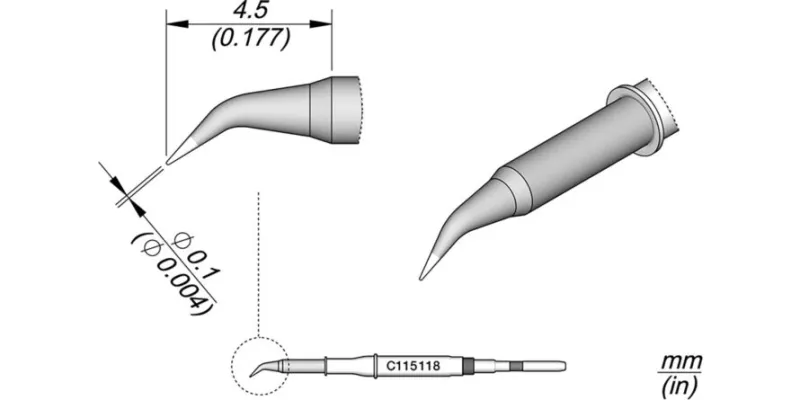

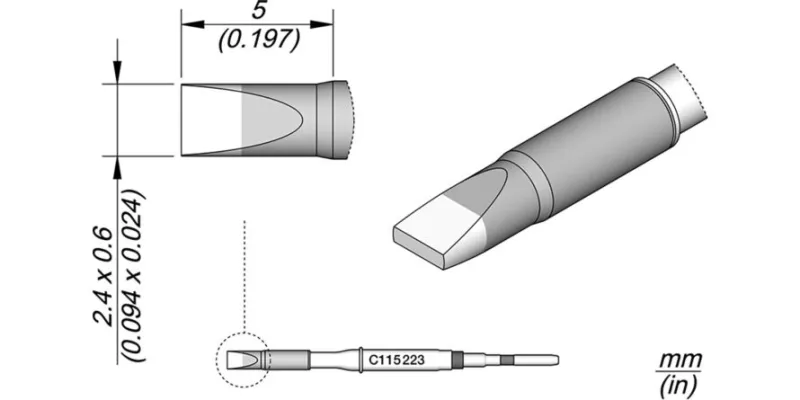

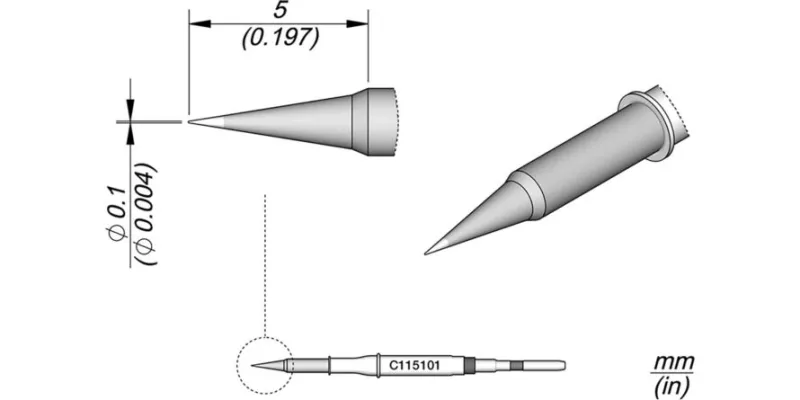

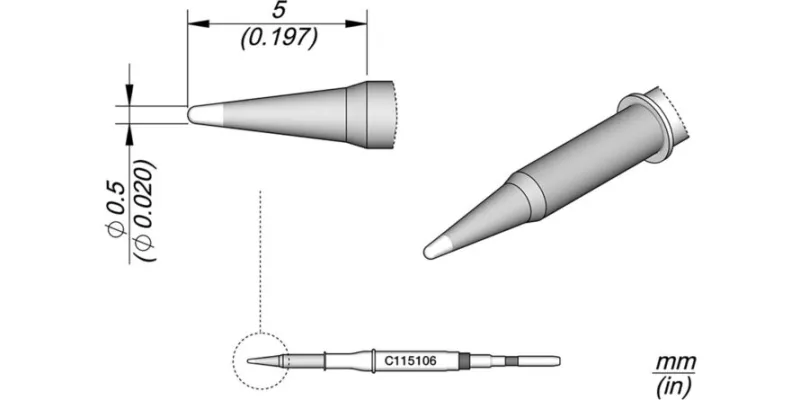

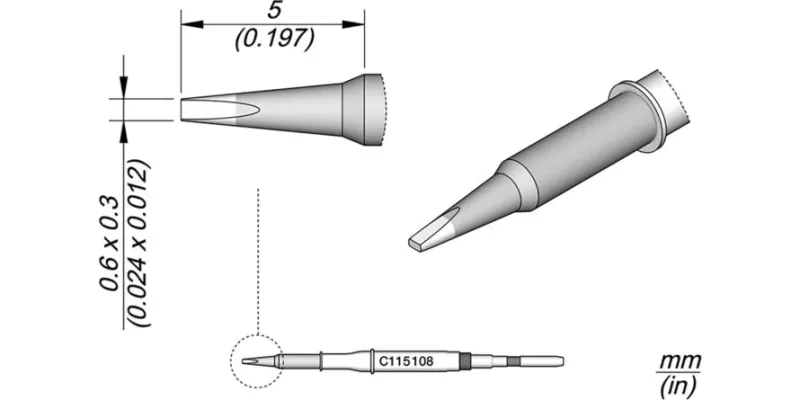

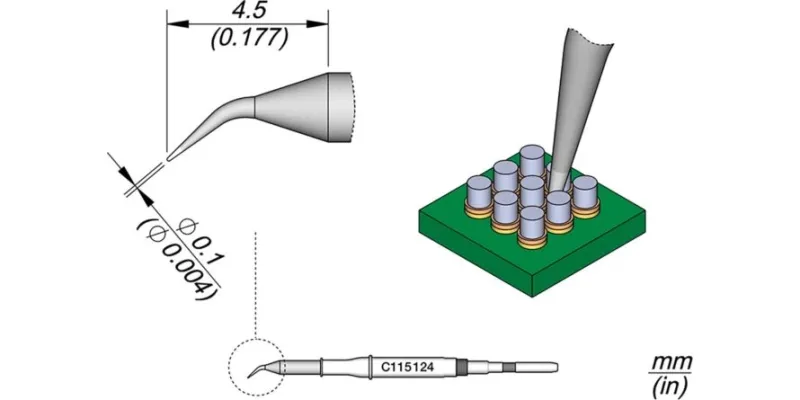

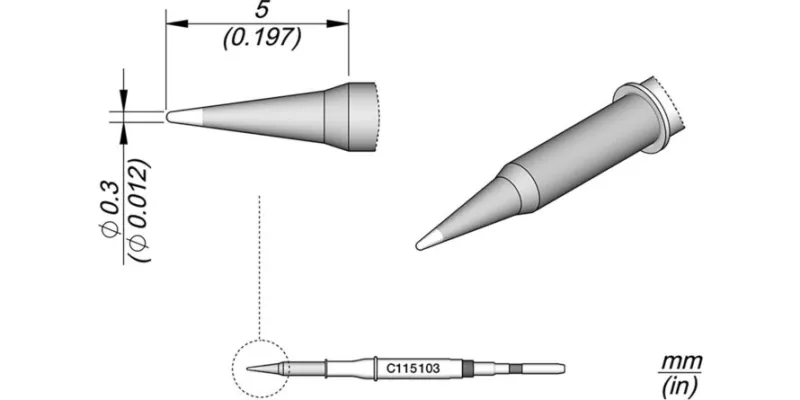

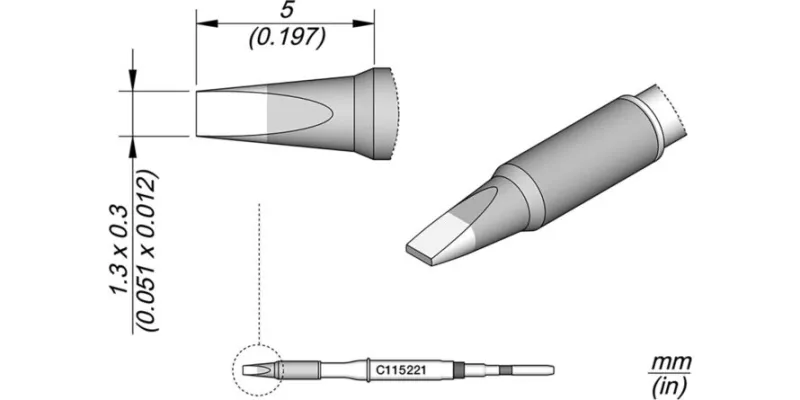

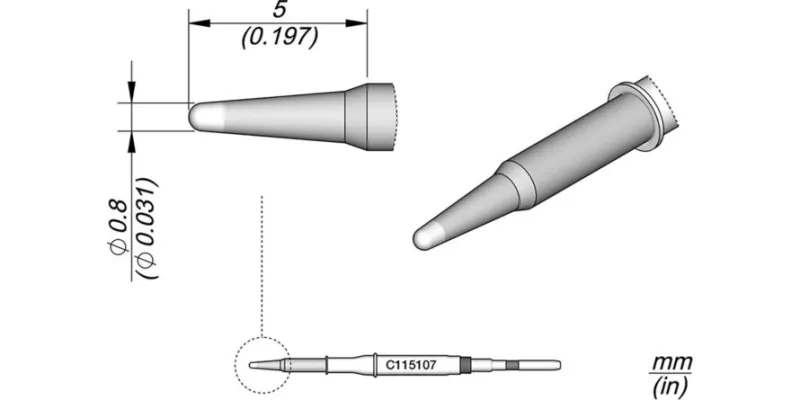

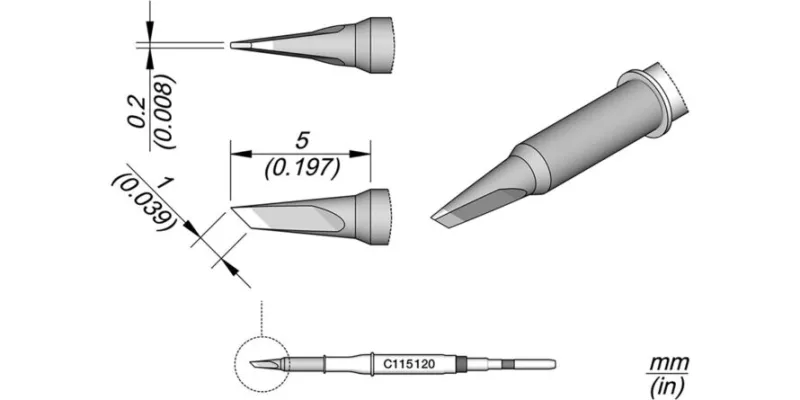

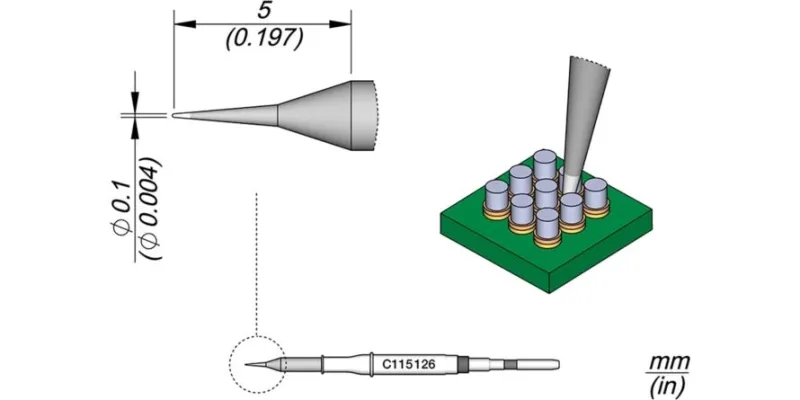

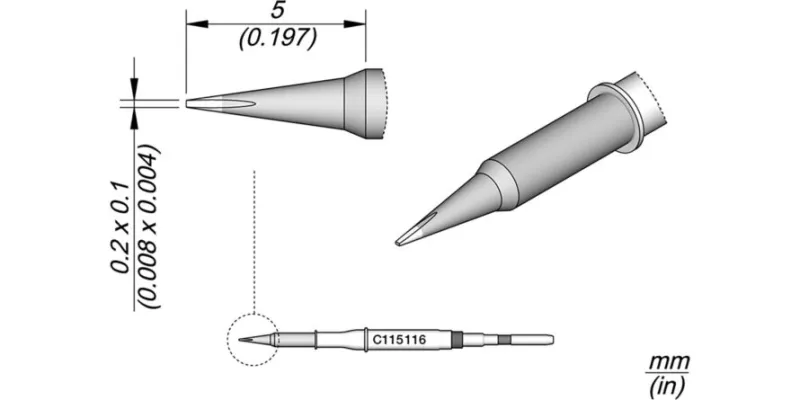

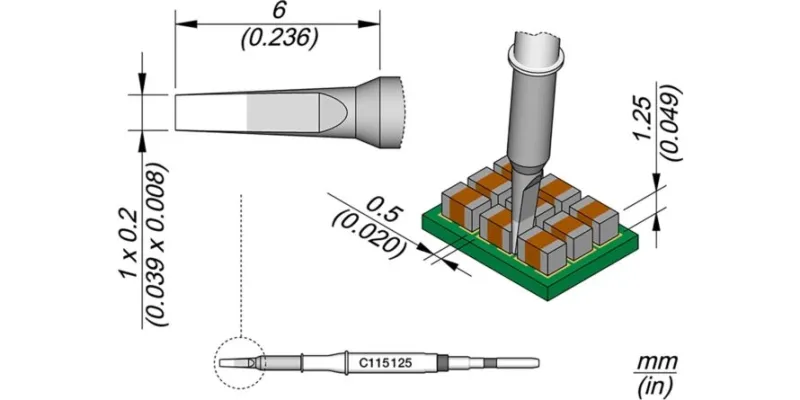

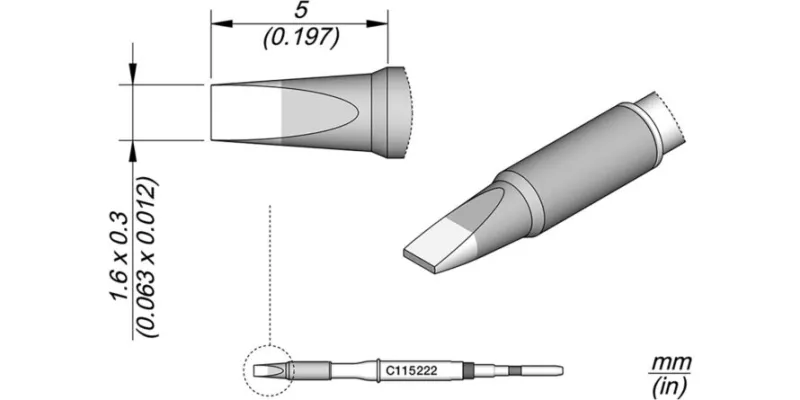

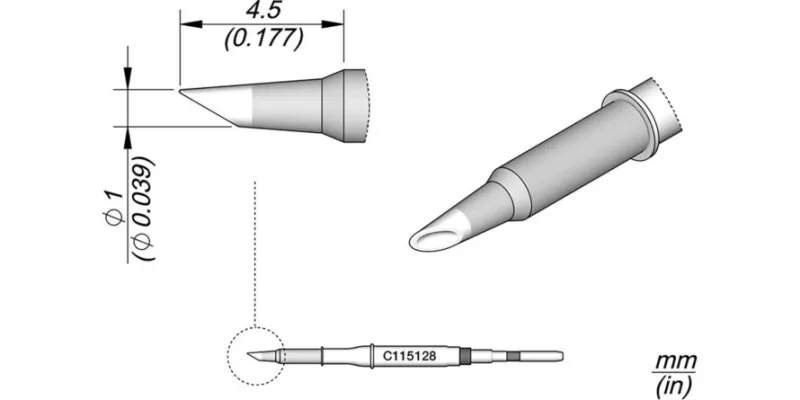

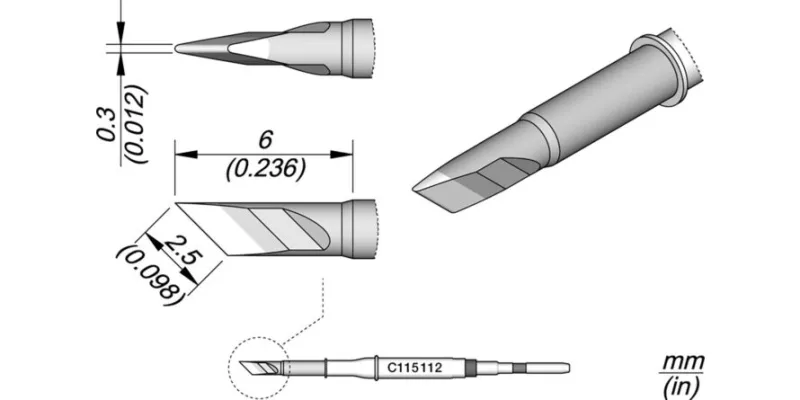

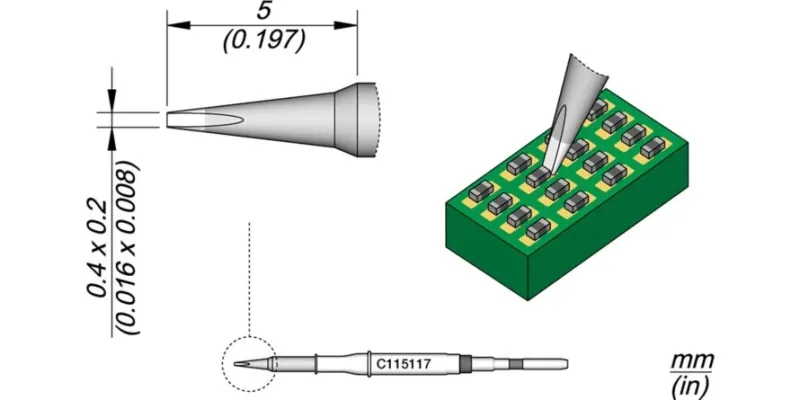

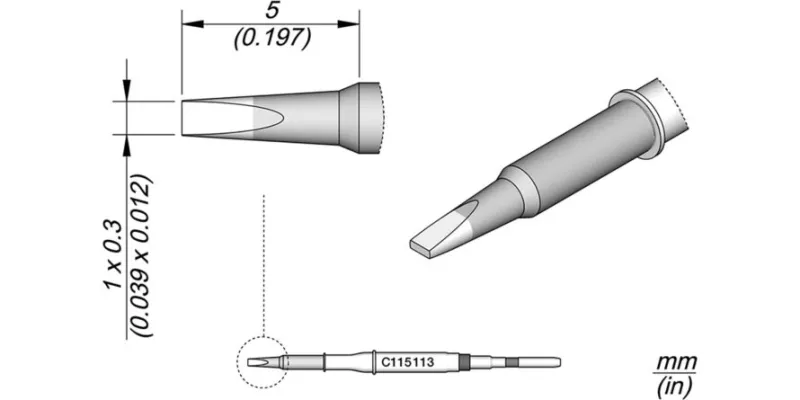

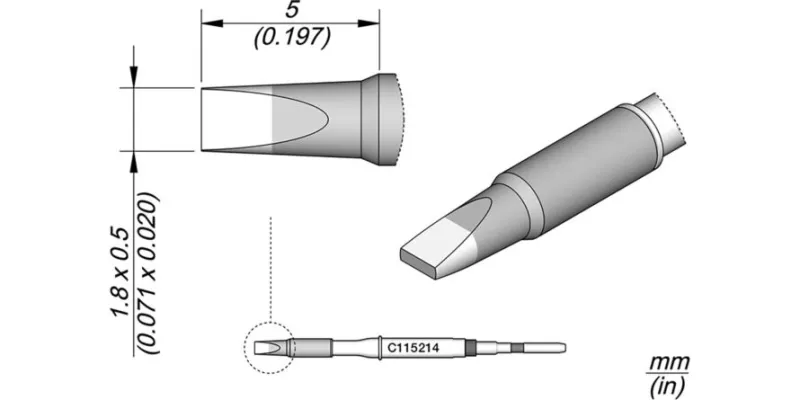

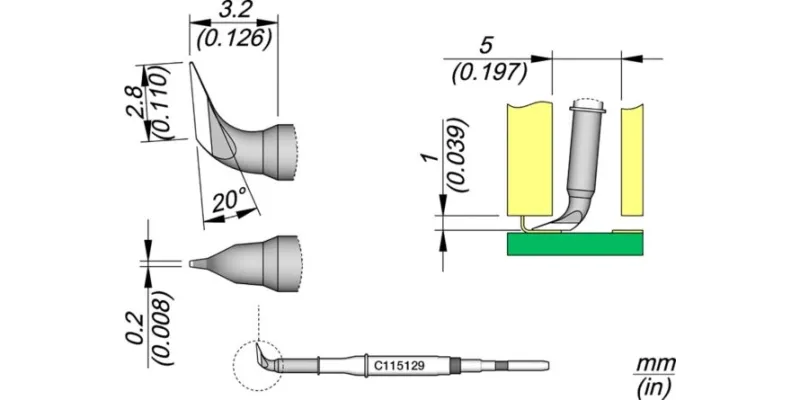

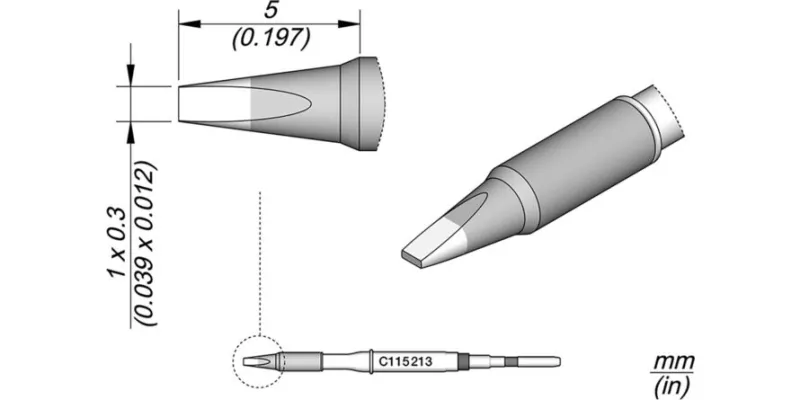

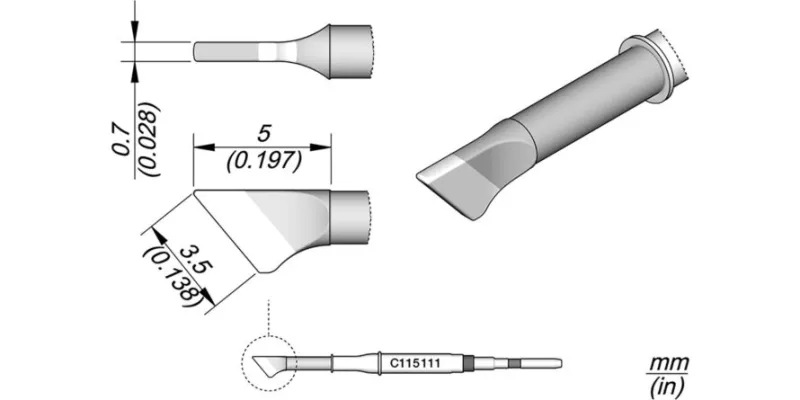

It provides all the advantages of JBC Most Efficient Soldering System in the smallest footprint: • JBC Intelligent Heat Management which provides the best soldering quality and, with Sleep & Hibernation Modes extend tip life till 5 times. • Complete Tip Cleaning System, with exclusive Cartridge Exchanger, which increases efficiency. • Connectivity: - Fume Extractor - Data Download - Software Updates - Traceability • NT115 Nano Handle which works with our wide range of C115 Cartridges. *Cartridge not included
