Kilews SKD-BN200L (VACUUM TYPE) series Brushless low torque dc-type automatic Vacuum screwdrivers
SKD-BN200L (VACUUM TYPE) series Brushless low torque dc-type automatic Vacuum screwdrivers
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 603 |
| Length (mm) | 300 |
| Bit Type | A、B、D |
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512L (VACUUM TYPE) | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W(N) |
| SKD-BN512LF (VACUUM TYPE) | 1.5~12 | 1.32~10.56 | 0.15~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N) |
| SKD-BN517LF (VACUUM TYPE) | 3~17 | 2.64~14.96 | 0.29~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL(N)) |
| SKD-BN519L (VACUUM TYPE) | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W(N) |
Features ※Only for “L” trigger start screwdrivers Vacuum screwdriver was taking the series of SKD-BN200L/P as reference and being created by adding the vacuum head. The main purpose is sucking the non-magnetic screws, such as plastic screws / aluminum-made screws / stainless steel screws and any other screws that does not contain magnetic. Any type and specification of screws can be sucked which only need to replace the head to KS-2B. The suction of vacuum pump is powerful; if the screws tray is using together, it will be more convenient and easy. The screws can be placed at the tray first and then sucked by the vacuum screwdriver. CE and ETL are optional

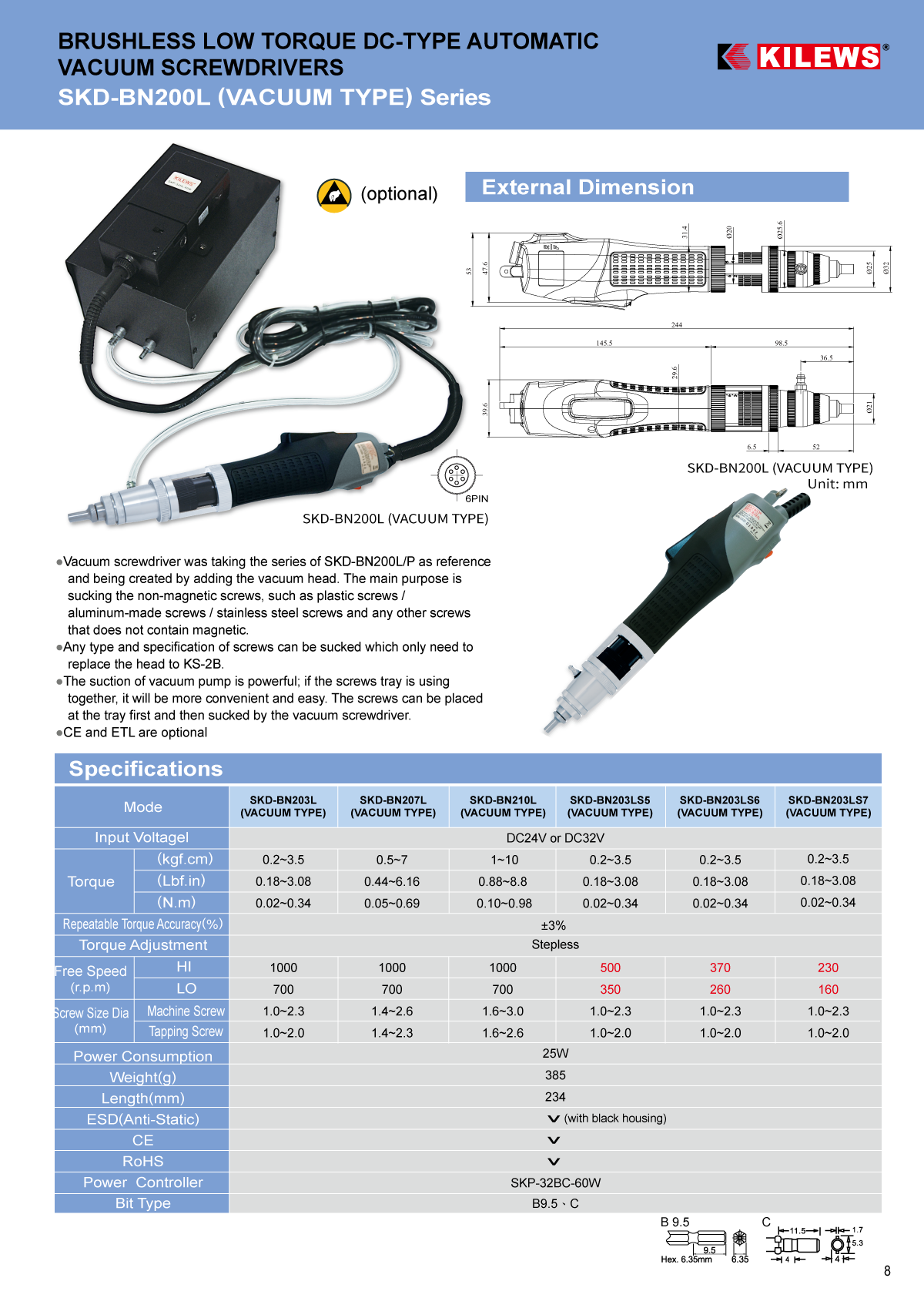

- 📄 Dokumentum: download_202402070913192.png
