Kilews SK-B5L series Brushless medium torque ac-type automatic trigger start clutch type series
SK-B5L series Brushless medium torque ac-type automatic trigger start clutch type series
Cikkszám: SK-B5L series
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 470 |

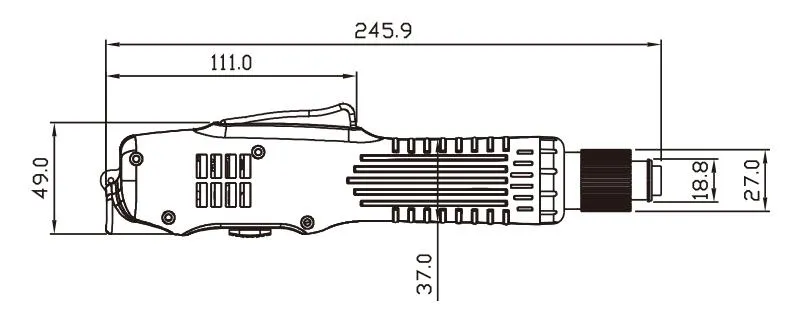

| Length (mm) | 245 |
Modellek összehasonlítása

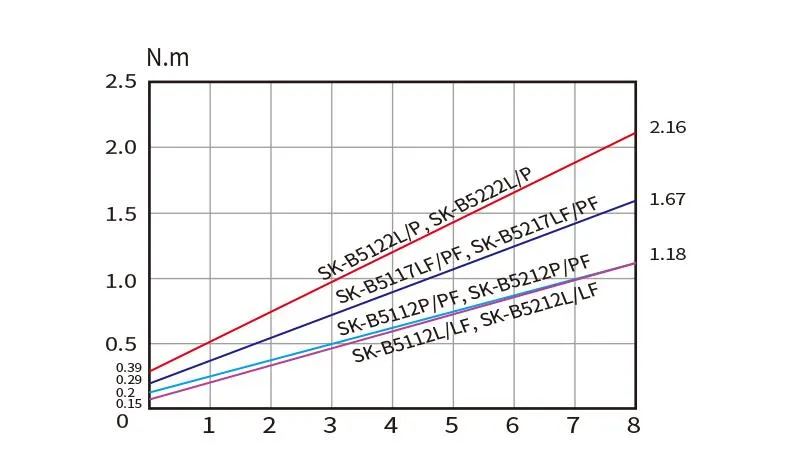

| Model | Voltage | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Bit Type |
|---|---|---|---|---|---|---|---|---|
| SK-B5112L | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112P | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112LF | AC:110~120V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5112PF | AC:110~120V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5117LF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5117PF | AC:110~120V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5122L | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5122P | AC:110~120V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5212L | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212P | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 1200 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212LF | AC:220~240V | 1.5~12 | 1.33~10.44 | 0.15~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5212PF | AC:220~240V | 2~12 | 1.77~10.44 | 0.2~1.18 | 2000 | 1.6~3.0 | 1.6~2.6 | A、B、C、D |
| SK-B5217LF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5217PF | AC:220~240V | 3~17 | 2.57~14.78 | 0.29~1.67 | 2000 | 1.6~3.5 | 1.6~3.0 | A、B、C、D |
| SK-B5222L | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
| SK-B5222P | AC:220~240V | 4~22 | 3.52~19.12 | 0.39~2.16 | 1200 | 2.3~4.0 | 2.3~3.5 | A、B、D |
Features AC plug ; no adaptor needed. Adopts High-Functional Brushless Motor. The fit for general machine screws operation. High rotation speed.

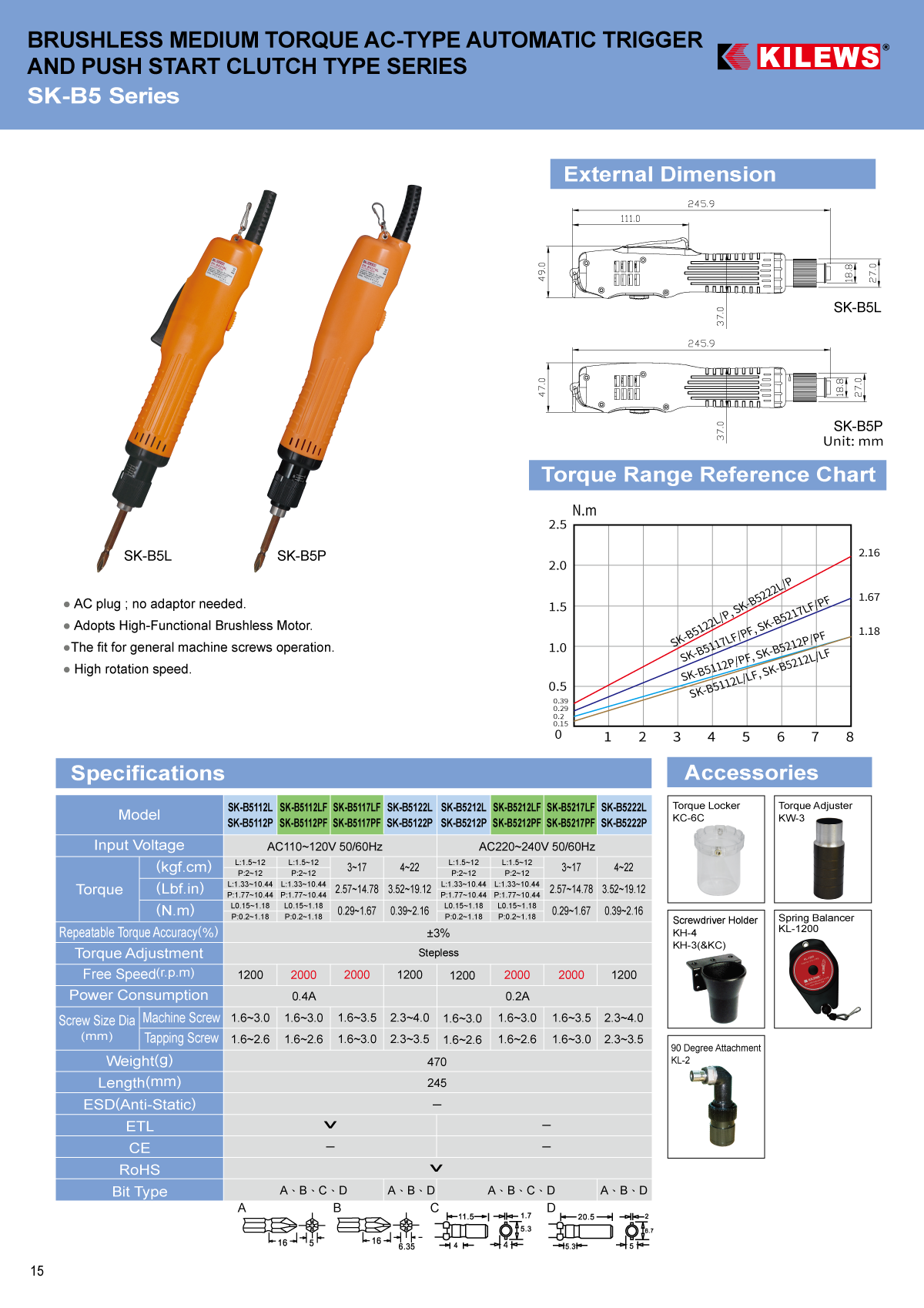

- 📄 Dokumentum: download_202101251521442.pdf
- 📄 Dokumentum: download_202102220911532.pdf
- 📄 Dokumentum: download_202501171421402.png
