Kilews SKD-B100L series Brushless DC voltage automatic ultra-small torque hand-operated electric screwdriver series
SKD-B100L series Brushless DC voltage automatic ultra-small torque hand-operated electric screwdrive
Cikkszám: SKD-B100L series
Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Közös adatok
| Repeatable Torque Accuracy (%) | ±5% |
| Weight (g) | 170 |

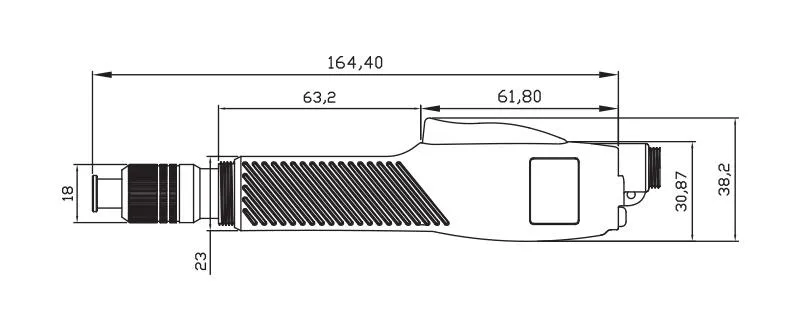

| Length (mm) | 165 |

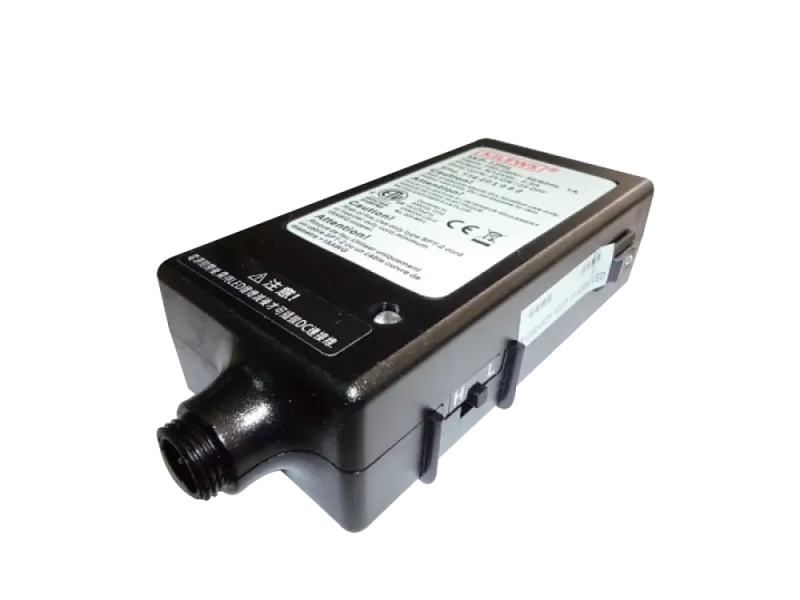

| Power Controller | SKP-12HL |
| Bit Type | C |
Modellek összehasonlítása

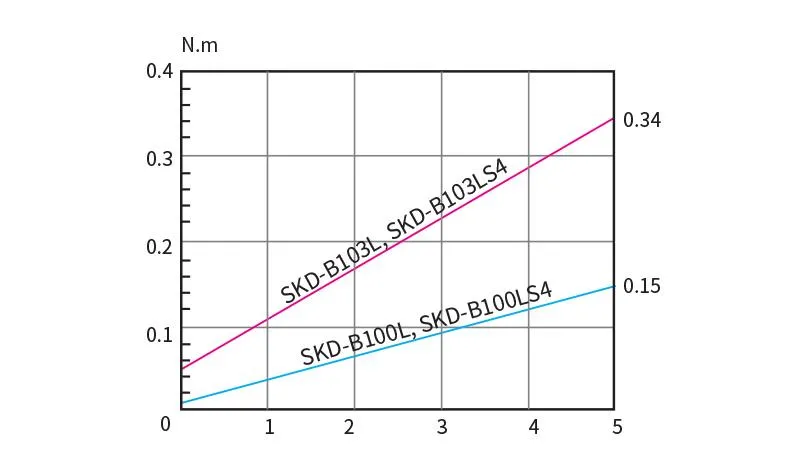

| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw |
|---|---|---|---|---|---|---|---|
| SKD-B100L | 0.08~1.5 | 0.07~1.33 | 0.008~0.15 | 1000 | 700 | 1.0~1.7 | 1.0~1.5 |
| SKD-B103L | 0.5~3.5 | 0.44~3.01 | 0.05~0.34 | 1000 | 700 | 1.0~2.3 | 1.0~2.0 |
| SKD-B100LS4 | 0.08~1.5 | 0.07~1.33 | 0.008~0.15 | 280 | 200 | 1.0~1.7 | 1.0~1.5 |
| SKD-B103LS4 | 0.5~3.5 | 0.44~3.01 | 0.05~0.34 | 280 | 200 | 1.0~2.3 | 1.0~2.0 |
Features Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary. Small and light weight, noiseless, streamlined appearance, high stability and easy to use. Forward/Reverse switch modes. Screws can be loosed easily just in a moment without switching the switches’ modes. The choice for producing high precision products, such as watches, high precision hard-driver and etc.
- 📄 Dokumentum: download_202103180903422.pdf
- 📄 Dokumentum: download_202402070902112.png
