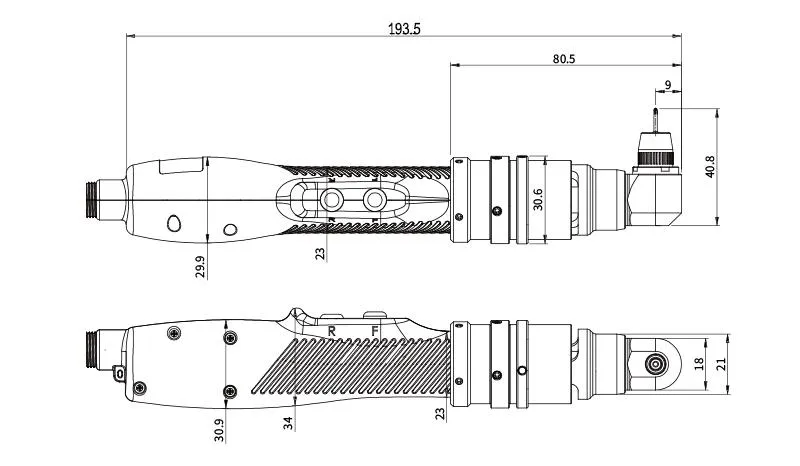

Kilews SKD-B100KLM series Brushless mini torque dc-type automatic Push button start clutch type series
SKD-B100KLM series Brushless mini torque dc-type automatic Push button start clutch type series
Cikkszám: SKD-B100KLM series
Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Model
SKD-B123KLM
Torque (kgf.cm)
0.2~2.0
Torque (Lbf.in)
0.17~1.7
Torque (N.m)
0.02~0.2
| Repeatable Torque Accuracy (%) | ±3% |
| Free Speed (r.p.m) HI | 1000 |
| Free Speed (r.p.m) LO | 700 |
| Screw Size Dia (mm) Machine Screw | 1.0~1.7 |
| Screw Size Dia (mm) Tapping Screw | 1.0~1.5 |
| Weight (g) | 245 |
| Length (mm) | 202.9 |
| Power Controller | SKP-12HL |
| Bit Type | C |
Features Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary. Small and light weight, noiseless, streamlined appearance, high stability and easy to use. Forward/Reverse switch modes. Screws can be loosed easily just in a moment without switching the switches’ modes. The choice for producing high precision products, such as watches, high precision hard-driver and etc.

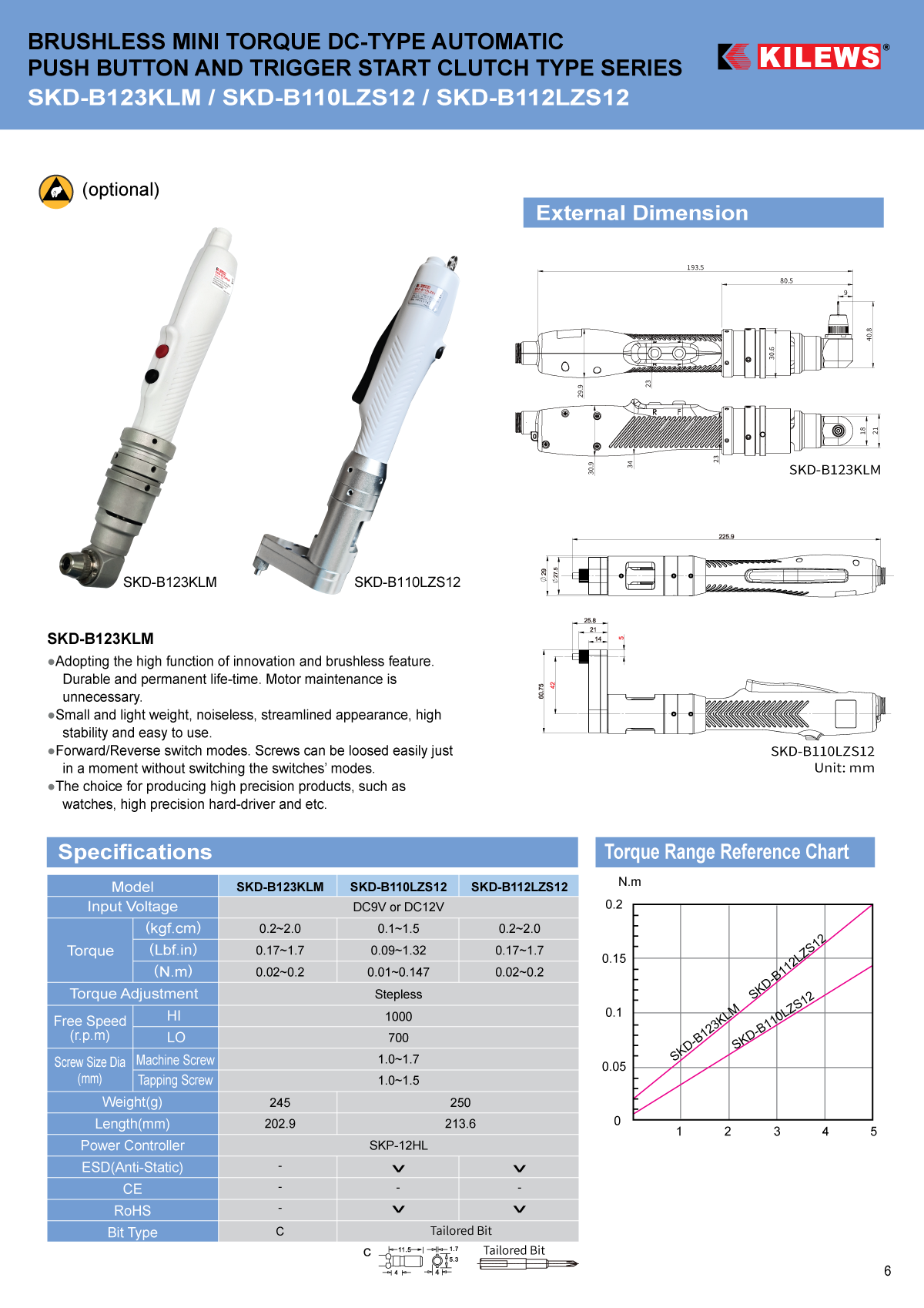

- 📄 Dokumentum: download_202010131330092.pdf
- 📄 Dokumentum: download_202402070902592.png
