Kilews SKD-BN200P series Brushless low torque dc-type automatic push start clutch type series

Name: Kilews SKD-BN200P series Brushless low torque dc-type automatic push start clutch type series
Brand: Kilews
SKU: SKD-BN200P series
Rating: 5 (10 reviews)

SKD-BN200P series Brushless low torque dc-type automatic push start clutch type series

Cikkszám: SKD-BN200P series

Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.

Válassz termékvariációt

Model:

SKD-BN210P

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Közös adatok

Repeatable Torque Accuracy (%)	±3%
Bit Type	B9.5、C

Modellek összehasonlítása

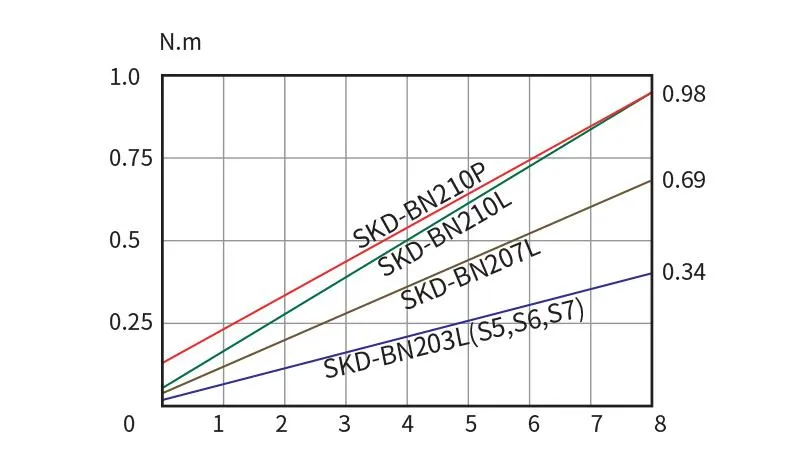

Model	Torque (kgf.cm)	Torque (Lbf.in)	Torque (N.m)	Free Speed (r.p.m) HI	Free Speed (r.p.m) LO	Screw Size Dia (mm) Machine Screw	Screw Size Dia (mm) Tapping Screw	Weight (g)	Length (mm)	Power Controller
SKD-BN203L	0.2~3.5	0.18~3.08	0.02~0.34	1000	700	1.0~2.3	1.0~2.0	330	185	SKP-32BC-60W(N)
SKD-BN203LS5	0.2~3.5	0.18~3.08	0.02~0.34	500	350	1.0~2.3	1.0~2.0	330	185	SKP-32BC-60W
SKD-BN203LS6	0.2~3.5	0.18~3.08	0.02~0.34	370	260	1.0~2.3	1.0~2.0	330	185	SKP-32BC-60W
SKD-BN203LS7	0.2~3.5	0.18~3.08	0.02~0.34	230	160	1.0~2.3	1.0~2.0	330	185	SKP-32BC-60W
SKD-BN207L	0.5~7	0.44~6.16	0.05~0.69	1000	700	1.4~2.6	1.4~2.3	330	185	SKP-32BC-60W
SKD-BN210L	1~10	0.88~8.8	0.10~0.98	1000	700	1.6~3.0	1.6~2.6	330	185	SKP-32BC-60W
SKD-BN210P	2~10	1.76~8.8	0.2~0.98	1000	700	1.6~3.0	1.6~2.6	310	230	SKP-32BC-60W

Features Adopts High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless. Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor) Brushless Motor has more stable torque output；It is the fit for operating in clean-room circumstance and no worry of pollution will be arisen. The tool to assemble watch, laptop, digital camera, DVD player, Cell phone, Communication equipment and high tech products which need to be assembled in clean-room. CE and ETL are optional

Kilews SKD-BN200P series
Brushless low torque dc-type automatic push start clutch type series
