Kilews SKD-BN500LM series Brushless medium torque dc-type auto shut off Trigger start clutch typevacuum pick up series
SKD-BN500LM series Brushless medium torque dc-type auto shut off Trigger start clutch typevacuum pic
Cikkszám: SKD-BN500LM series

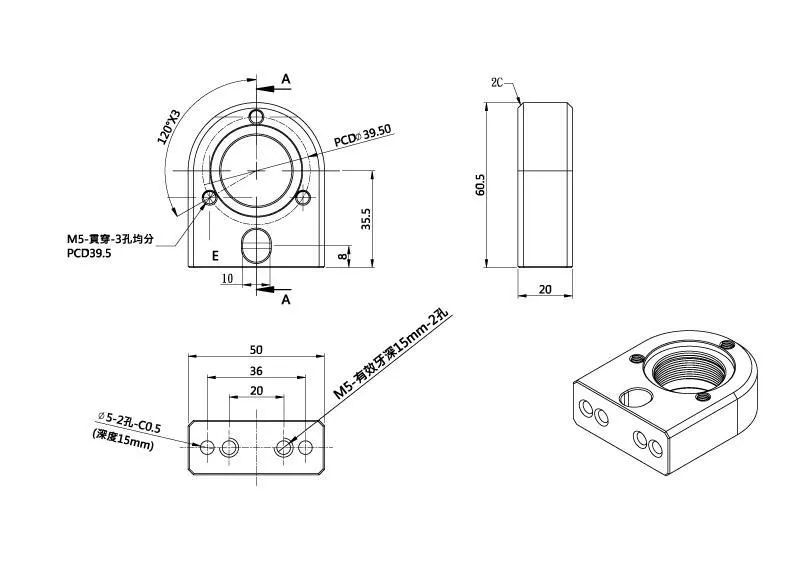

Simply put a vacuum flange onto SKD-BN500L series for picking up non-magnetic type screws, such as plastic, aluminum, and stainless steel made screws.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Közös adatok
| Repeatable Torque Accuracy (%) | ±3% |
| Weight (g) | 740 |
| Length (mm) | 323 |
| Bit Type | A、B、D |
Modellek összehasonlítása
| Model | Torque (kgf.cm) | Torque (Lbf.in) | Torque (N.m) | Free Speed (r.p.m) HI | Free Speed (r.p.m) LO | Screw Size Dia (mm) Machine Screw | Screw Size Dia (mm) Tapping Screw | Power Controller |
|---|---|---|---|---|---|---|---|---|
| SKD-BN512LM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 1000 | 700 | 1.6~3.0 | 1.6~2.6 | SKP-32BC-60W |
| SKD-BN512LFM | 2.5~12 | 2.2~10.44 | 0.25~1.18 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN517LFM | 5~17 | 4.34~14.96 | 0.49~1.67 | 2000 | - | 1.6~3.0 | 1.6~2.6 | SKP-BE32HL |
| SKD-BN519LM | 3~19 | 2.57~16.46 | 0.29~1.86 | 1000 | 700 | 2.3~3.5 | 2.3~3.0 | SKP-32BC-60W |
Features Simply put a vacuum flange onto SKD-BN500L series for picking up non-magnetic type screws, such as plastic, aluminum, and stainless steel made screws. For different dimension screws by switching different bit nozzles without changing vacuum flange The small and handy exclusive vacuum pump is available for all vacuum type of screwdrivers. For better and efficient way is to place all screws over a screw setter and then use vacuum type screwdrivers.
