Kilews SKP-BC40HL

Kilews SKP-BC40HL

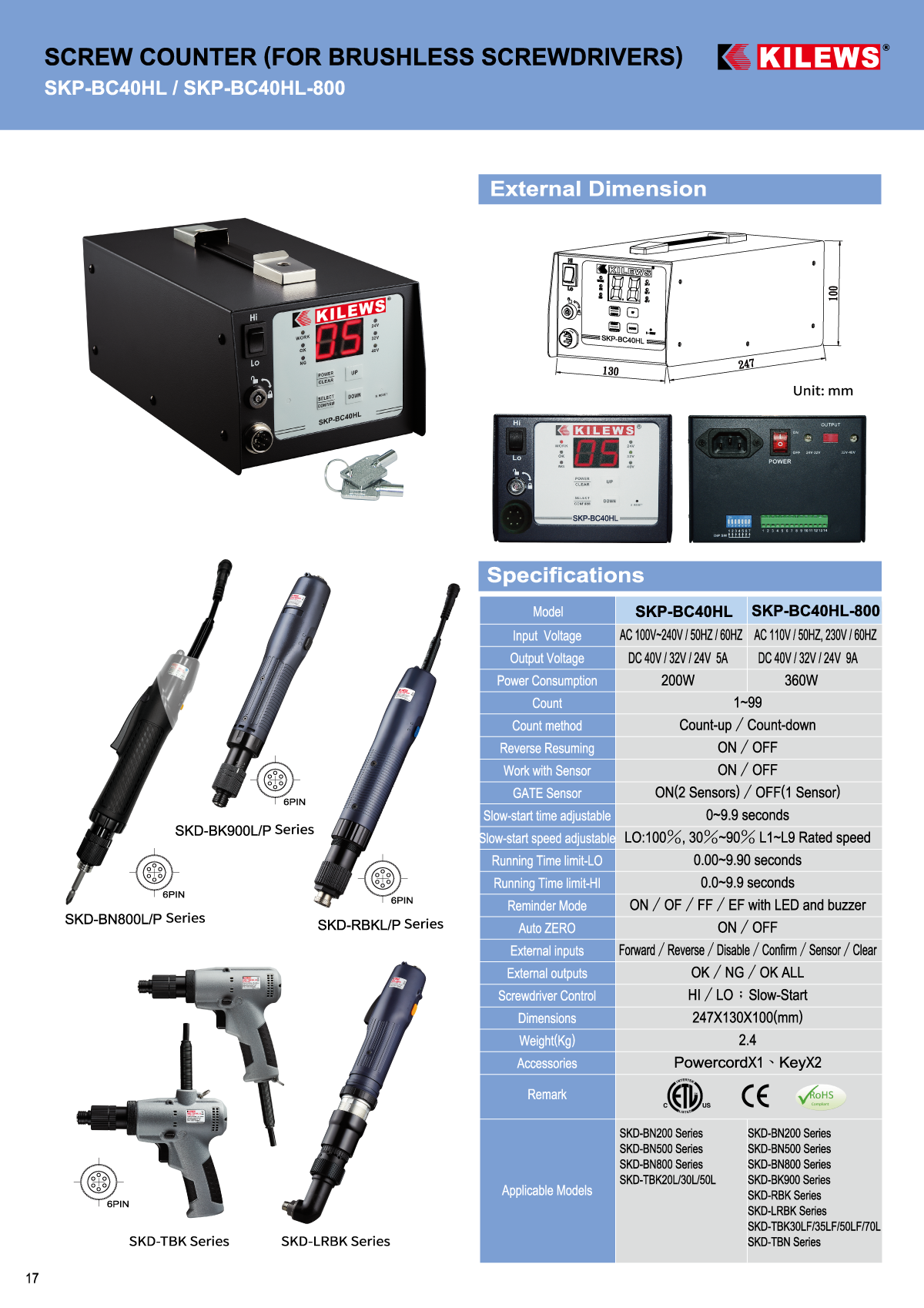

Screw Counter (For Brushless Screwdrivers)

Cikkszám: SKP-BC40HL
RoHS CE
In order to achieve accurate counting on screw fastening and work together with PLC based process control, KILEWS integrate screw counter, power supply, and slow start function into unique device which is both power supply and screw counter as well. Our screw counters are designed more conveniently and perfectly to meet users' practicability and availability.

A szállítási időt az ajánlatban pontosítjuk.

Model
SKP-BC40HL
Input Voltage
AC100V~240V/50HZ/60HZ
Output Voltage
DC40V/32V/24V 5A
Power Consumption
220W
Count 1~99
Count method Count-up／Count-down
Work with Sensor ON/OFF
GATE Sensor ON(2Sensors)/OFF(1Sensor)
Slow-start time adjustable 0~9.9 seconds
Slow-start speed adjustable L0:100％,30％~90％L1~L9 RATED SPEED
Running Time limit-LO 0.00~9.99 seconds
Running Time limit-HI 0.0~9.9 seconds
REMINDER MODE ON／OF／FF／EF with LED and buzzer
Auto ZERO ON/OFF
External inputs Forward／Reverse／Disable／Confirm／Sensor／Clear
External outputs OK/NG/OK ALL
Screwdriver Control HI/LO： Slow-Start

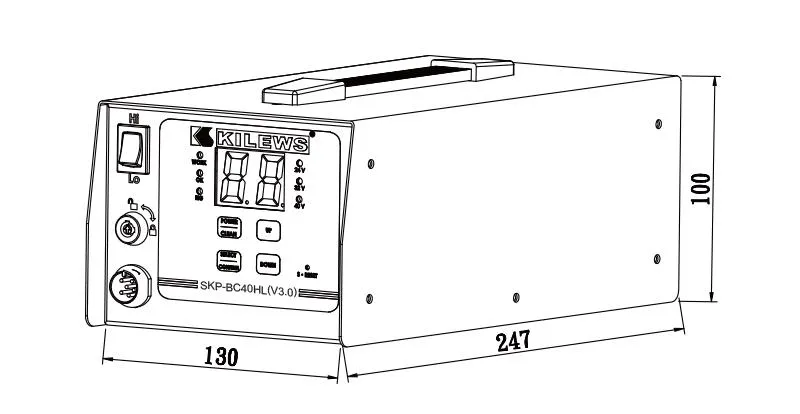

External dimensions(mm) 247X130X100(mm)
Weight(kg) 2.4
Applicable Models SKD-BN200 series, SKD-BN500 series, SKD-BN7000 series, SKD-BN800 series, SKD-TBK20L/30L/50L

Features In order to achieve accurate counting on screw fastening and work together with PLC based process control, KILEWS integrate screw counter, power supply, and slow start function into unique device which is both power supply and screw counter as well. Our screw counters are designed more conveniently and perfectly to meet users' practicability and availability. High / Low speed switch / Hi/Lo voltage switch protection function Slow start time (0.0-9.9 second) Slow start speed Level (35%-100% of normal speed,L0-L9) Target reached Confirm (enable / disable) Input / Output function control External start Input Control External reverse Input Control External enable Input Control External confirm Input Control Expanding 5 sets data memory Auto-Learning function for time monitoring Before tightening reverse After tightening reverse Counting mode (count up / count down) Signal output (OK 1/ OK ALL / N.G) Cancel NG signal (Use external Clear or Confirm button to cancel NG signal) Operation complete time Self locking when counter detect error (enable / disable) Sensor mode (Applications according to different operation use) Error code by monitoring Strong anti-interference capability
