Kilews KL-CTDS Smart Industrial Torque Display
KL-CTDS Smart Industrial Torque Display
A szállítási időt az ajánlatban pontosítjuk.
Input voltage
DC32V/40V
I/O OUTPUT VOLTAGE
DC24V50mA/12V100mA
| Count | 1-250 |
| Count method | Count-up／Count-down |
| Slow start setting time | 0~9.9 seconds |
| Slow start speed setting | L0:100%,10%~90% L1~L9 Rated speed |
| Detection stop time | 0.00~9.99 seconds |
| Detection torque value | 0.00-550.00kgf.cm |
| Detection screw thread number | 0.0~999.9 |
| External connection input | Start / Reverse / Disable / Confirm / Cleared / Gate / Sequence cleared |
| External connection output | OK／NG／OKALL／STOP |
| Serial interface | RS-232X2 |
| Assembly management | KL-DAS／KL-AMS |

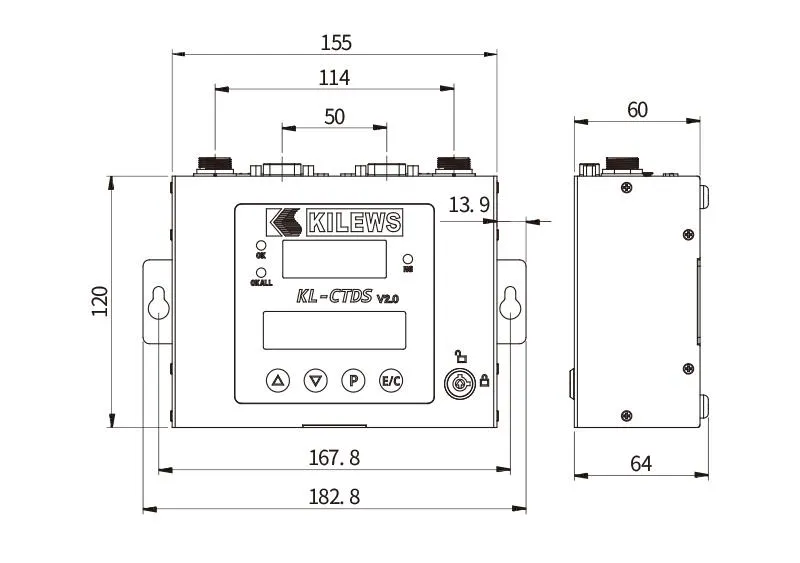

| External dimensions | 155X120X60(mm) |
| Weight | 630g |
| Accessories | Power cableX1 KeyX2 |
| Applicable Models | SKD-BNK200 series , SKD-BNK500 series , SKD-BNK800 series , SKD-BNK900 series , SKD-RBNK series , SKD-TBNK series , SKD-LRBNK series |
Features ●4 digits and 7 Segment of torque display ●16 x 2 LCM display settings ●Password and key control to avoid operator adjusting settings. ●Counting preference set up (count up and count down) ●Slow start time 0.0-9.9 sec ●Slow start speed (10%~90%,L1~L9) ●Workpiece in place sensor (on/off) ●Set up fastening thread range ●I/O signal (mos-relay) ●RS-232 interface for data output, storage and use with barcode scanner ●99 data storage ●Set up fastening time range ●Set up fastening torque range ●Error code ●Auto learning ●Change torque unit ●Offset setting ●External start ●External reverse ●External disable tool ●External confirm
- 📄 Dokumentum: KL-CTDS-V2.00(CE)%20.pdf
- 📄 Dokumentum: N-DAS%20FOR%20KL-CTDS_E.pdf

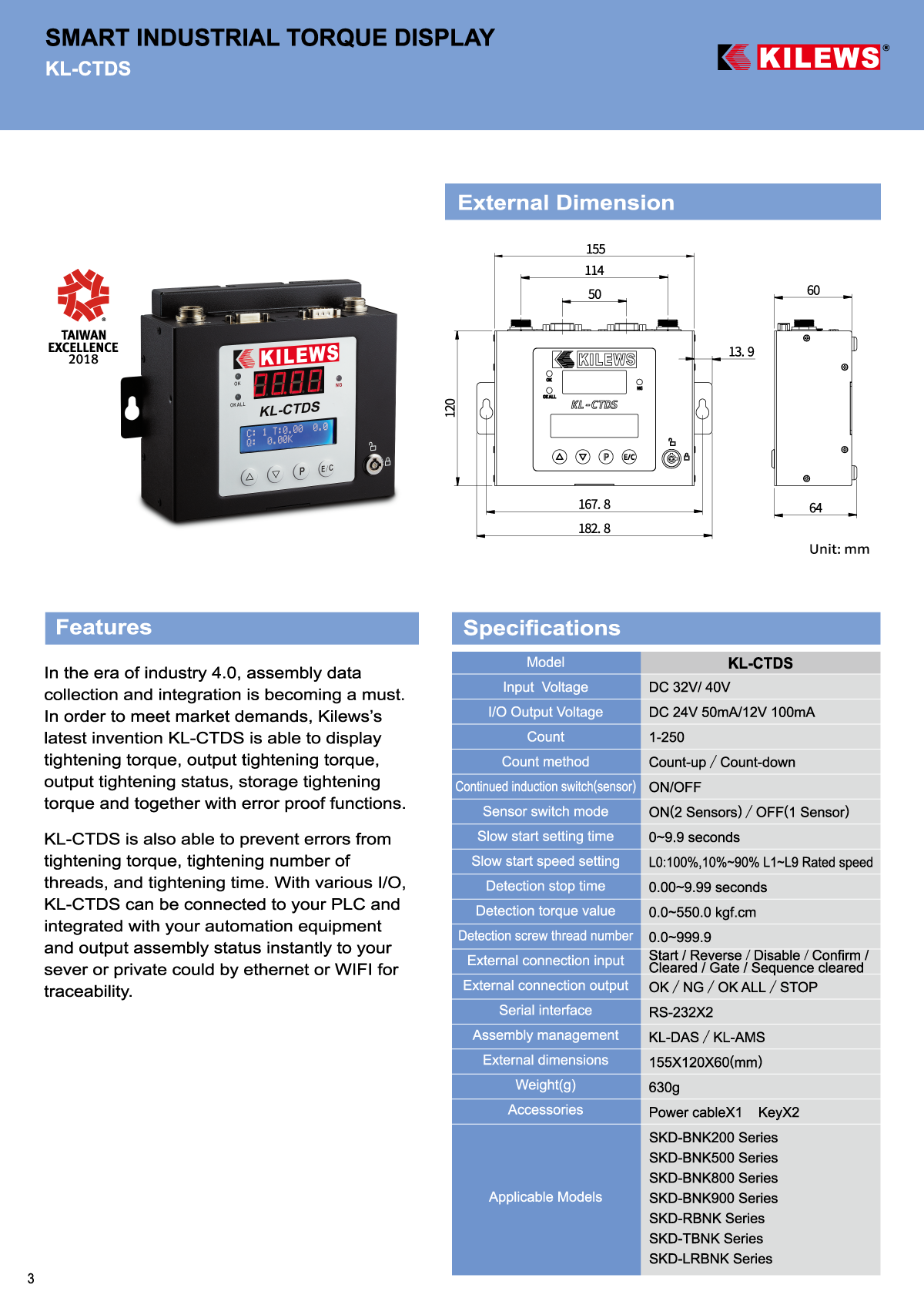

- 📄 Dokumentum: download_202402070846502.png
