Közös adatok

Allowable swing time example	About 0.76 sec or more sec \| About 0.38 sec or more sec \| About 1.27 sec or more sec \| About 0.63 sec or more sec

Modellek összehasonlítása

Model	Cylinder force at 0.5 MPa	Clamping force formula	Holding force formula
WHE0450	0.4 kN	F=(0.8357-0.00228×L)×P	Fk=(1-0.0027×L)×1.842×P
WHE0600	0.6 kN	F=(1.1666-0.00287×L)×P	Fk=(1-0.0025×L)×2.771×P
WHE1000	1.0 kN	F=(1.8842-0.00346×L)×P	Fk=(1-0.0021×L)×4.08×P
WHE1600	1.6 kN	F=(3.0603-0.00505×L)×P	Fk=(1-0.0012×L)×6.628×P
WHE2500	2.4 kN	F=(4.7875-0.00654×L)×P	Fk=(1-0.0008×L)×10.481×P
WHE4000	3.9 kN	F=(7.6871-0.00947×L)×P	Fk=(1-0.0006×L)×16.806×P

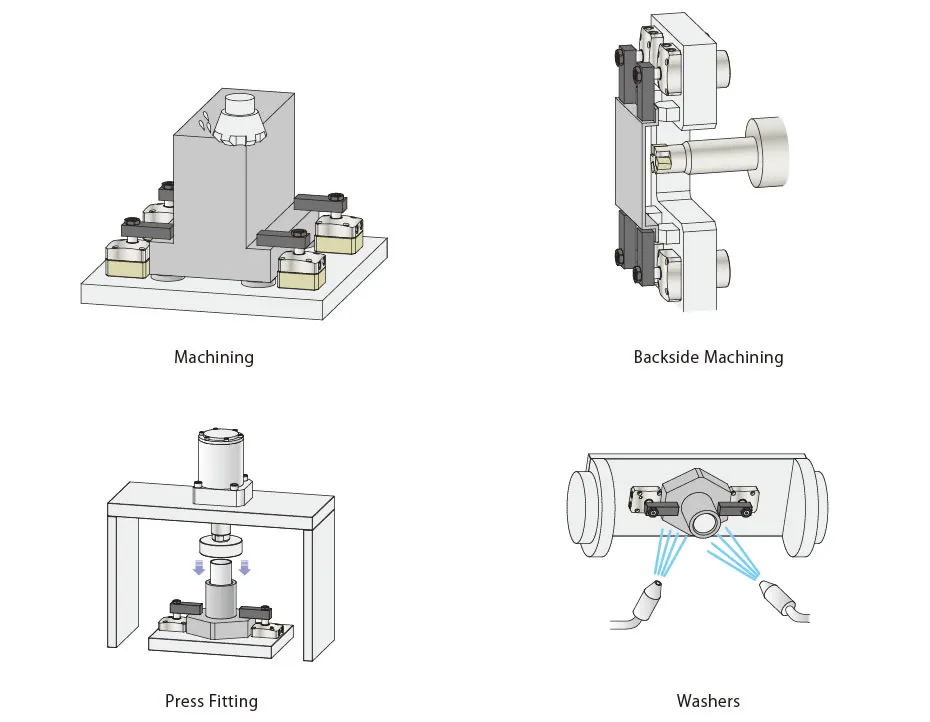

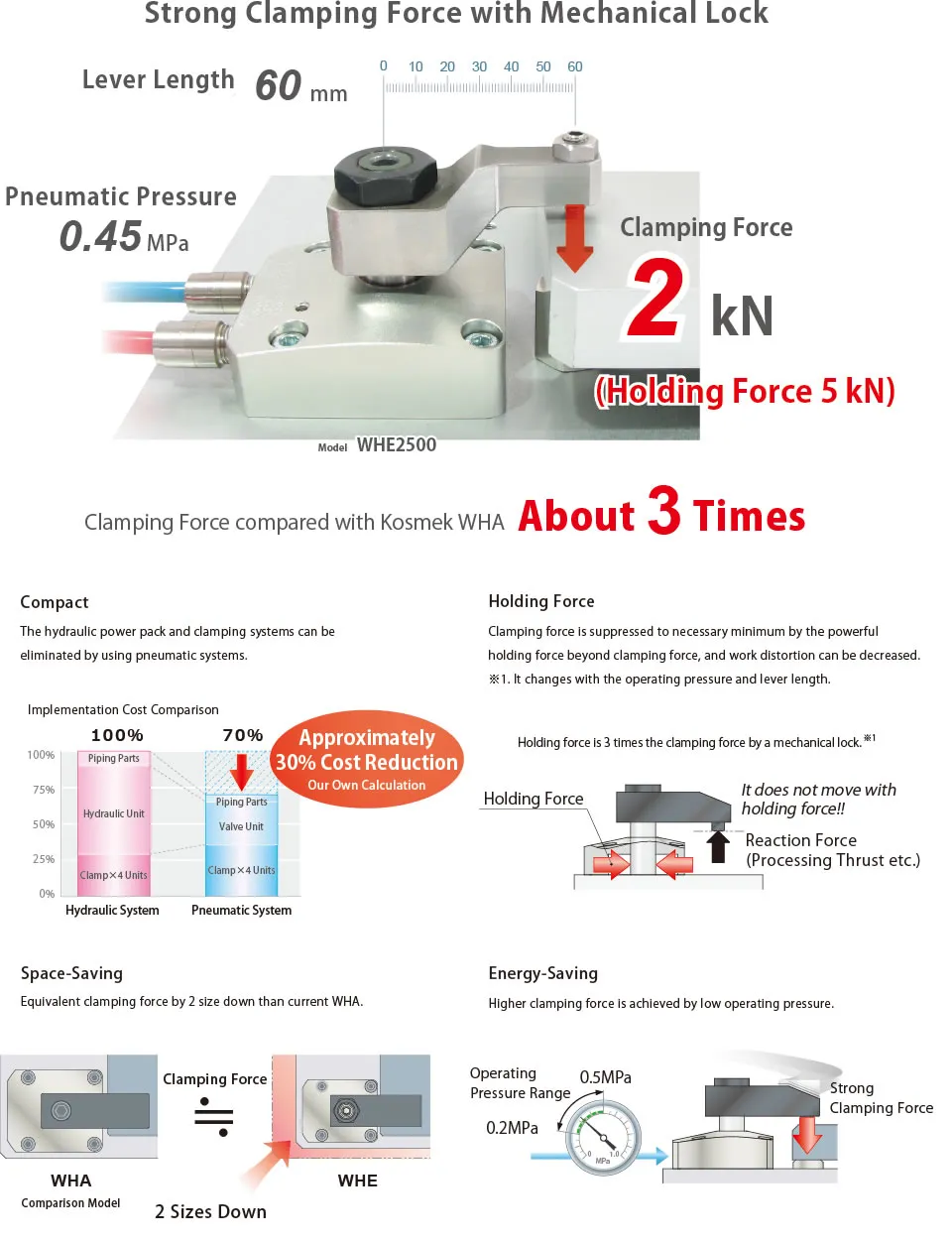

WHE is a high-power pneumatic swing clamp designed to replace hydraulic clamping with a pneumatic system. Its built-in mechanical lock provides strong holding force after clamping, helping resist reaction force and reduce work distortion.

The series is available in six body sizes and supports multiple piping, action-confirmation, and lever options. The catalog also shows variants for standard, double-end rod, air sensing, quick-change lever, balance lever, and selectable swing-angle configurations.

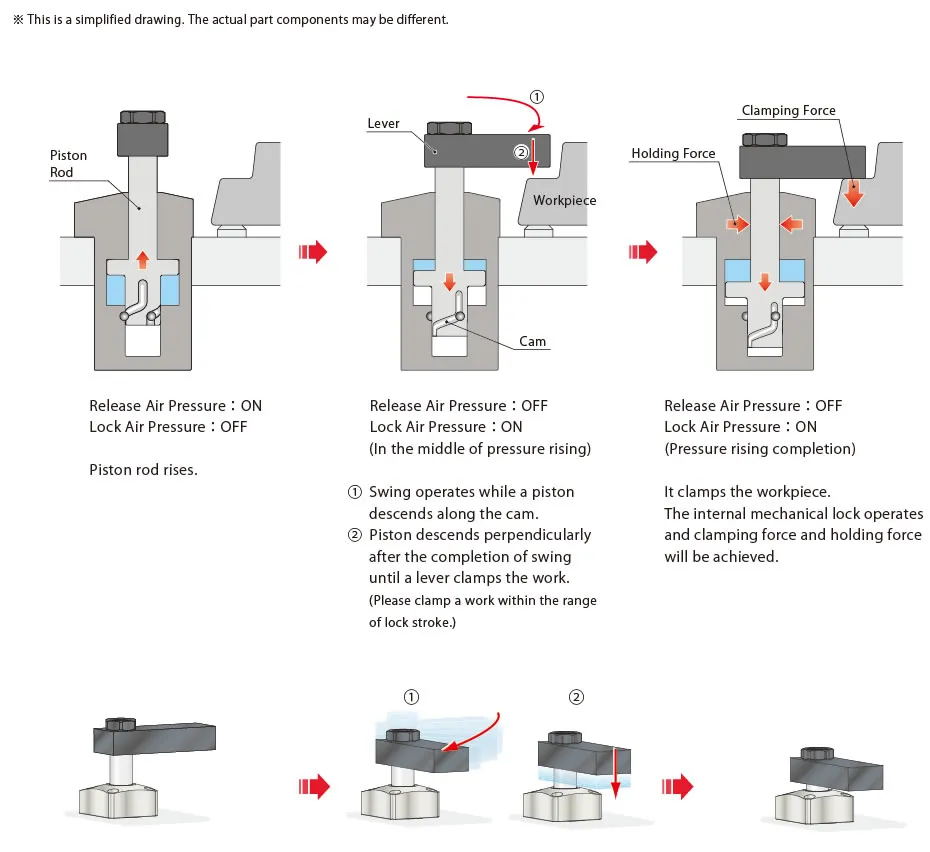

The clamp swings first and then clamps vertically, using a wedge-type locking mechanism. The design emphasizes compactness, coolant resistance, and direct attachment of a speed control valve when the gasket piping option is used.

Variants

WHE Standard Model

Variant image unavailable

Standard Model

WHE-A Quick Change Lever Option A

Variant image unavailable

WHE-D Dual End Rod Option for Dog

Variant image unavailable WHE-D
