Asyril Asycube 50 flexible feeder
Compact high-precision feeder for very small parts (0.1–5 mm)
The Asycube 50 is Asyril’s most compact high-precision flexible feeder, designed for handling very small components from 0.1 to 5 mm. Featuring advanced 3-axis vibration technology, quiet operation, and fast part orientation, it is the ideal feeder for micro-assembly, electronics, medical devices, and high-precision automation tasks.
A szállítási időt az ajánlatban pontosítjuk.
| Orientation capability | Full orientation with vibration + vision |
| Dimensions | 80 × 80 × 30 mm |
| Weight | ~0.3 kg |
| Platform size | Micro-platform |
| Noise level | Ultra-low |
| Supply voltage | 24 VDC |
| Power consumption | < 15 W typical |
| Control interface | EYE+ controller / PLC / Digital I/O |
| Connectivity | Digital I/O, analog input, Ethernet via EYE+ |
| Controller compatibility | EYE+ XTD, EYE+ Classic |
| Included items | Asycube 50 feeder unit, micro plate, mounting hardware |
| Application areas | Electronics, medical devices, micro-assembly, watchmaking |
The Asycube 50 is a compact, ultra-precise flexible feeding platform engineered for handling extremely small components with maximum reliability and accuracy. Powered by Asyril’s patented 3-axis vibration technology, the Asycube 50 ensures gentle part manipulation, fast cycle times, and consistent part orientation — even for the smallest micro-components.

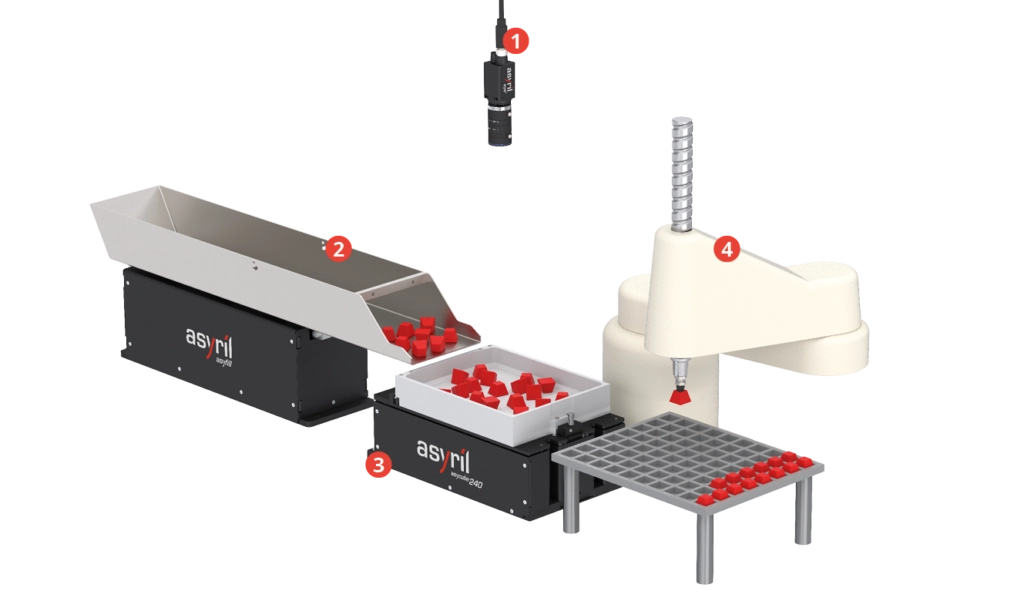

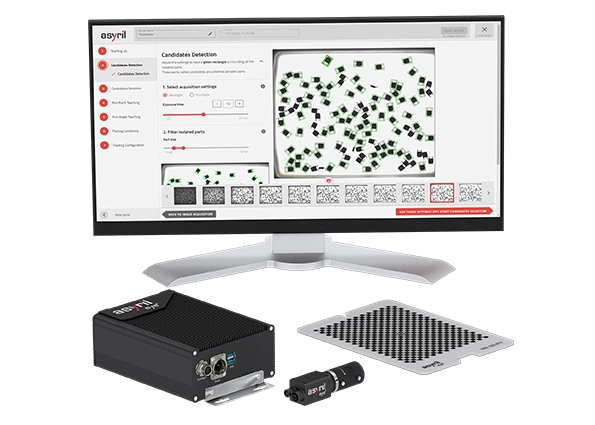

Its open platform design allows seamless integration with industrial robots, PLCs, and advanced vision systems such as Asyril’s EYE+ smart controller, enabling fully automated part detection, selection, and pick-and-place operations.
With extremely low noise levels, ultra-compact dimensions, and high vibration precision, the Asycube 50 is the perfect solution for industries such as micro-assembly, medical technology, electronics manufacturing, and watchmaking.
- 📄 Dokumentum: Asyril_Datasheet_Asycube_EN.pdf
