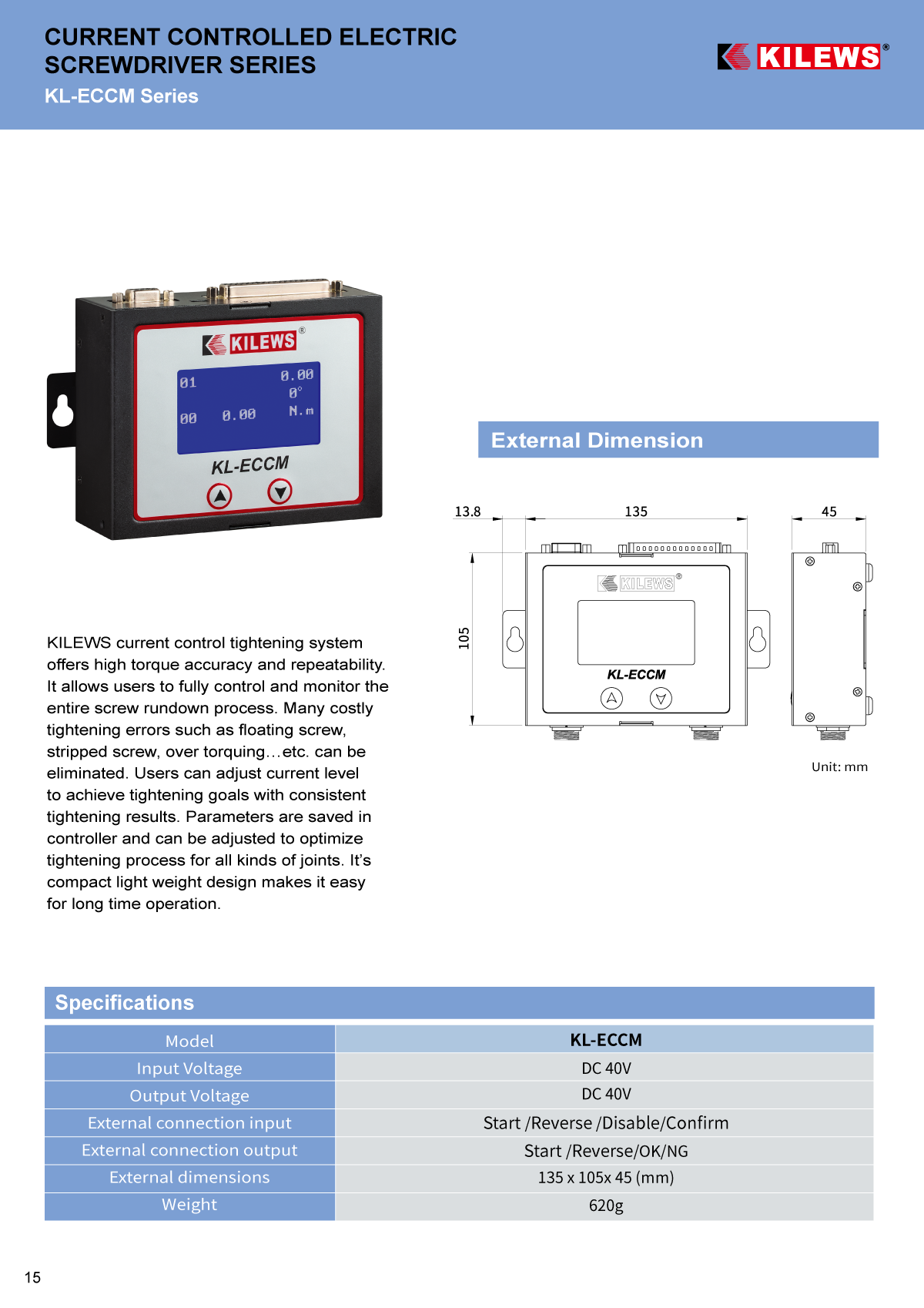

Kilews KL-ECCM series Current Controlled

KL-ECCM series Current Controlled

Cikkszám: KL-ECCM series
KILEWS current control tightening system offers high torque accuracy and repeatability.

A szállítási időt az ajánlatban pontosítjuk.

Input voltage
DC 40V
Output Voltage
DC 40V

External connection input Start/Reverse /Disable/Confirm
External connection output Start/Reverse/OK/NG

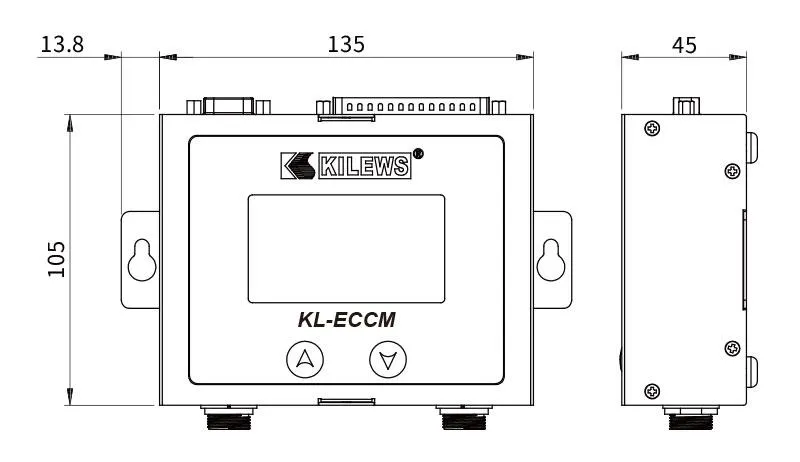

External dimensions 135 x 105x 45 (mm)
Weight 620g

Features KILEWS current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.

Kilews KL-ECCM series
Current Controlled
