Kilews SGT-CCM Series Electric Screwdriver
SGT-CCM SeriesElectric Screwdriver
KILEWS current control tightening system offers high torque accuracy and repeatability.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Közös adatok
| Input Voltage | DC40V |
| Repeatable Torque Accuracy (%) | ±5% |
| Weight (g) | 1173 |

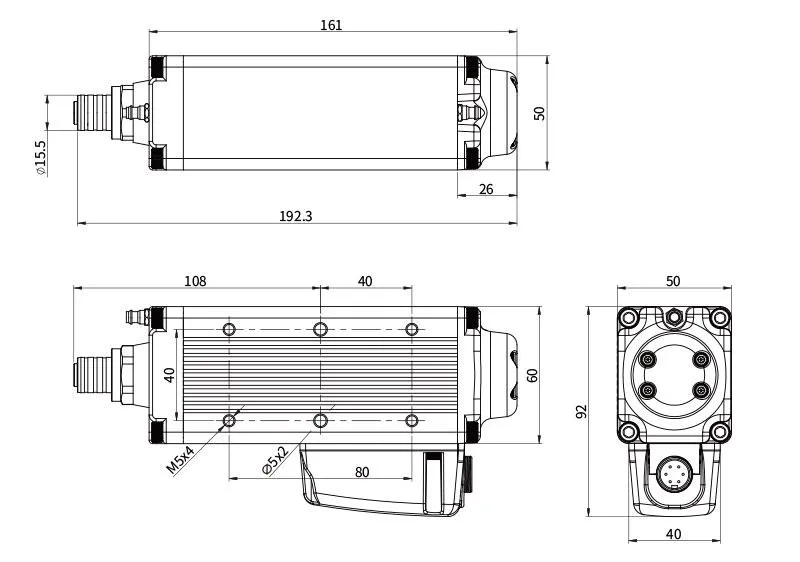

| Size (mm) | 192x92x50 |

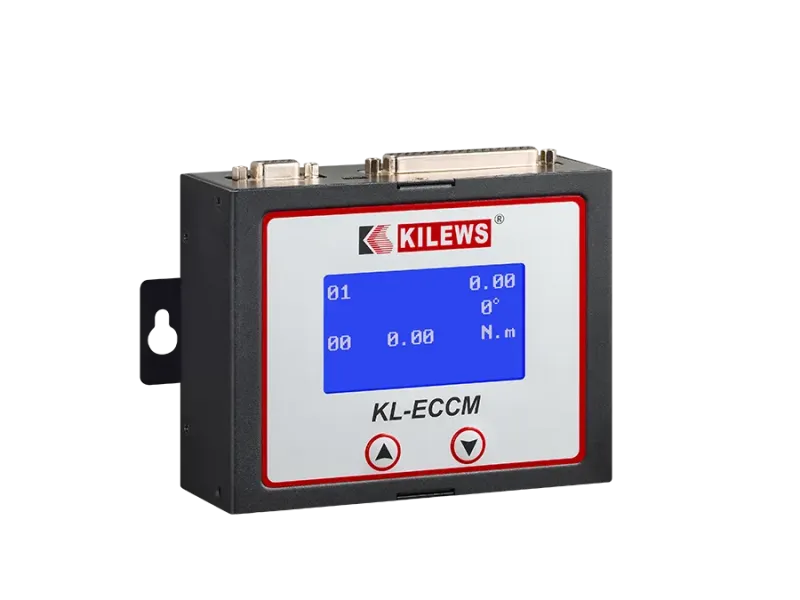

| Display Controller | KL-ECCM |
| Power Controller | SKP-40B-800 |
Modellek összehasonlítása
| Model | Torque (N.m) | Torque (kgf.cm) | Torque (Lbf.in) | Free Speed (r.p.m) | Bit Type |
|---|---|---|---|---|---|
| SGT-CCM512 | 0.3~1.2 | 3.06~12.24 | 2.66~10.62 | 1000~100 | B 9.5、D |
| SGT-CCM520 | 0.6~2 | 6.12~20.40 | 5.31~17.70 | 1000~100 | B 9.5、D |
| SGT-CCM525 | 0.5~2.5 | 5.1~25.5 | 4.43~22.13 | 1000~100 | B 9.5、D |
| SGT-CCM530F | 1~3 | 10.2~30.60 | 8.85~26.55 | 1700~200 | B 9.5、D |
| SGT-CCM550 | 1.5~5 | 15.30~51.00 | 13.28~44.25 | 1000~100 | B 9.5、D |
| SGT-CCM570 | 2~7 | 20.40~71.40 | 17.70~61.96 | 800~100 | B 9.5 |
Features KILEWS current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.
- 📄 Dokumentum: download_202507111515302.pdf
- 📄 Dokumentum: download_202404231627582.png
