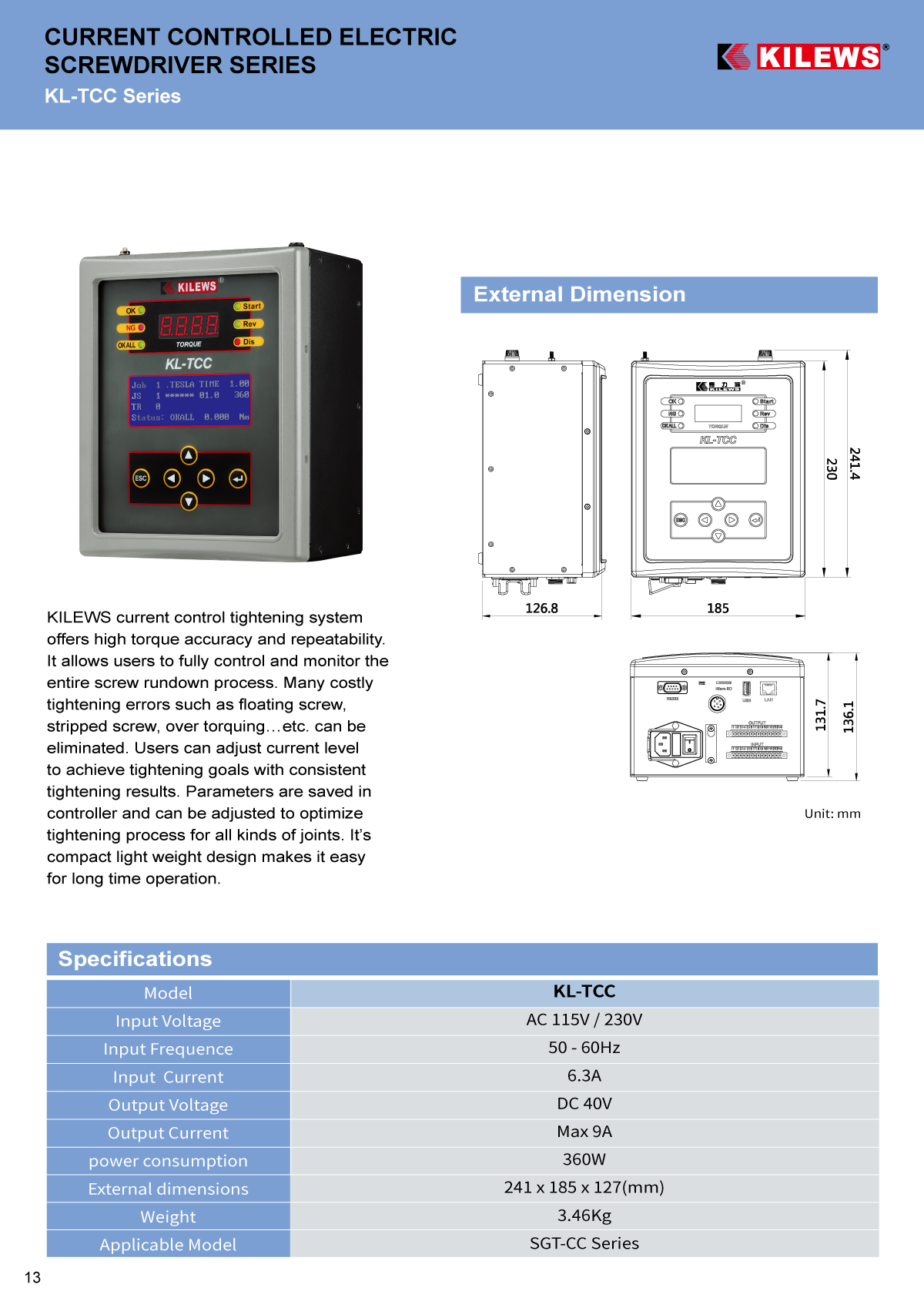

Kilews KL-TCC seriesCurrent Controlled

KL-TCC seriesCurrent Controlled

Cikkszám: KL-TCC series

KILEWS current control tightening system offers high torque accuracy and repeatability.

A szállítási időt az ajánlatban pontosítjuk.

Input voltage
AC 115V / 230V

Input Frequence 50 - 60Hz
Input Current 6.3A
Output Voltage DC 40V
Output Current Max 9A
Power consumption 360W

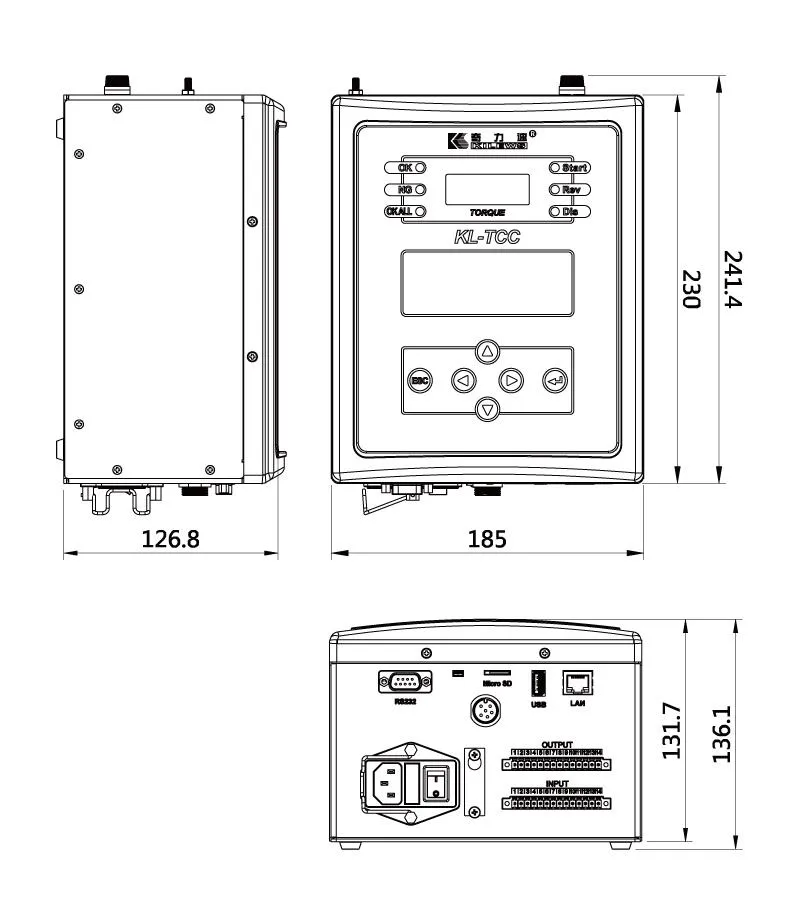

External dimensions 241 x 185 x 127(mm)
Weight 3.46Kg

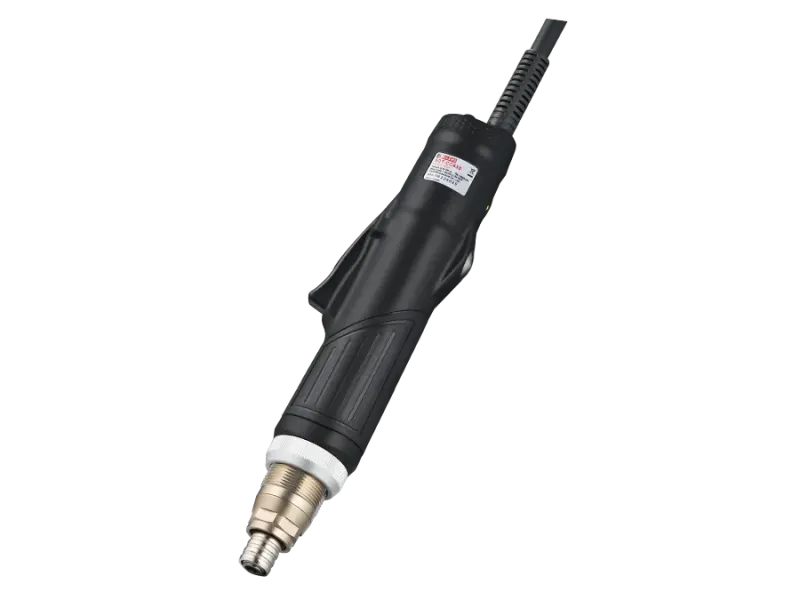

Applicable Model SGT-CC Series

Features KILEWS current control tightening system offers high torque accuracy and repeatability. It allows users to fully control and monitor the entire screw rundown process. Many costly tightening errors such as floating screw, stripped screw, over torquing…etc. can be eliminated. Users can adjust current level to achieve tightening goals with consistent tightening results. Parameters are saved in controller and can be adjusted to optimize tightening process for all kinds of joints. It’s compact light weight design makes it easy for long time operation.

Kilews KL-TCC series
Current Controlled
