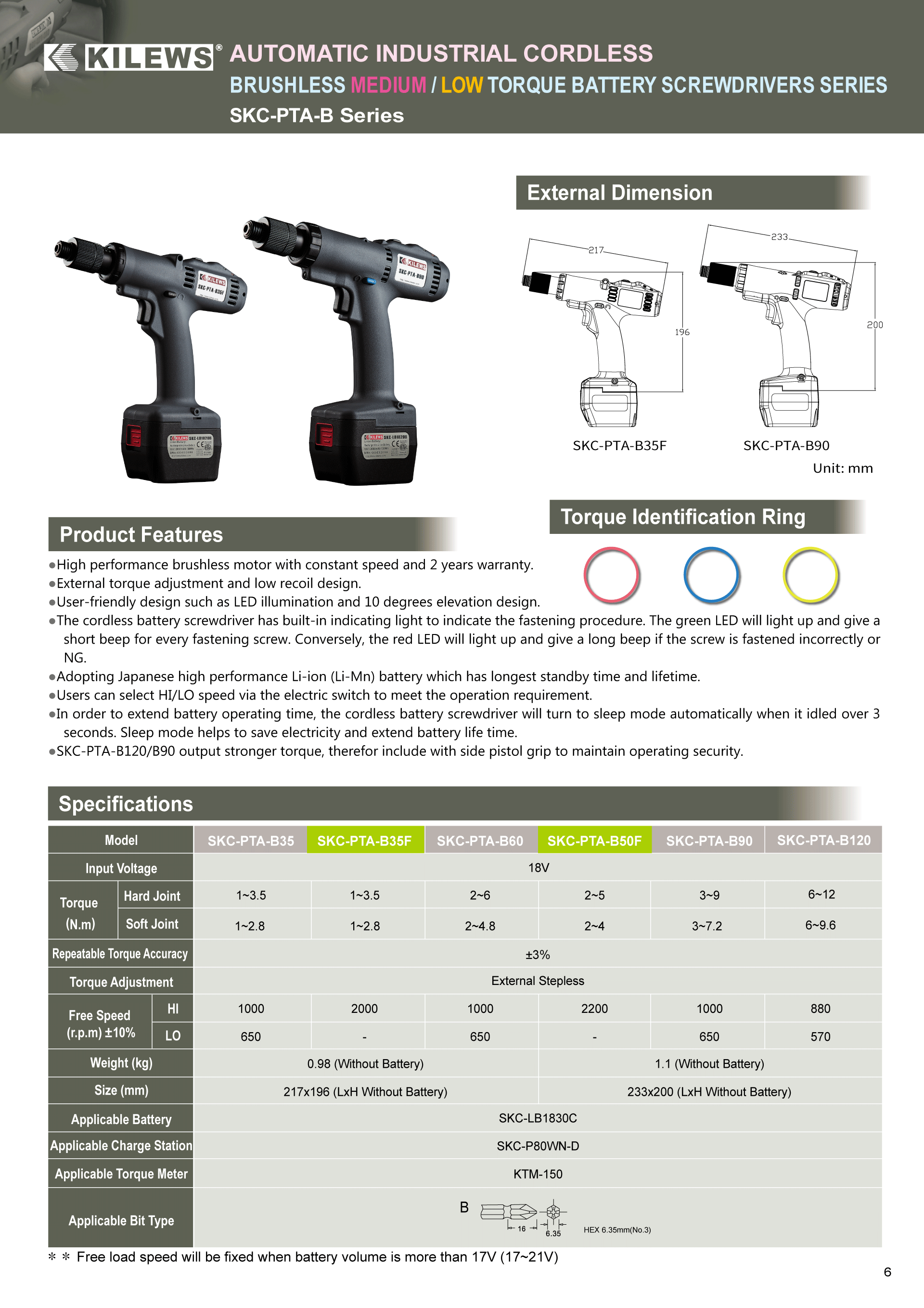

Kilews SKC-PTA-B120/90/50F
Automatic industrial cordless Brushless medium torque battery screwdrivers series
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
| Input Voltage | 18V |
| Repeatable Torque Accuracy (%) | ±3% |
| Applicable Battery | SKC-LB1830C |
| Applicable Charge Station | SKC-P80WN-D |
| Applicable Torque Metter | KTM-150 |
| Bit Type | B、B9.5 |

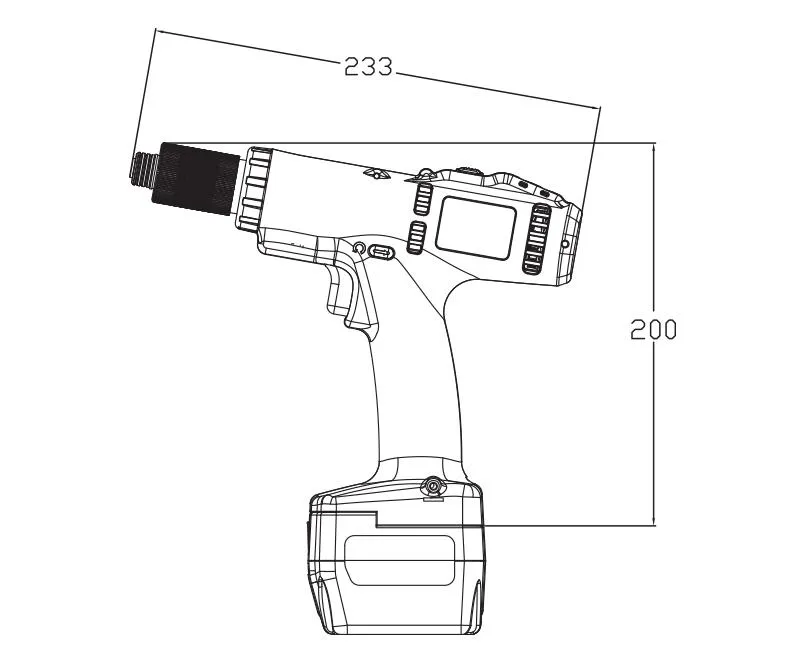

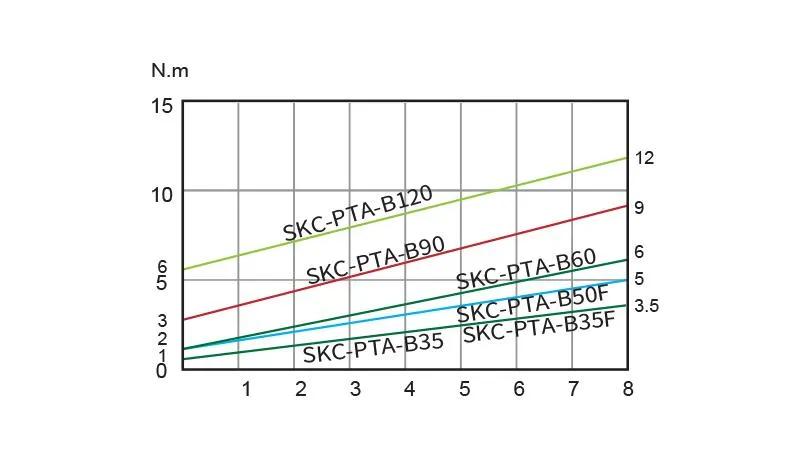

| Model | Torque(N.m) Hard Joint | Torque(N.m) Soft Joint | Free Speed (r.p.m) ±10% HI | Free Speed (r.p.m) ±10% LO | Weight (Kg) | Size LxH (mm) |
|---|---|---|---|---|---|---|
| SKC-PTA-B120 | 6~12 | 6~9.6 | 880 | 570 | 1.1 | 233X200 |
| SKC-PTA-B90 | 3~9 | 3~7.2 | 1000 | 650 | 1.1 | 233X200 |
| SKC-PTA-B50F | 2~5 | 2~4 | 2200 | - | 1.1 | 233X200 |
| SKC-PTA-B60 | 2~6 | 2~4.8 | 1000 | 650 | 0.98 | 217X196 |
| SKC-PTA-B35 | 1~3.5 | 1~2.8 | 1000 | 650 | 0.98 | 217X196 |
| SKC-PTA-B35F | 1~3.5 | 1~2.8 | 2000 | - | 0.98 | 217X196 |
Features High performance brushless motor with constant speed and 2 years warranty. External torque adjustment and low recoil design. User-friendly design such as LED illumination and 10 degrees elevation design. The cordless battery screwdriver has built-in indicating light to indicate the fastening procedure. The green LED will light up and give a short beep for every fastening screw. Conversely, the red LED will light up and give a long beep if the screw is fastened incorrectly or NG. Adopting Japanese high performance Li-ion (Li-Mn) battery which has longest standby time and lifetime. Users can select HI/LO speed via the electric switch to meet the operation requirement. In order to extend battery operating time, the cordless battery screwdriver will turn to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save electricity and extend battery life time. SKC-PTA-B120/B90 output stronger torque, therefor include with side pistol grip to maintain operating security.
