JBC HA470

Name: JBC HA470
Brand: JBC
SKU: MT-1062
Rating: 5 (10 reviews)

Automatic Heavy Duty Soldering Set for Robot

Cikkszám: MT-1062

HA470 Heavy Duty Soldering Set is the most powerful selective soldering solution and the first one featuring Automatic Cartridge Exchange.

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Peak power

250 W - 42 V

Selectable temperature

90 to 500 ºC / 190 to 930 ºF

Solder wire length

0.5 to 250 mm / 0.02 to 9.84 in

Solder wire speed

0.5 to 120 mm/s / 0.02 to 4.72 in/s

Wire diameter	0.5 to 1.5 mm / 0.020 to 0.062 in
ESD safe	Meet ANSI/ESD S20.20-2021
Tip-to-ground resistance	<2 ohms
Package	425 x 360 x 433 mm / 11.26 kg.

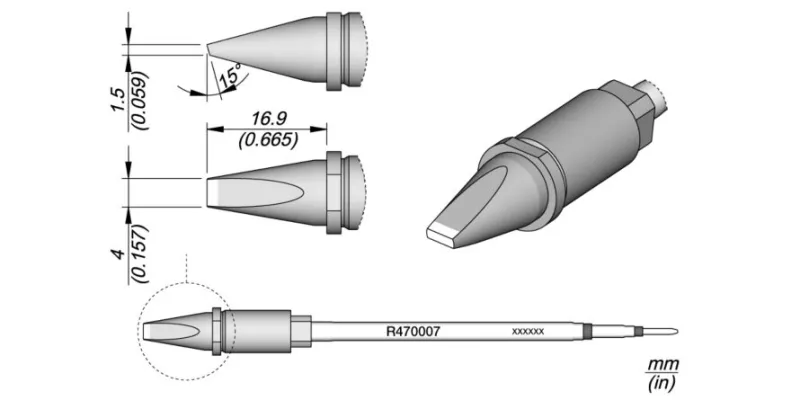

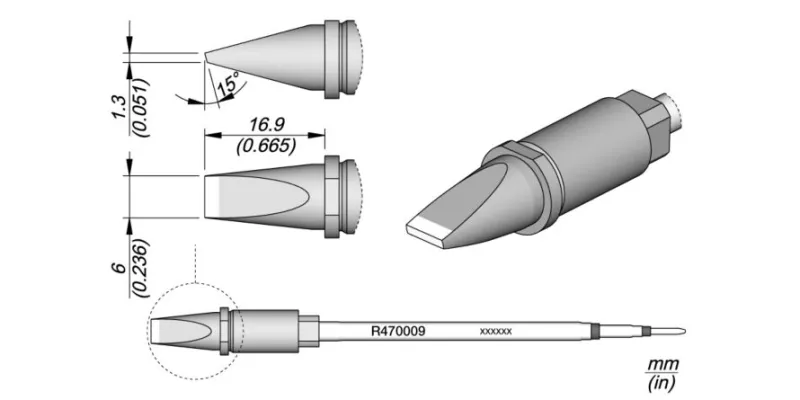

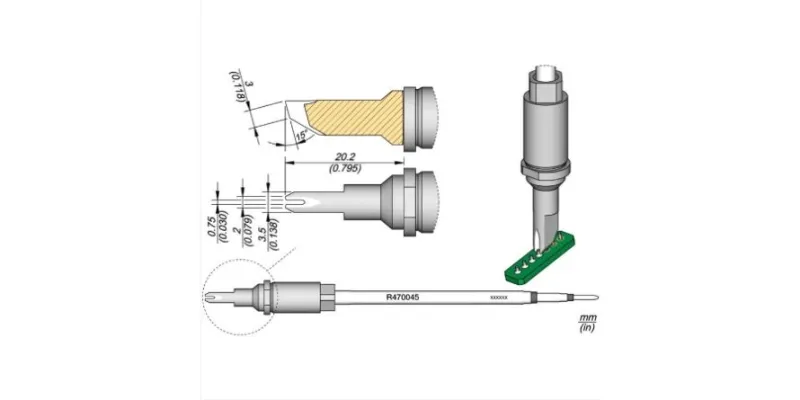

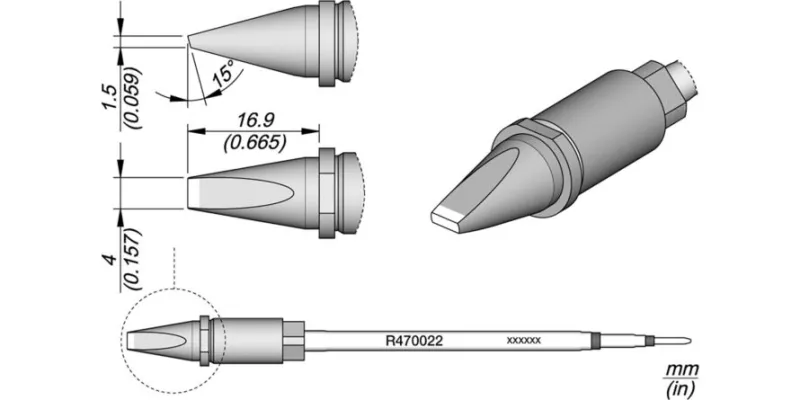

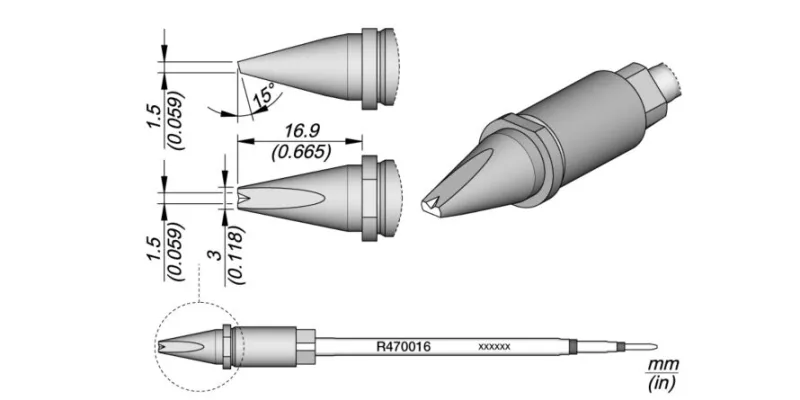

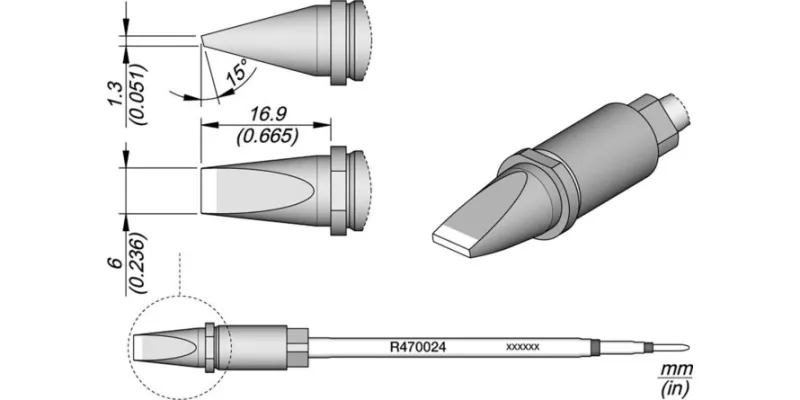

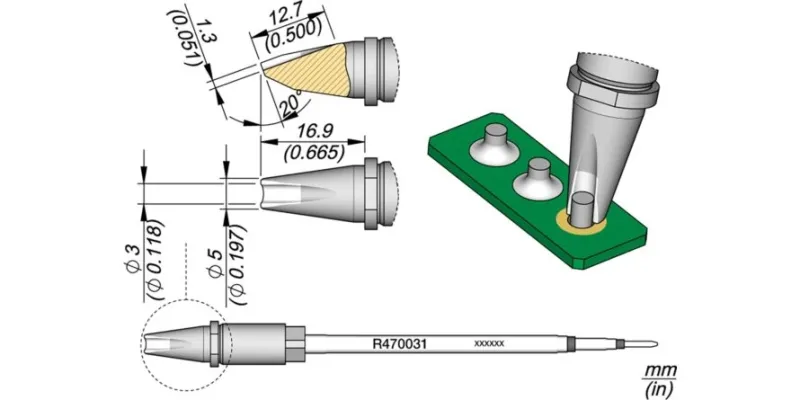

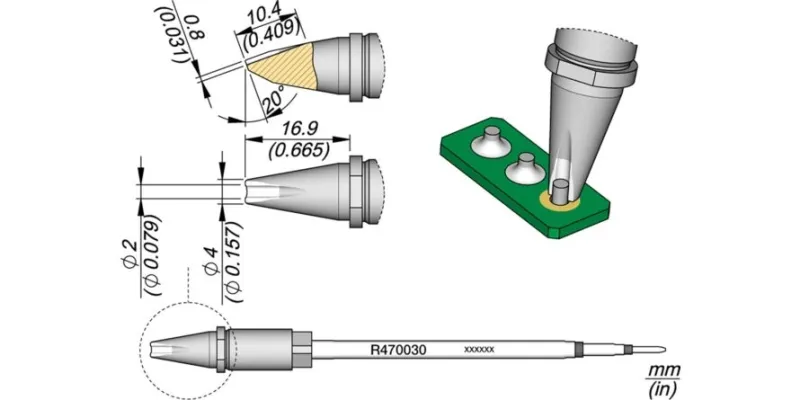

This Soldering Set is composed by: • TRA470 Soldering Unit, in combination with CSR470 Cartridge Exchanger, allows the soldering robot to use different tip shapes to achieve the highest quality on each soldering point. • SFR Solder Feeder, includes a solder-wire perforation allowing better flux flow and outgassing, avoiding solder splashing when soldering. • CLRP Tip Cleaner, tip cleaning is carried out in just one second, increasing heat transfer and improving soldering quality. •Remote control the UCR Control Unit by the robot (PC or PLC) using RS232 JBC Communication Protocol. Download it here. R470 Cartridges and GSFR Guide Kit are not included.
