JBC HA245

Name: JBC HA245
Brand: JBC
SKU: MT-1061
Rating: 5 (10 reviews)

Automatic General Soldering Set for Robot

Cikkszám: MT-1061

HA245 General Soldering Set makes the first selective soldering solution featuring Automatic Cartridge Exchange.

Mennyiség

A szállítási időt az ajánlatban pontosítjuk.

Peak power

160 W - 21 V

Selectable temperature

90 to 450 ºC / 190 to 840 ºF

Solder wire length

0.5 to 250 mm / 0.02 to 9.84 in

Solder wire speed

0.5 to 120 mm/s / 0.02 to 4.72 in/s

Wire diameter	0.5 to 1.5 mm / 0.020 to 0.062 in
ESD safe	Meet ANSI/ESD S20.20-2021
Tip-to-ground resistance	<2 ohms
Package	425 x 360 x 433 mm / 11.31 kg.

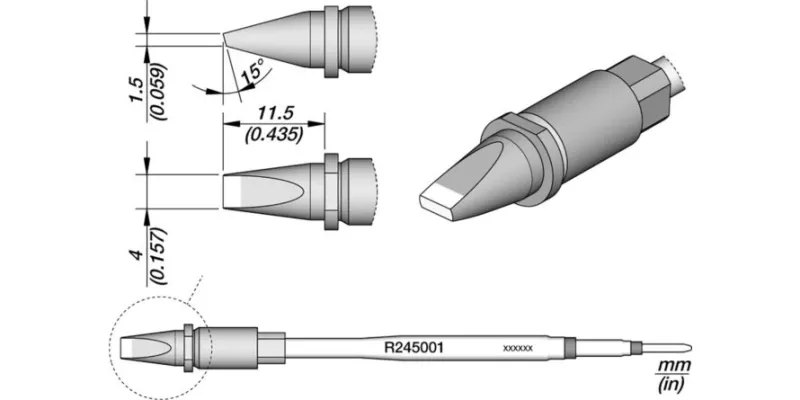

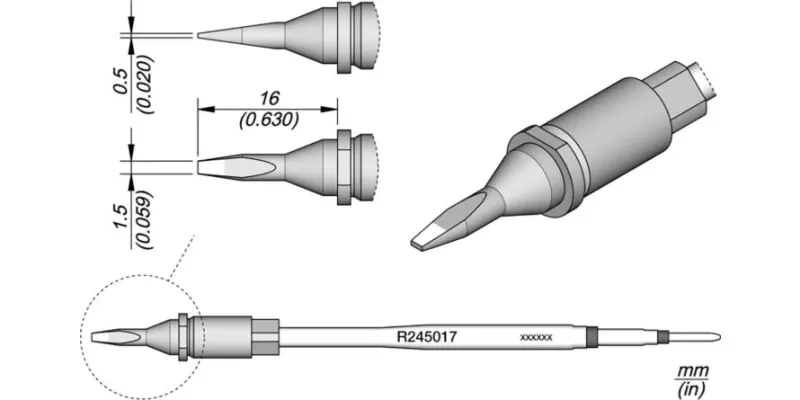

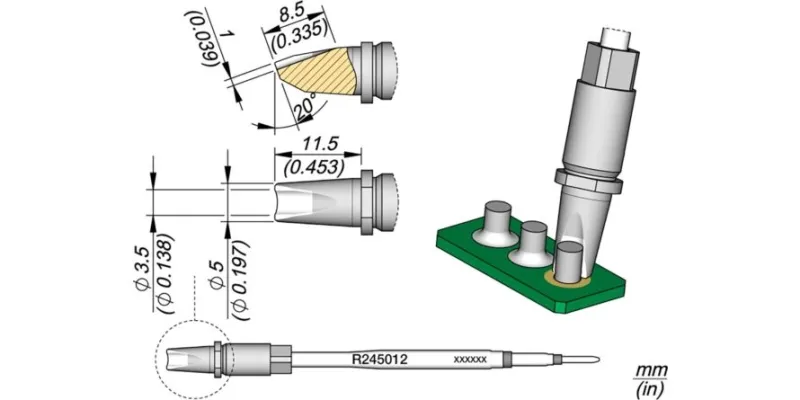

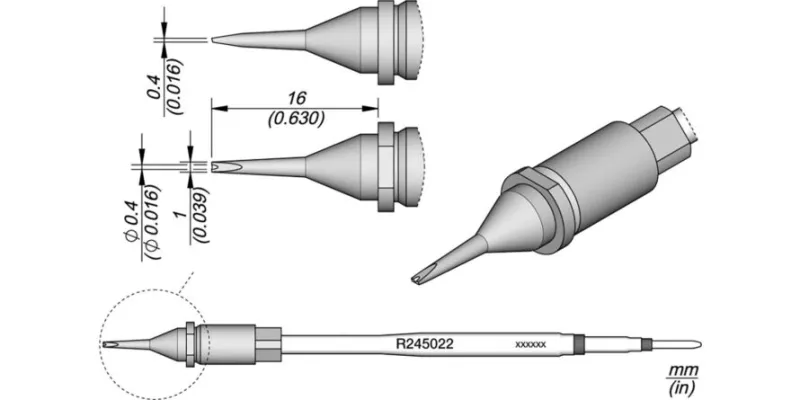

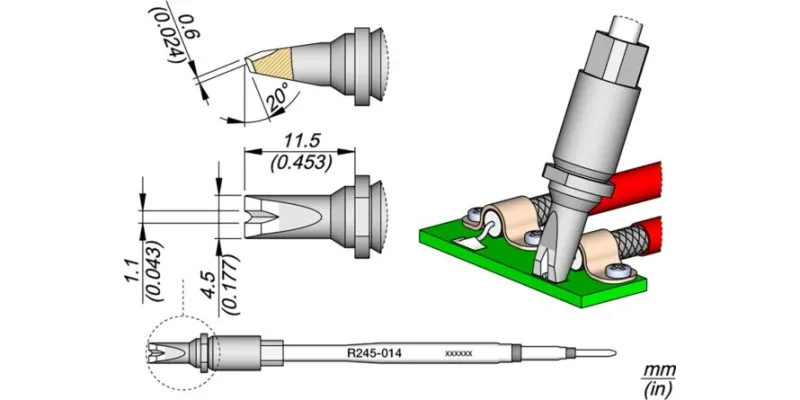

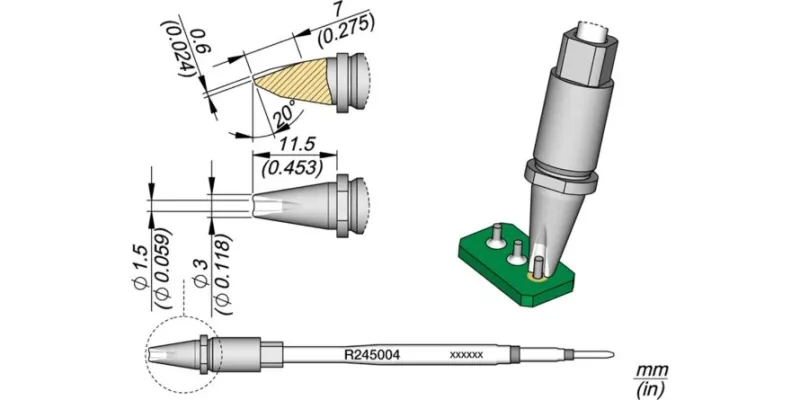

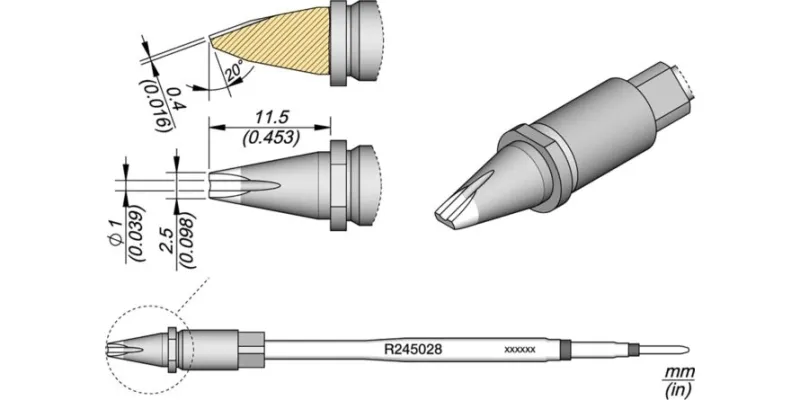

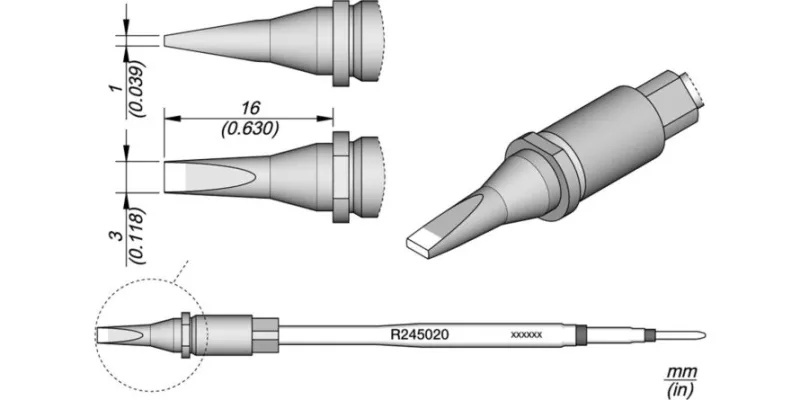

This Soldering Set is composed by: • TRA245 Soldering Unit, in combination with CSR245 Cartridge Exchanger, allows the soldering robot to use different tip shapes to achieve the highest quality on each soldering point. • SFR Solder Feeder includes a solder-wire perforation allowing better flux flow and outgassing, avoiding solder splashing when soldering. • CLRP Tip Cleaner, tip cleaning is carried out in just one second, increasing heat transfer and improving soldering quality. • Remote control the UCR Control Unit by the robot (PC or PLC) using RS232 JBC Communication Protocol. Download it here. R245, R245L Cartridges and GSFR Guide Kit are not included.
