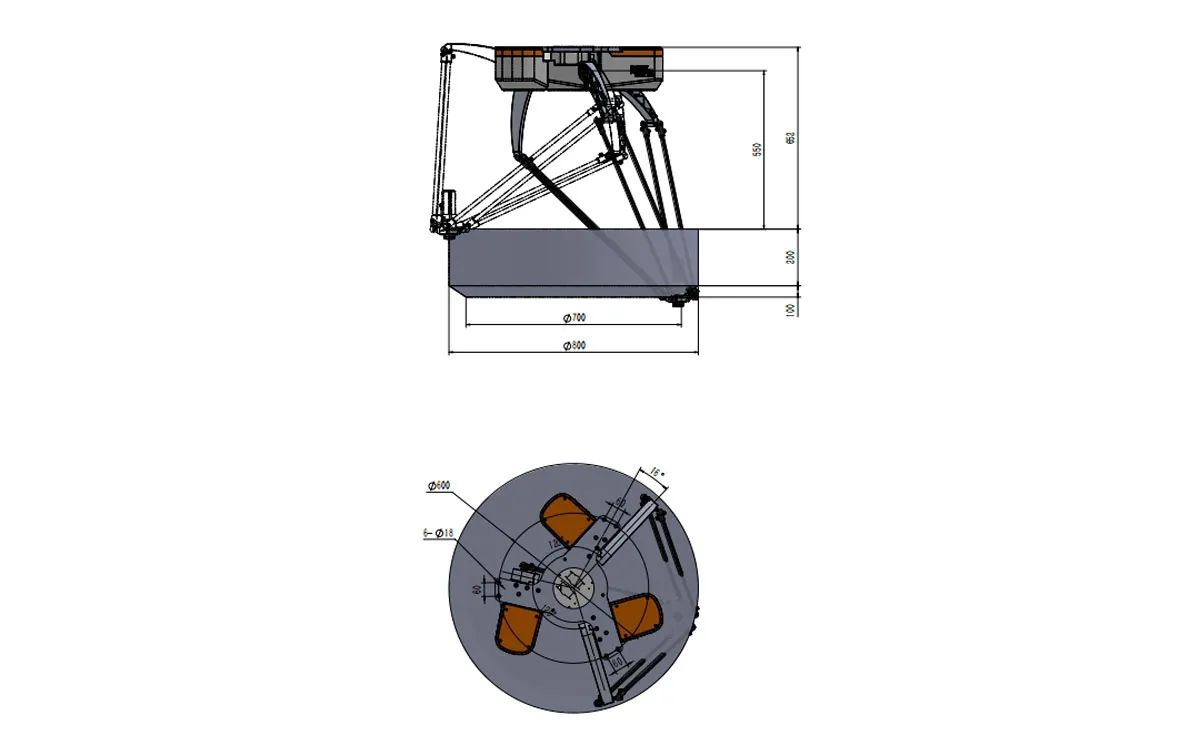

Robotphoenix BAT800M-E3 Delta Robot
BAT800M-E3
BAT800M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
BAT800M-E3
Payload
3kg
Reach
800mm
Axes
4
| Repeatability | 0.08mm |
| IP | IP54 |
BAT800M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.
Specifications
| Robot Model | BAT800M-E3 |
| Rated Load | 3kg |
| Maximum Load | 10kg |
| Working Space Diameter | 800mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.08mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.05° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | single-phase AC220V±10％, 50/60HZ |
| Rated Power | 2.7KW |
| Protection Grade | IP54 |
| Weight | 62kg |
