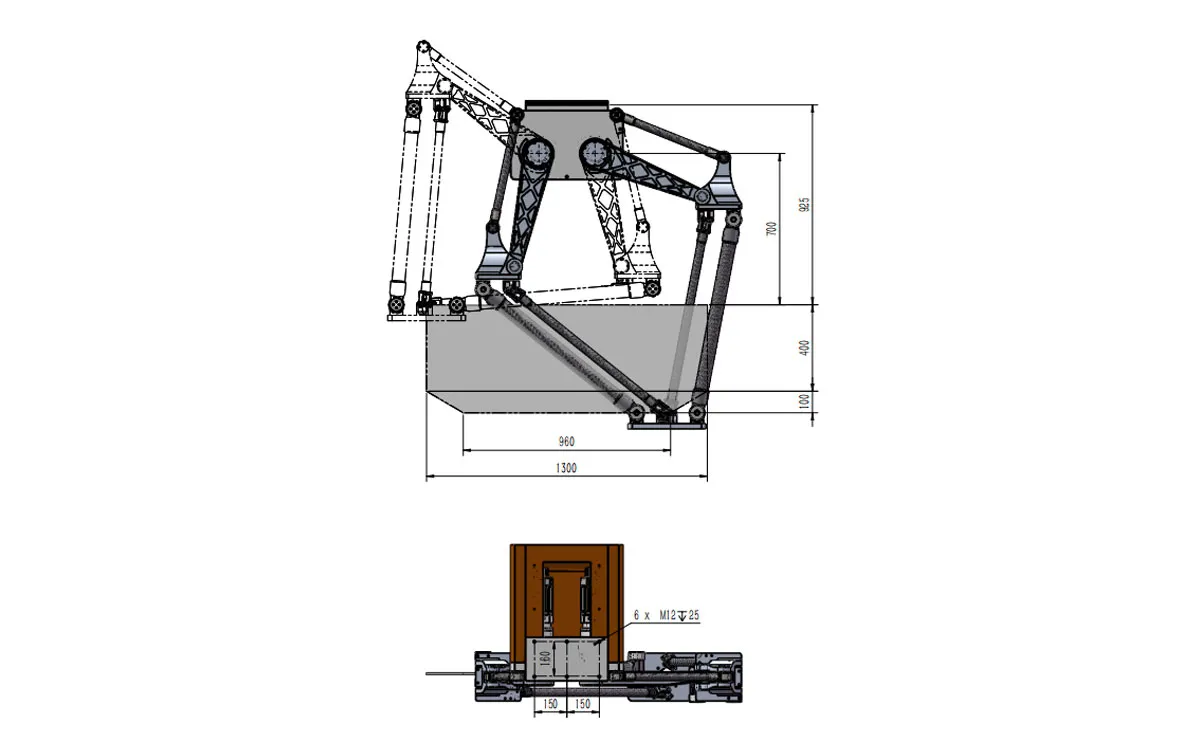

Robotphoenix BAT1300B-S50 Heavy Load Delta Robot
BAT1300B-S50
Bat1300B-S50 delta robot is a 2-axis parallel robot with a rated payload of 50kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This type of industrial 2D delta robot wins favor of industrial robot supplier and contributes to a flexible production during high precision and high speed manufacturing lines.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
BAT1300B-S50
Payload
50kg
Reach
1300mm
Axes
2
| Repeatability | 0.02mm |
| IP | IP54 |
Bat1300B-S50 delta robot is a 2-axis parallel robot with a rated payload of 50kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This type of industrial 2D delta robot wins favor of industrial robot supplier and contributes to a flexible production during high precision and high speed manufacturing lines.
Specifications
| Robot Model | BAT1300B-S50 |
| Rated Load | 50kg |
| Working Space Diameter | 1300mm |
| Number of Axles | 2 |
| Repeated Positioning Accuracy | 0.02mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | / |
| Maximum Speed | 2m/s |
| Power Supply Voltage | three-phase AC380V±10％, 50/60HZ |
| Rated Power | 3.9kW |
| Protection Grade | IP54 |
| Weight | 200kg |
