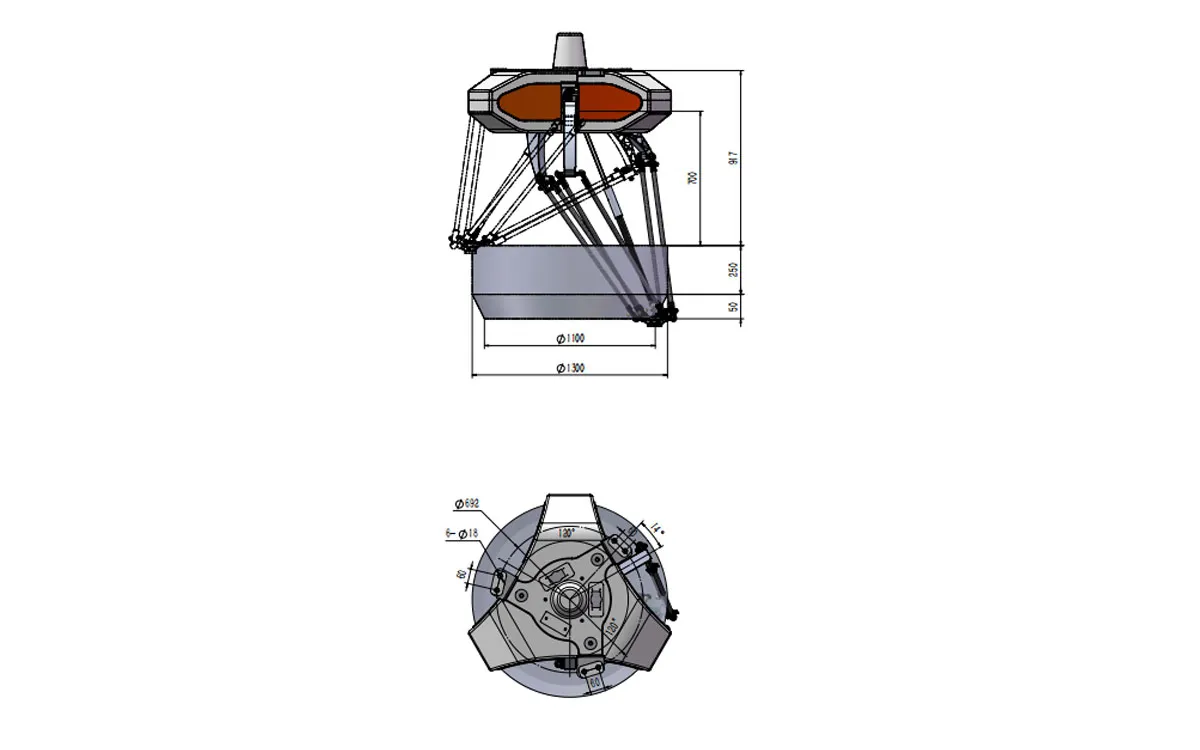

Robotphoenix BAT1300-S6 Delta Robot
BAT1300-S6
Bat1300-S6 delta robot is a 4-axis parallel robot with a rated payload of 6kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This delta parallel robot contributes to a flexible production during high precision and high speed manufacturing lines.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
BAT1300-S6
Payload
6kg
Reach
1300mm
Axes
4
| Repeatability | 0.08mm |
| IP | IP54 |
Bat1300-S6 delta robot is a 4-axis parallel robot with a rated payload of 6kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This delta parallel robot contributes to a flexible production during high precision and high speed manufacturing lines.
Specifications
| Robot Model | BAT1300-S6 |
| Rated Load | 6kg |
| Maximum Load | 14kg |
| Working Space Diameter | 1300mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.08mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.2° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | three-phase AC380V±10％, 50/60HZ |
| Rated Power | 6kW |
| Protection Grade | IP54 |
| Weight | 100kg |
