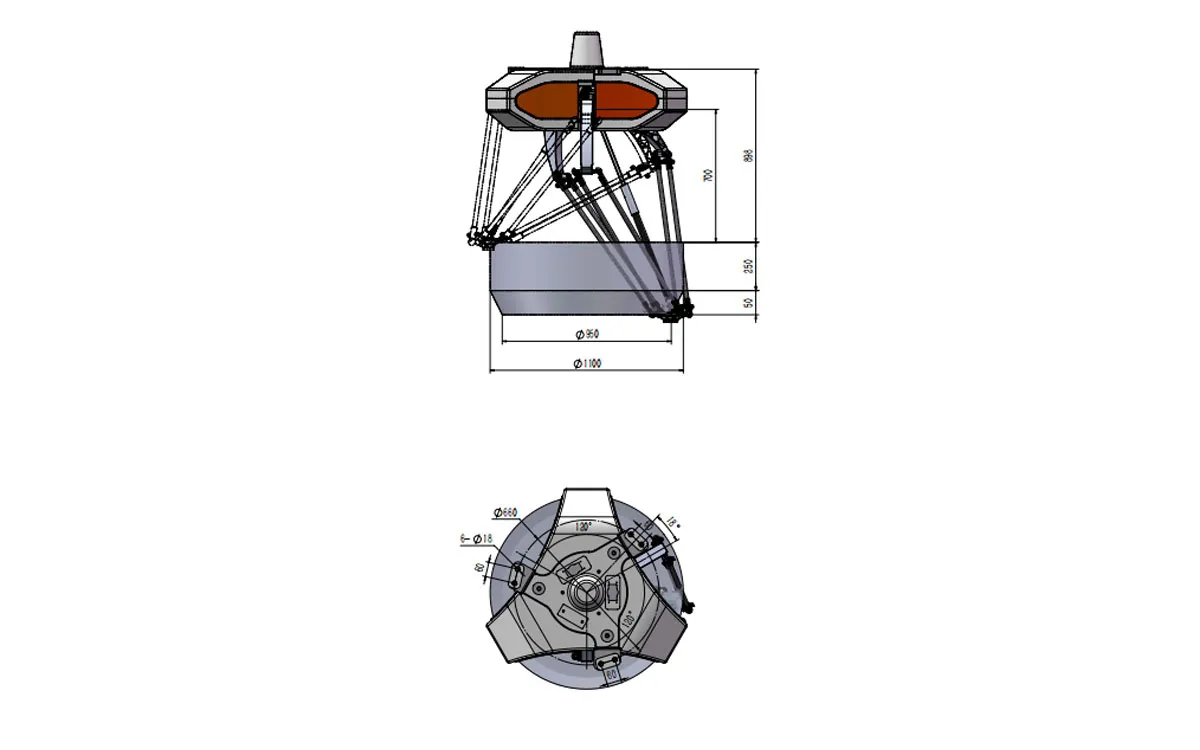

Robotphoenix BAT1100-S3 Delta Robot
BAT1100-S3
Bat1100-S3 delta robot is a 4-axis parallel robot with a rated payload of 3kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta style robot is very popular among industrial robot manufacturing companies, contributing to a flexible production during high precision and high speed manufacturing lines.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
BAT1100-S3
Payload
3kg
Reach
1100mm
Axes
4
| Repeatability | 0.08mm |
| IP | IP54 |
Bat1100-S3 delta robot is a 4-axis parallel robot with a rated payload of 3kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta style robot is very popular among industrial robot manufacturing companies, contributing to a flexible production during high precision and high speed manufacturing lines.
Specifications
| Robot Model | BAT1100-S3 |
| Rated Load | 3kg |
| Maximum Load | 12kg |
| Working Space Diameter | 1100mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.08mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.2° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | three-phase AC380V±10％, 50/60HZ |
| Rated Power | 3.4KW |
| Protection Grade | IP54 |
| Weight | 60kg |
