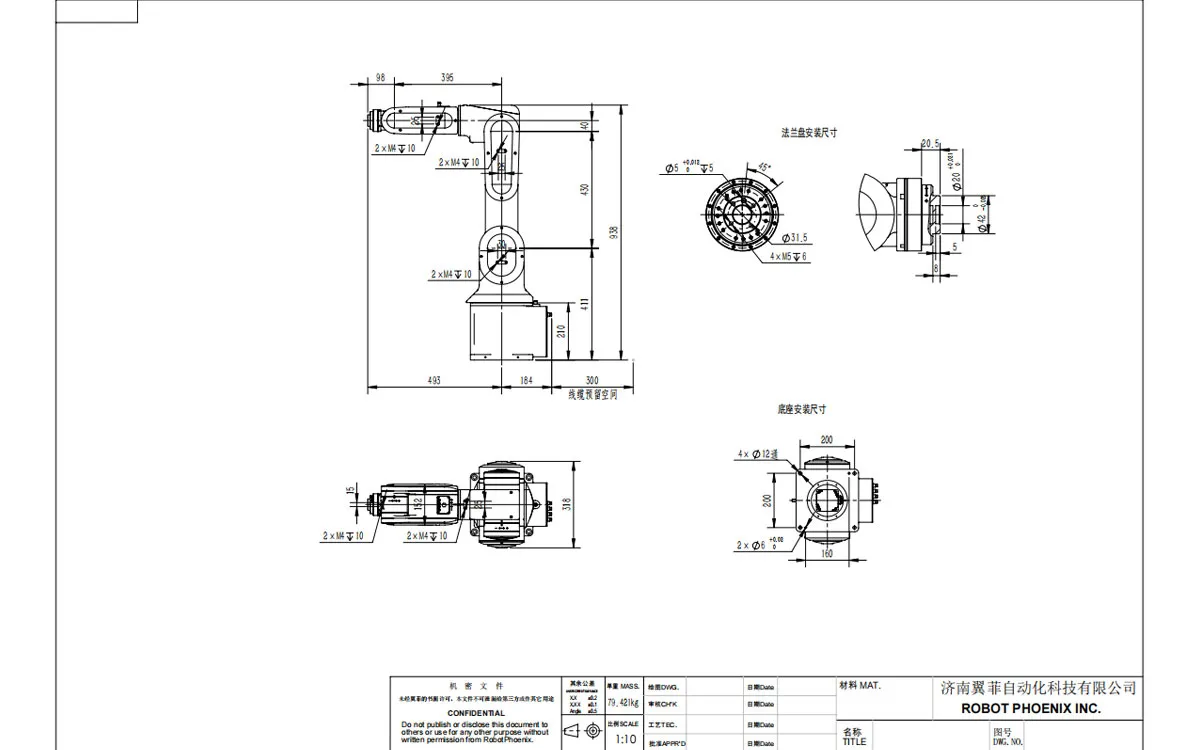

Robotphoenix Mantis830-A6 6-Axis Robot
Mantis830-A6
Mantis series 830-A6 six-axis robot has a rated payload of 6kg. The six industrial robot is developed for complex applications with multiple degrees of freedom. It has graphical operation functions and is simple to program and use.
A szállítási időt az ajánlatban pontosítjuk.
Robot Model
Mantis830-A6
Payload
6kg
Reach
830mm
Axes
6
| Repeatability | 0.02mm |
| IP | IP54 |
Mantis series 830-A6 six-axis robot has a rated payload of 6kg. The six industrial robot is developed for complex applications with multiple degrees of freedom. It has graphical operation functions and is simple to program and use.
Specifications
| Robot Model | Mantis830-A6 | ||
| Load | 6kg | ||
| Working Radius | 830mm | ||
| Number of Axles | 6 | ||
| Motion | Axial Motion | Scope of Work | Maximum Speed |
| A1 Joint: Rotation of the First Mechanical Arm | -175°-+175° | 288°/s | |
| A2 Joint: Swing of the Second Mechanical Arm -123°-+97° | -90°-+126° | 240°/s | |
| A3 Joint: Swing of the Third Mechanical Arm -66°-+201° | -201°-+66° | 415°/s | |
| A4 Joint: Rotation of the Fourth Mechanical Arm | -180°-+180° | 421°/s | |
| A5 Joint: Swing of the Wrist Component -118°-+118° | -120°-+120° | 487.5°/s | |
| A6 Joint: Clamp End Rotation | -360°-+360° | 765°/s | |
| Integrated Signal Source | 12 Signals Are Set at the Wrist | ||
| Integrated Air Supply | 4-way Air (5bar) is Set at Wrist | ||
| Repetitive Positioning Accuracy | 0.02mm | ||
| Robot Installation | Table/Ceiling mounting | ||
| Degree of Protection | IP54 | ||
| Dimensions of Robot Base | 250mm×250mm | ||
| Robot Height | 1343.5mm | ||
| Weight | 59kg | ||
