Denso 4-Axis SCARA Robot HM–40 ** / HM-4A**
4-Axis Robots

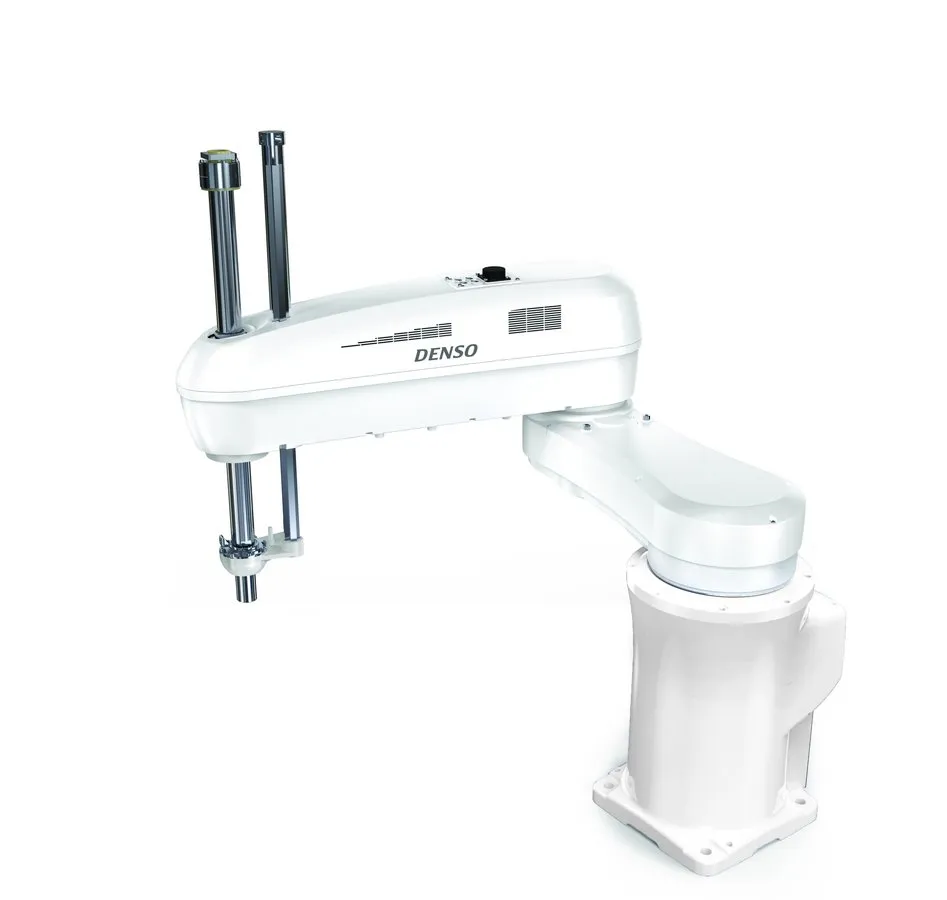

Denso 4-Axis SCARA Robot HM–40 ** / HM-4A**
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Közös adatok
| Arm Reach | 600 to 1,000 mm |
| Vertical Stroke (Z) | 200, 300 and 400 mm |
| Payload | 10 / 20 kg |
| Options | Dust & splash proof (IP65) / UL specifications |
Modellek összehasonlítása
| Model | Cycle Time | Repeatability |
|---|---|---|
| HM-40 ** | 0.29 sec | ±0.02 mm |
| HM-4A ** | 0.31 sec | ±0.025 mm |
The DENSO HM Series SCARA robots are engineered for high-speed, high-precision performance in demanding industrial environments. With a rigid arm structure and powerful motors, they offer excellent payload capacity and repeatability, making them ideal for tasks such as assembly, packaging, and material handling. The HM Series combines compact design with robust durability, ensuring reliable operation even under continuous use. Their flexible integration and optional Dust & splash proof (IP65) protection make them a versatile solution for modern automation needs.
- 📄 Dokumentum: DENSO_Robotics_Grand_Catalogue.pdf
- 📄 Dokumentum: DENSO_Robotics_Europe_Brochure_2026.pdf
- 📄 Dokumentum: HM_technical_Data_Sheet.pdf
