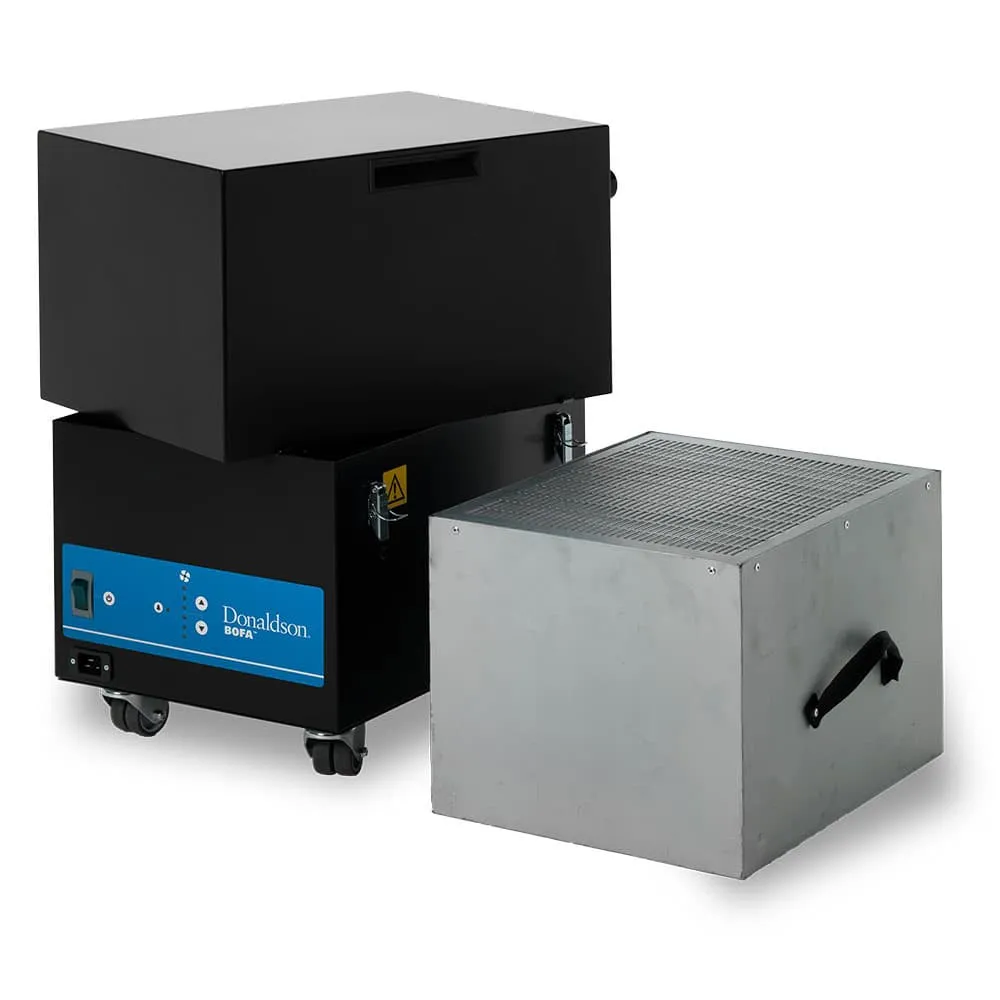

Donaldson BOFA PrintPRO Universal
Donaldson BOFA PrintPRO Universal

Donaldson BOFA PrintPRO Universal

A compact system designed for printing applications

Cikkszám: PRINTPRO-UNIVERSAL
Ideal For: Wide-format printing, continuous Inkjet (CIJ), digital flexo plates, flexographic printing, low solvent ink, MEK, priming inkjet, screen printer, solvent ink, UV coating, UV printing.

A szállítási időt az ajánlatban pontosítjuk.

Dimensions (HxWxD)
625 x 385 x 525 mm
Weight
51 kg
Airflow / Pressure
380 m³/hr / 96 mbar
Electrical data
115-230 V 1 ph 50/60 Hz
Full load current 12.5 amps/ 1.1 kw
Noise level (at typical operating speed) < 68 dBA
Cabinet construction Powder-coated mild steel

The PrintPRO Universal fume extraction system is a compact system for printing applications. Its large gas filter is designed to capture a range of solvents generated within printing environments, including MEK, ketones, and vapors from UV applications.

  • Low noise level
  • Small footprint
  • Long-life, low-cost replacement filters
  • High airflow rates

Approvals: UKCA and CE | cUL | UL†

†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories. Certain product configurations may affect the certification. Please speak to your sales representative.

Features

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

Multi-voltage sensing

Automatically senses the local voltage and adjusts accordingly.

VOC sensor

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

VOC sensor

Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

Remote stop/start signal (optional)

Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.

Filter change signal (optional)

Our filter change signal alerts you when your filter is full and needs changing.

Filter change signal (optional)

Our filter change signal alerts you when your filter is full and needs changing.
