Donaldson BOFA T 15
Donaldson BOFA T 15
Donaldson BOFA T 15

Donaldson BOFA T 15

A multi-operator extraction system for hand soldering applications

Cikkszám: T-15
Ideal For: Hand soldering, lead-free soldering.

A szállítási időt az ajánlatban pontosítjuk.

Dimensions (HxWxD)
575 x 370 x 340 mm
Weight
29 kg
Airflow / Pressure
22 l/min per tip
Electrical data
230 V Single-phase 1~ 50/60 Hz Full load current: 2.7 amps / 0.4 kw
Noise level (at typical operating speed) < 65 dBA
Cabinet construction Powder-coated mild steel

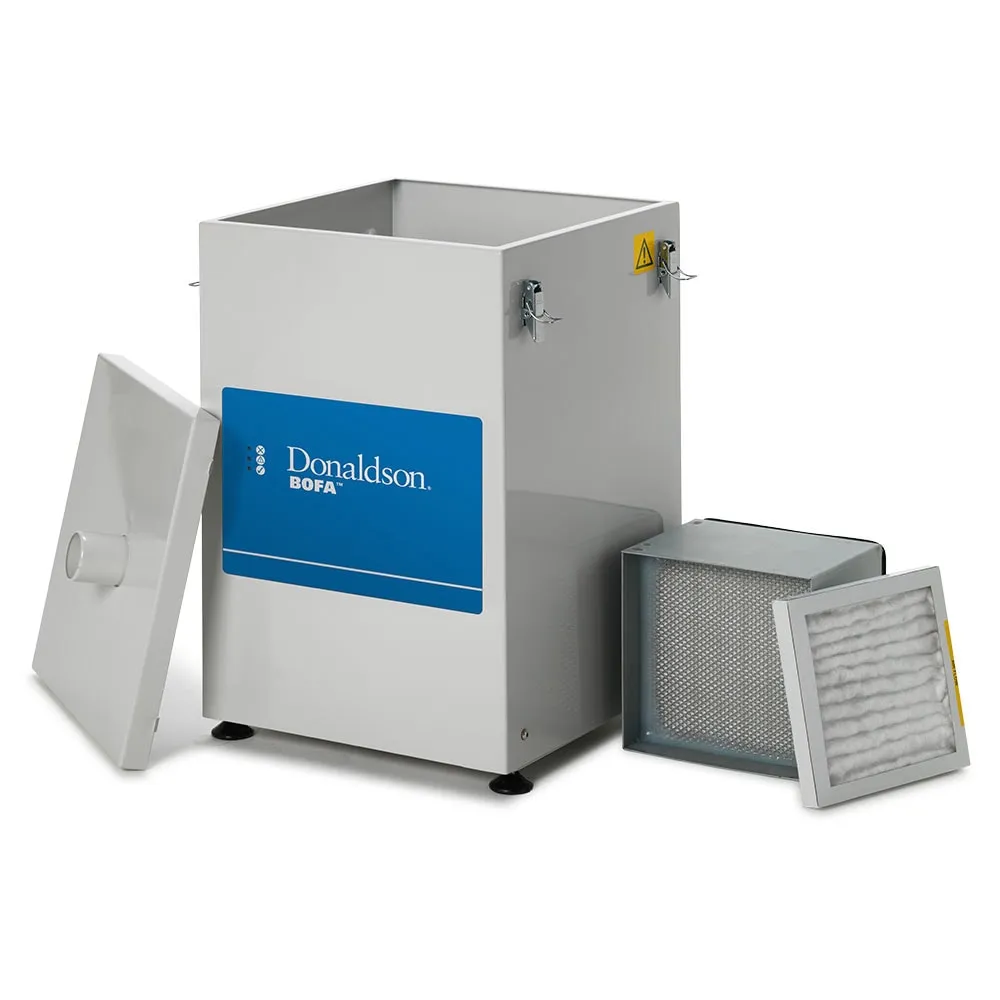

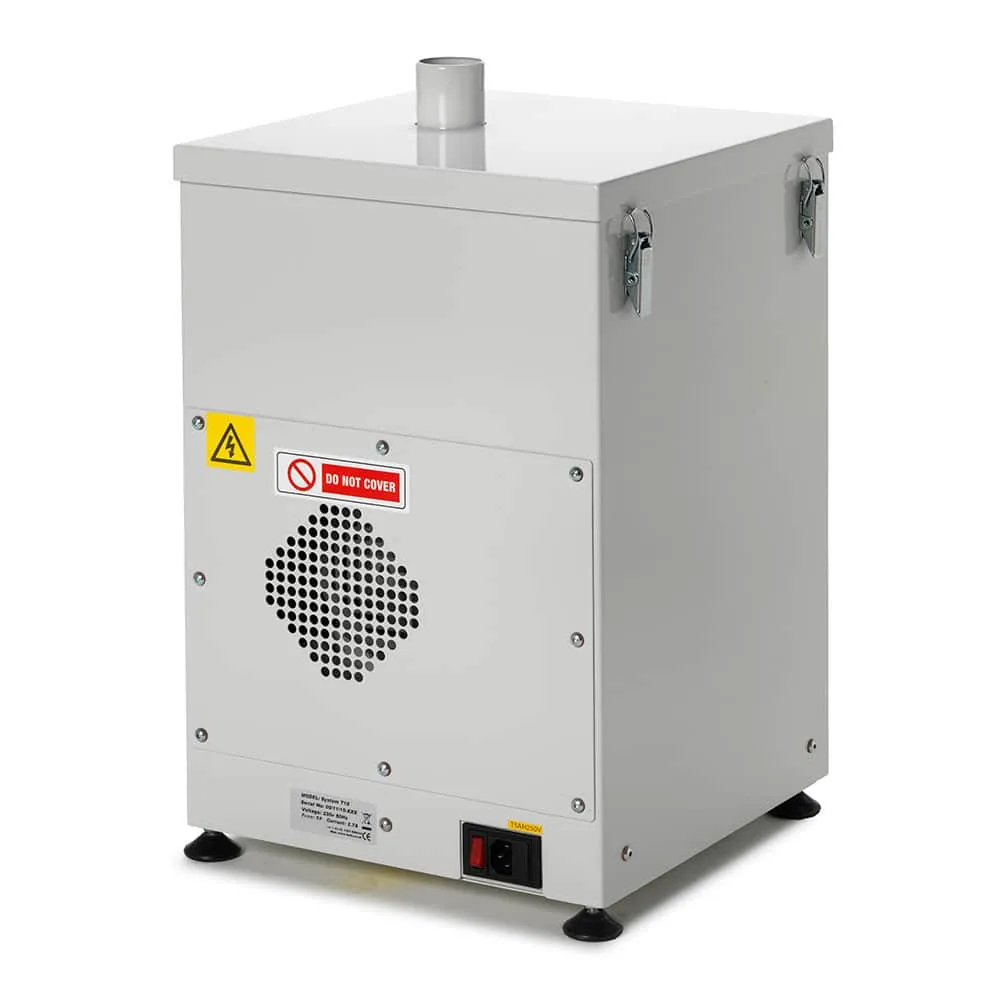

The T 15 extraction system is designed to filter fumes and debris from hand soldering applications with up to 15 operators. Using small bore hoses and attachments, this portable system is ideal for microextraction and other close proximity applications.

  • Compact design
  • High vacuum pumps
  • Low noise level

Approvals: UKCA and CE

Features

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

HEPA filter

Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.

Advanced carbon filters

Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
