KOSMEK LHV Swing Clamp
1-Port Sensing Swing Clamp
1-port sensing hydraulic swing clamp with a new sensing mechanism that confirms both clamp and unclamp actions from one air port. The series is designed for automated setups, with direct-mount speed control valve compatibility, coolant resistance, and multiple body sizes and lever options.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
Modellek összehasonlítása
| Model | Applicable model |
|---|---|
| LHV0400 | LHV0400 |
| LHV0480 | LHV0480 |
| LHV0550 | LHV0550 |
| LHV0650 | LHV0650 |
| LHV0750 | LHV0750 |

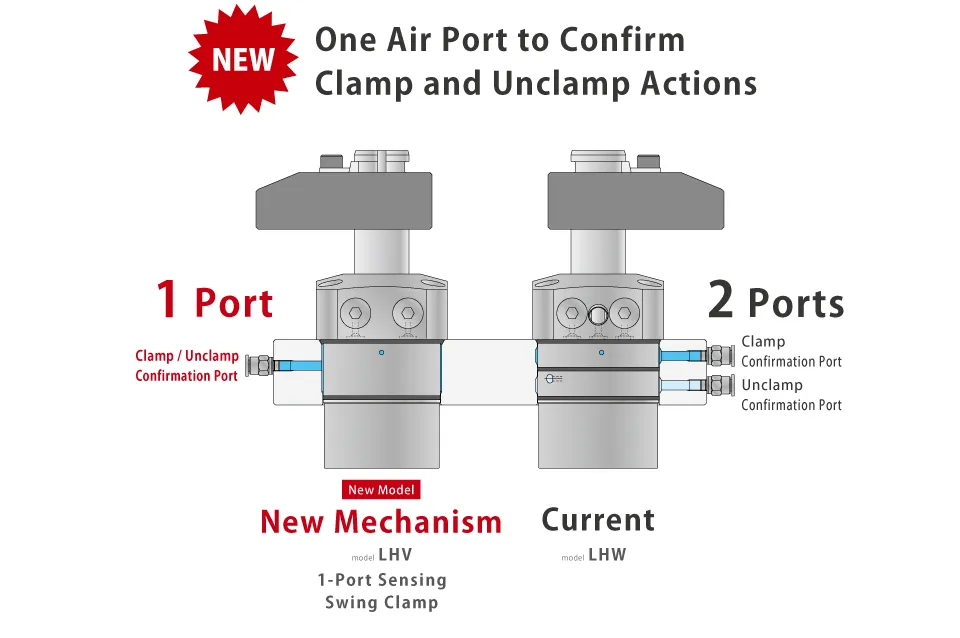

LHV is a hydraulic double-action swing clamp for 1-port sensing applications. One air port is used to detect both clamp and unclamp actions, helping reduce the number of sensors and simplify air passage machining.

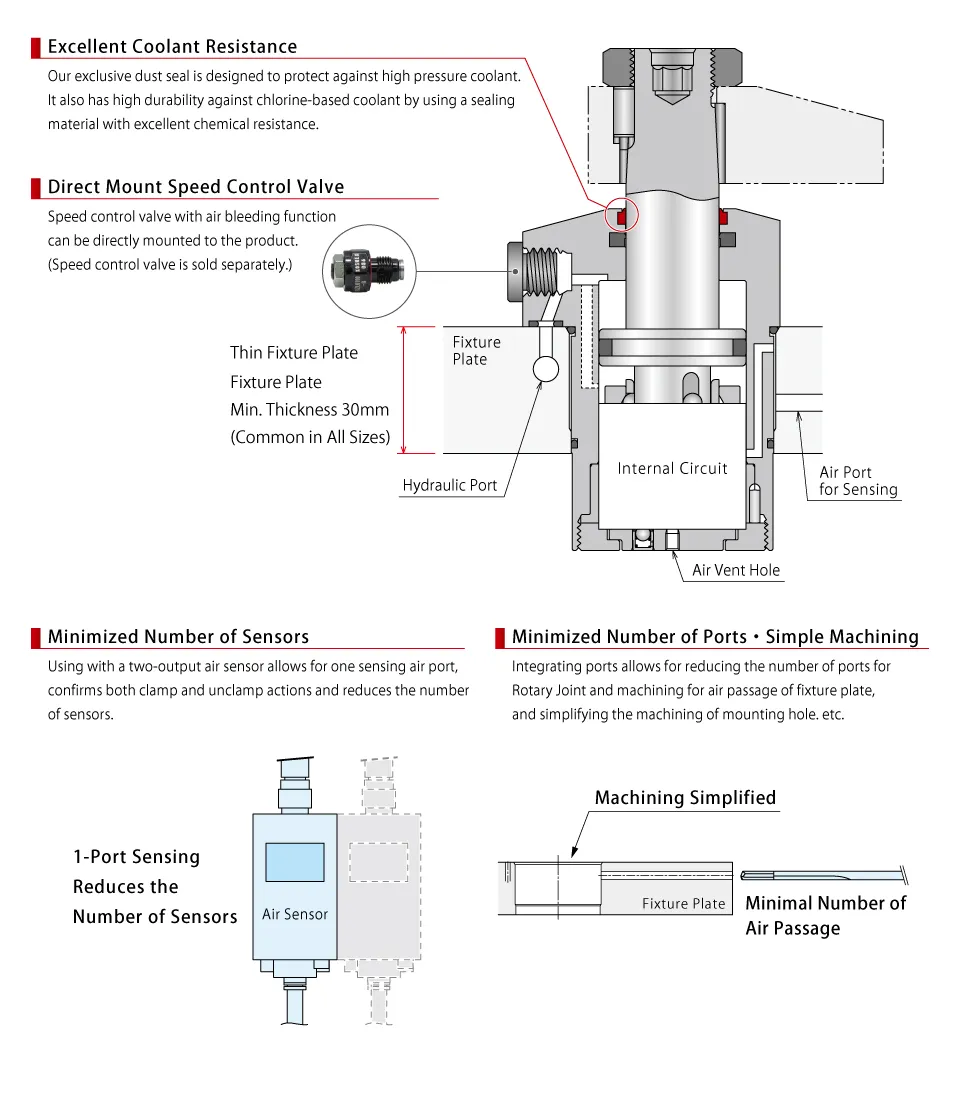

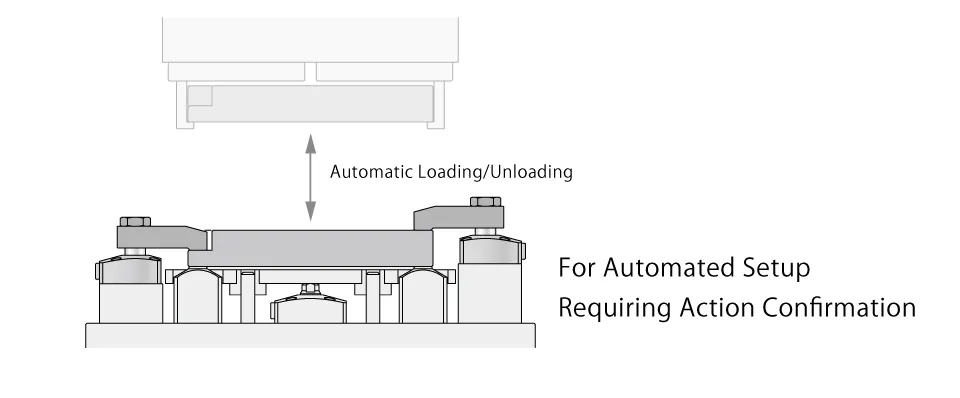

The series is intended for automated loading and unloading setups that require action confirmation. It also highlights coolant resistance, a minimum fixture plate thickness of 30 mm, and compatibility with a directly mounted speed control valve sold separately.
Recommendation: BZL, LZH-T, LZV0010
- 📄 Dokumentum: SBR-LHV001-01-G1B_LHV_R03.pdf
- 📄 Dokumentum: SSL-LHV003-01-GB.pdf
