KOSMEK SWE Hole Clamp
High-Power Pneumatic Hole Clamp【Built-In Mechanical Lock】
High-power pneumatic hole clamp for hole-based Z-axis seating and pull-down clamping. It is designed to clear the machining area on five faces except the clamping face, and the built-in mechanical lock helps maintain clamping force even when air pressure is lost.
Válassz termékvariációt
A szállítási időt az ajánlatban pontosítjuk.
| Maximum operating pressure | 0.5 MPa |
| Allowable offset (floating clearance of expanding area) | ±0.5 mm |
| Full stroke | 4.2 mm |
| Workpiece pulling stroke | 1.0 mm |
| Workpiece lifting stroke | 0.2 mm |
| Operating temperature | 0 ~ 70 °C |
| Usable fluid | Dry Air |
| Workpiece lifting amount when released | 0.2 mm |
| Model | Clamping force | Recommended air blow pressure | Workpiece lifting force | Cylinder capacity, release side | Cylinder capacity, lock side | Workpiece hole diameter |
|---|---|---|---|---|---|---|
| SWE1000 | Up to 1.5 kN at 0.5 MPa kN | 0.4 ~ 0.5 MPa | 0.09 kN | 18.6 cm3 | 17.6 cm3 | 6 ~ 9 mm |
| SWE2000 | Up to 2.2 kN at 0.5 MPa kN | 0.2 ~ 0.3 MPa | 0.15 kN | 25.5 cm3 | 24.2 cm3 | 9 ~ 13 mm |

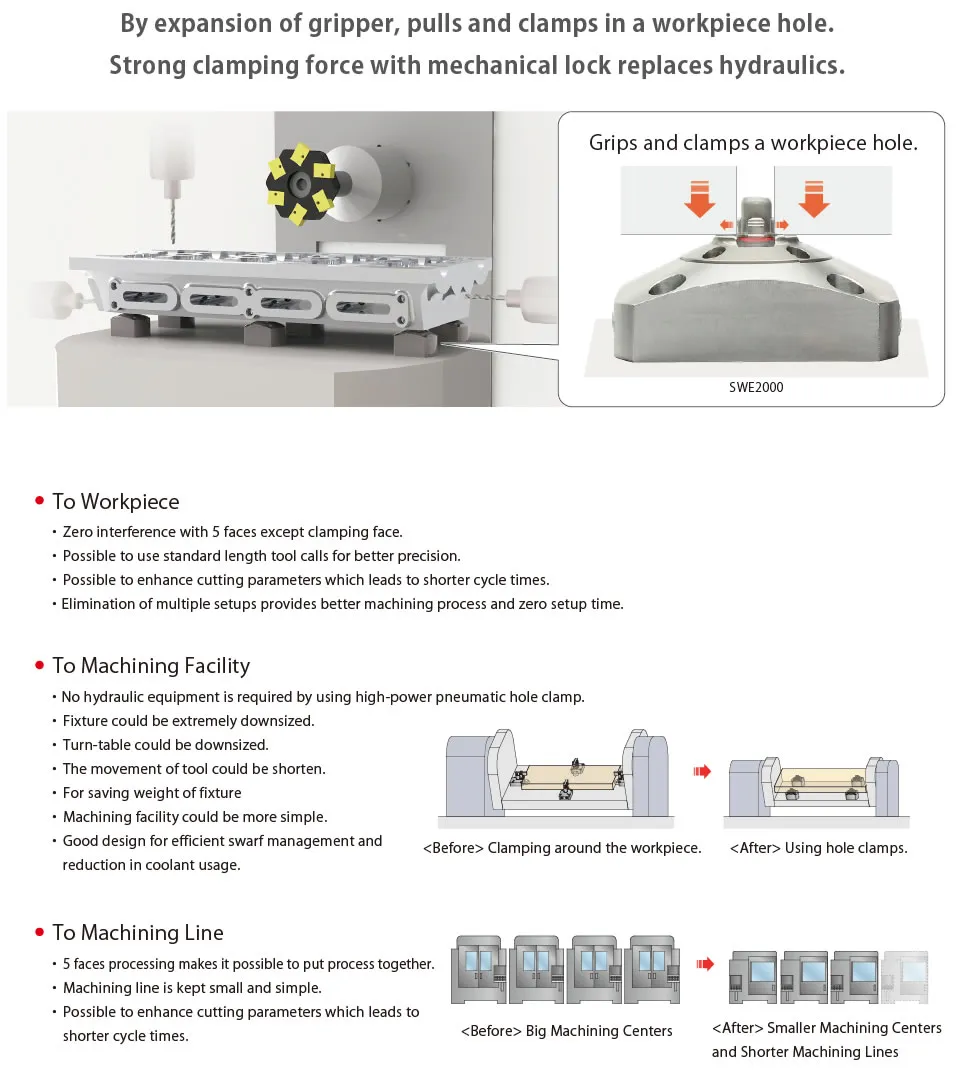

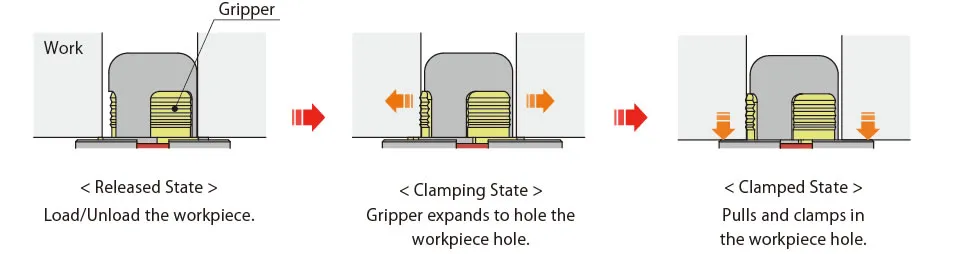

The SWE family is a high-power pneumatic hole clamp. It expands a gripper inside the workpiece hole, pulls the workpiece down to the seating surface, and then maintains the clamped state with a built-in mechanical lock.

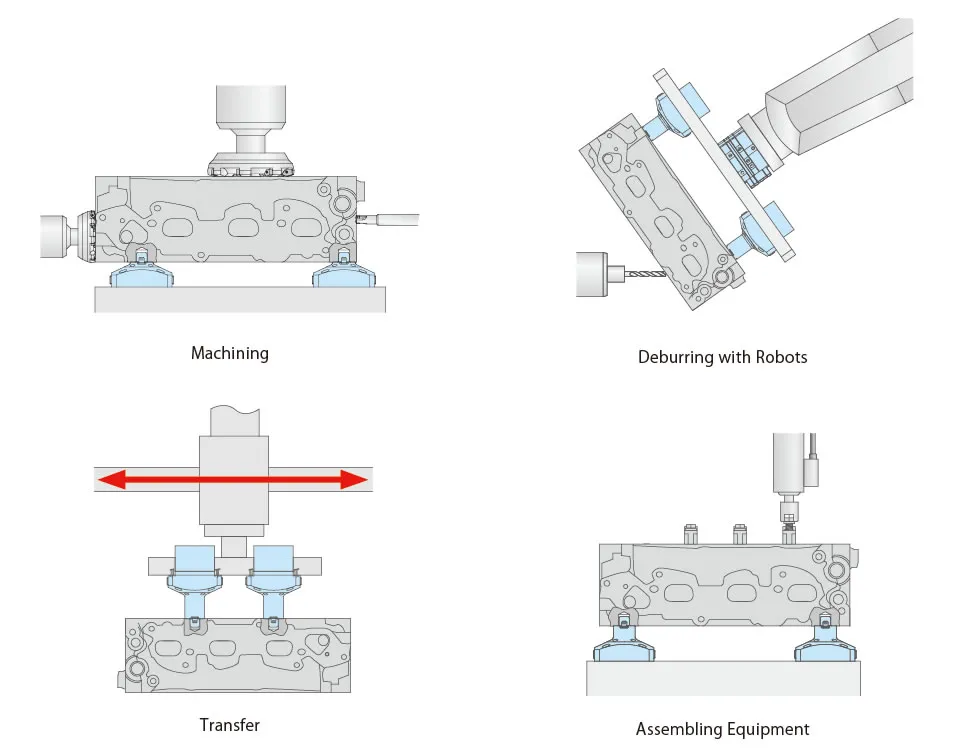

The design supports compact fixtures, clear chip flow, and easier multi-face machining. Some versions add a lifting function for clamp-action confirmation, while the hole interface and seating height can be selected within the documented ranges.
- 📄 Dokumentum: SWE_R02_2019KW_G1B.pdf
