KOSMEK SFG Hole Clamp
Single Action Hole Clamp
Single-action hydraulic hole clamp that grips the workpiece hole and pulls the part down onto the seating surface for Z-axis clamping. The design supports five-face machining with zero interference at the clamping face and uses spring release to reduce piping needs.
A szállítási időt az ajánlatban pontosítjuk.
Applicable model
SFG [family]
Clamping action

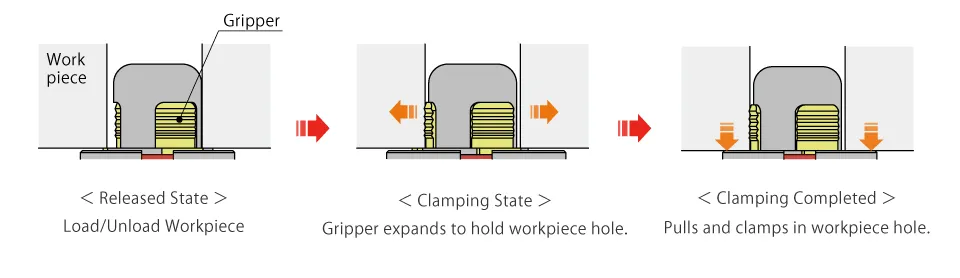

Gripper expands and pulls workpiece down [SFG family]
Workpiece lifting option
0.2 mm [SFG family]

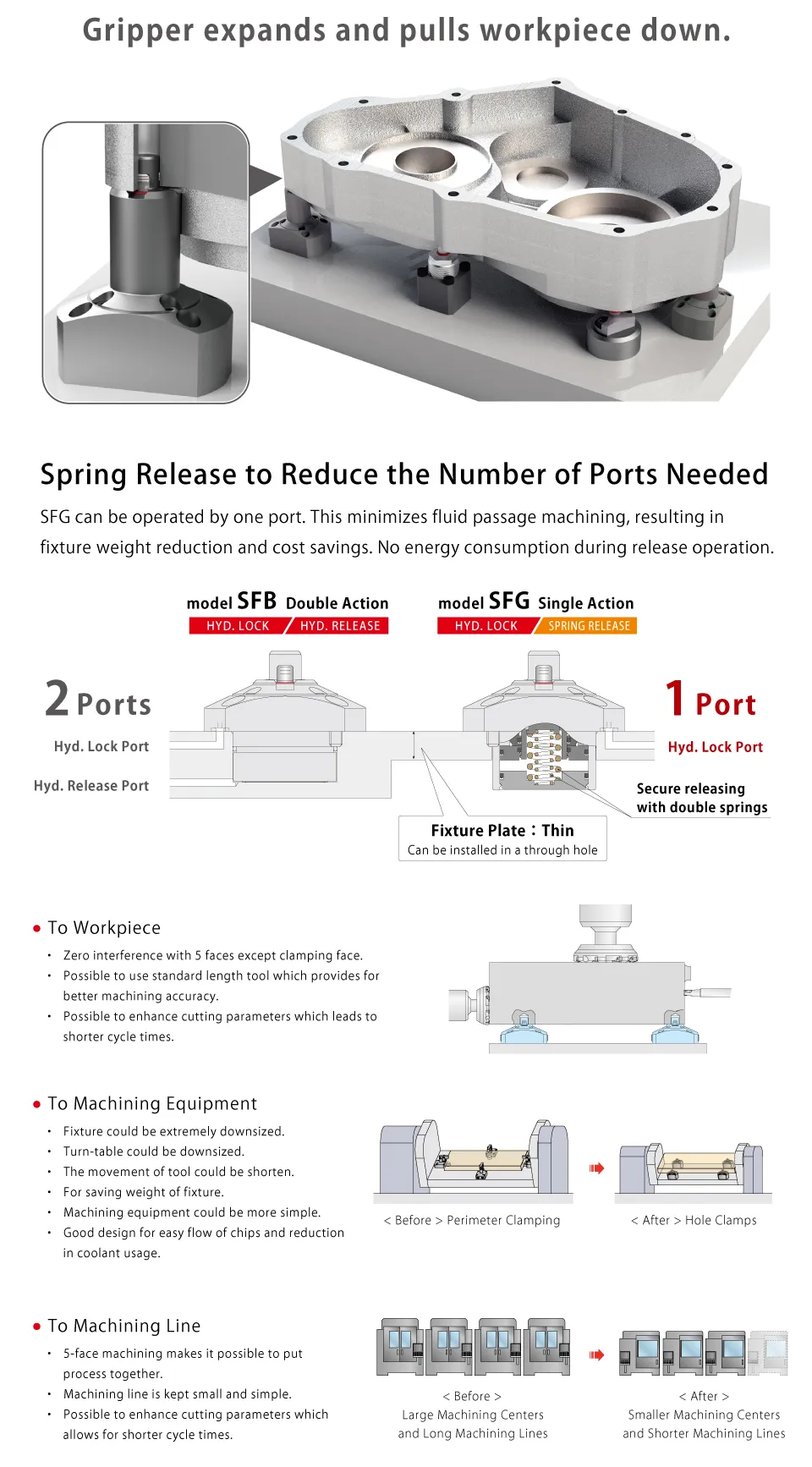

SFG is a single-action hole clamp for hole-based workholding. Hydraulic pressure locks the clamp, and a spring returns it during release. The clamp grips the workpiece hole and pulls the part down onto the seating surface, helping maintain a compact fixture layout with access for five-face machining.
The family emphasizes low-pipe-count installation, stable clamping action, and chip-friendly design. Depending on configuration, it can be used with straight or tapered workpiece holes and with or without a workpiece lifting option.
- 📄 Dokumentum: SBR-SFG001-01-G1B_R01.pdf
