KOSMEK SFC Hole Clamp
Double Action Hole Clamp【Offset Model】
Hydraulic offset hole clamp for hole-based workholding, designed to avoid interference with workpieces, fixtures and tools. It uses a double-action hydraulic structure with built-in seating confirmation and is intended for stable clamping in 5-face machining applications.
A szállítási időt az ajánlatban pontosítjuk.
Applicable model
SFC [SFC family]
Clamping concept

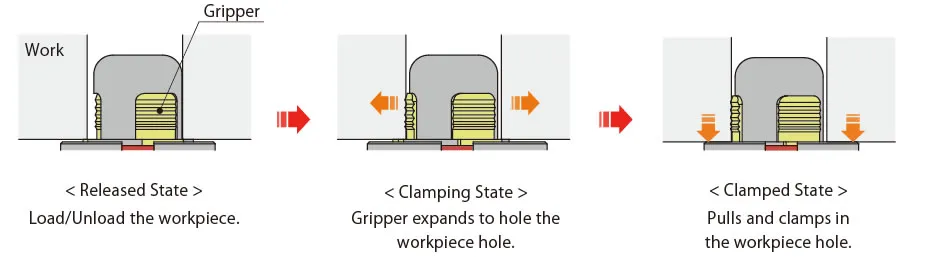

Grips the workpiece hole and pulls it onto the seating surface [SFC family]
Machinable faces
5 faces except the clamping face [SFC family]
Offset purpose
Avoids interference with workpiece and tooling [SFC family]
| Workpiece lifting option | 0.2 mm [SFC family with lifting option] |

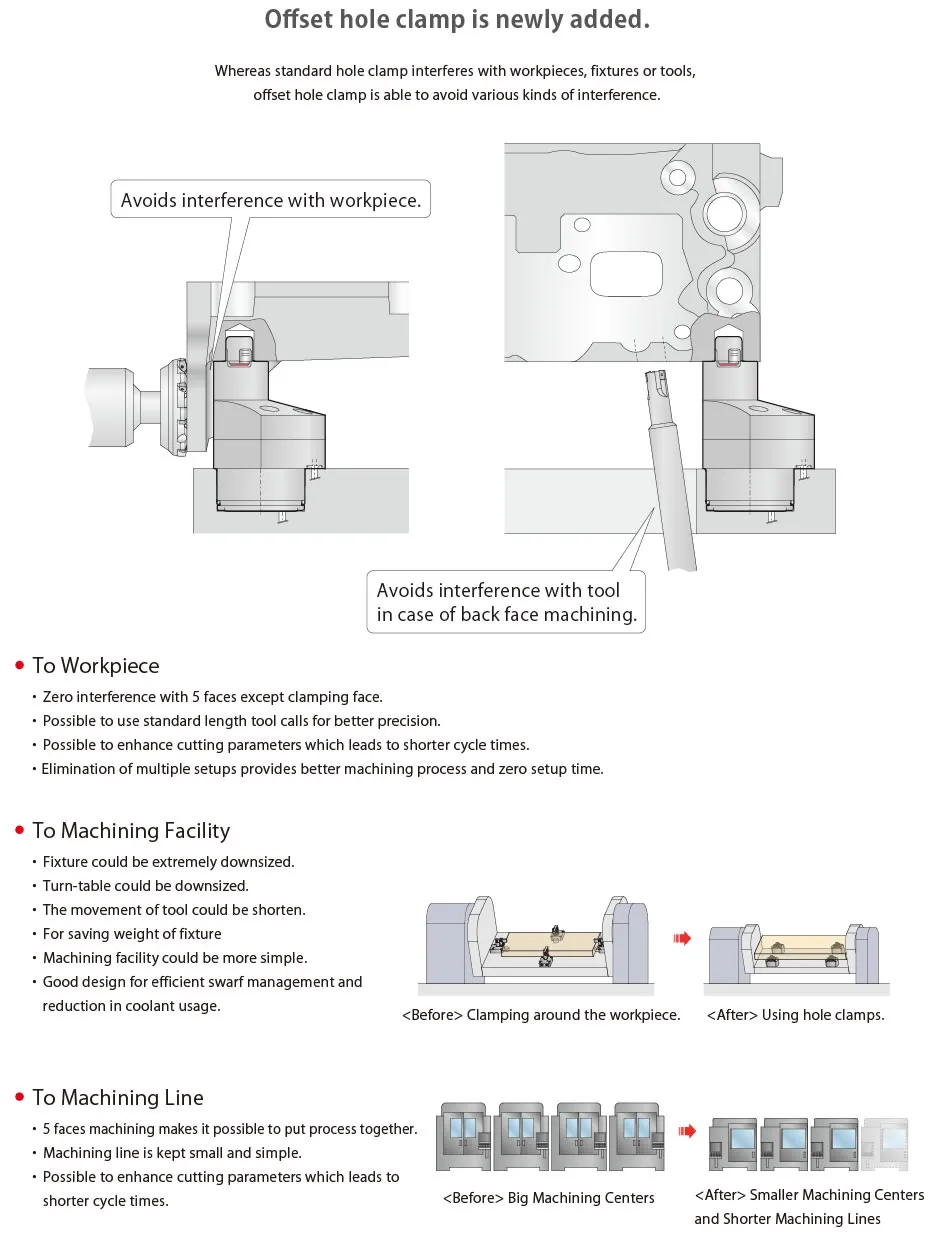

The SFC is a hydraulic hole clamp with an offset body layout for applications where the standard hole clamp would interfere with the workpiece, fixture or tool. It grips the workpiece hole, pulls it down to the seating surface, and supports compact fixture design for 5-face machining.
The clamp is a double-action model with hydraulic lock and release. It includes clamp action detection features for automated lines, and the offset design is intended to improve machining access and tool clearance.
- 📄 Dokumentum: SFC_R04_2019KW_G1B.pdf
