KOSMEK SFB Hole Clamp
Double Action Hole Clamp【Standard Model】
Hydraulic double-acting hole clamp for gripping a workpiece hole and pulling it down onto the seating surface. It is designed to reduce interference around the workpiece and support compact, efficient 5-face machining.
A szállítási időt az ajánlatban pontosítjuk.
Clamping action
Gripper expands and pulls workpiece down [SFB family]
Seating height increment
5 mm [SFB family]

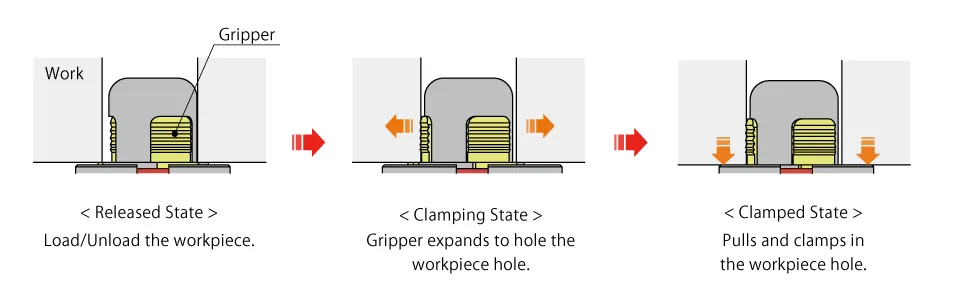

The SFB is a hydraulic hole clamp with a double-acting action. It expands inside the workpiece hole and then pulls the workpiece down onto the seating surface, helping reduce interference and simplify machining layout.

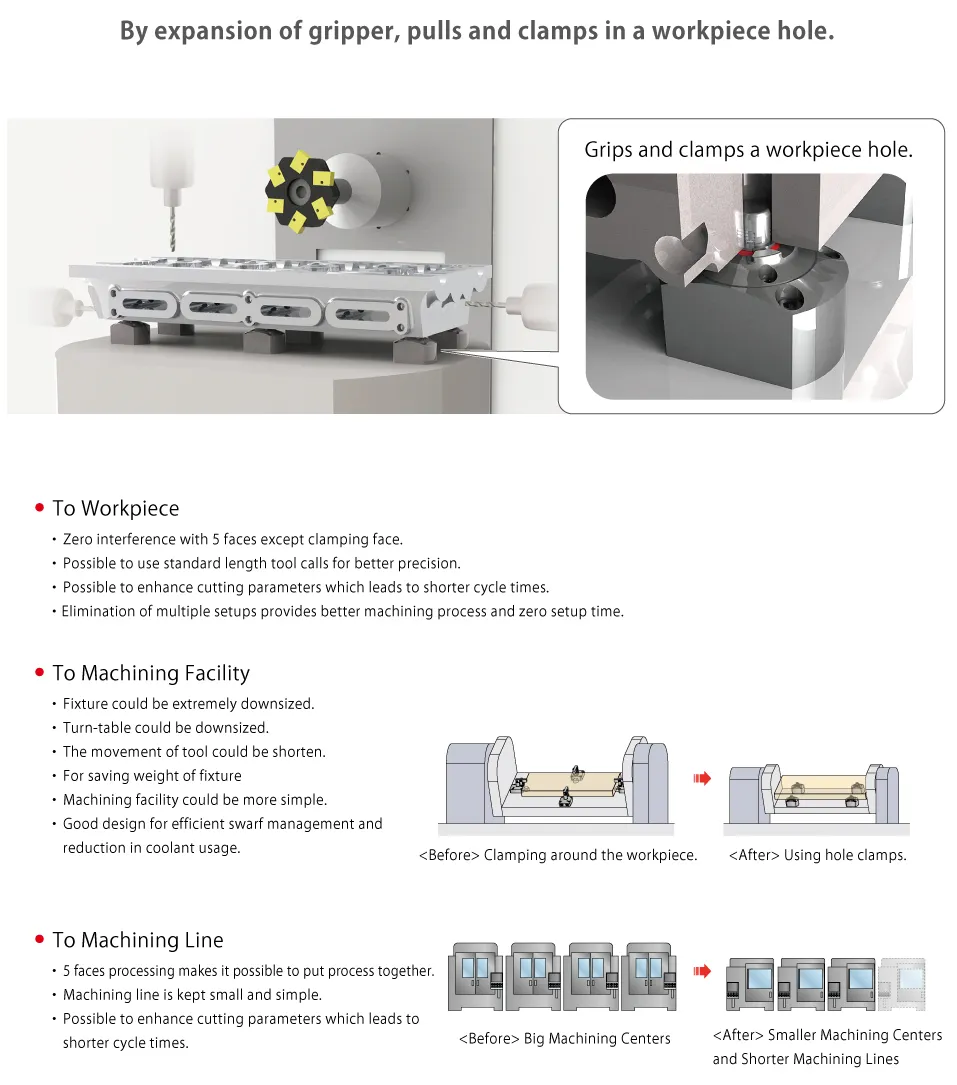

It is intended for compact fixture design and efficient 5-face machining, with seating height available in 5 mm increments.
The clamp uses hydraulic lock and release ports, and the standard model includes clamp action detection functions for automated production use. A lifting option is available to raise the workpiece slightly when released.
- 📄 Dokumentum: SFB_R05_2023KW_G1B.pdf
